Front Electronic Module (FEM) C201f

Fig 1: Identifying Front Electronic Module (FEM) C201f Connector Pinouts
G01183346Courtesy of FORD MOTOR CO.

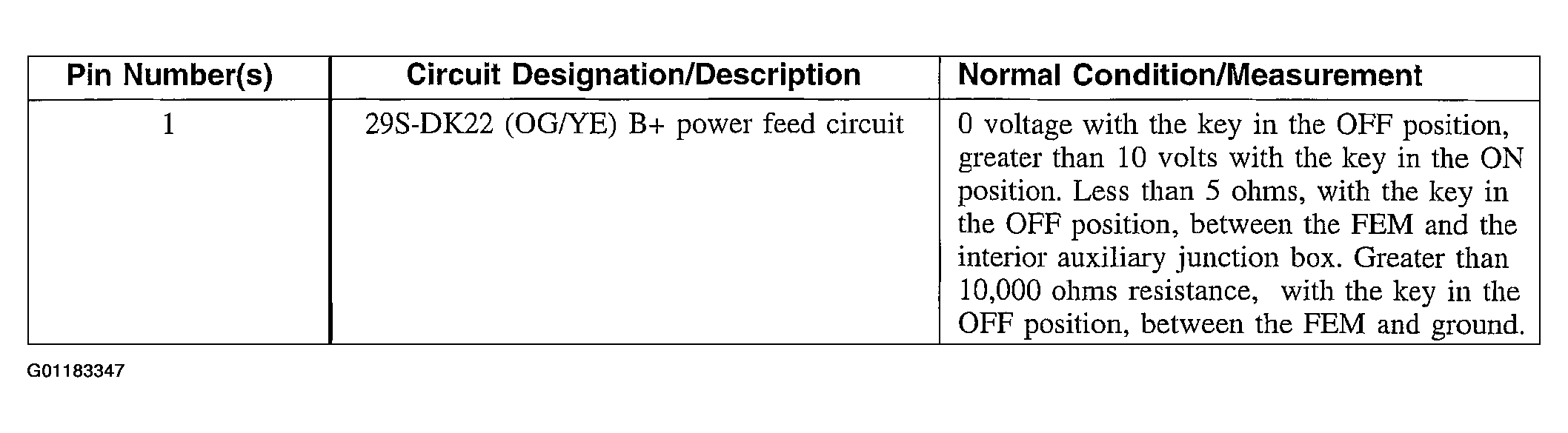

Fig 2: Front Electronic Module (FEM) C201f Connector Pin Reference Chart (1 Of 2)
G01183347Courtesy of FORD MOTOR CO.

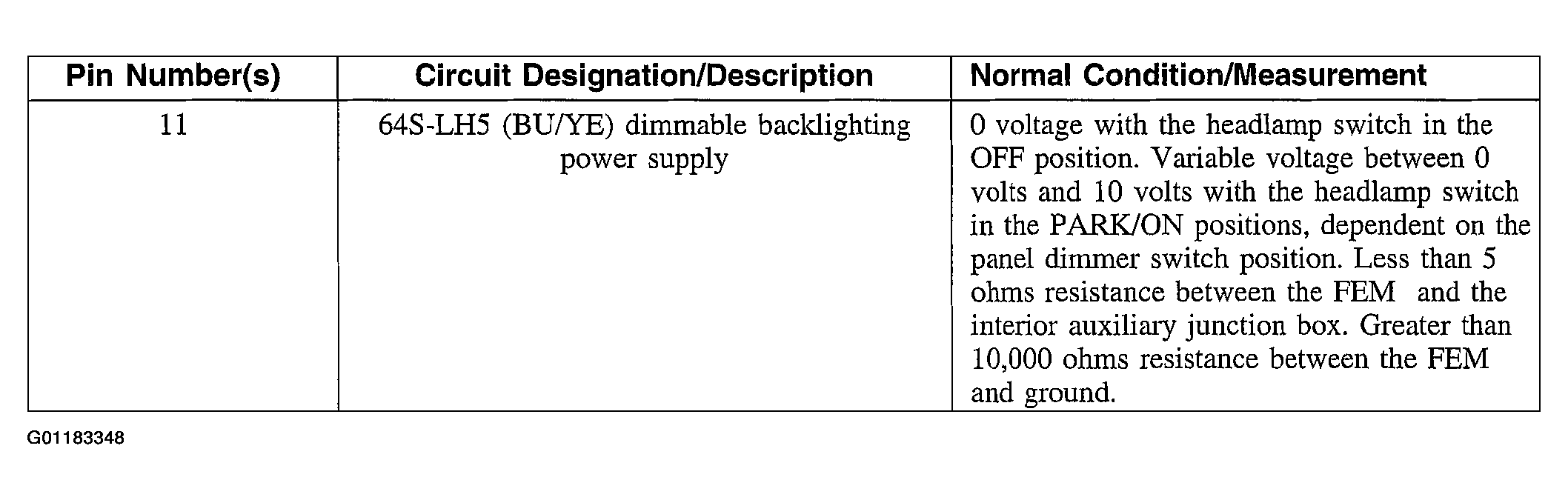

Fig 3: Front Electronic Module (FEM) C201f Connector Pin Reference Chart (2 Of 2)
G01183348Courtesy of FORD MOTOR CO.
