Electronic Park Brake Release Switch C3218

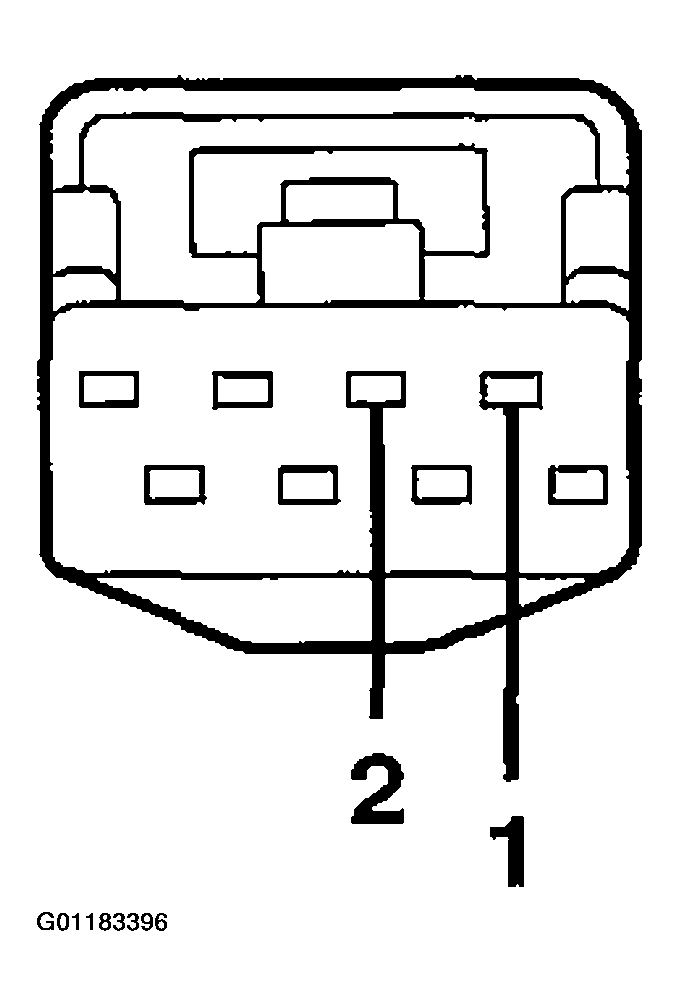

Fig 1: Identifying Electronic Park Brake Release Switch C3218 Connector Pinouts
G01183396Courtesy of FORD MOTOR CO.

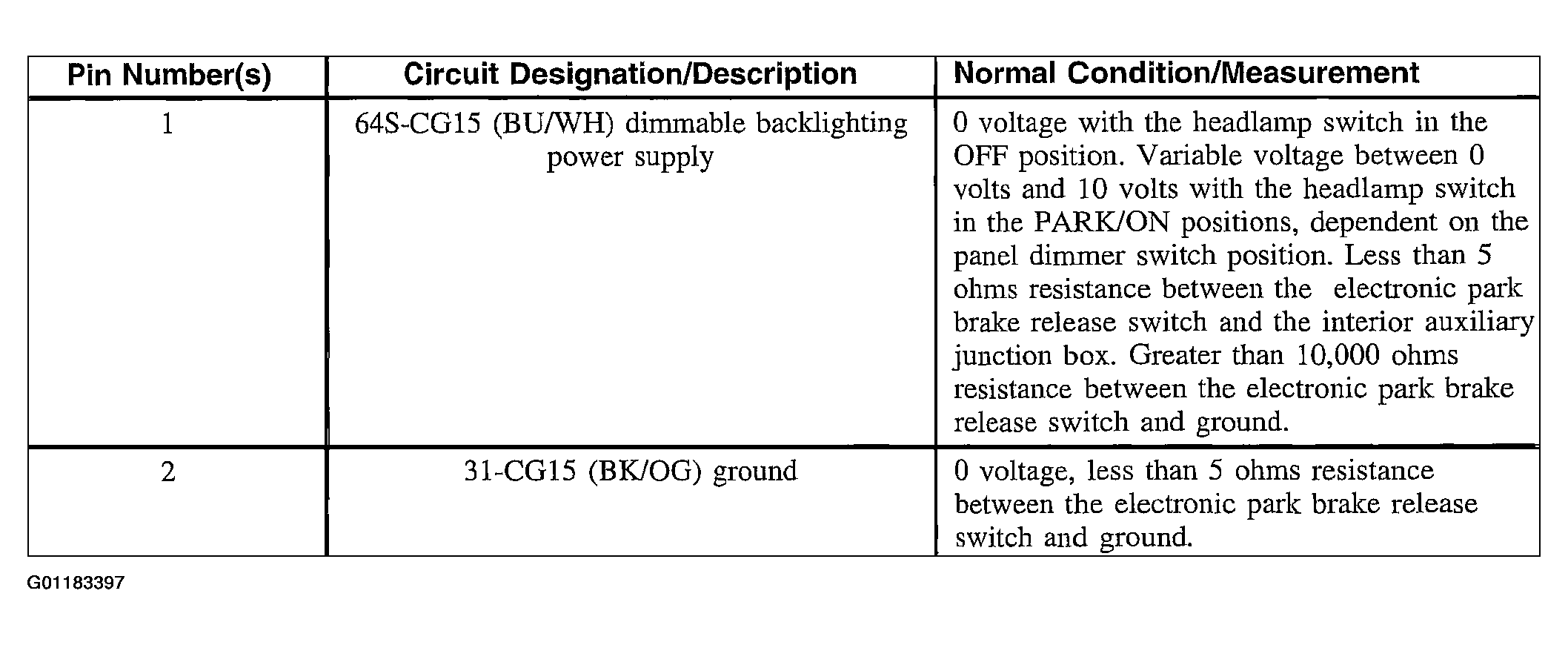

Fig 2: Electronic Park Brake Release Switch C3218 Connector Pin Reference Chart
G01183397Courtesy of FORD MOTOR CO.
