Clockspring C218b

Fig 1: Identifying Clockspring C218b Connector Pinouts
G01183353Courtesy of FORD MOTOR CO.

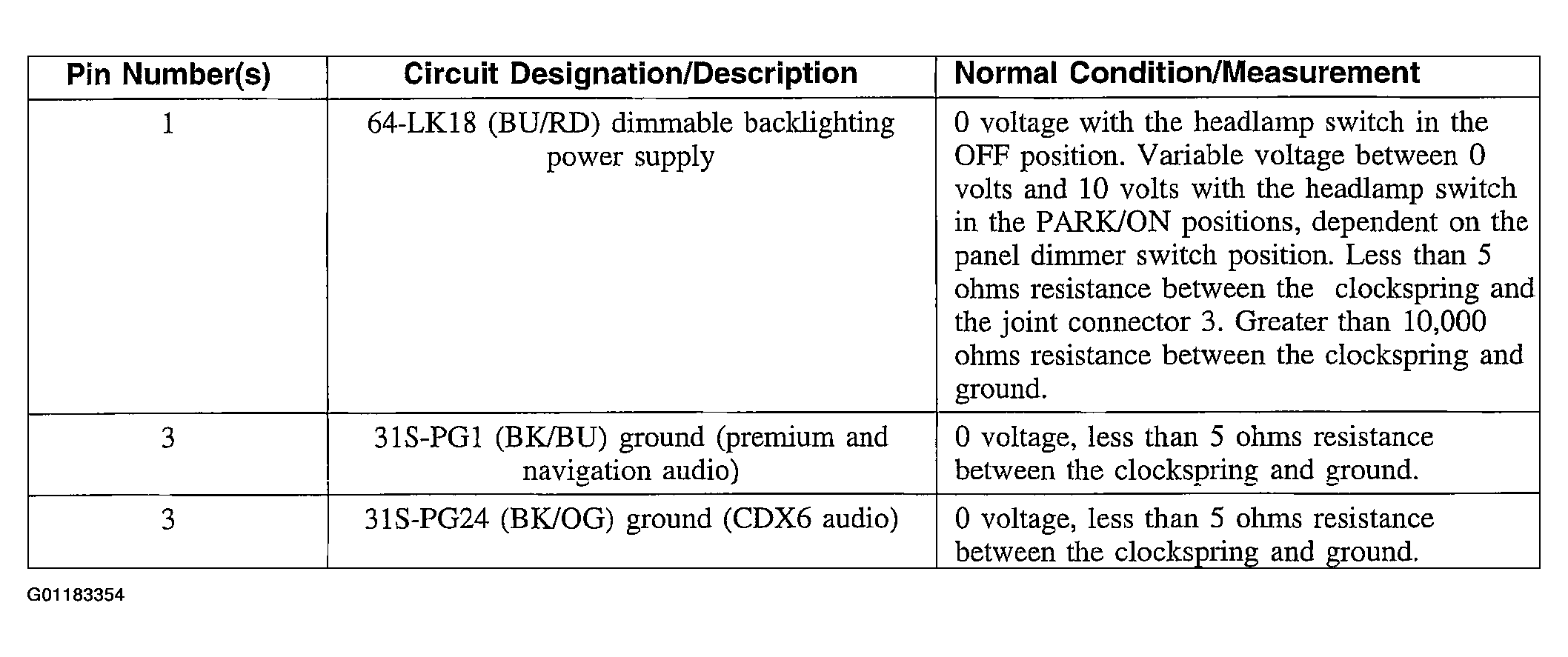

Fig 2: Clockspring C218b Connector Pin Reference Chart
G01183354Courtesy of FORD MOTOR CO.
