Adjustable Pedal Switch C2089

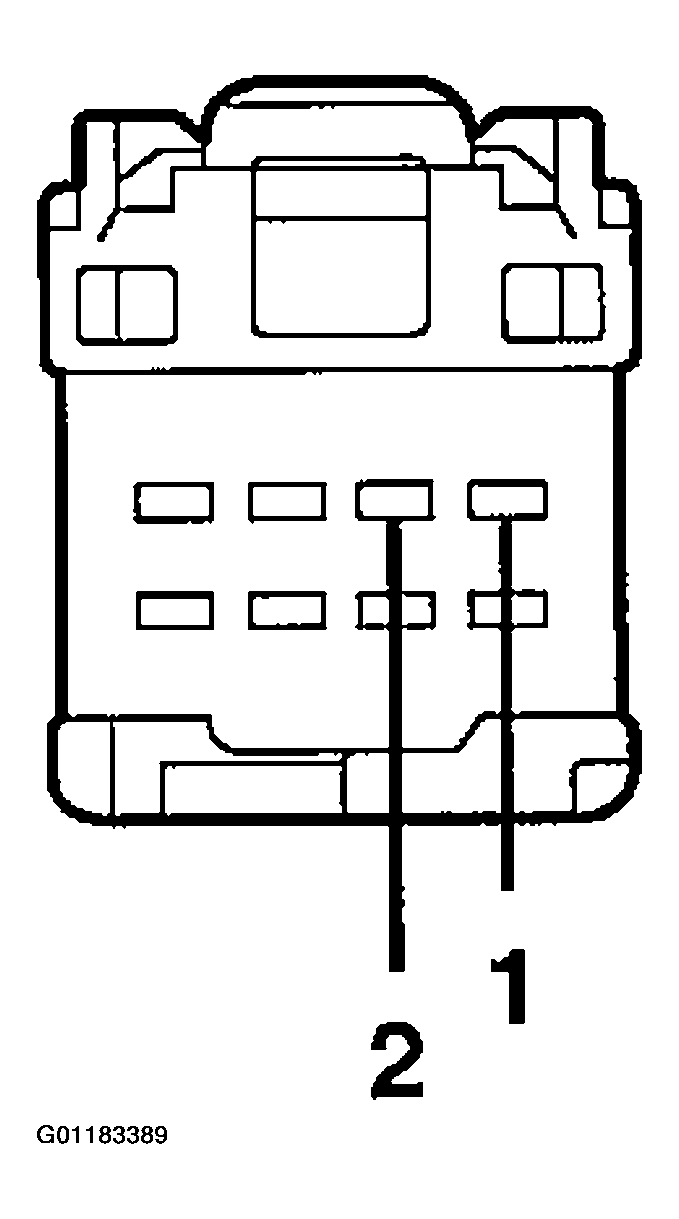

Fig 1: Identifying Adjustable Pedal Switch C2089 Connector Pinouts
G01183389Courtesy of FORD MOTOR CO.

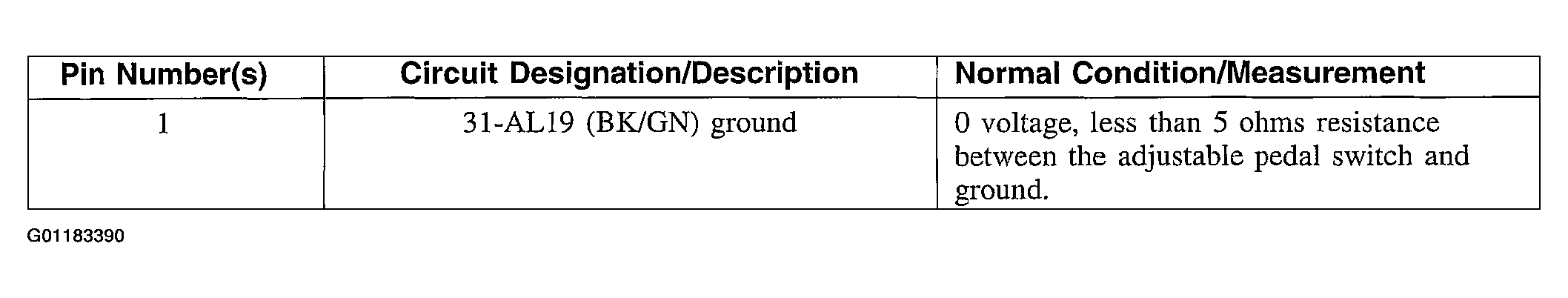

Fig 2: Adjustable Pedal Switch C2089 Connector Pin Reference Chart (1 Of 2)
G01183390Courtesy of FORD MOTOR CO.

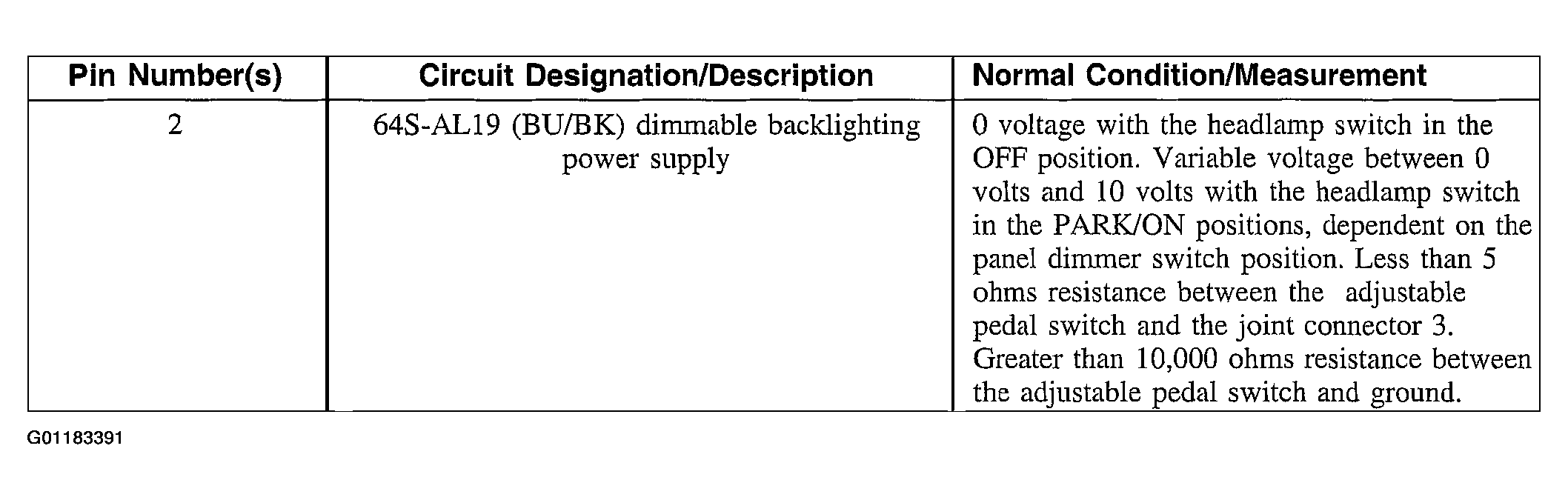

Fig 3: Adjustable Pedal Switch C2089 Connector Pin Reference Chart (2 Of 2)
G01183391Courtesy of FORD MOTOR CO.
