Pinpoint Test C: The Control Illumination Is Always On

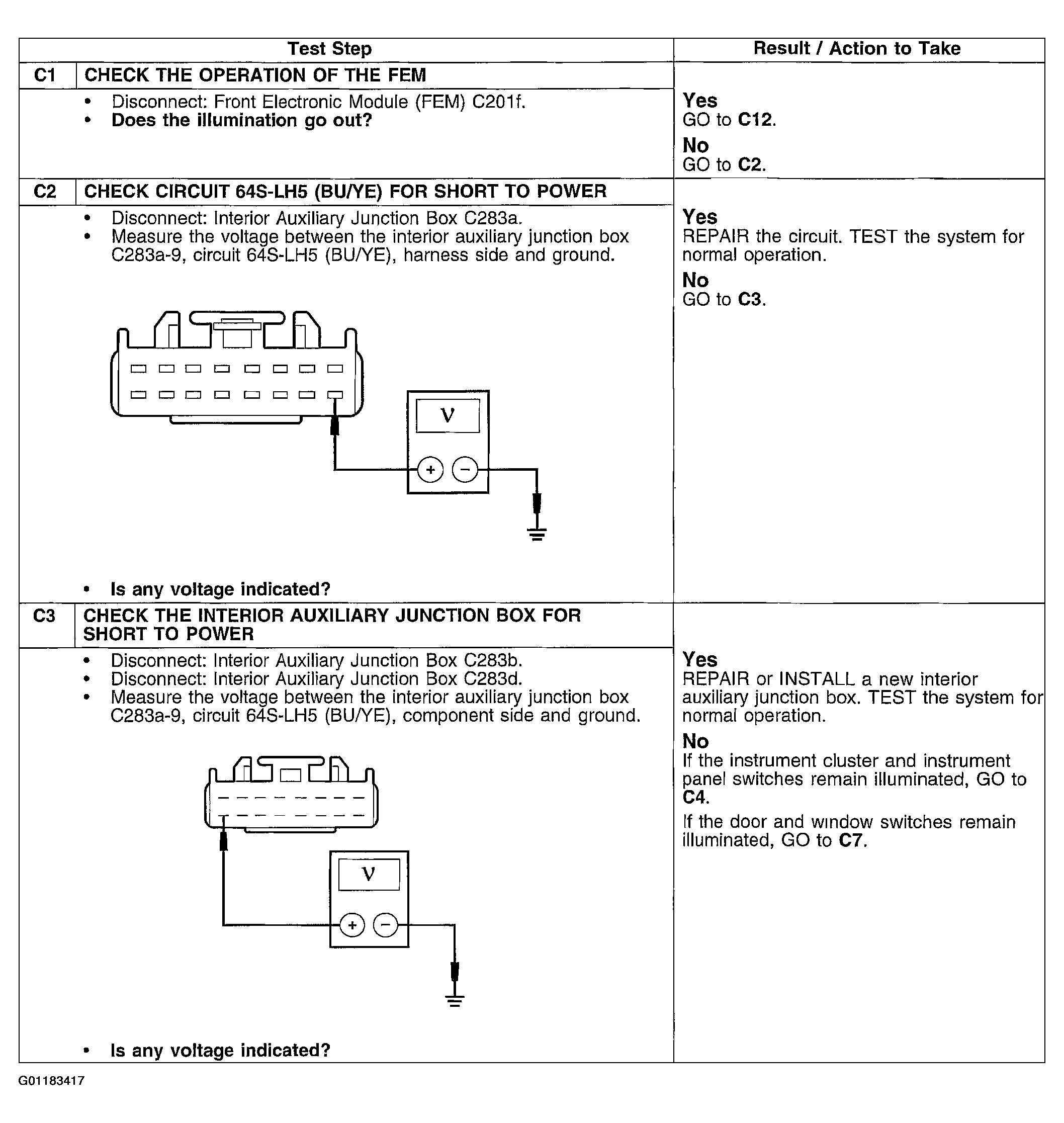

Fig 1: Pinpoint Test C: Control Illumination Is Always On (Steps C1-C3)

Courtesy of FORD MOTOR CO.

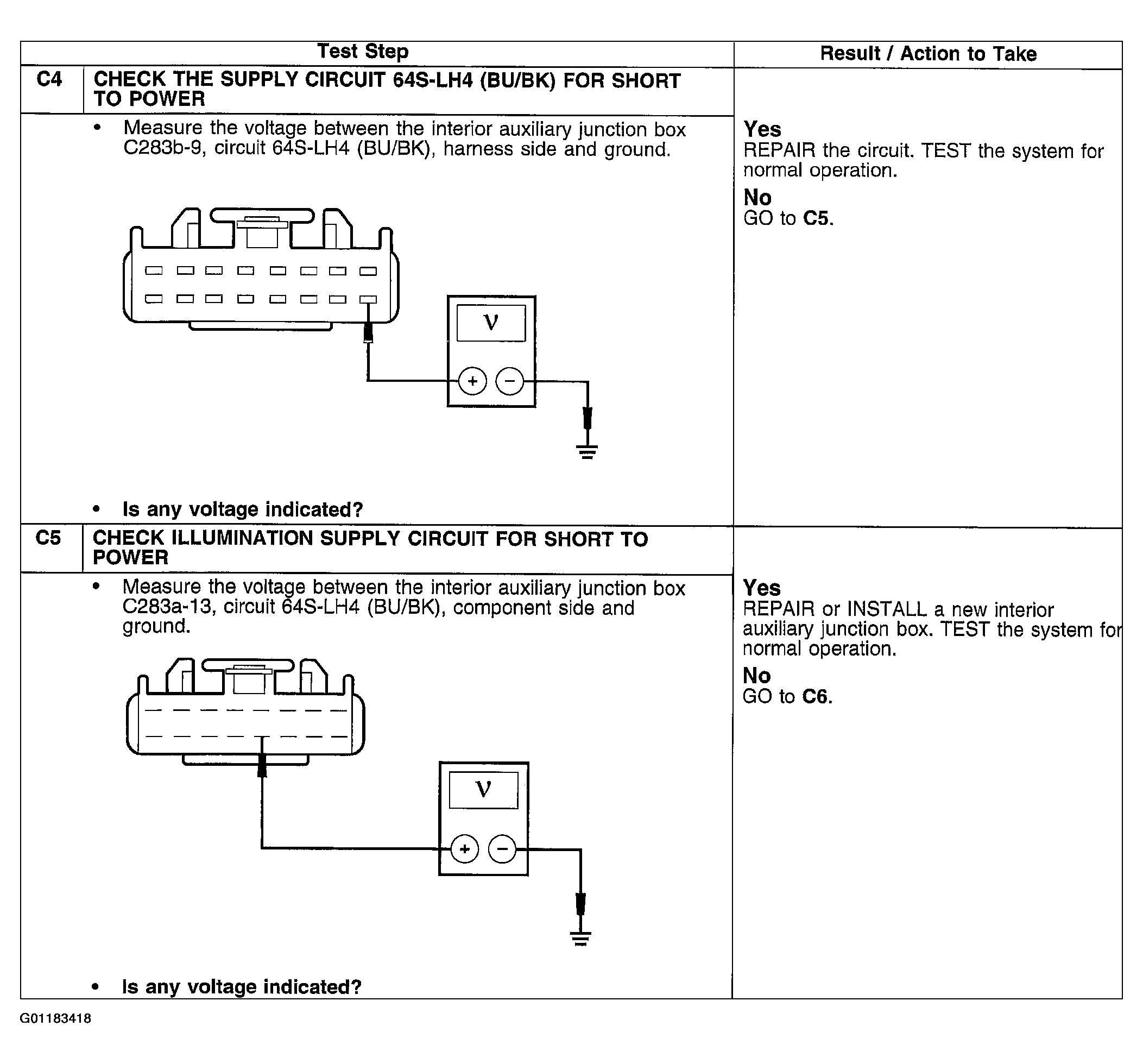

Fig 2: Pinpoint Test C: Control Illumination Is Always On (Steps C4-C5)

Courtesy of FORD MOTOR CO.

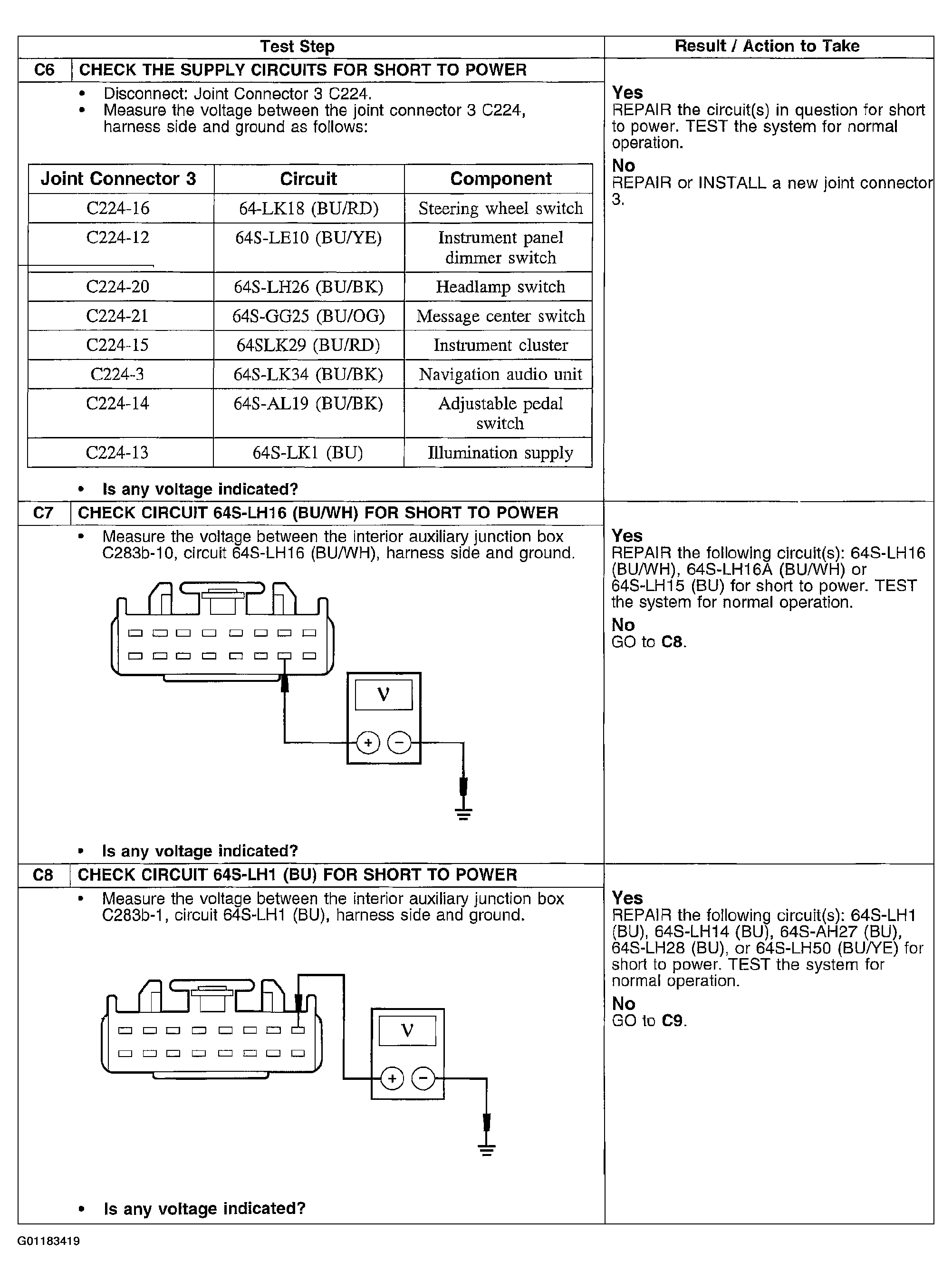

Fig 3: Pinpoint Test C: Control Illumination Is Always On (Steps C6-C8)

Courtesy of FORD MOTOR CO.

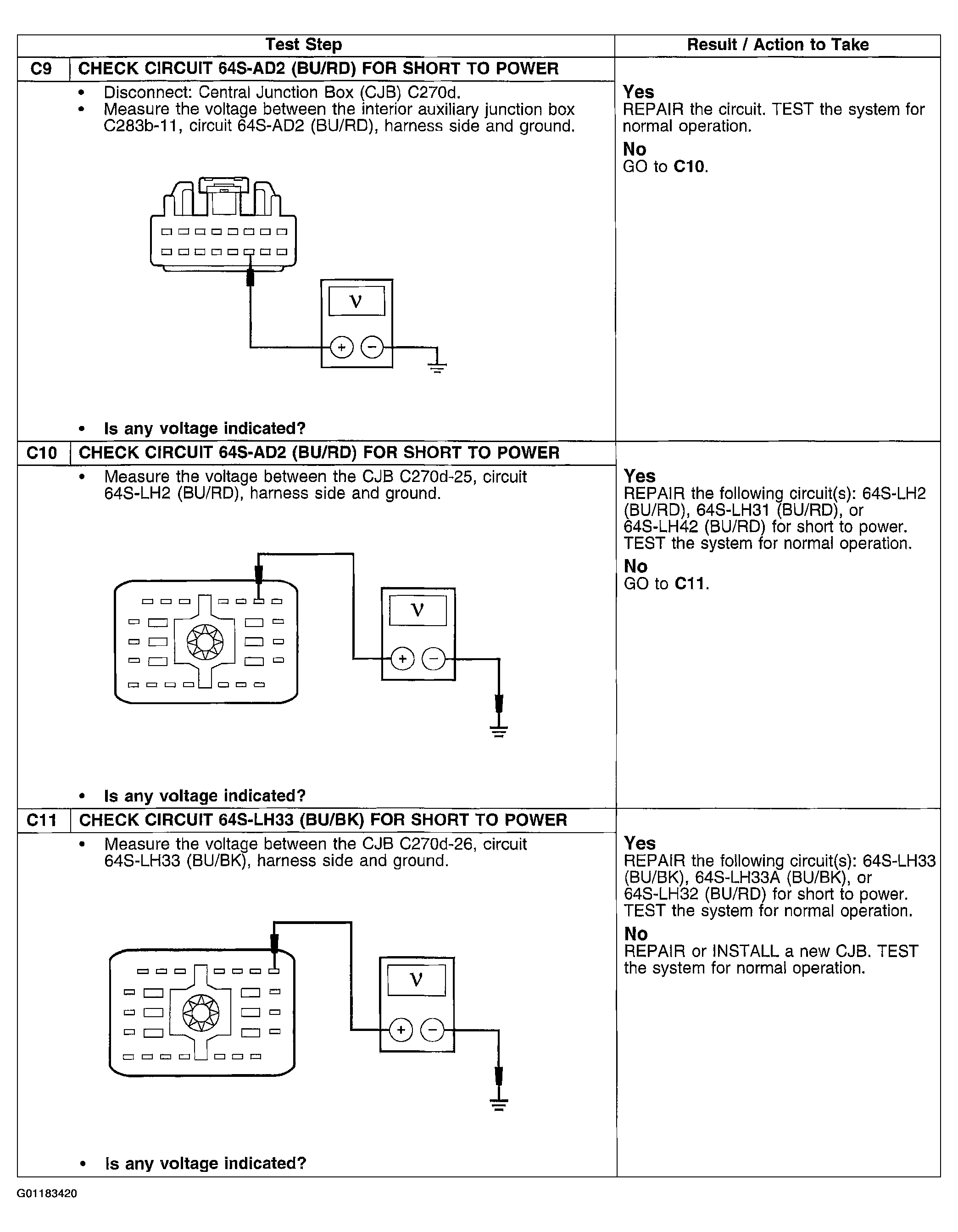

Fig 4: Pinpoint Test C: Control Illumination Is Always On (Steps C9-C11)

Courtesy of FORD MOTOR CO.

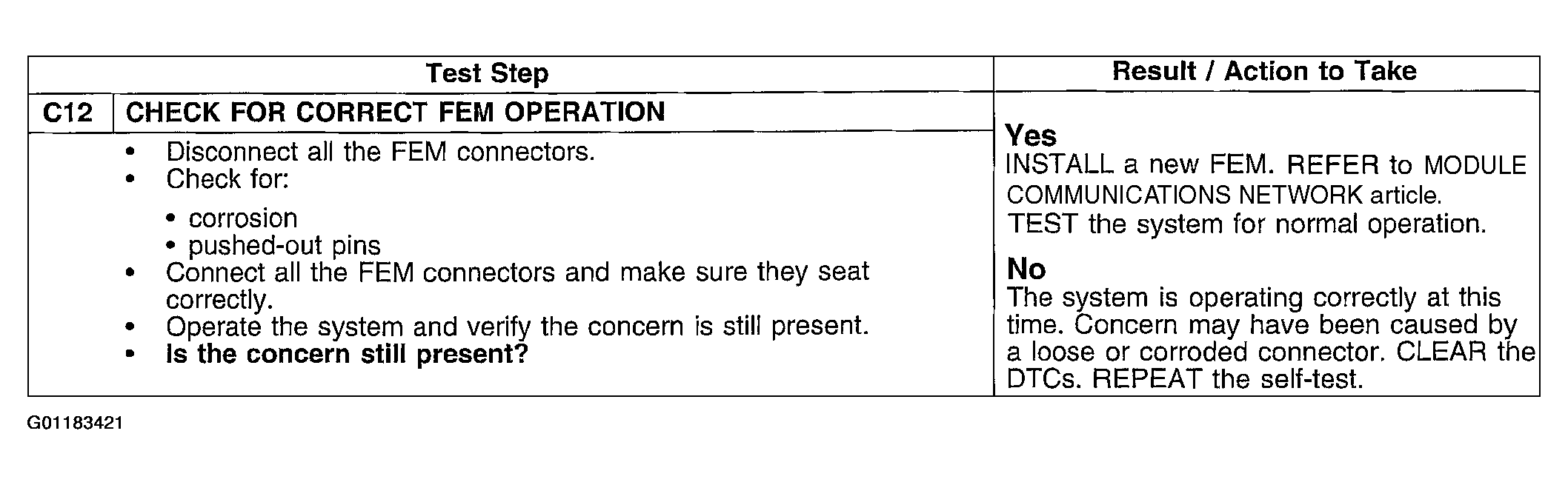

Fig 5: Pinpoint Test C: Control Illumination Is Always On (Steps C12)

Courtesy of FORD MOTOR CO.
