Pinpoint Test B: The Control Illumination Is Inoperative

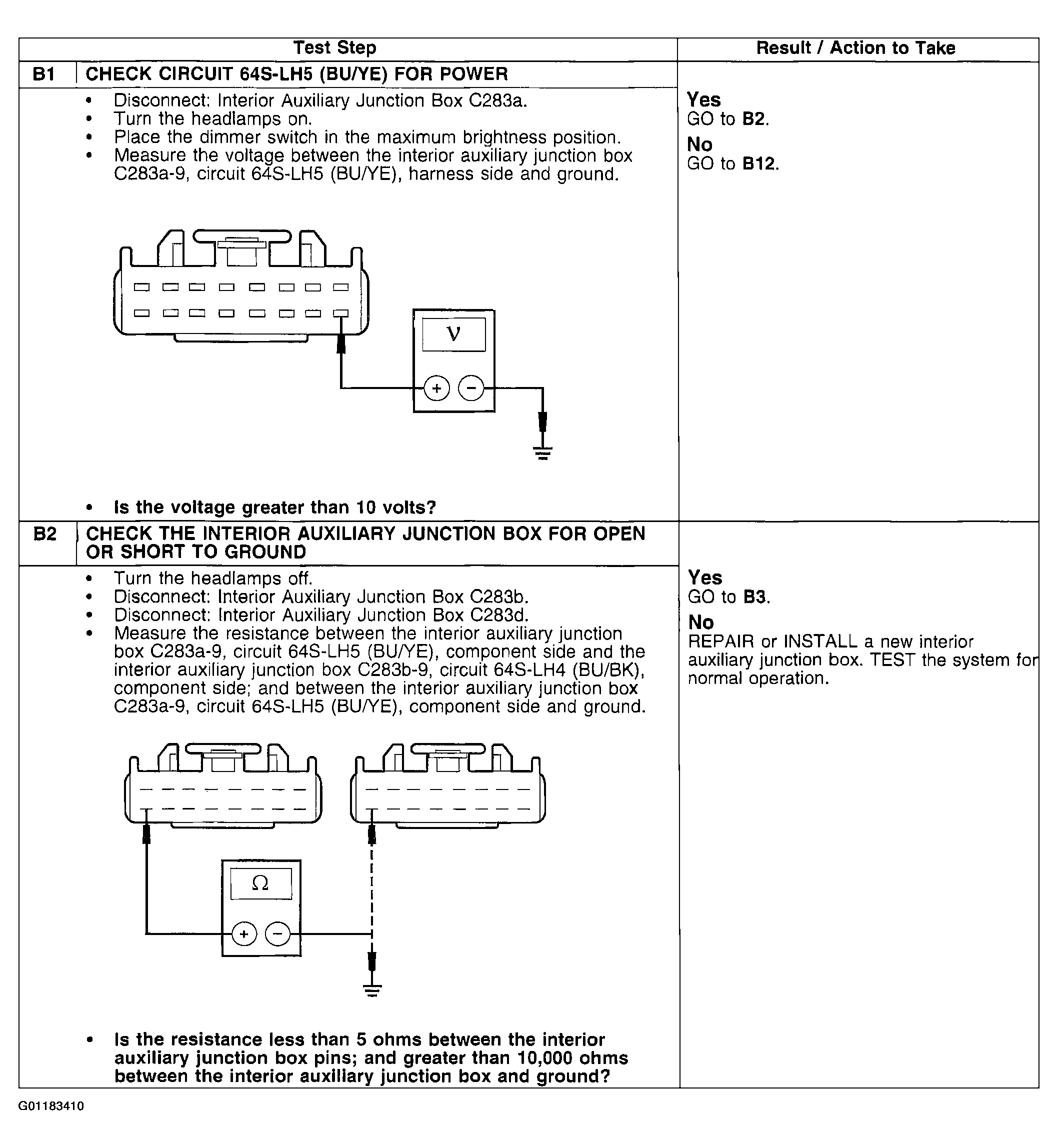

Fig 1: Pinpoint Test B: Control Illumination Is Inoperative (Steps B1-B2)

Courtesy of FORD MOTOR CO.

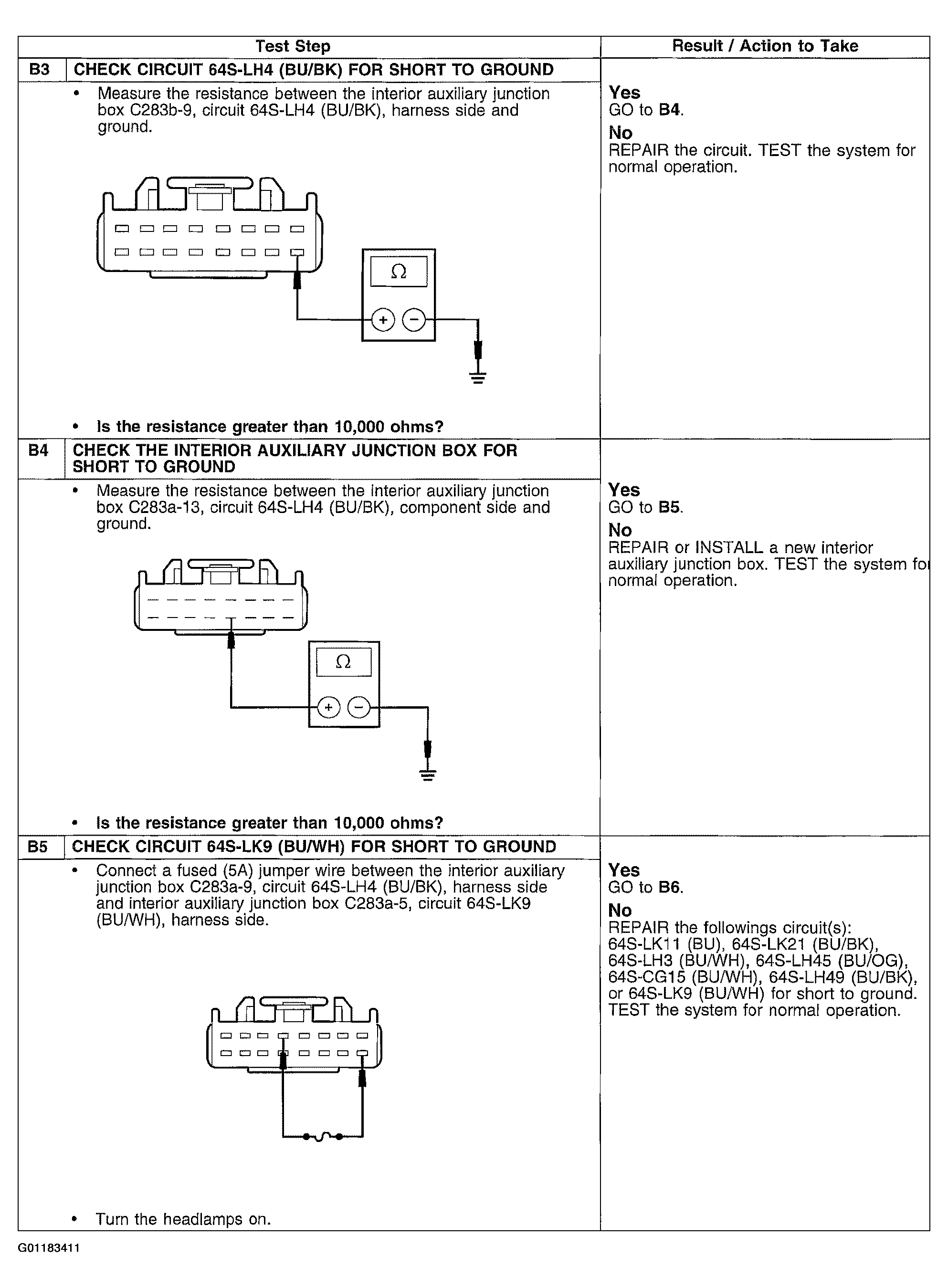

Fig 2: Pinpoint Test B: Control Illumination Is Inoperative (Steps B3-B5)

Courtesy of FORD MOTOR CO.

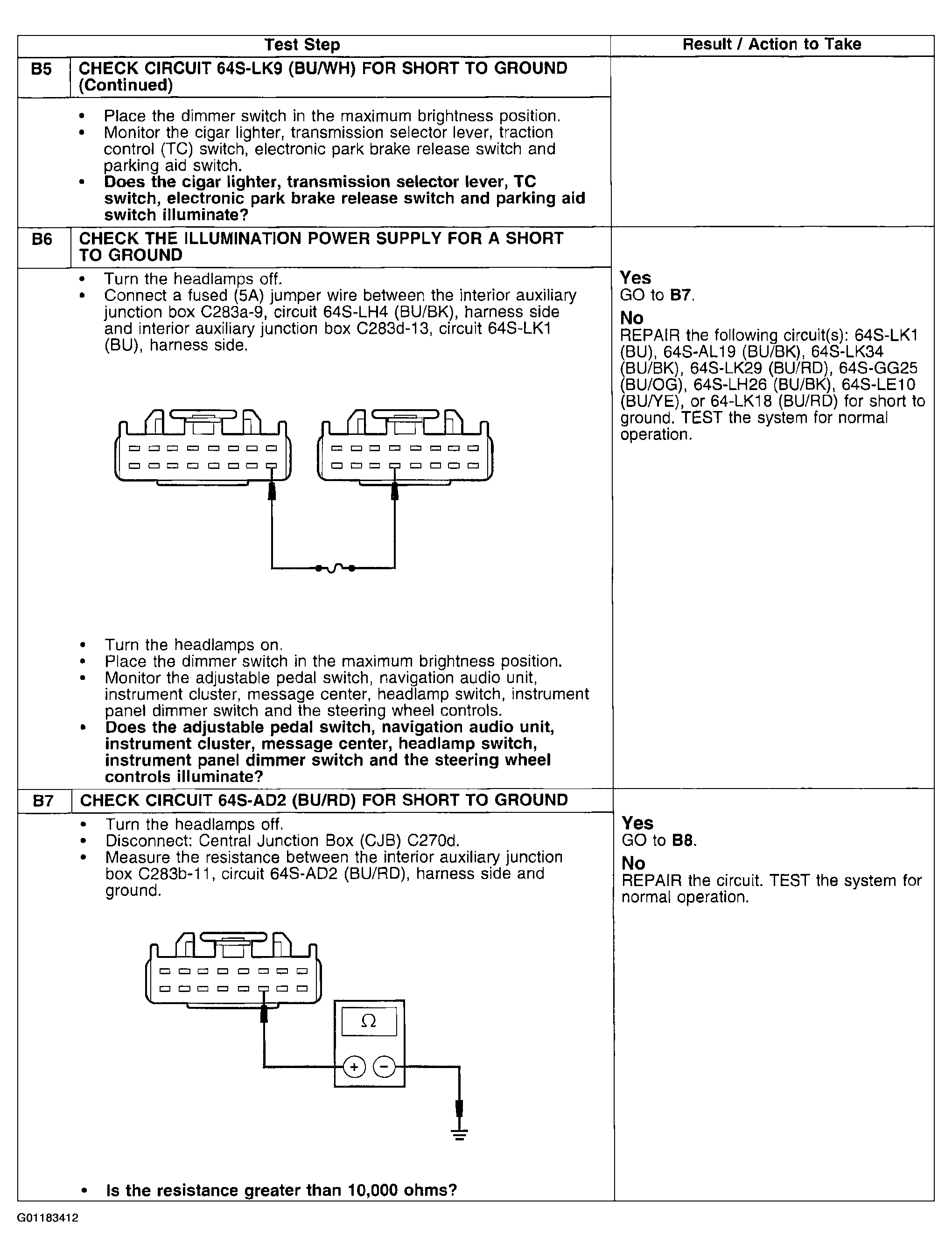

Fig 3: Pinpoint Test B: Control Illumination Is Inoperative (Steps B5 Cont.-B7)

Courtesy of FORD MOTOR CO.

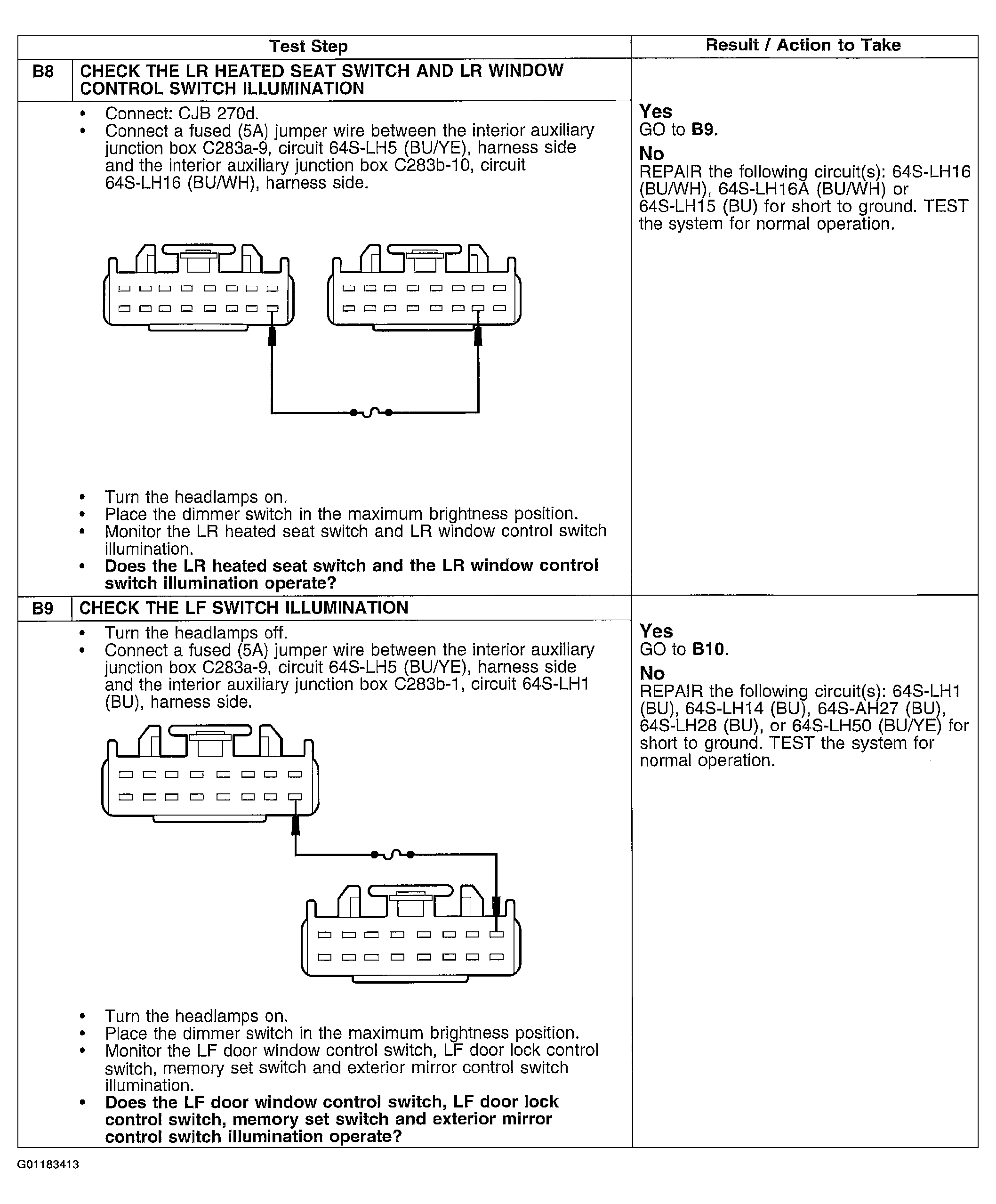

Fig 4: Pinpoint Test B: Control Illumination Is Inoperative (Steps B8-B9)

Courtesy of FORD MOTOR CO.

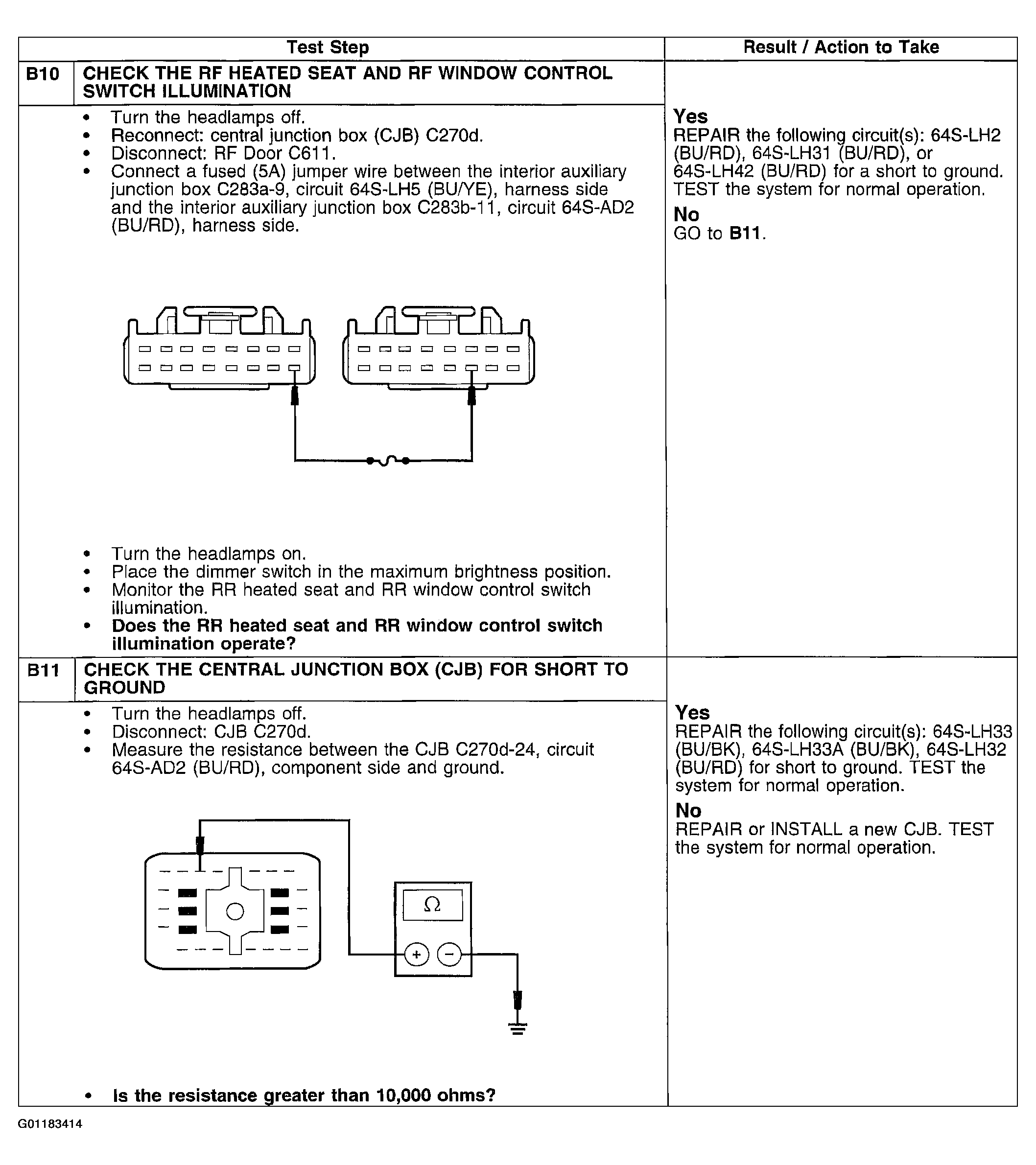

Fig 5: Pinpoint Test B: Control Illumination Is Inoperative (Steps B10-B11)

Courtesy of FORD MOTOR CO.

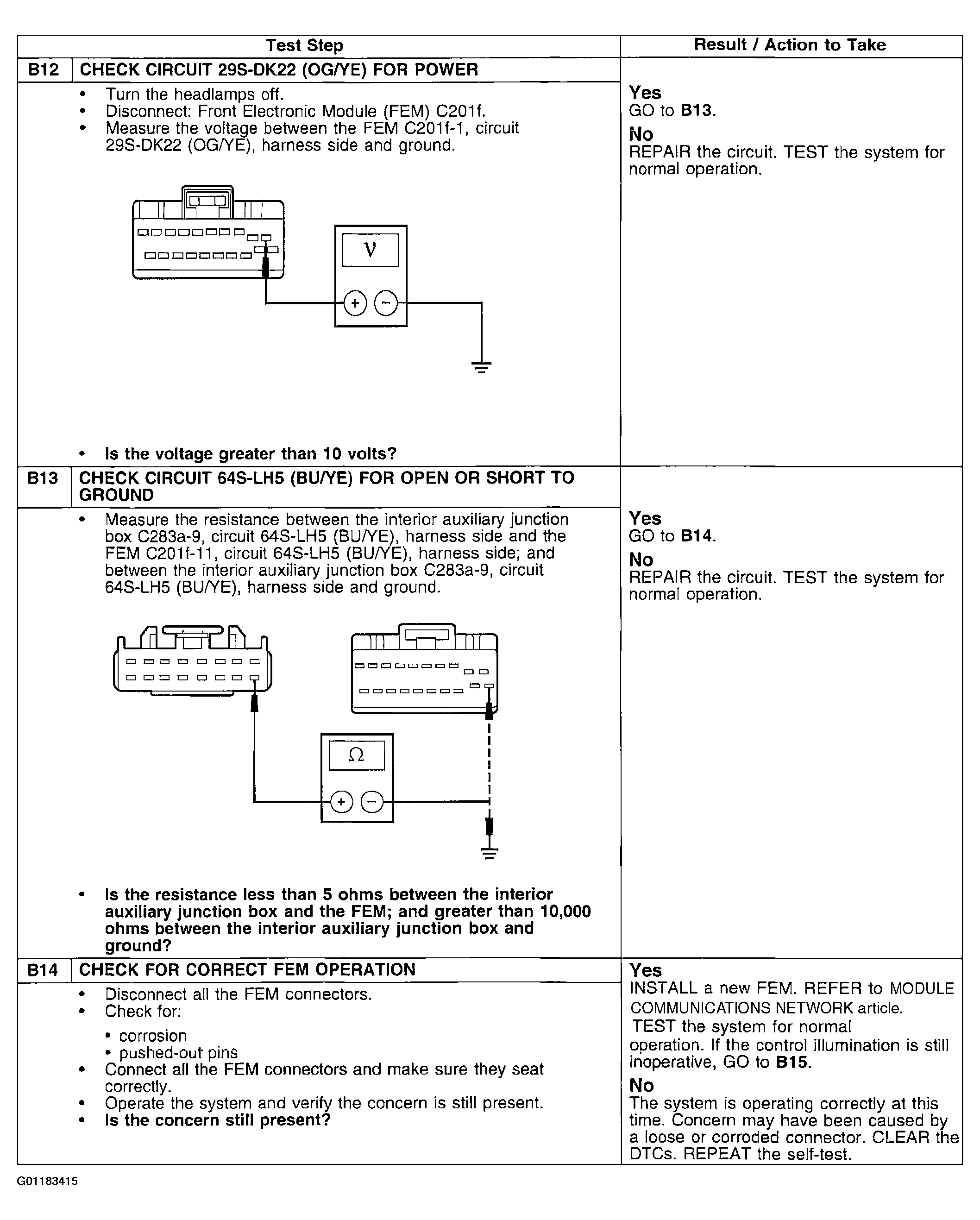

Fig 6: Pinpoint Test B: Control Illumination Is Inoperative (Steps B12-B14)

Courtesy of FORD MOTOR CO.

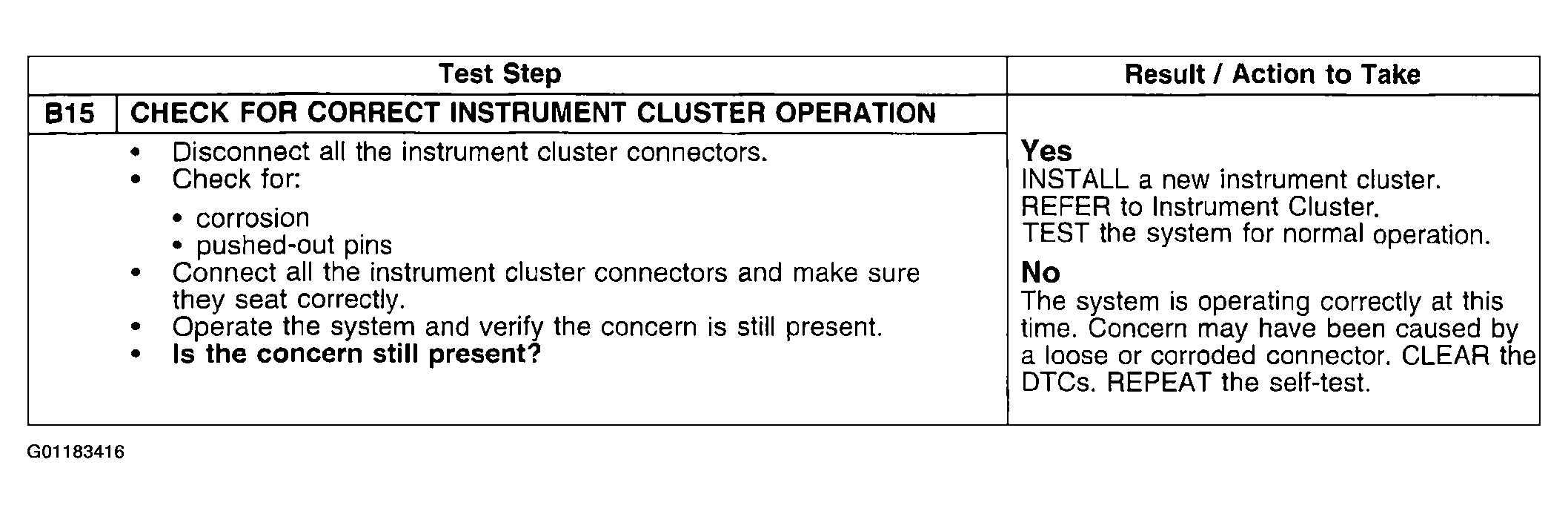

Fig 7: Pinpoint Test B: Control Illumination Is Inoperative (Steps B15)

Courtesy of FORD MOTOR CO.
