Parking Aid Module

  1. Remove the RH quarter trim panel. For additional information, refer to BODY SYSTEM - INTERIOR .
  2. Remove the parking aid module in the order indicated in the following illustration.

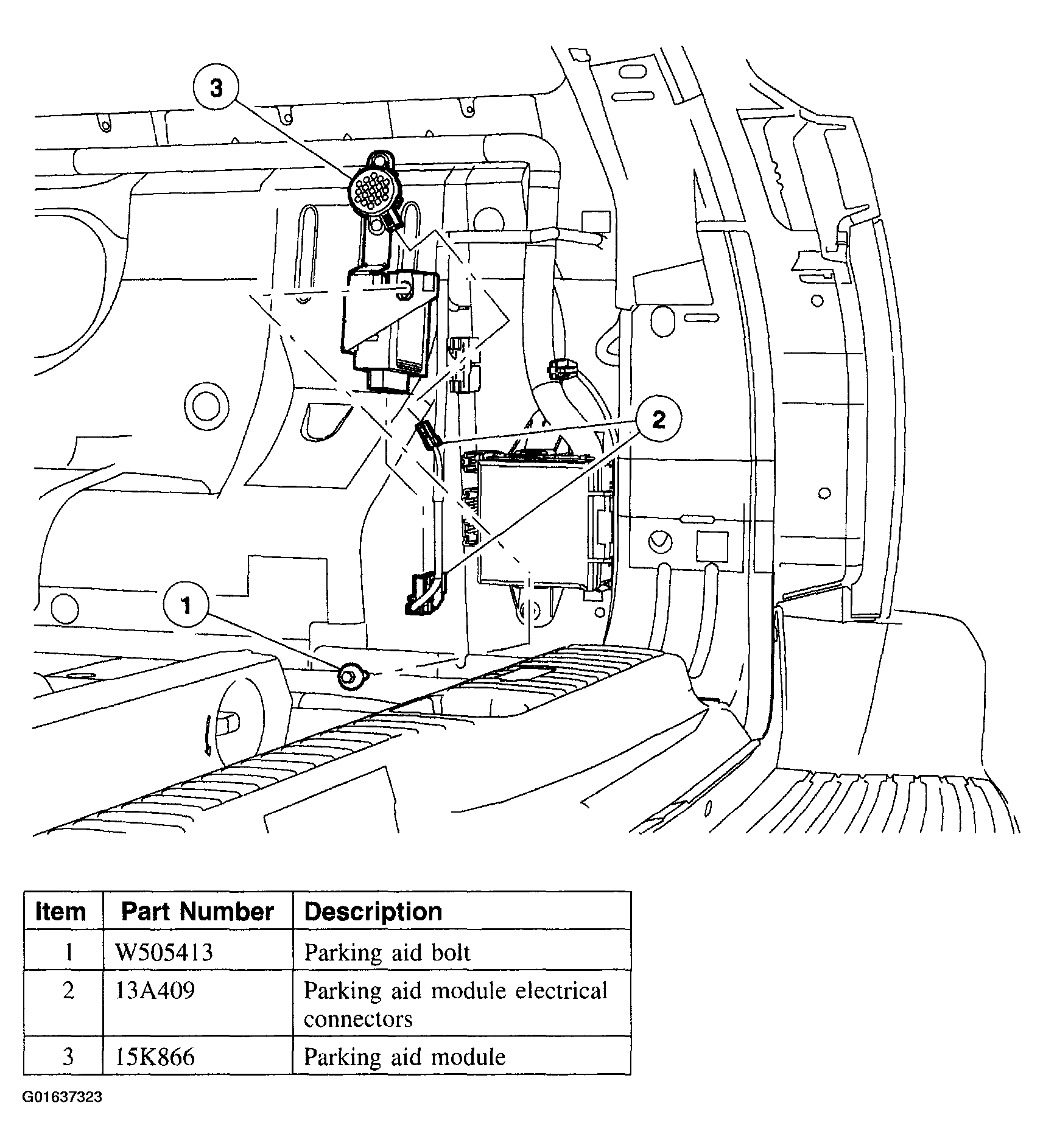

    Fig 1: Removal Sequence Of Parking Aid Module
    G01637323Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
