Message Center

CAUTION: Electronic modules are sensitive to electrical charges. If exposed to these charges, damage may result.
  1. Remove the console trim panel. For additional information, refer to BODY SYSTEM - INTERIOR .
  2. Remove the message center switch assembly in the order indicated in the following illustration.

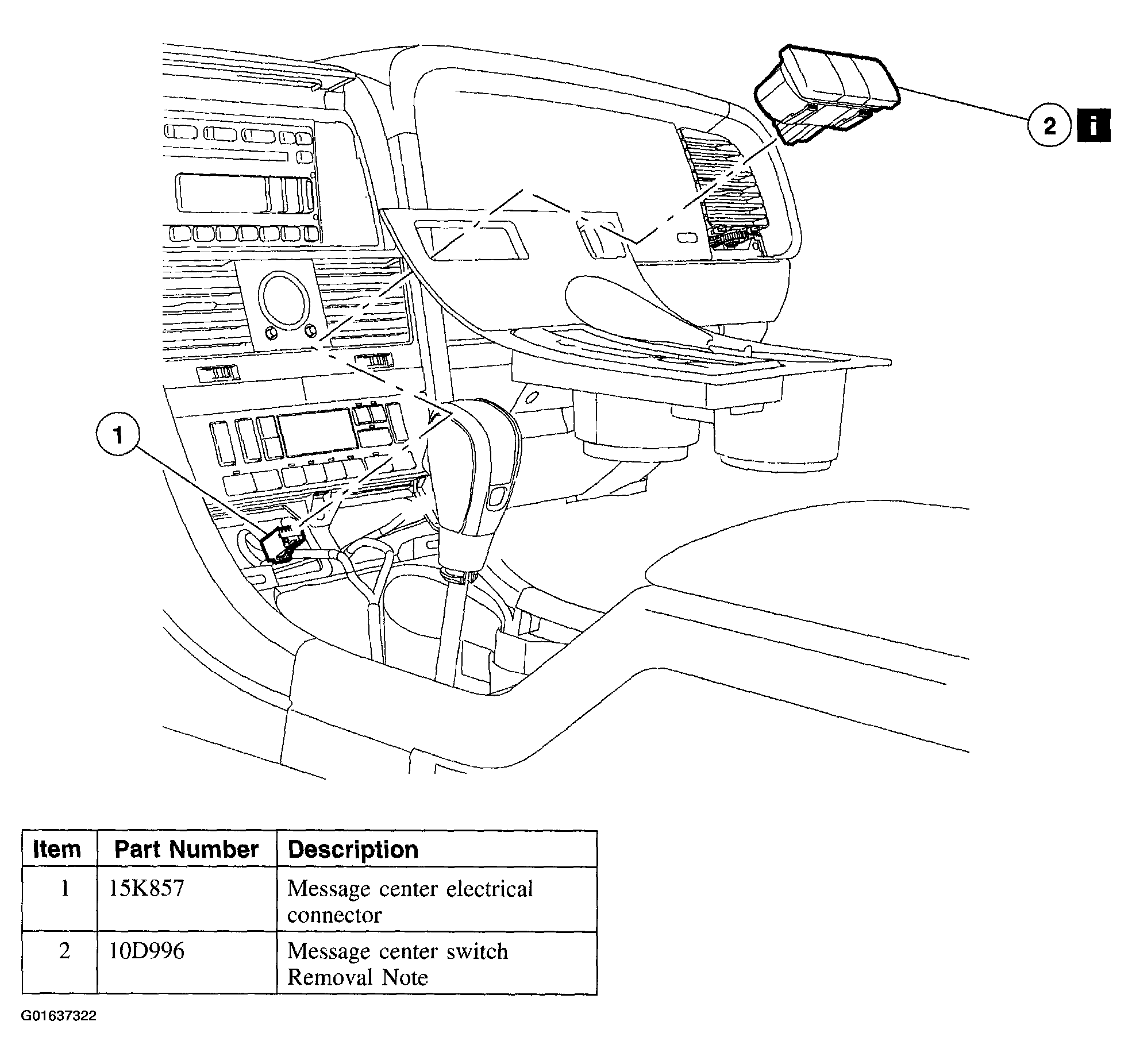

    Fig 1: Removal Sequence Of Message Center
    G01637322Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.

Item 2: Message Center Switch Removal Note

  1. Depress the retaining tabs to remove the message center switch.
