Removal And Installation: Clock

1. Disconnect the battery ground cable. For additional information, refer to BATTERY & CHARGING SYSTEM .
2. Remove the components in the order indicated in the following illustration.

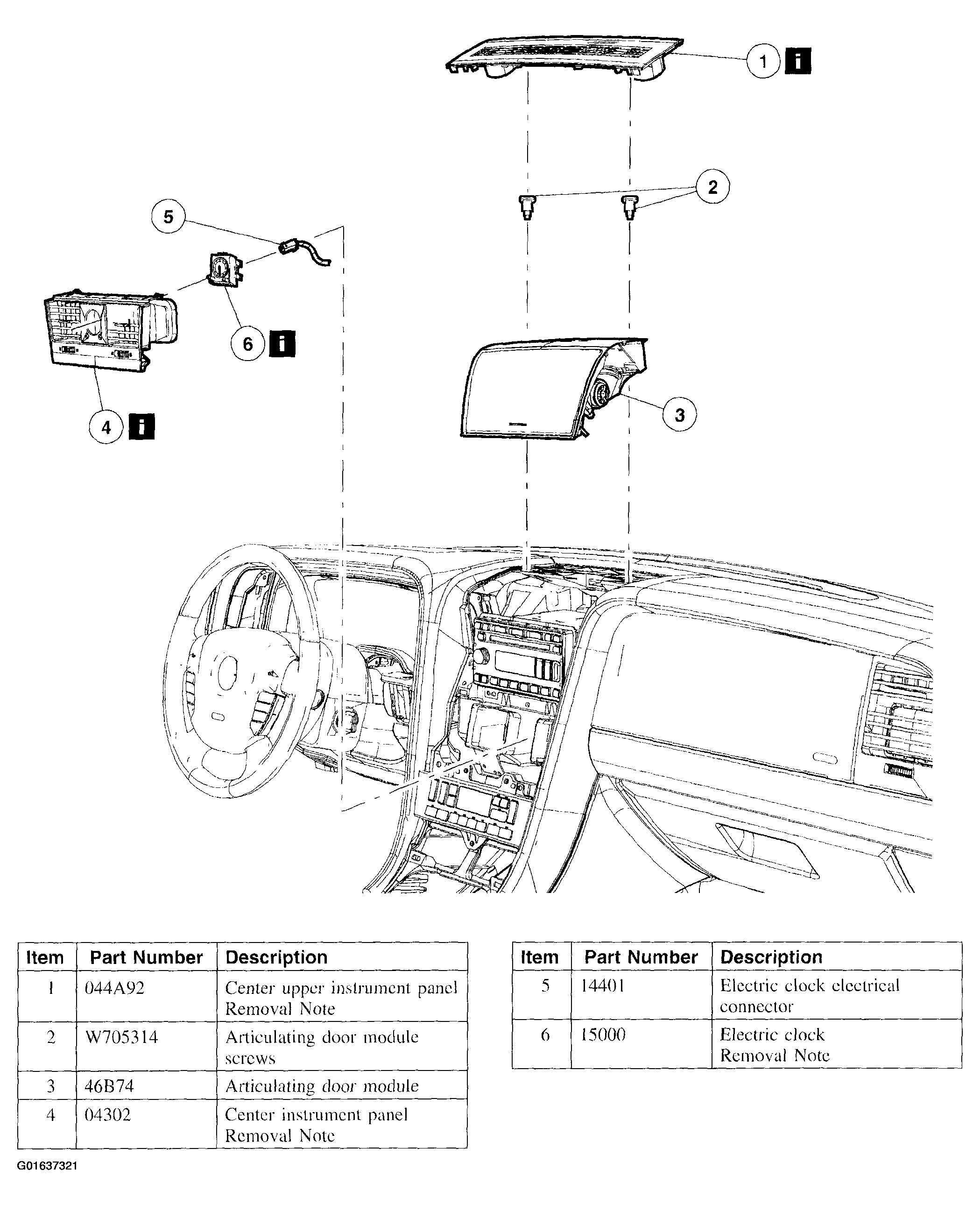

   Fig 1: Removal Sequence Of Clock

   Courtesy of FORD MOTOR CO.
3. To install, reverse the removal procedure.

Item 1: Center Upper Instrument Panel Removal Note

1. The center upper instrument panel is held in place by spring clips located on the panel.

Item 4: Center Instrument Panel Removal Note

1. The center instrument panel is held in place by spring clips located on the panel.

Item 6: Electric Clock Removal Note

1. The electric clock is held in place by spring clips located on the housing.
