Test Procedure

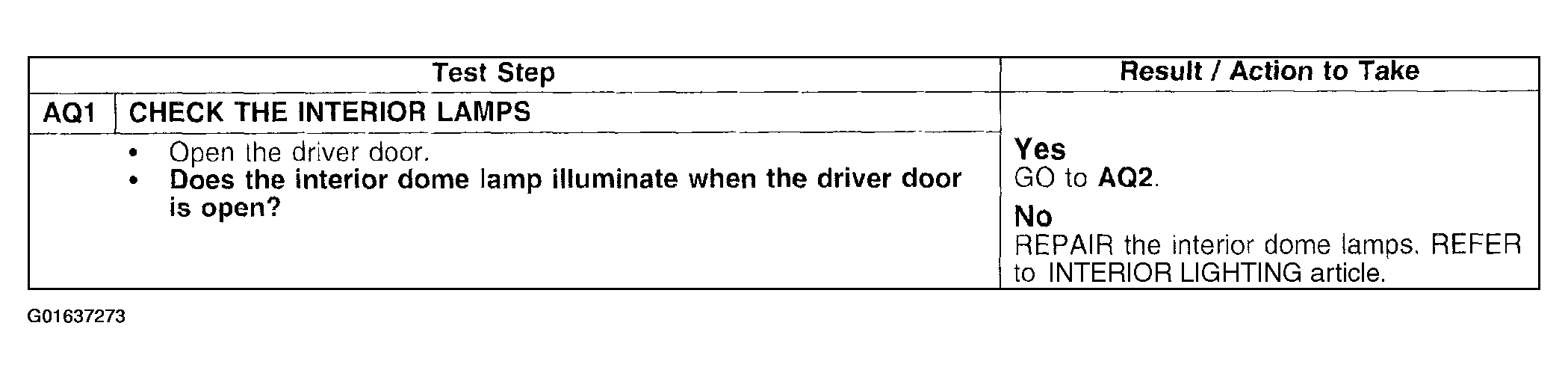

Fig 1: Pinpoint Test AQ: The Headlamp On Reminder Chime Is Inoperative (Step AQ1)
G01637273Courtesy of FORD MOTOR CO.

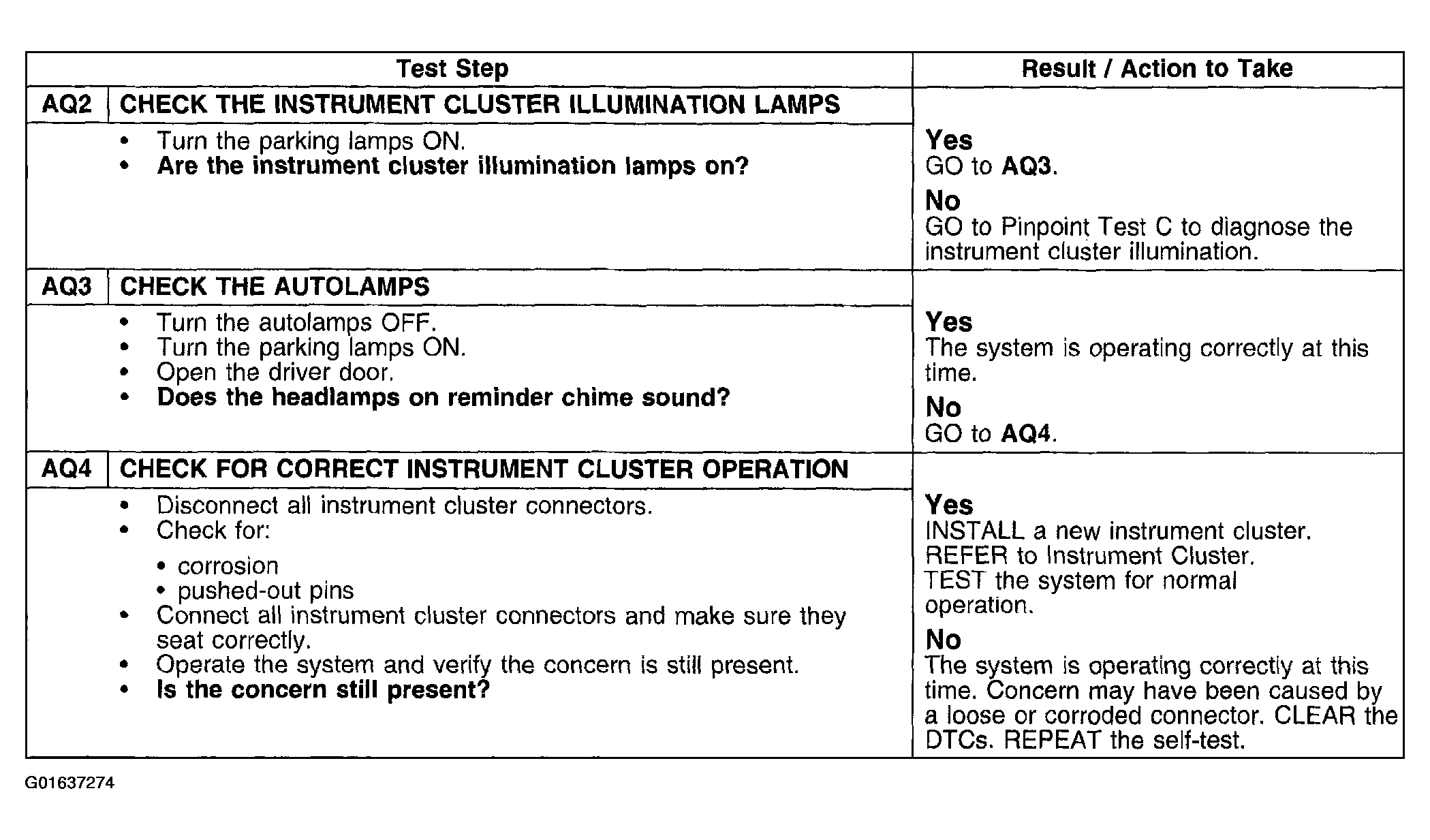

Fig 2: Pinpoint Test AQ: The Headlamp On Reminder Chime Is Inoperative (Steps AQ2-AQ4)
G01637274Courtesy of FORD MOTOR CO.
