Test Procedure

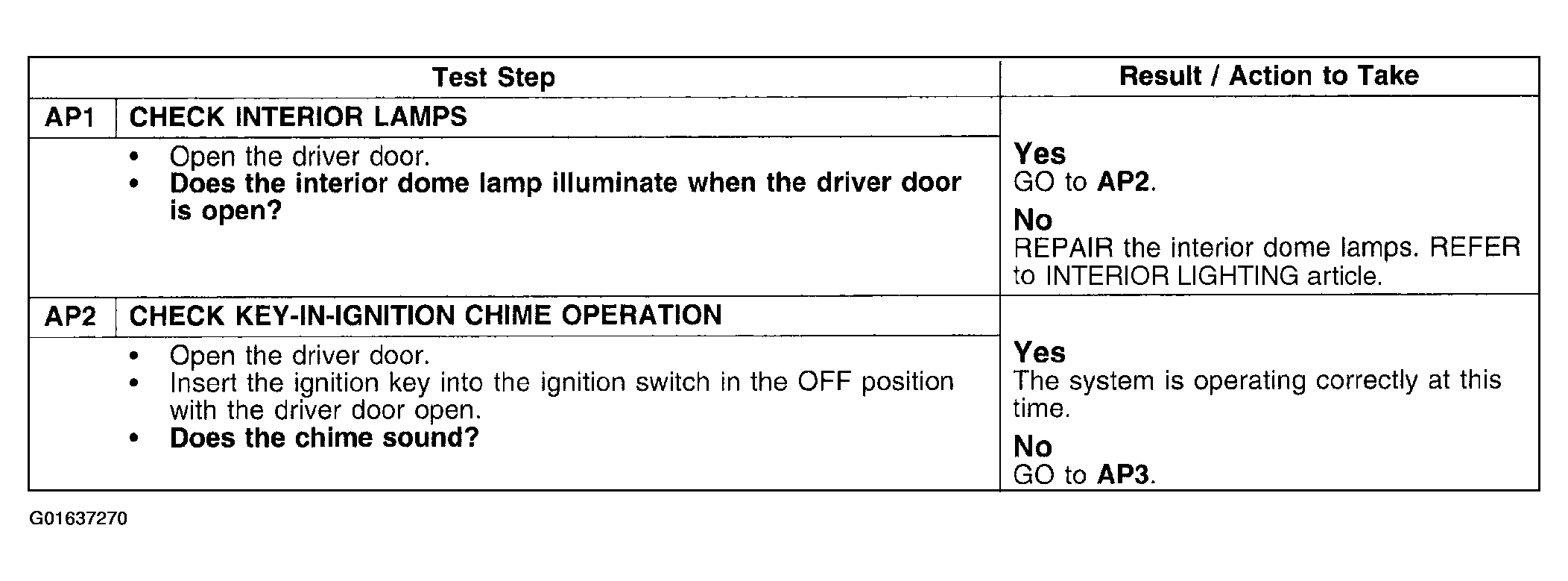

Fig 1: Pinpoint Test AP: The Key-In-Ignition Chime Is Inoperative (Steps AP1 & AP2)
G01637270Courtesy of FORD MOTOR CO.

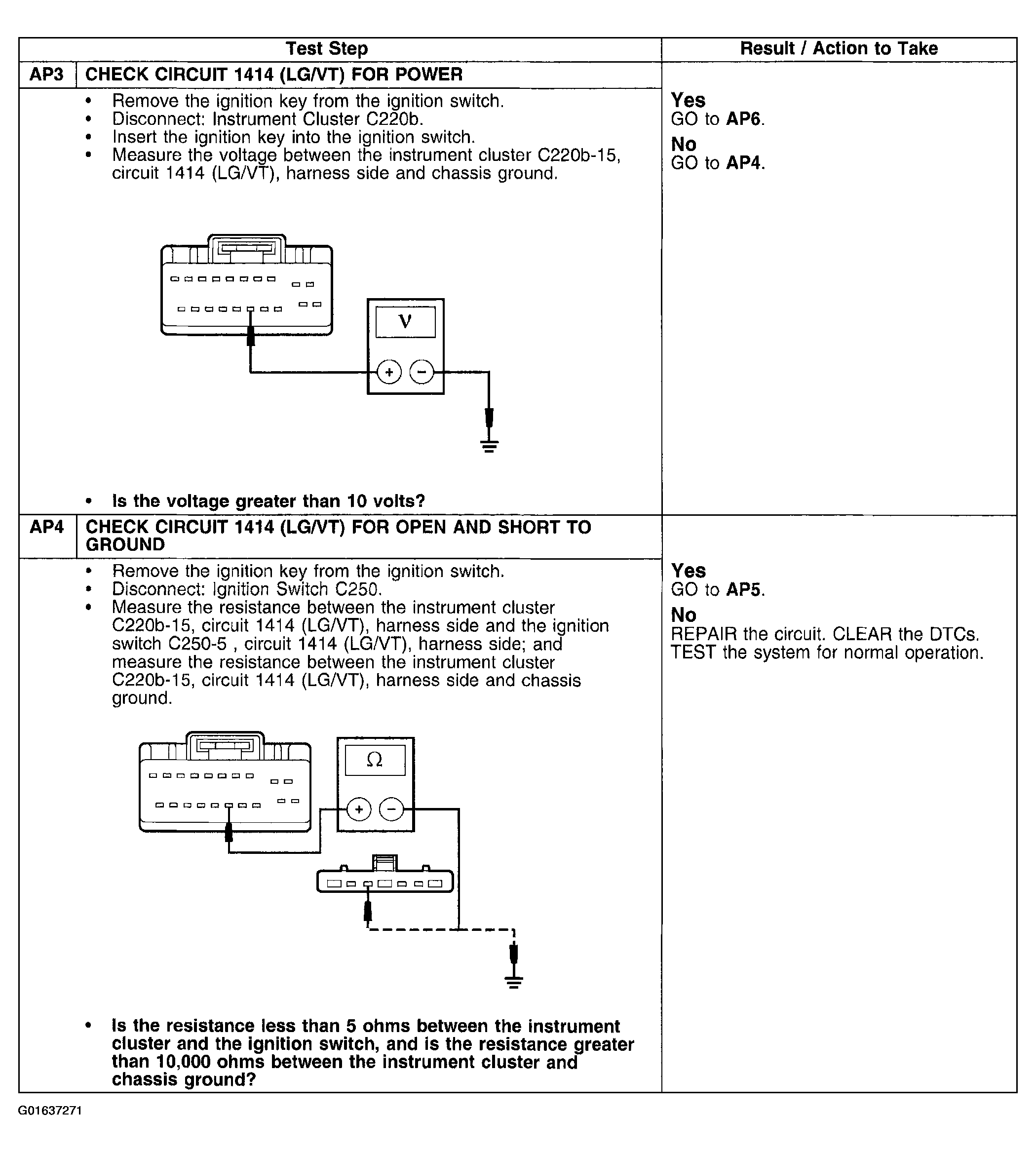

Fig 2: Pinpoint Test AP: The Key-In-Ignition Chime Is Inoperative (Steps AP3 & AP4)
G01637271Courtesy of FORD MOTOR CO.

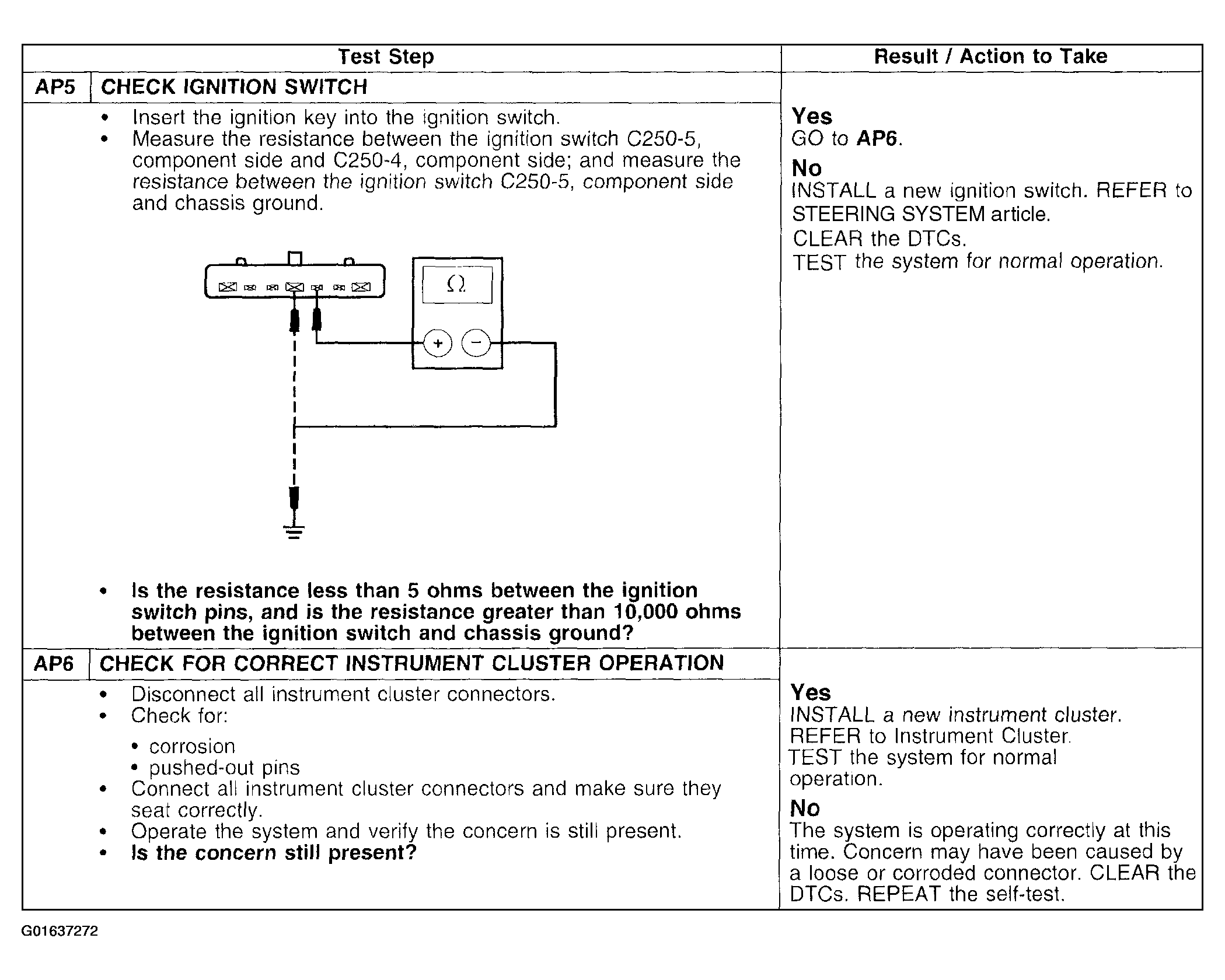

Fig 3: Pinpoint Test AP: The Key-In-Ignition Chime Is Inoperative (Steps AP5 & AP6)
G01637272Courtesy of FORD MOTOR CO.
