Connector Circuit Reference

Fig 1: Identifying Instrument Cluster C220a Connector Terminals And Specification (1 Of 2)
G01637264Courtesy of FORD MOTOR CO.

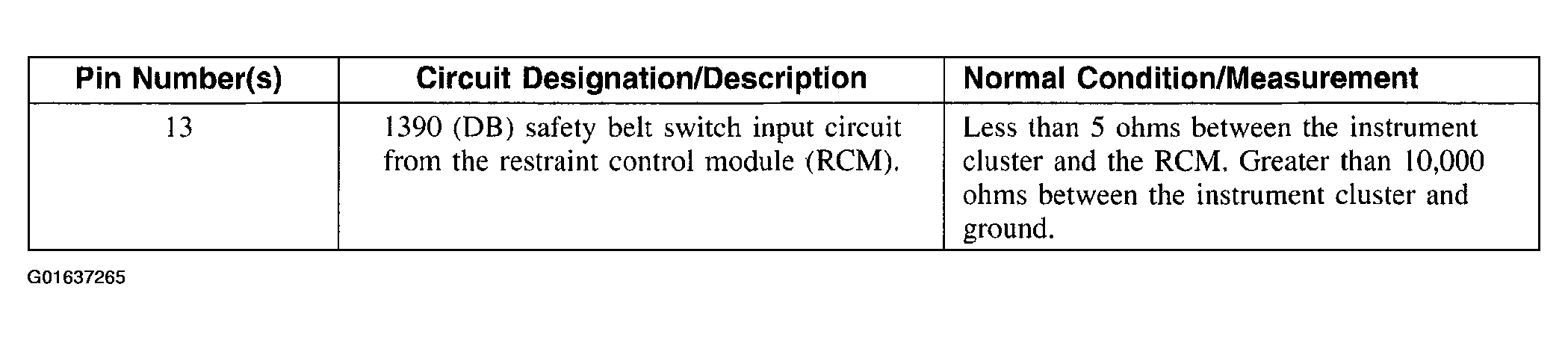

Fig 2: Identifying Instrument Cluster C220a Connector Terminals And Specification (2 Of 2)
G01637265Courtesy of FORD MOTOR CO.
Fig 3: Identifying Instrument Cluster C220b Connector Terminals And Specification (1 Of 2)
G01637266Courtesy of FORD MOTOR CO.

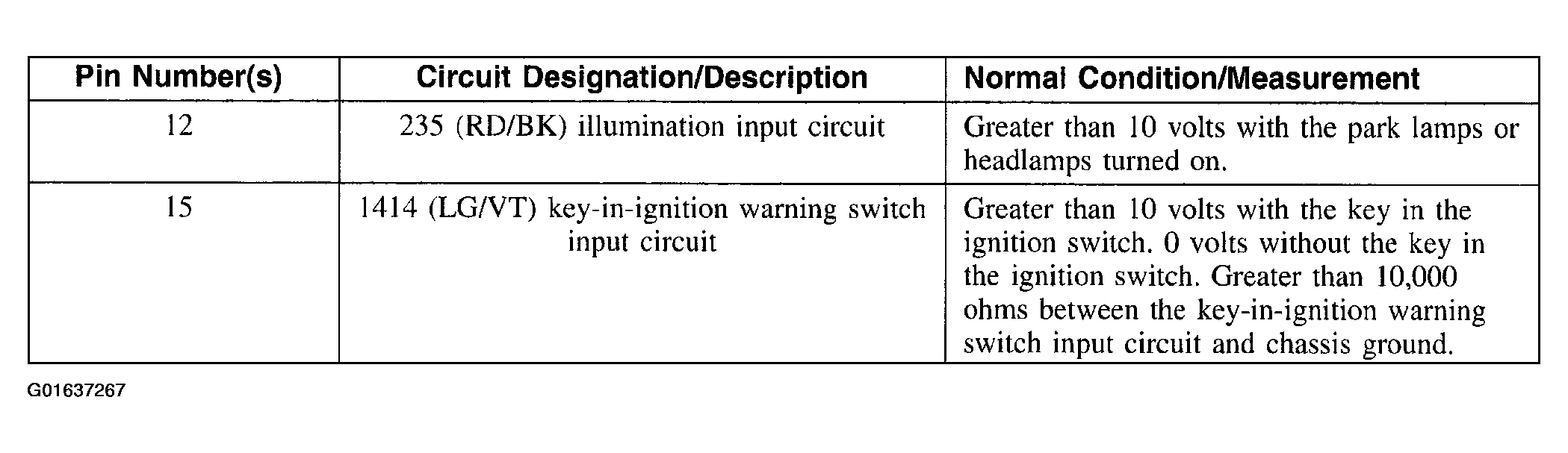

Fig 4: Identifying Instrument Cluster C220b Connector Terminals And Specification (2 Of 2)
G01637267Courtesy of FORD MOTOR CO.
Fig 5: Identifying Ignition Switch C250 Connector Terminals And Specification (1 Of 2)
G01637268Courtesy of FORD MOTOR CO.

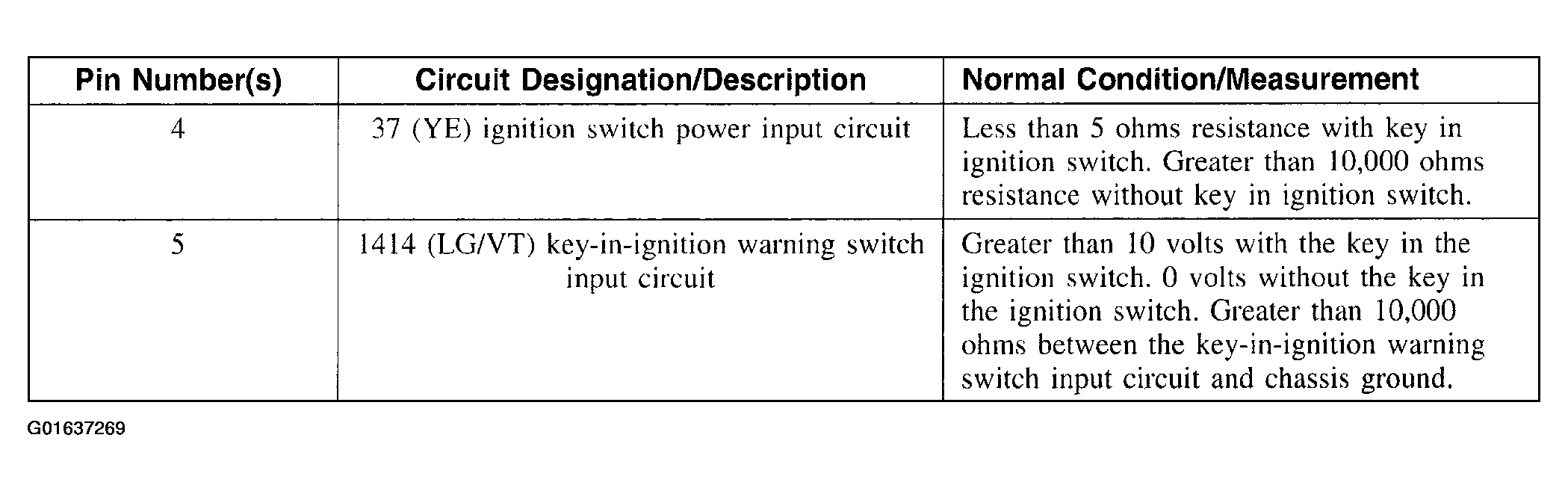

Fig 6: Identifying Ignition Switch C250 Connector Terminals And Specification (2 Of 2)
G01637269Courtesy of FORD MOTOR CO.
