Test Procedure

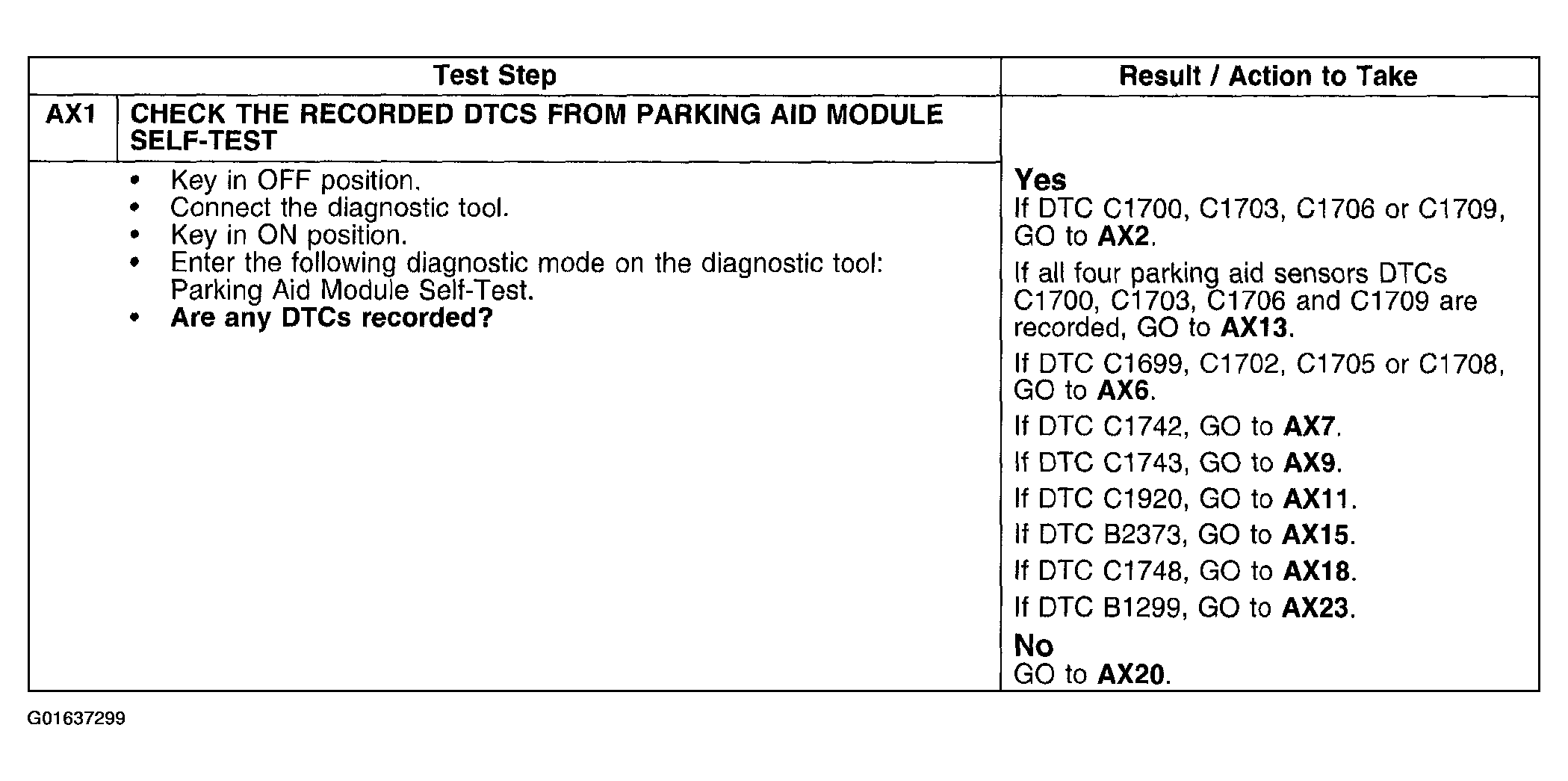

Fig 1: Pinpoint Test AX: Parking Aid Is Inoperative (Step AX1)
G01637299Courtesy of FORD MOTOR CO.

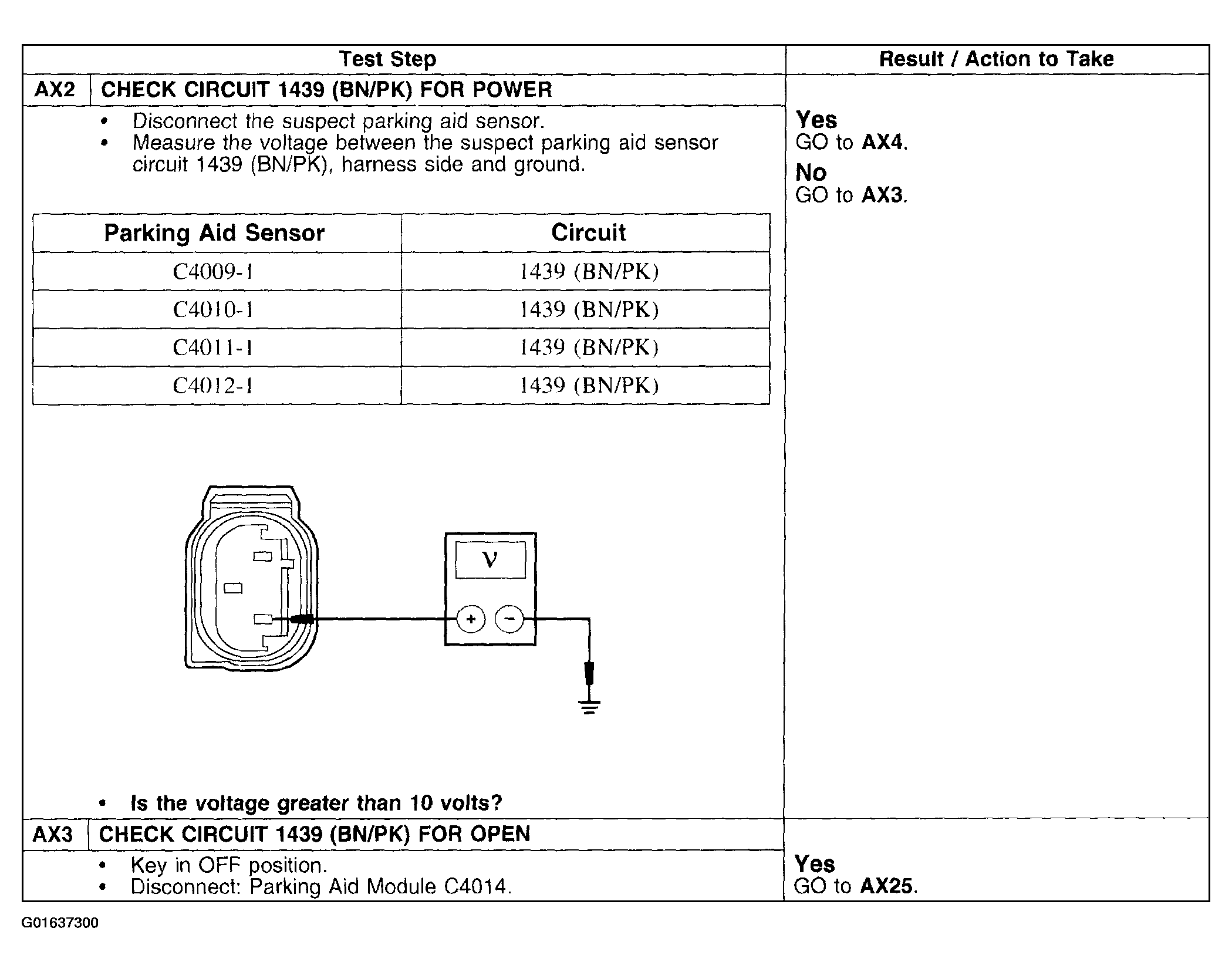

Fig 2: Pinpoint Test AX: Parking Aid Is Inoperative (Steps AX2 & AX3)
G01637300Courtesy of FORD MOTOR CO.

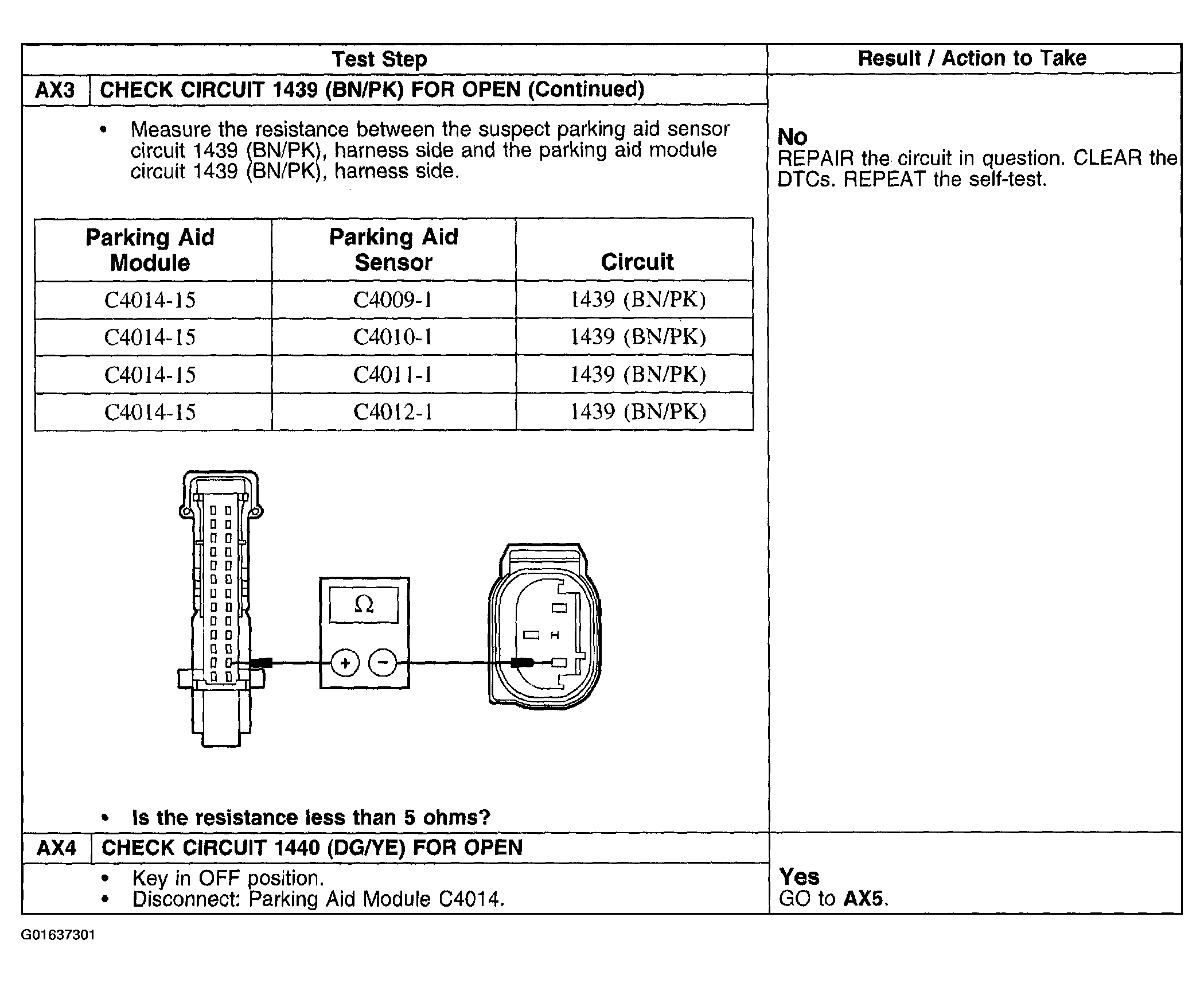

Fig 3: Pinpoint Test AX: Parking Aid Is Inoperative (Steps AX3 Cont. & AX4)
G01637301Courtesy of FORD MOTOR CO.

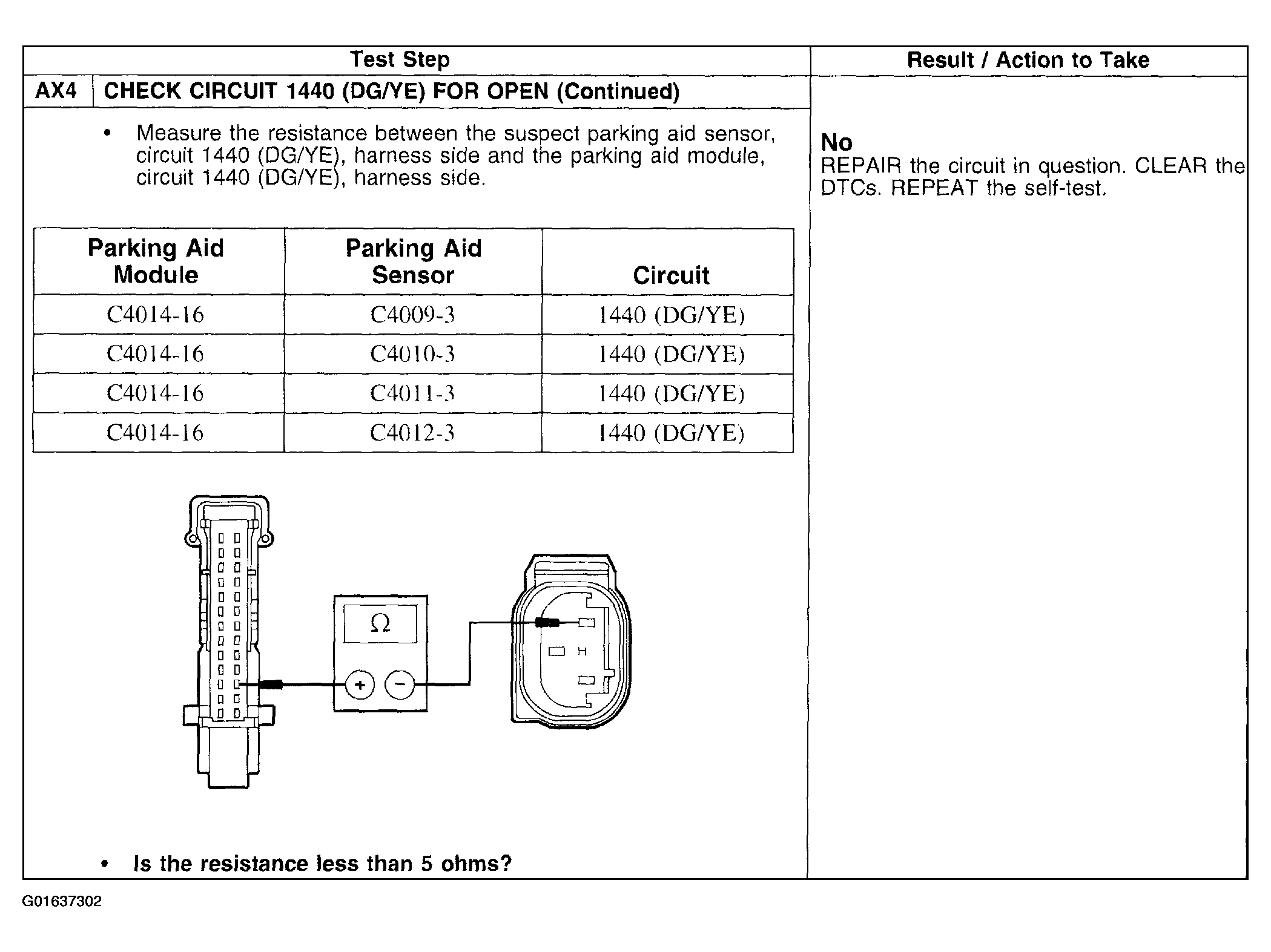

Fig 4: Pinpoint Test AX: Parking Aid Is Inoperative (Step AX4 Cont.)
G01637302Courtesy of FORD MOTOR CO.

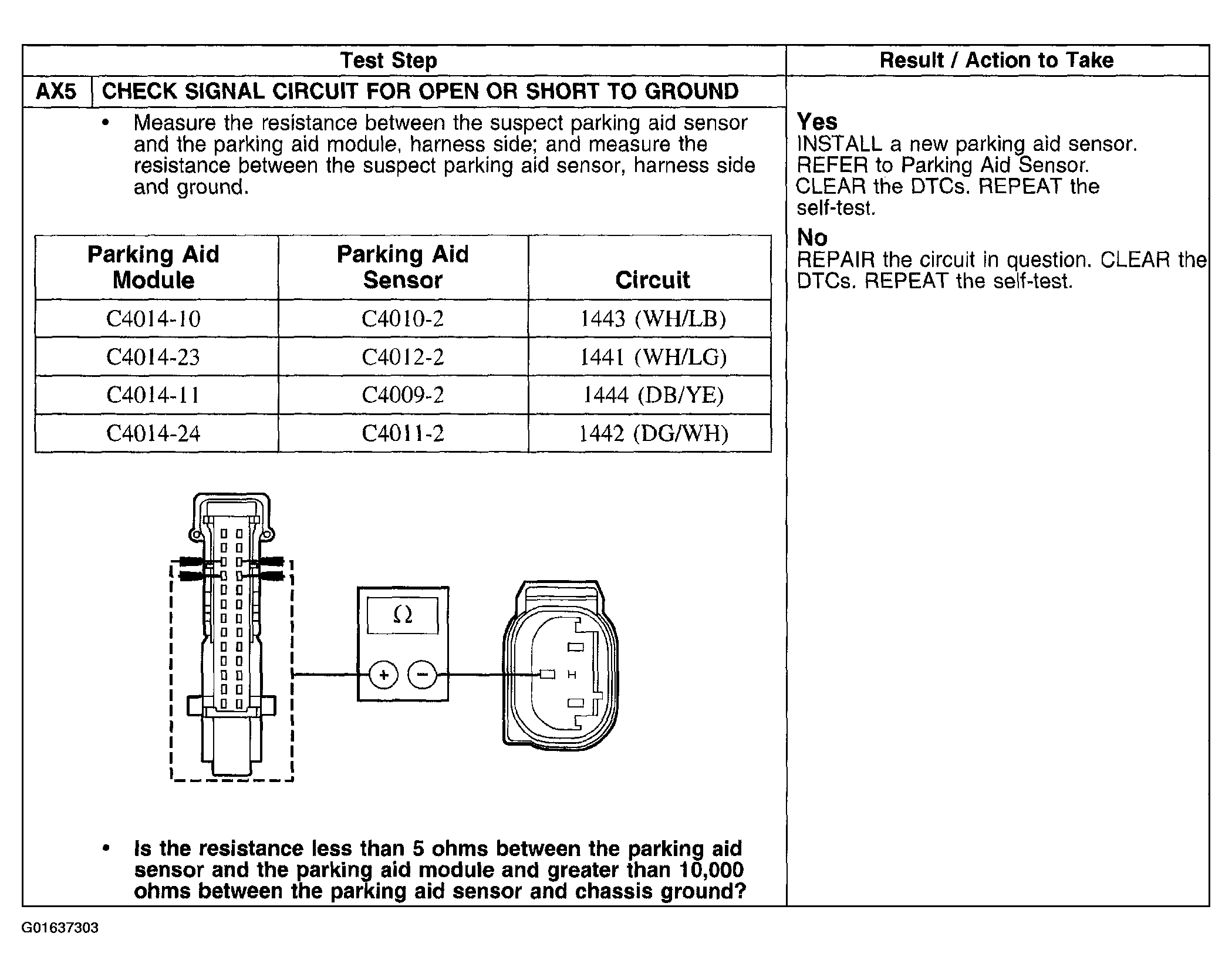

Fig 5: Pinpoint Test AX: Parking Aid Is Inoperative (Step AX5)
G01637303Courtesy of FORD MOTOR CO.

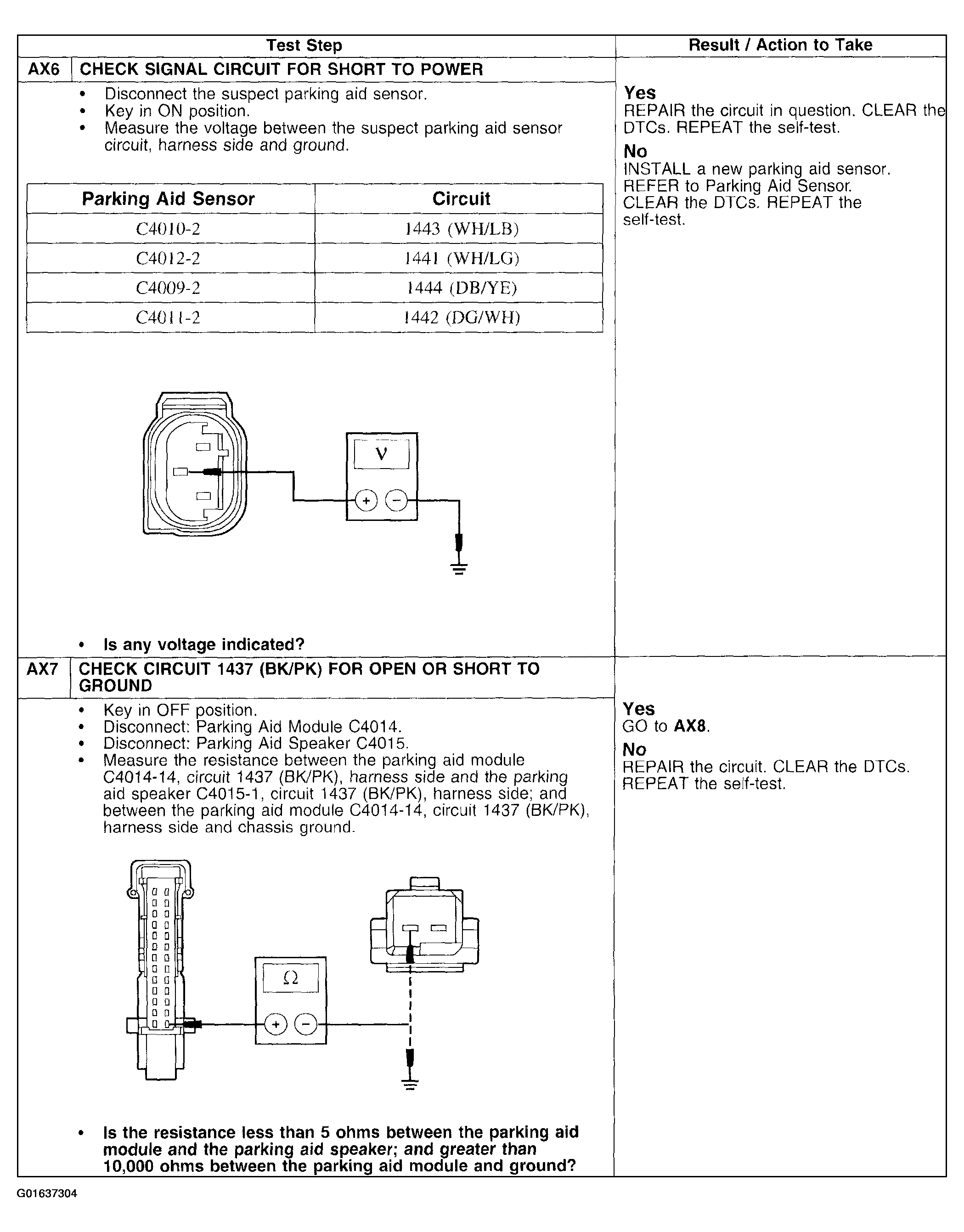

Fig 6: Pinpoint Test AX: Parking Aid Is Inoperative (Steps AX6 & AX7)
G01637304Courtesy of FORD MOTOR CO.

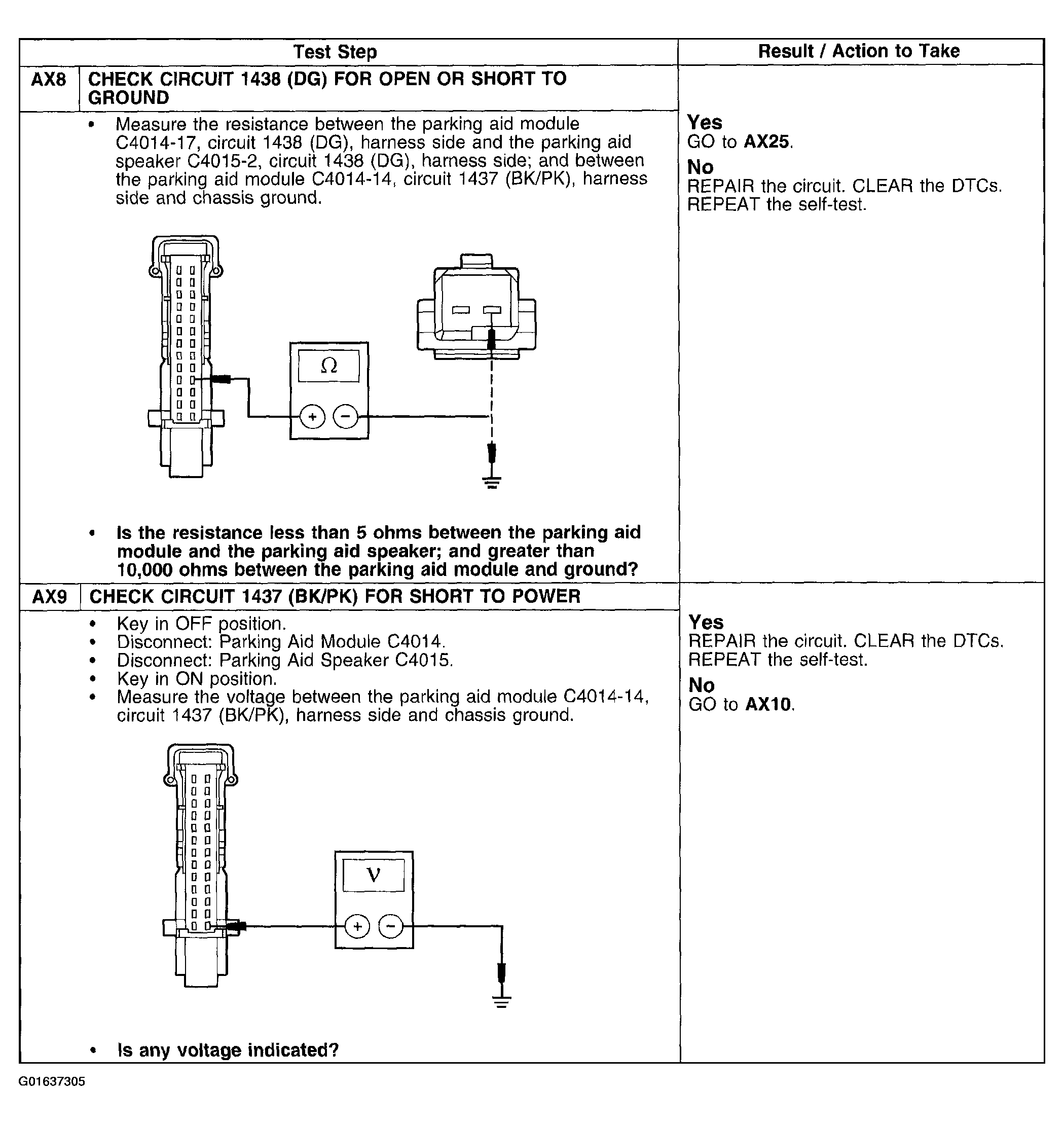

Fig 7: Pinpoint Test AX: Parking Aid Is Inoperative (Steps AX8 & AX9)
G01637305Courtesy of FORD MOTOR CO.

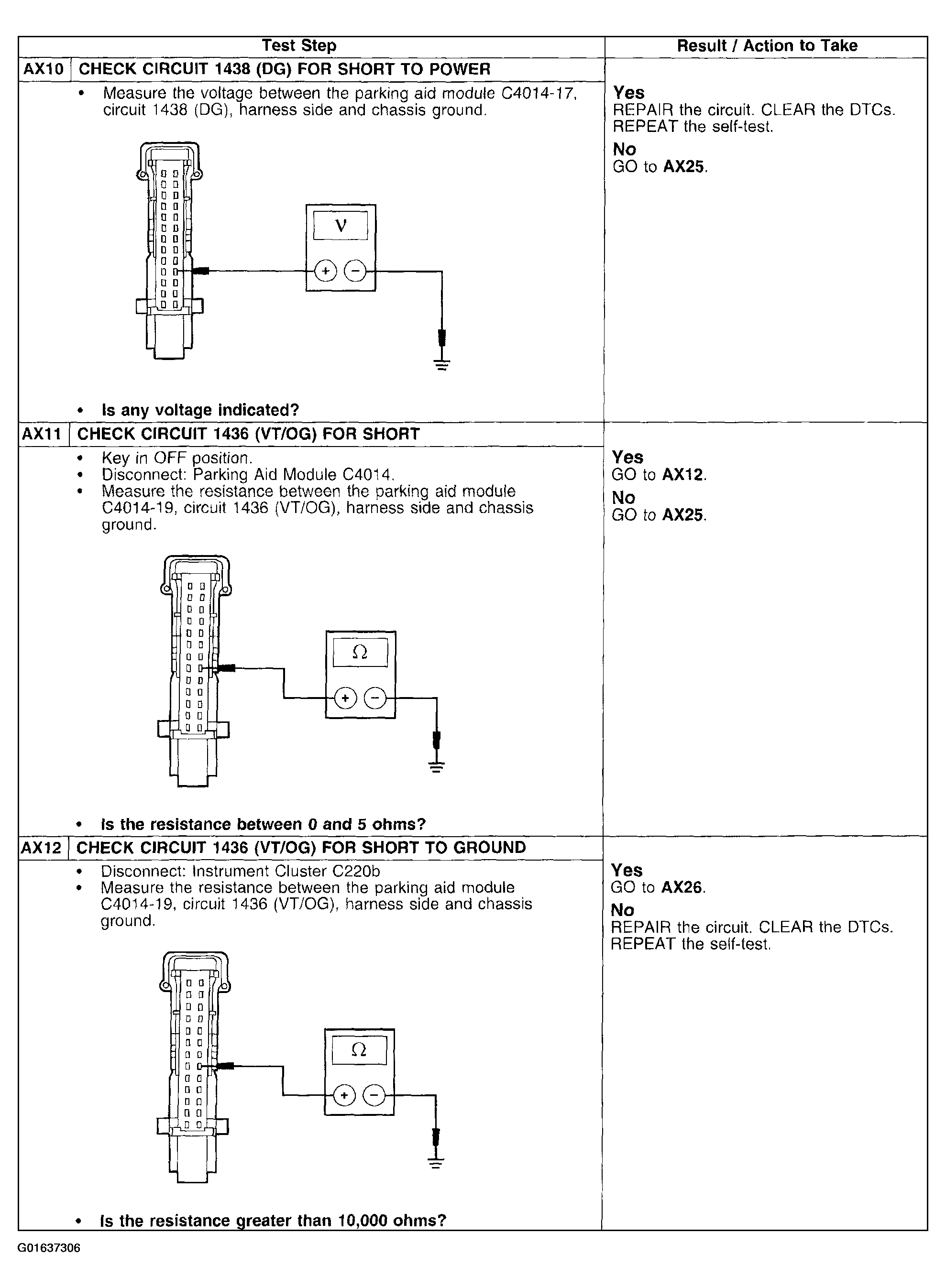

Fig 8: Pinpoint Test AX: Parking Aid Is Inoperative (Steps AX10-AX12)
G01637306Courtesy of FORD MOTOR CO.

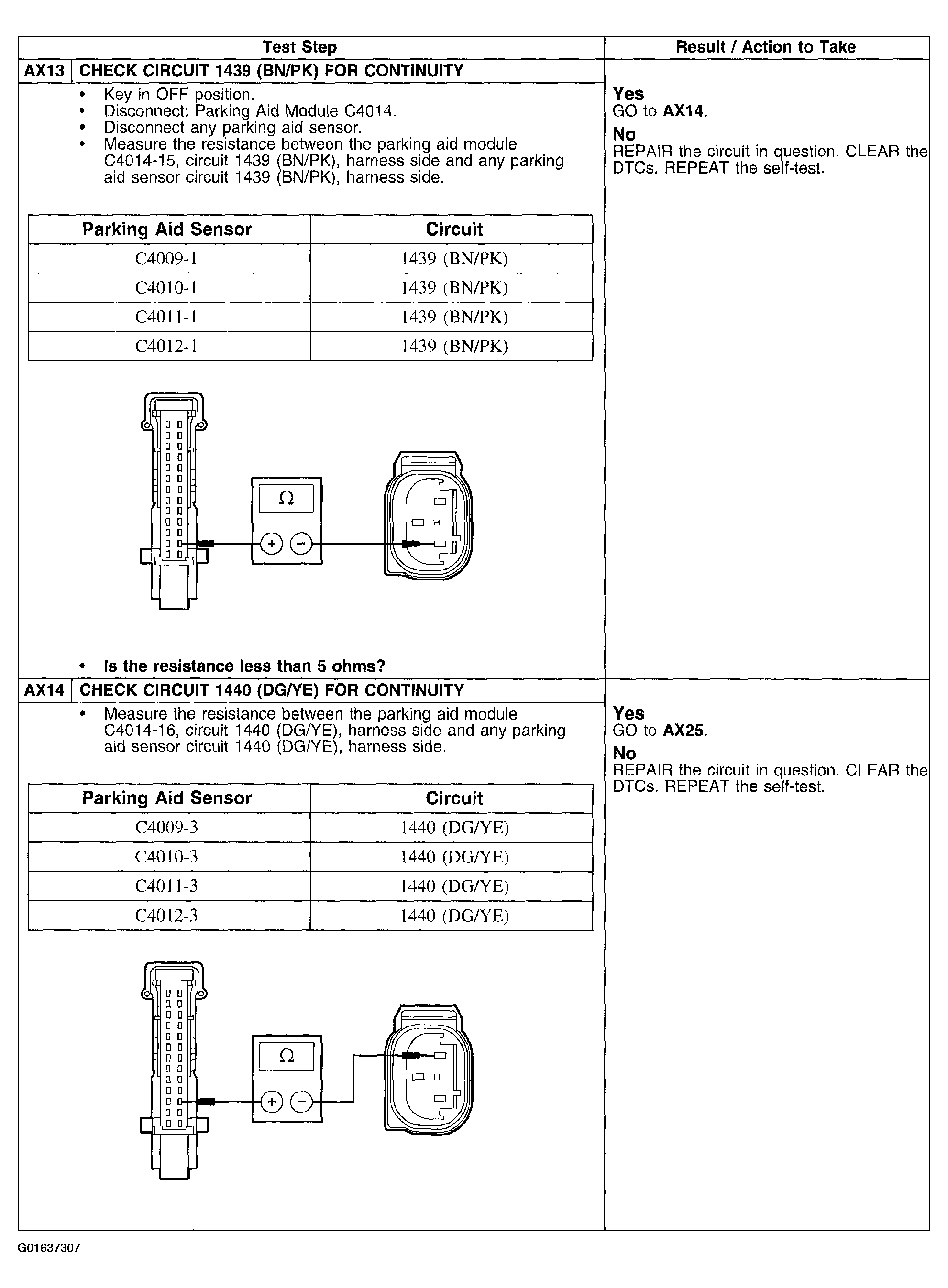

Fig 9: Pinpoint Test AX: Parking Aid Is Inoperative (Steps AX13 & AX14)
G01637307Courtesy of FORD MOTOR CO.

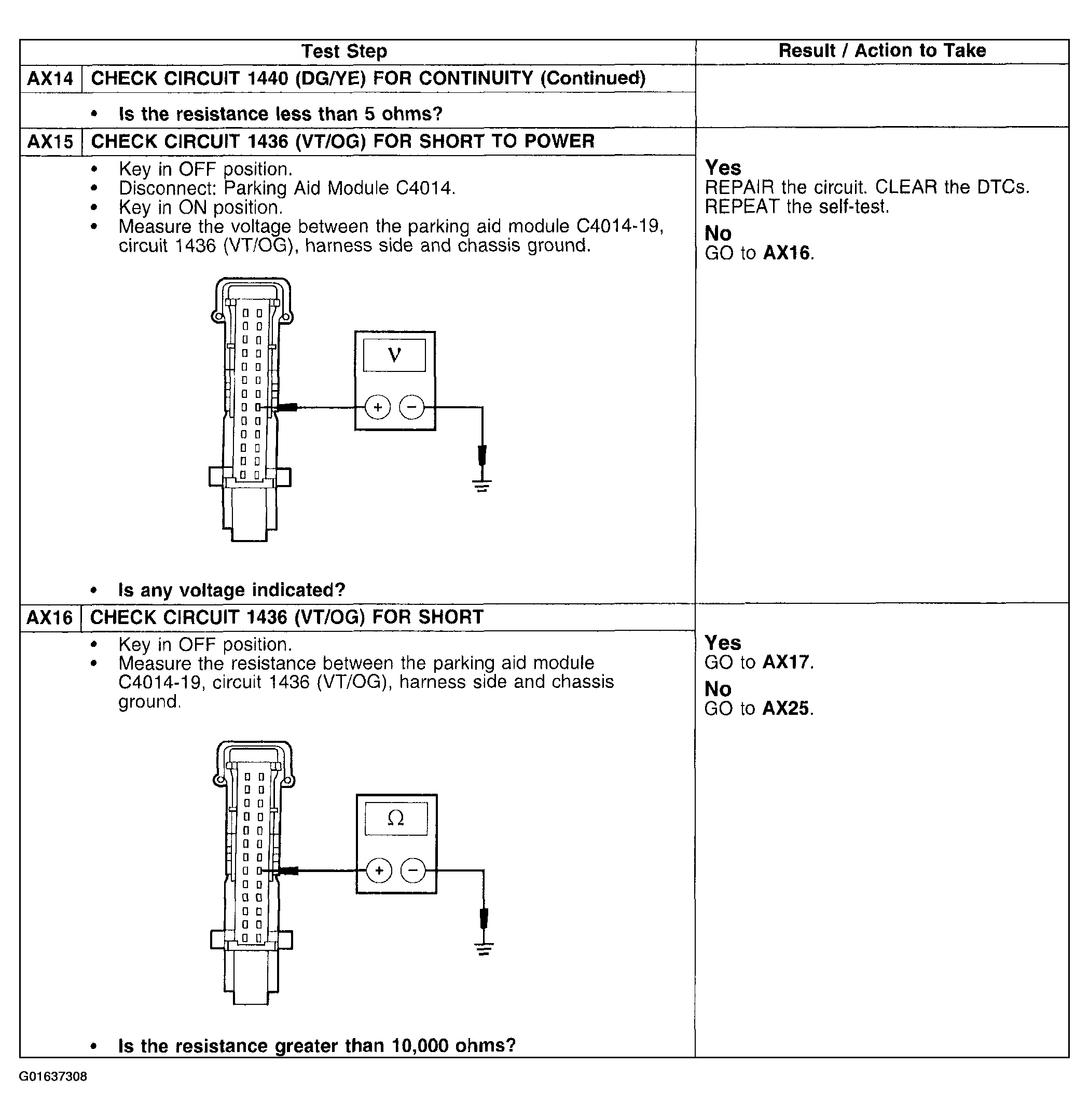

Fig 10: Pinpoint Test AX: Parking Aid Is Inoperative (Steps AX15 & AX16)
G01637308Courtesy of FORD MOTOR CO.

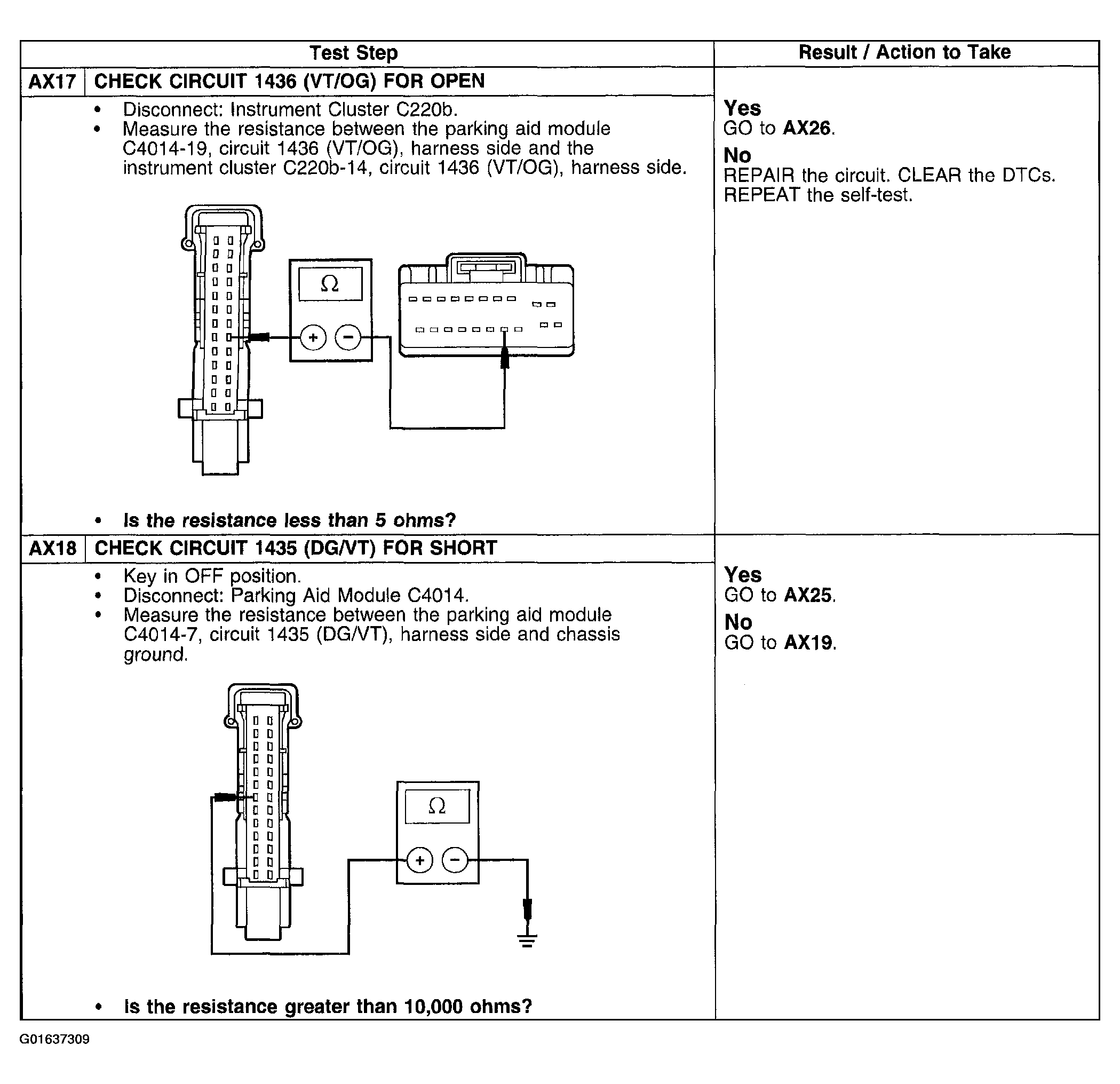

Fig 11: Pinpoint Test AX: Parking Aid Is Inoperative (Steps AX17 & AX18)
G01637309Courtesy of FORD MOTOR CO.

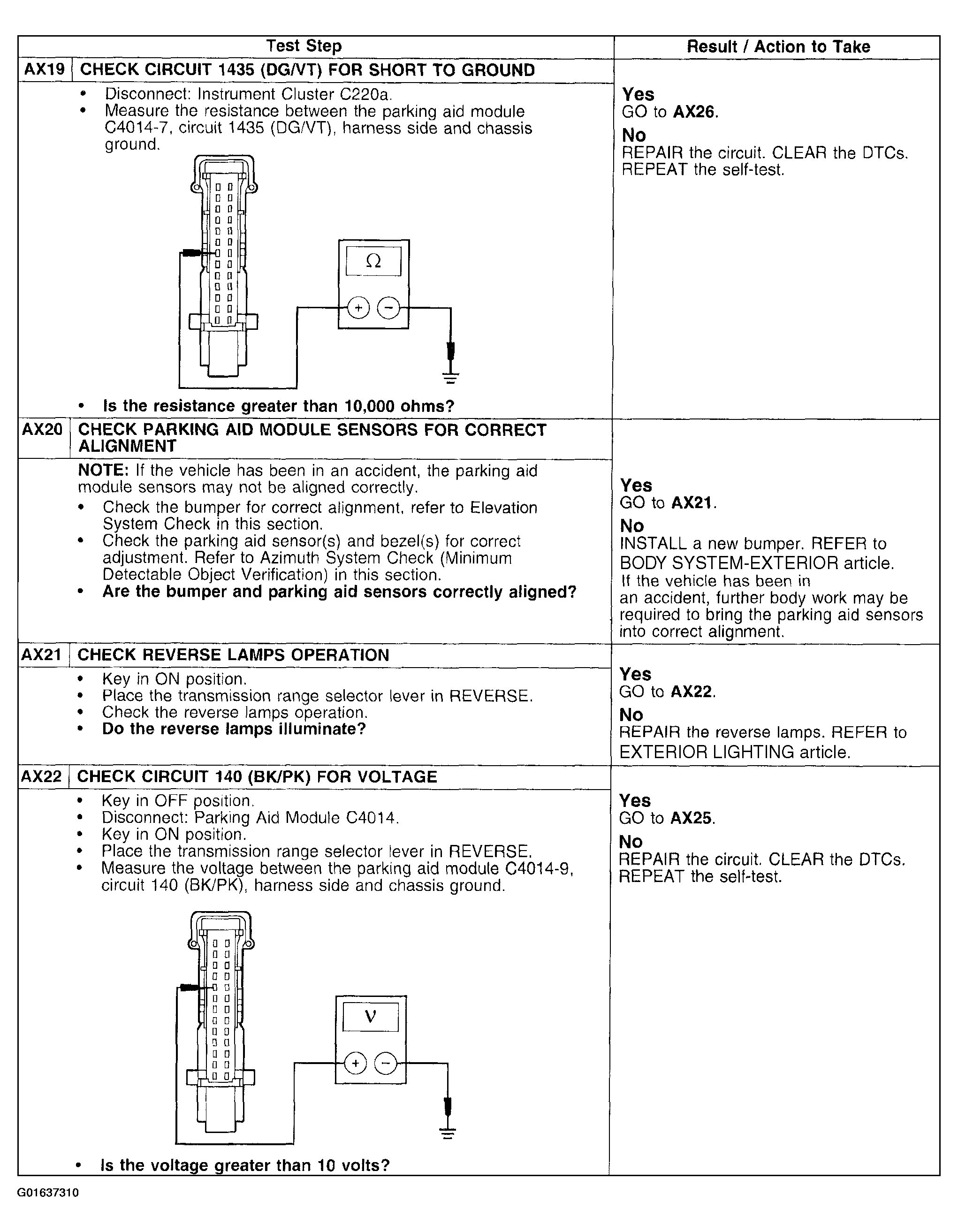

Fig 12: Pinpoint Test AX: Parking Aid Is Inoperative (Steps AX19-AX22)
G01637310Courtesy of FORD MOTOR CO.

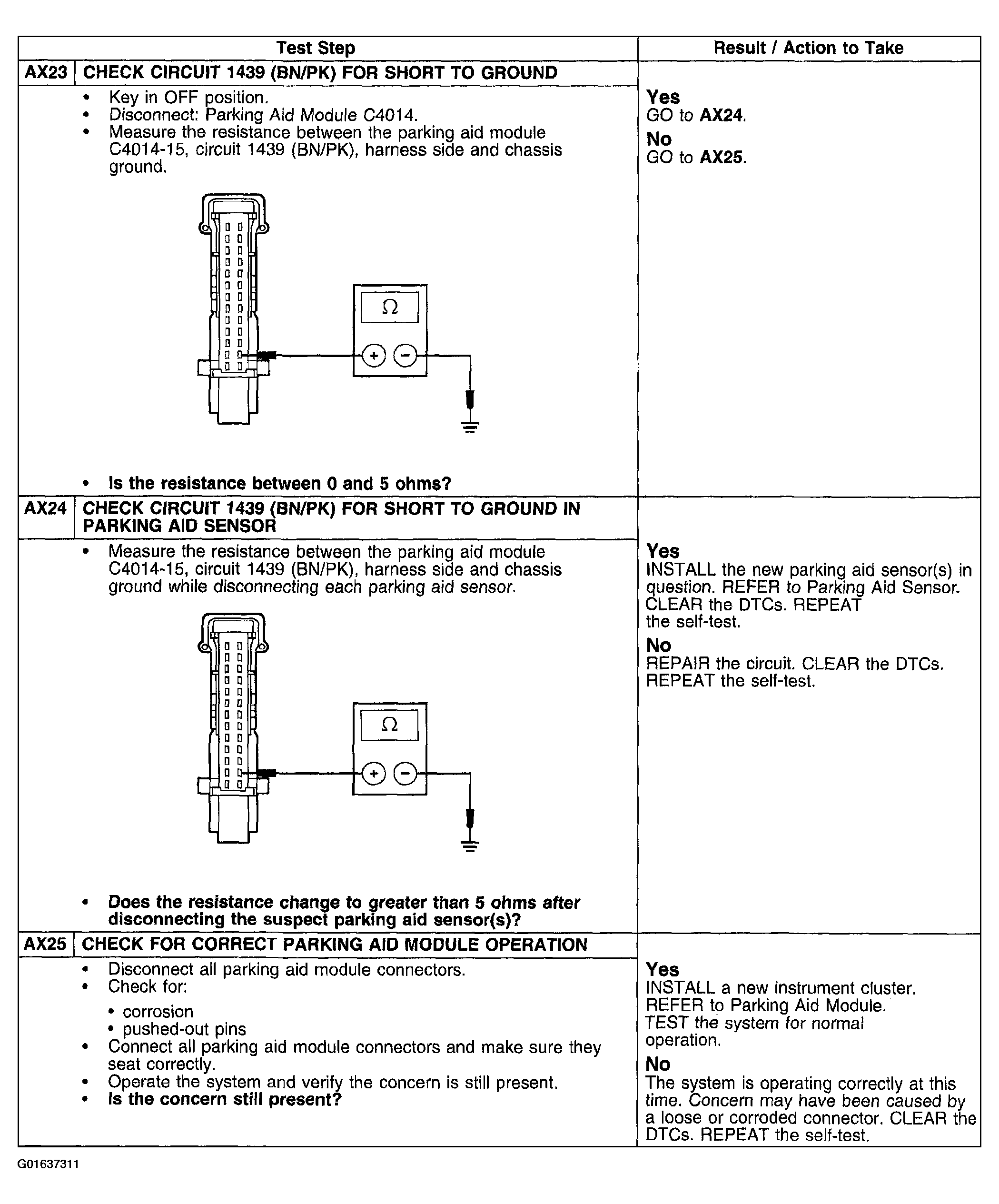

Fig 13: Pinpoint Test AX: Parking Aid Is Inoperative (Steps AX23-AX25)
G01637311Courtesy of FORD MOTOR CO.

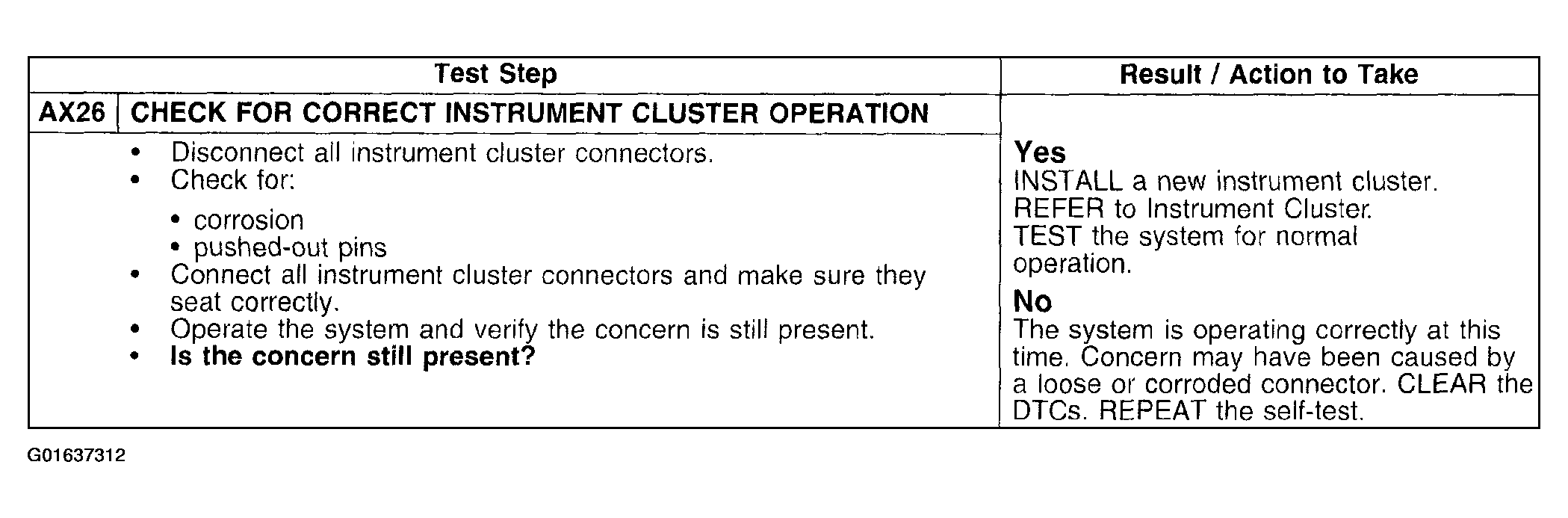

Fig 14: Pinpoint Test AX: Parking Aid Is Inoperative (Step AX26)
G01637312Courtesy of FORD MOTOR CO.
