Test Procedure

Fig 1: Pinpoint Test AW: No Communication With The Parking Aid Module (Step AW1)
G01637297Courtesy of FORD MOTOR CO.

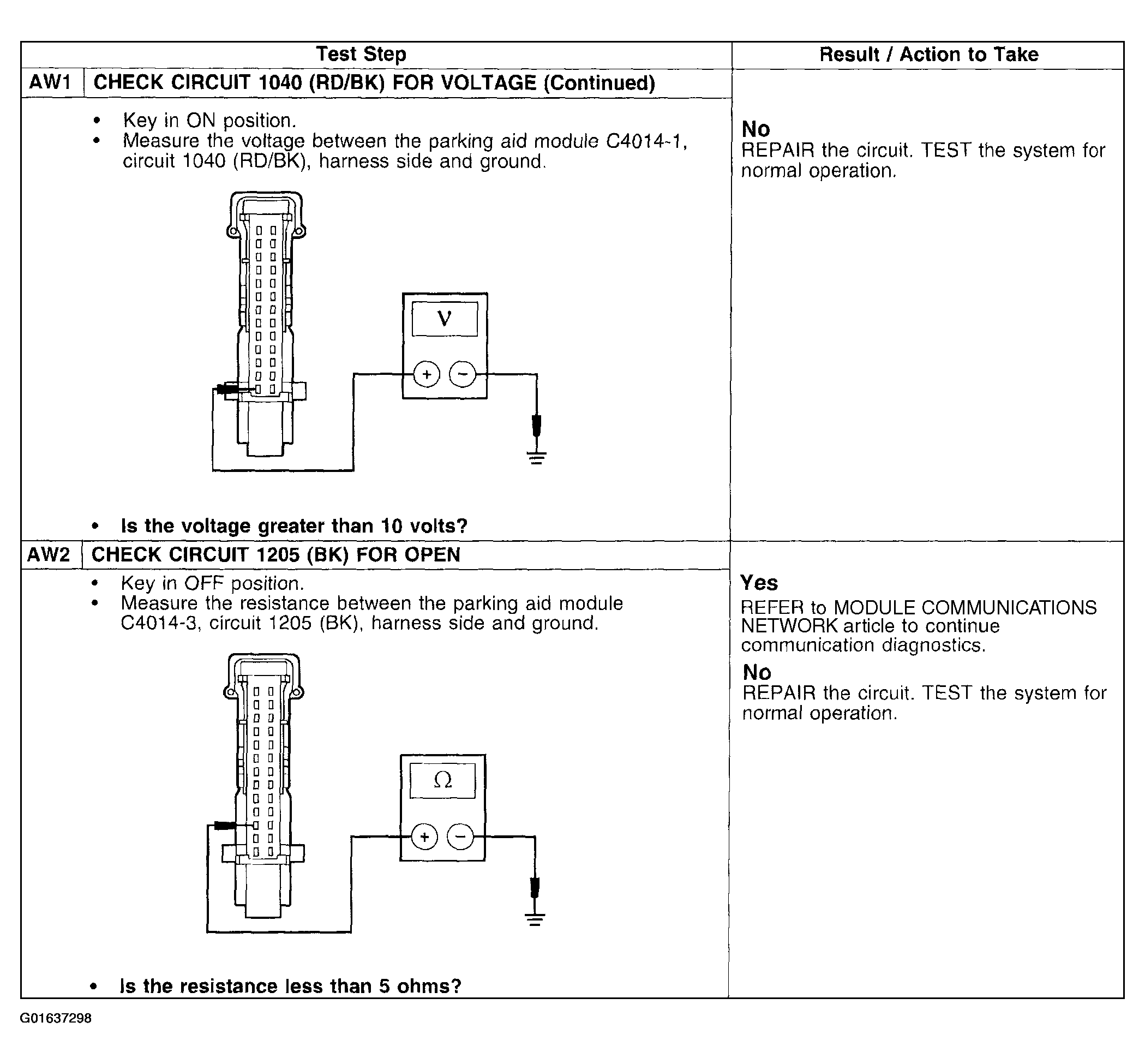

Fig 2: Pinpoint Test AW: No Communication With The Parking Aid Module (Step AW1 Cont. & AW2)
G01637298Courtesy of FORD MOTOR CO.
