Connector Circuit Reference

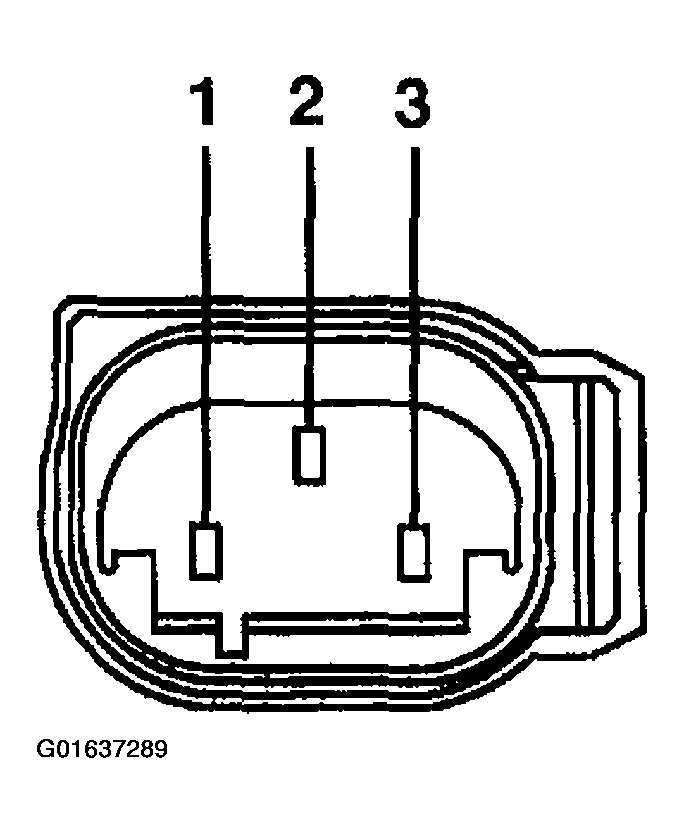

Fig 1: Identifying Parking Aid Sensor C4009, C4010, C4011 And C4012 Connector Terminals And Specification (1 Of 2)
G01637289Courtesy of FORD MOTOR CO.

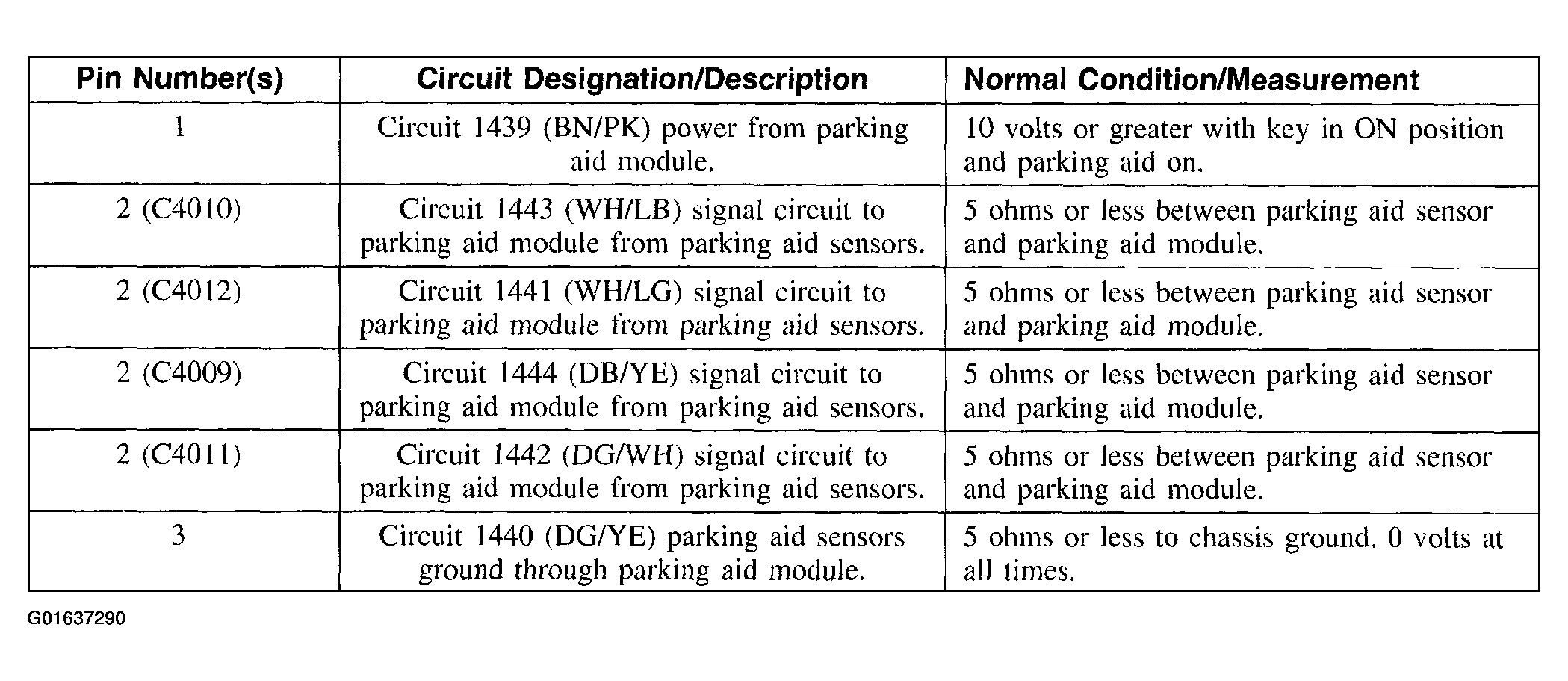

Fig 2: Identifying Parking Aid Sensor C4009, C4010, C4011 And C4012 Connector Terminals And Specification (2 Of 2)
G01637290Courtesy of FORD MOTOR CO.
Fig 3: Identifying Parking Aid Module C4014 Connector Terminals And Specification (1 Of 2)
G01637291Courtesy of FORD MOTOR CO.

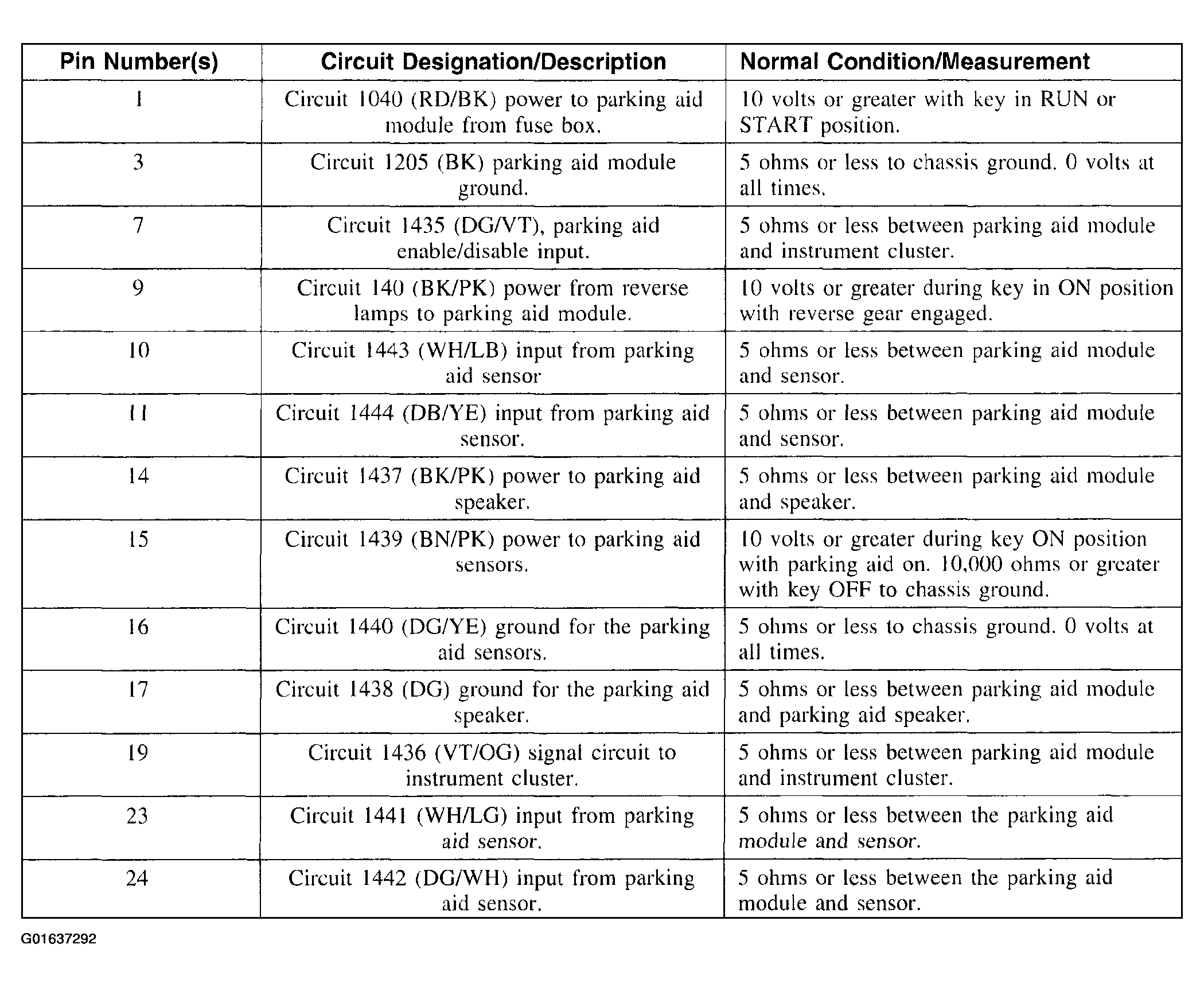

Fig 4: Identifying Parking Aid Module C4014 Connector Terminals And Specification (2 Of 2)
G01637292Courtesy of FORD MOTOR CO.
Fig 5: Identifying Parking Aid Module C4015 Connector Terminals And Specification (1 Of 2)
G01637293Courtesy of FORD MOTOR CO.

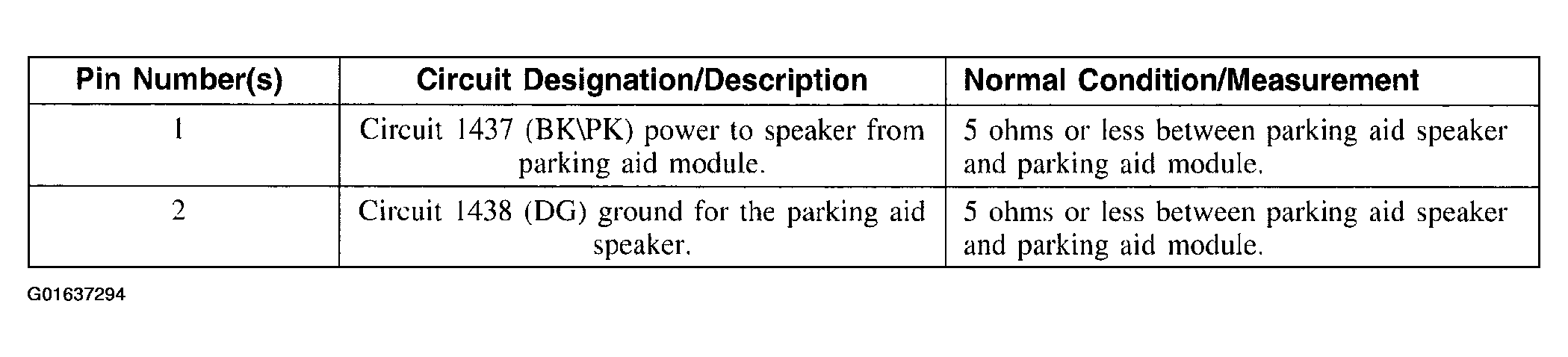

Fig 6: Identifying Parking Aid Module C4015 Connector Terminals And Specification (2 Of 2)
G01637294Courtesy of FORD MOTOR CO.
Fig 7: Identifying Instrument Cluster C220b Connector Terminals And Specification (1 Of 2)
G01637295Courtesy of FORD MOTOR CO.

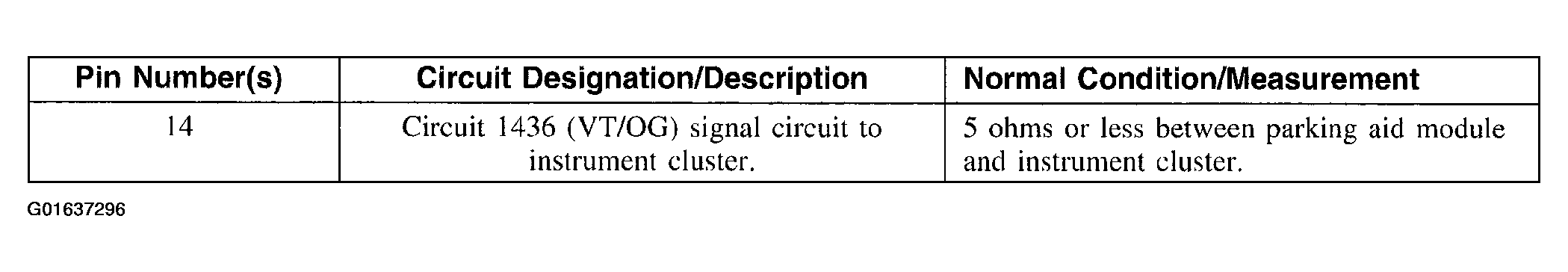

Fig 8: Identifying Instrument Cluster C220b Connector Terminals And Specification (2 Of 2)
G01637296Courtesy of FORD MOTOR CO.
