Home >> Lincoln >> 2003 >> Aviator AWD >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Information, Gauges & Warning Devices >> Diagnosis And Testing >> Instrument Cluster >> Pinpoint Test K: The Tachometer is Inoperative >> Test Procedure

Test Procedure

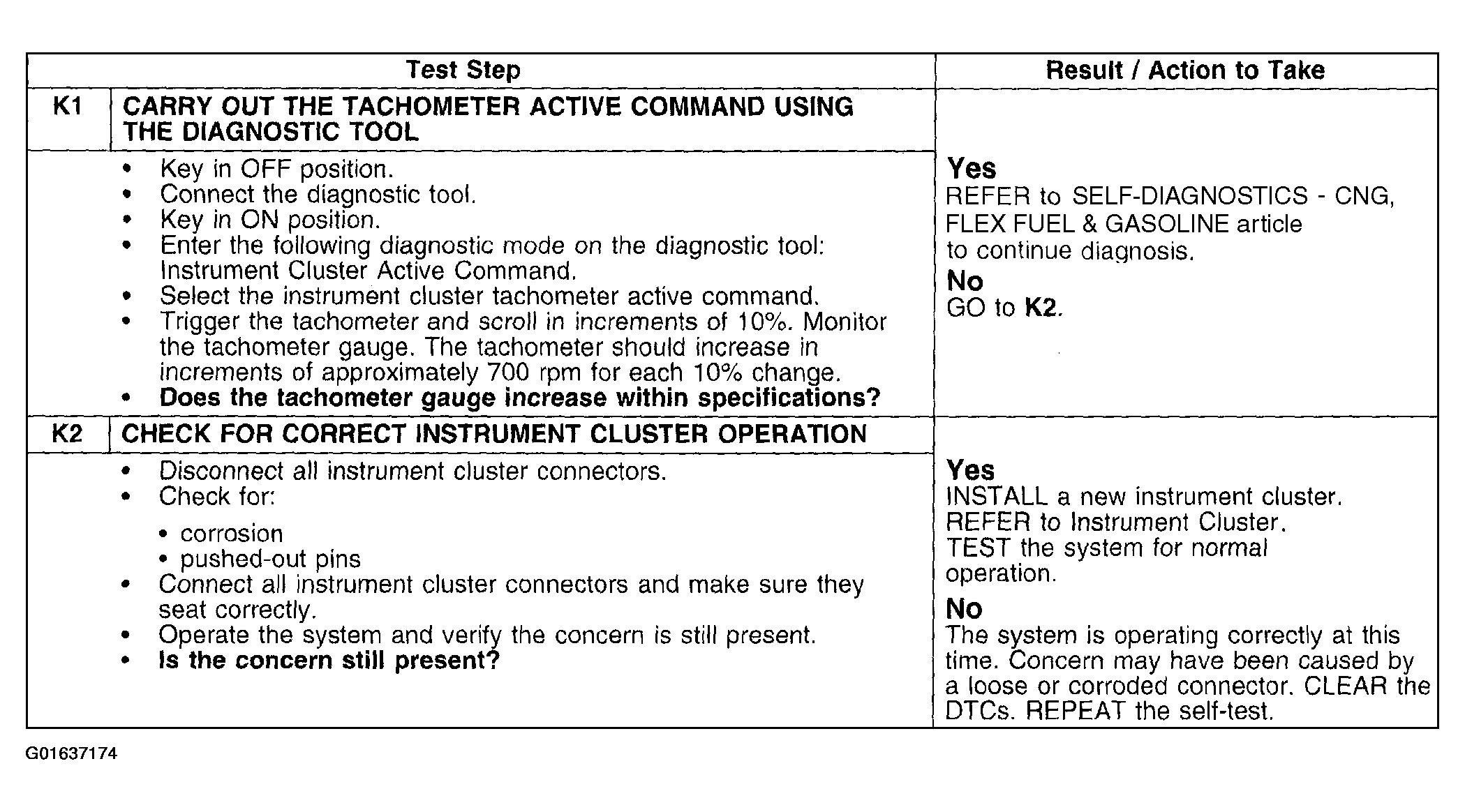

Fig 1: Pinpoint Test K: The Tachometer is Inoperative
G01637174Courtesy of FORD MOTOR CO.
