Test procedure

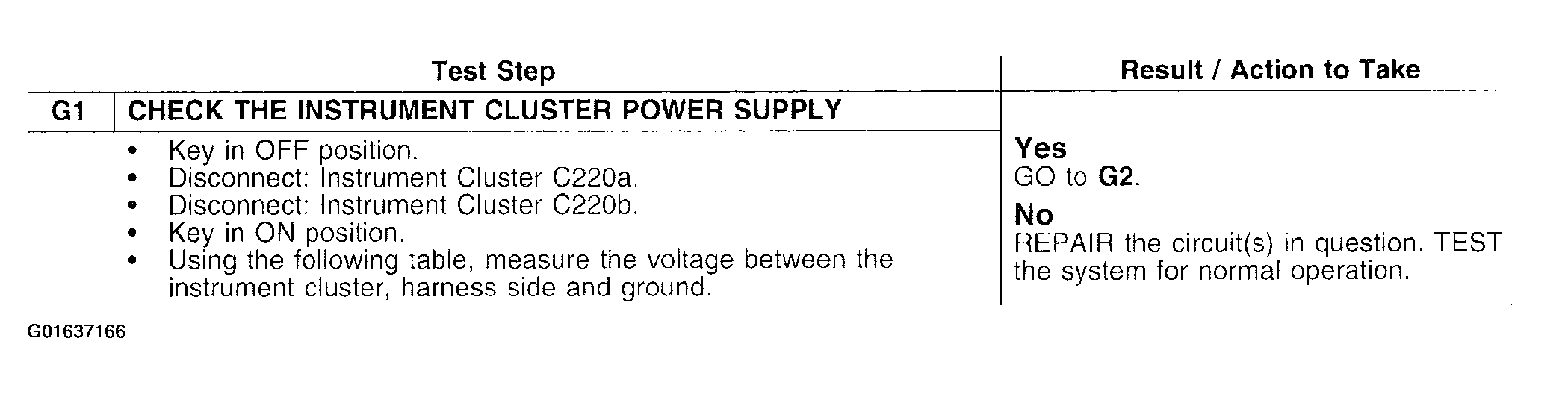

Fig 1: Pinpoint Test G: No Communication With The Instrument Cluster (Step G1)
G01637166Courtesy of FORD MOTOR CO.

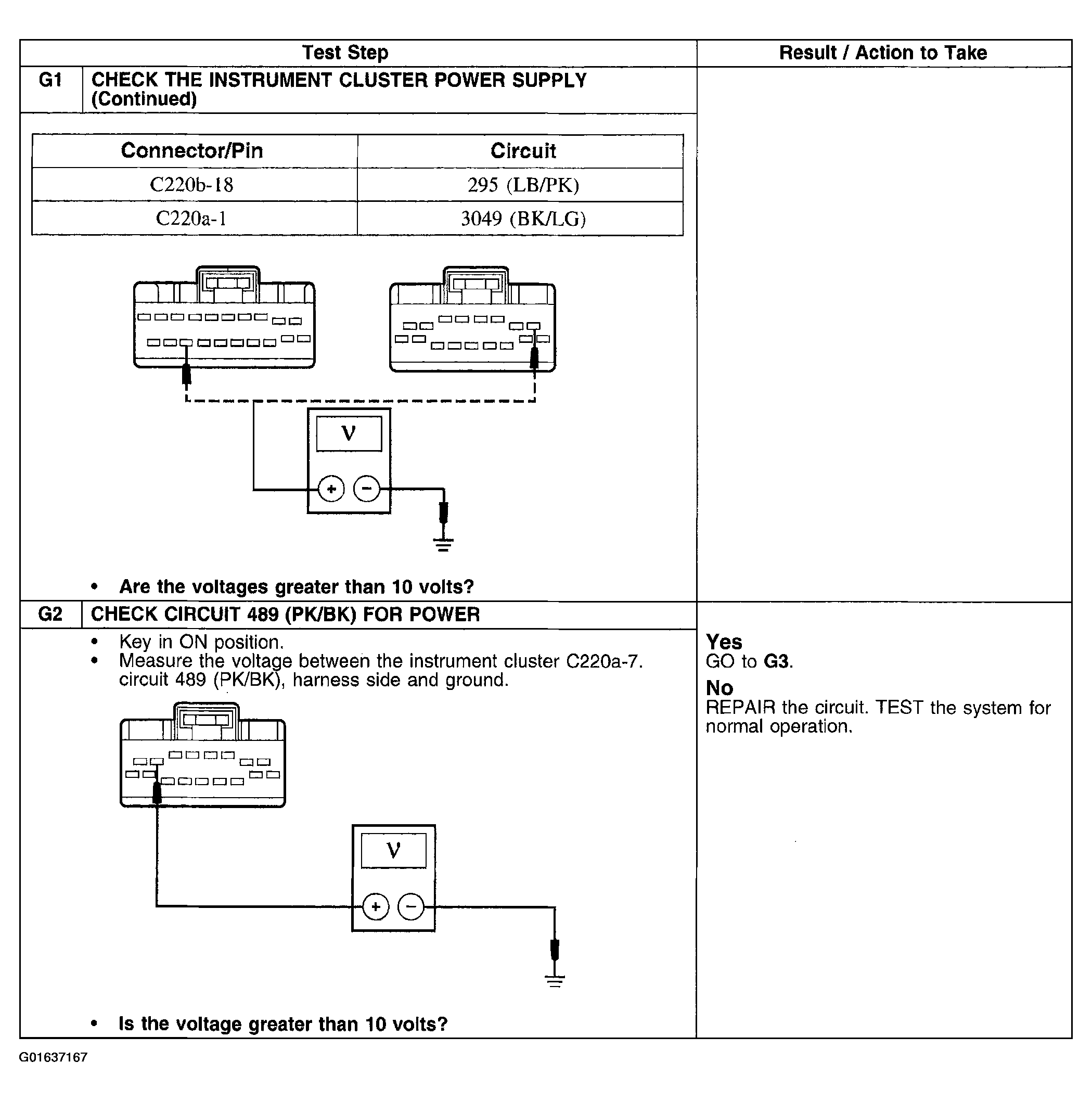

Fig 2: Pinpoint Test G: No Communication With The Instrument Cluster (Steps G1 Cont. & G2)
G01637167Courtesy of FORD MOTOR CO.

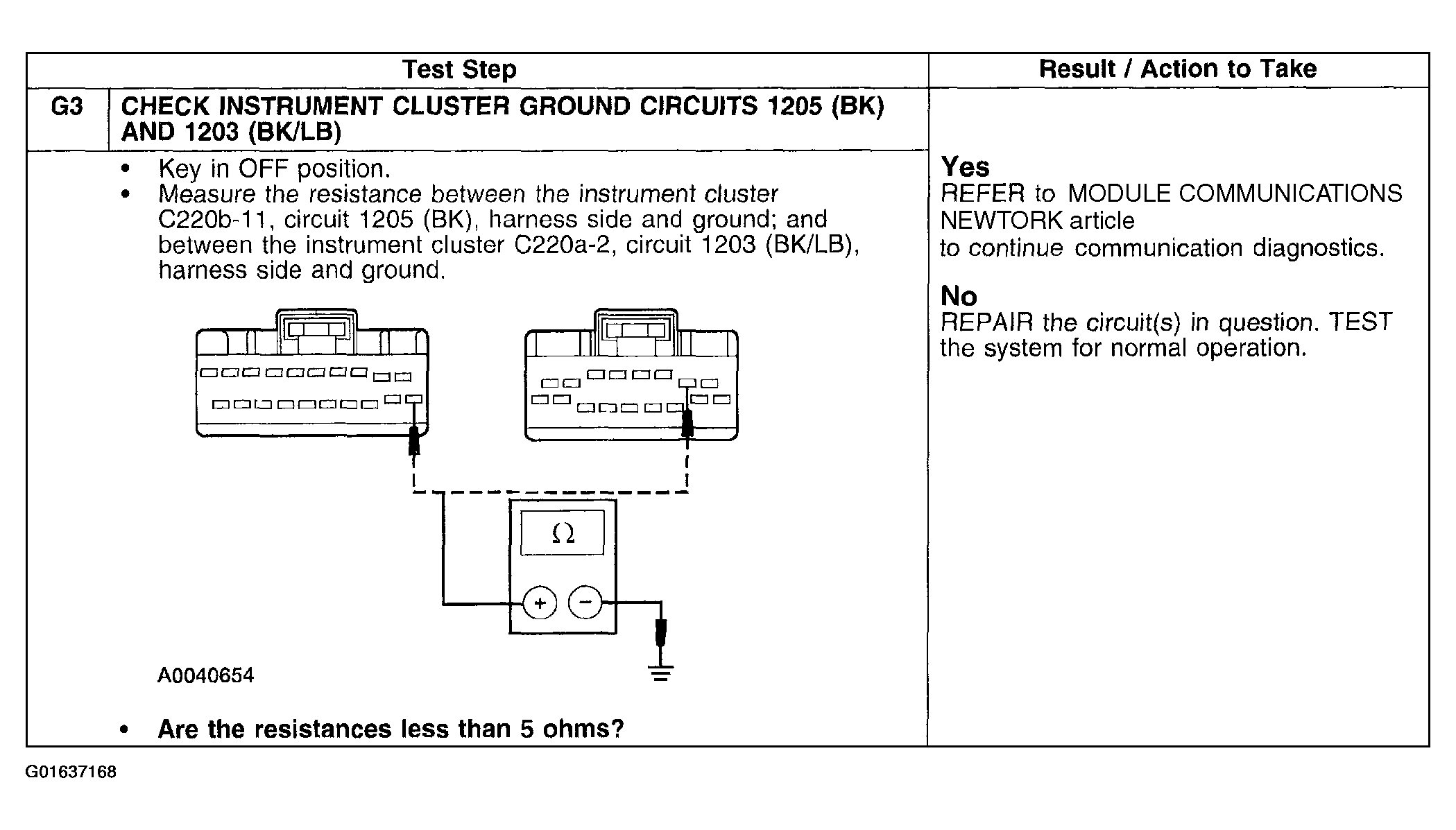

Fig 3: Pinpoint Test G: No Communication With The Instrument Cluster (Step G3)
G01637168Courtesy of FORD MOTOR CO.
