Test Procedure

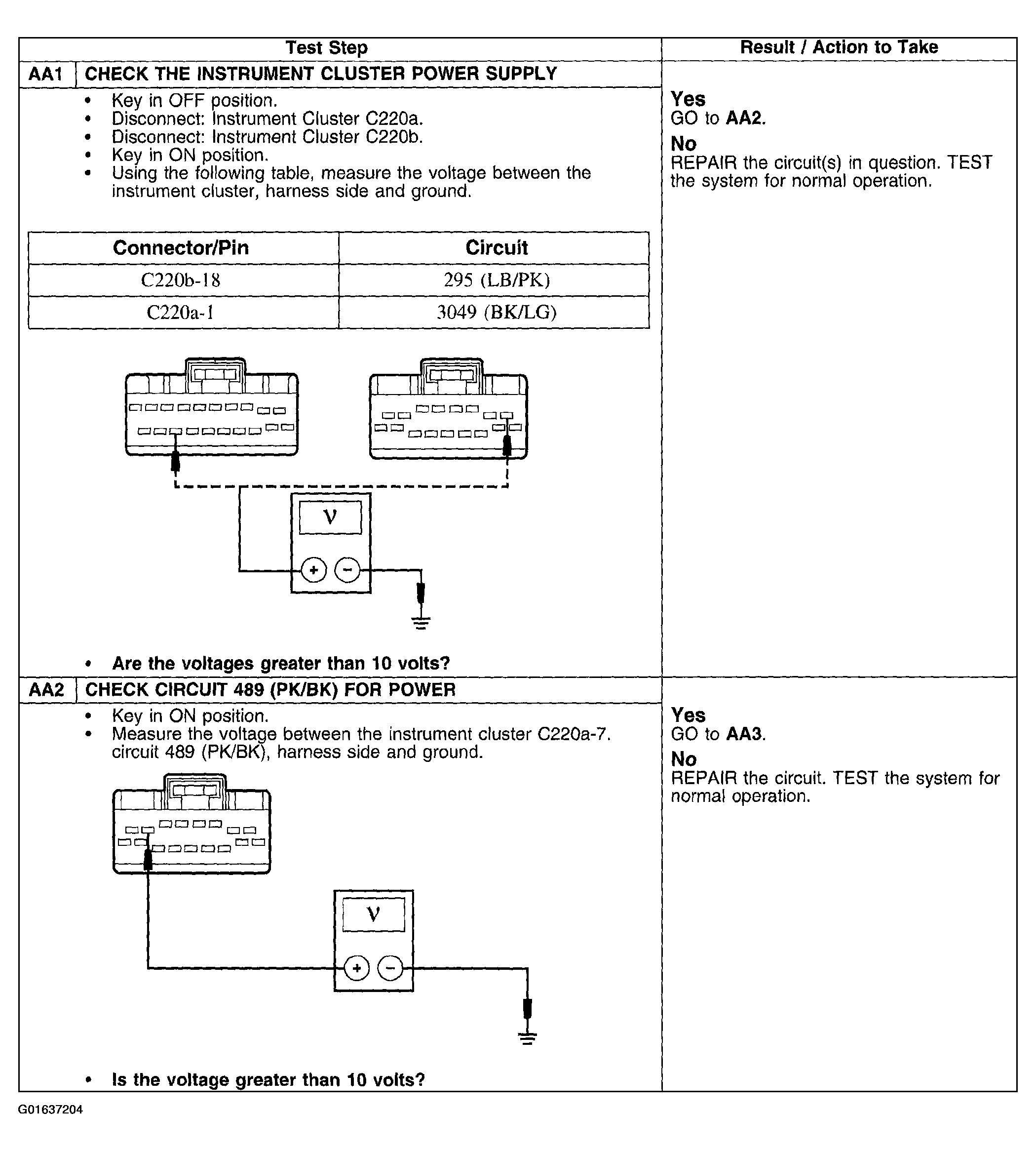

Fig 1: Pinpoint Test AA: The Instrument Cluster Is Inoperative (Steps AA1 & AA2)
G01637204Courtesy of FORD MOTOR CO.

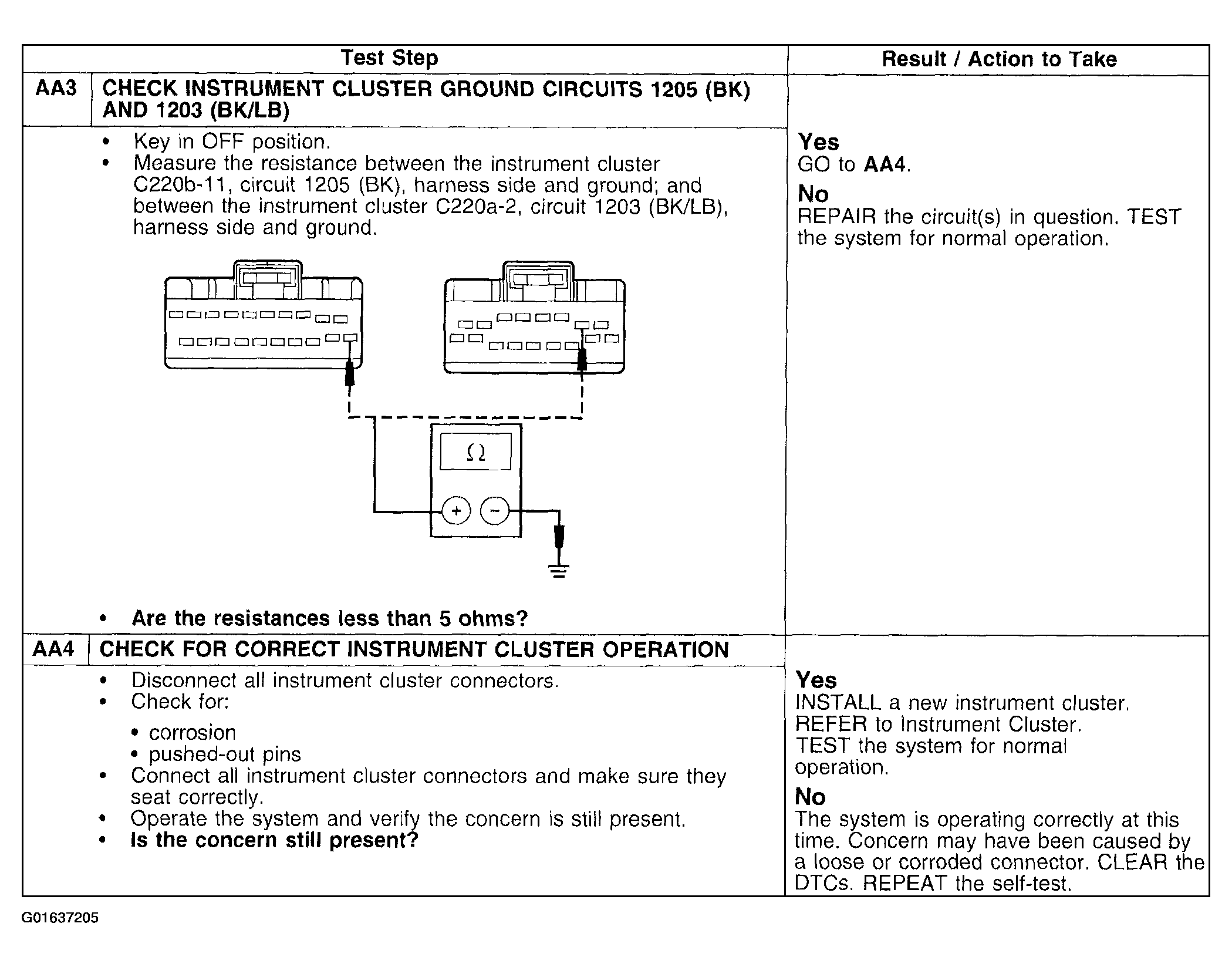

Fig 2: Pinpoint Test AA: The Instrument Cluster Is Inoperative (Steps AA3 & AA4)
G01637205Courtesy of FORD MOTOR CO.
