Connector Circuit Reference

Fig 1: Identifying Oil Pressure Switch C103 Connector Terminals And Specification (1 Of 2)
G01637148Courtesy of FORD MOTOR CO.

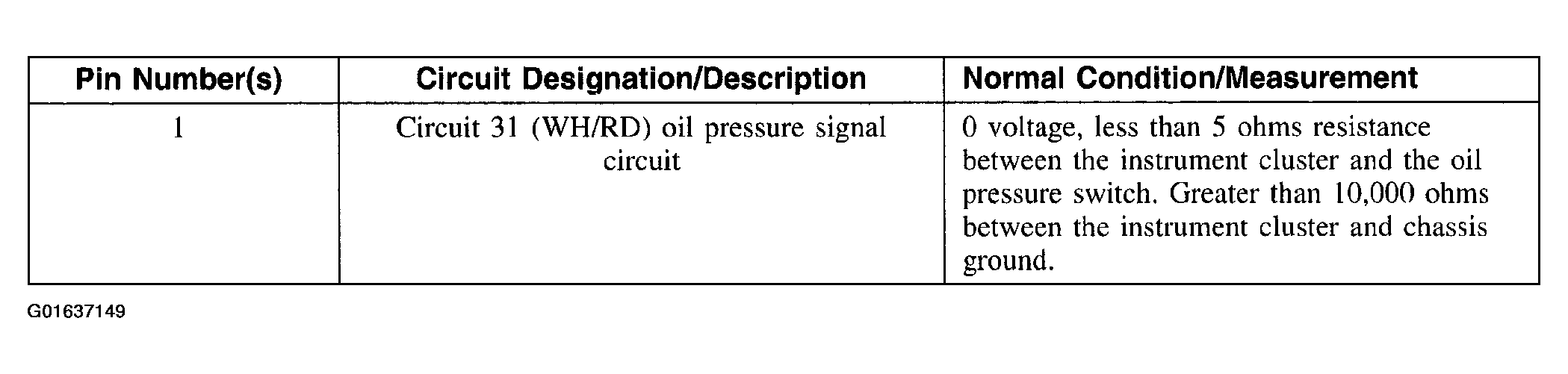

Fig 2: Identifying Oil Pressure Switch C103 Connector Terminals And Specification (2 Of 2)
G01637149Courtesy of FORD MOTOR CO.
Fig 3: Identifying Brake Fluid Level Switch C124 Connector Terminals And Specification (1 Of 2)
G01637150Courtesy of FORD MOTOR CO.

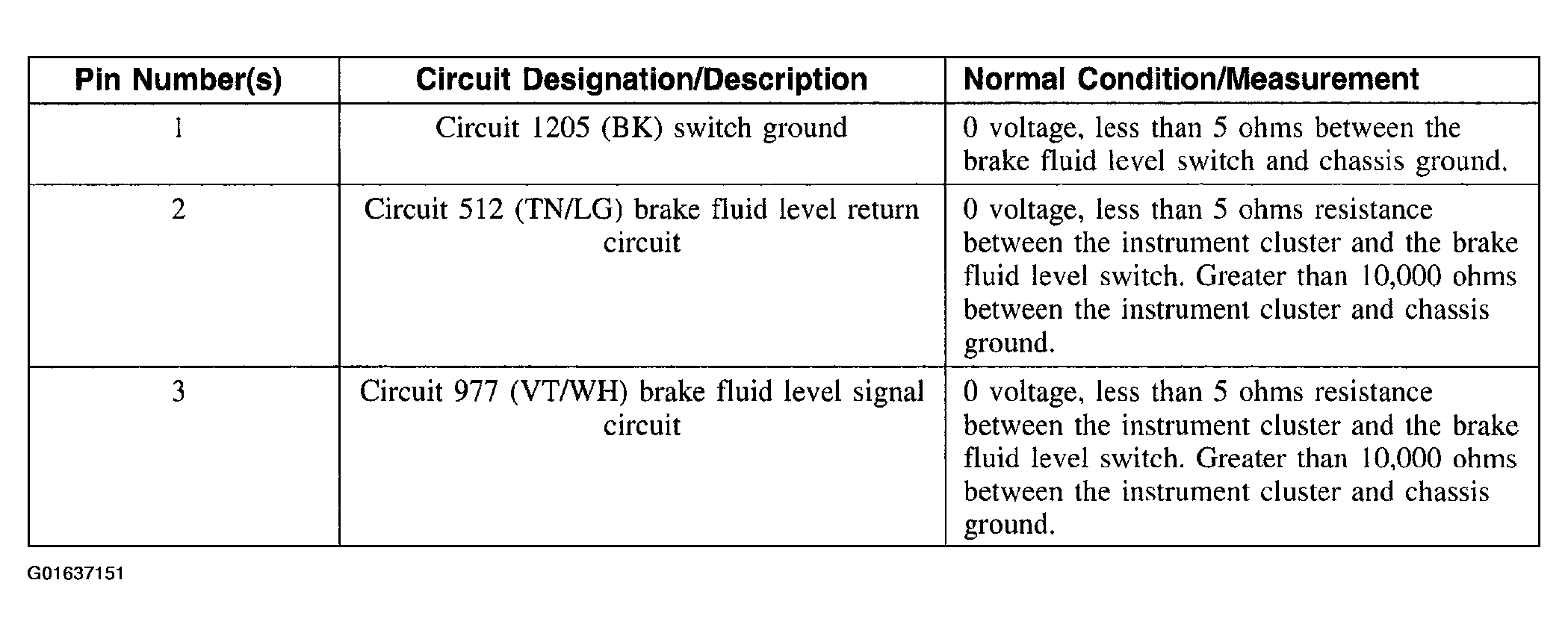

Fig 4: Identifying Brake Fluid Level Switch C124 Connector Terminals And Specification (2 Of 2)
G01637151Courtesy of FORD MOTOR CO.
Fig 5: Identifying Anti-Lock Brake System (ABS) Module C155 Connector Terminals And Specification (1 Of 2)
G01637152Courtesy of FORD MOTOR CO.

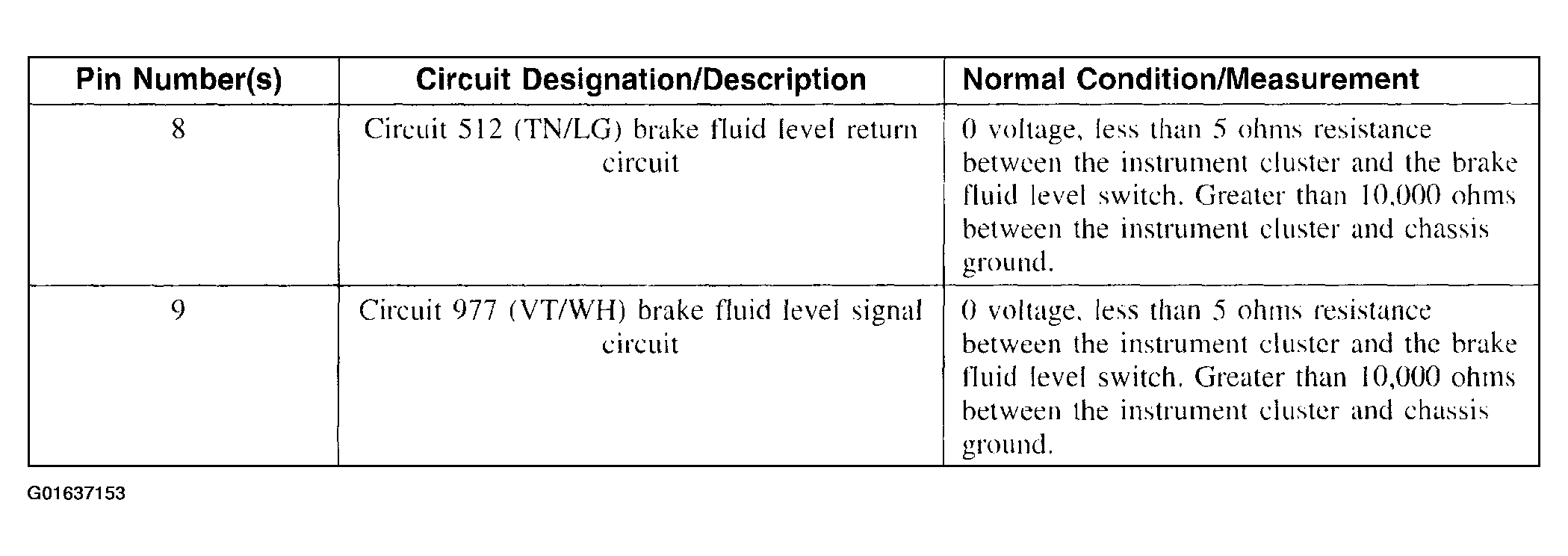

Fig 6: Identifying Anti-Lock Brake System (ABS) Module C155 Connector Terminals And Specification (2 Of 2)
G01637153Courtesy of FORD MOTOR CO.
Fig 7: Identifying Instrument Cluster C220a Connector Terminals And Specification (1 Of 3)
G01637154Courtesy of FORD MOTOR CO.

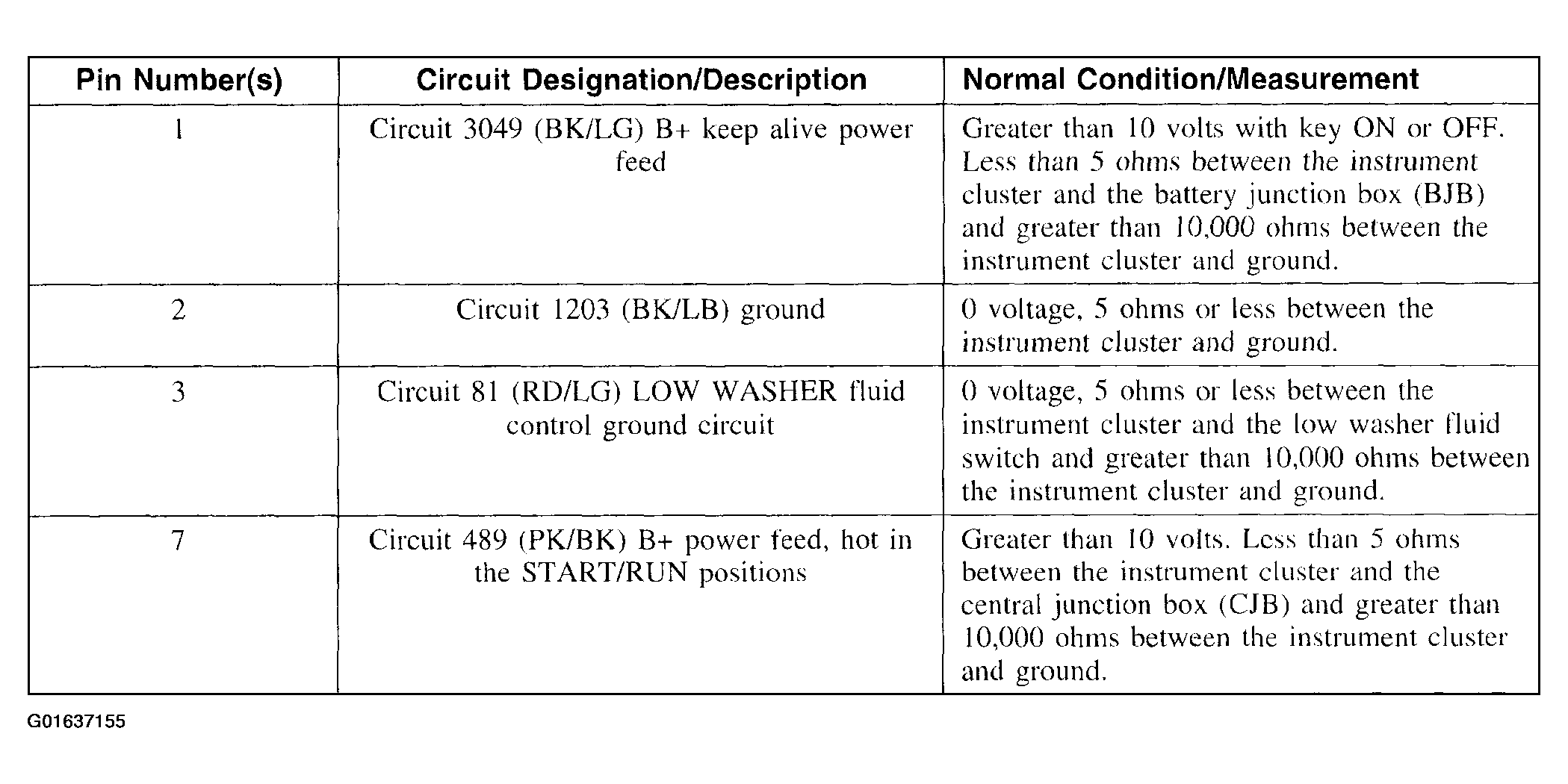

Fig 8: Identifying Instrument Cluster C220a Connector Terminals And Specification (2 Of 3)
G01637155Courtesy of FORD MOTOR CO.

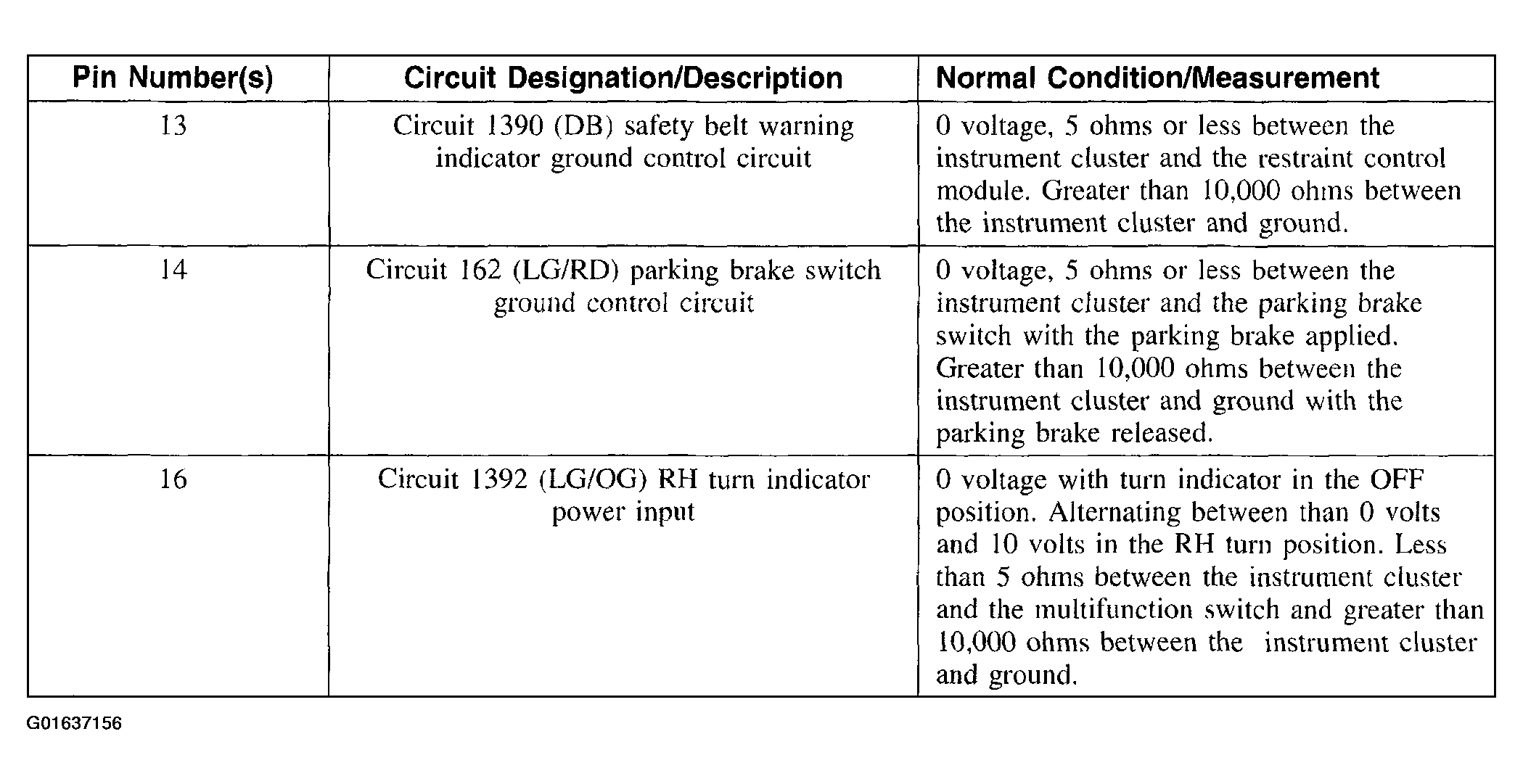

Fig 9: Identifying Instrument Cluster C220a Connector Terminals And Specification (3 Of 3)
G01637156Courtesy of FORD MOTOR CO.
Fig 10: Identifying Instrument Cluster C220b Connector Terminals And Specification (1 Of 3)
G01637157Courtesy of FORD MOTOR CO.

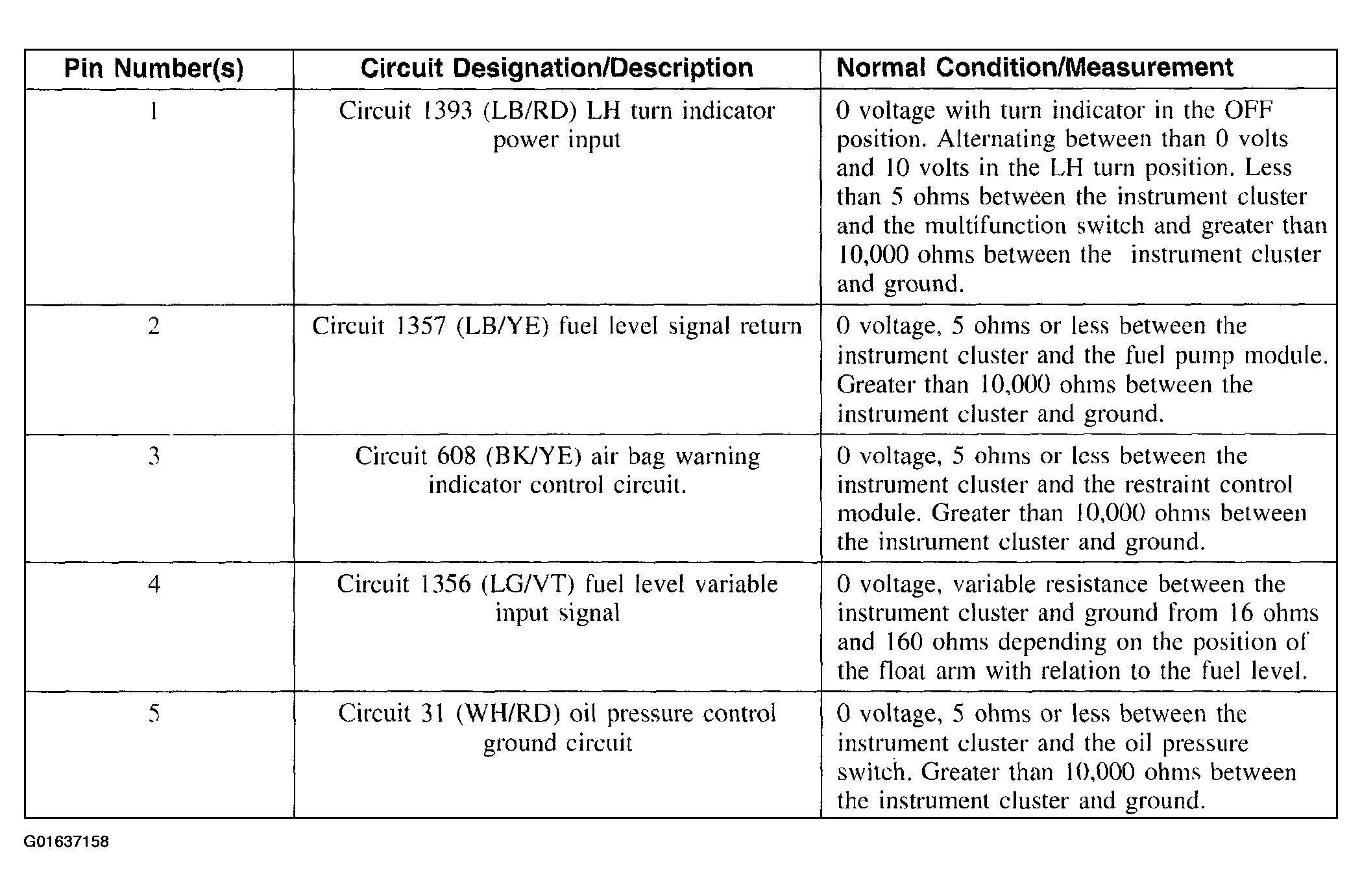

Fig 11: Identifying Instrument Cluster C220b Connector Terminals And Specification (2 Of 3)
G01637158Courtesy of FORD MOTOR CO.

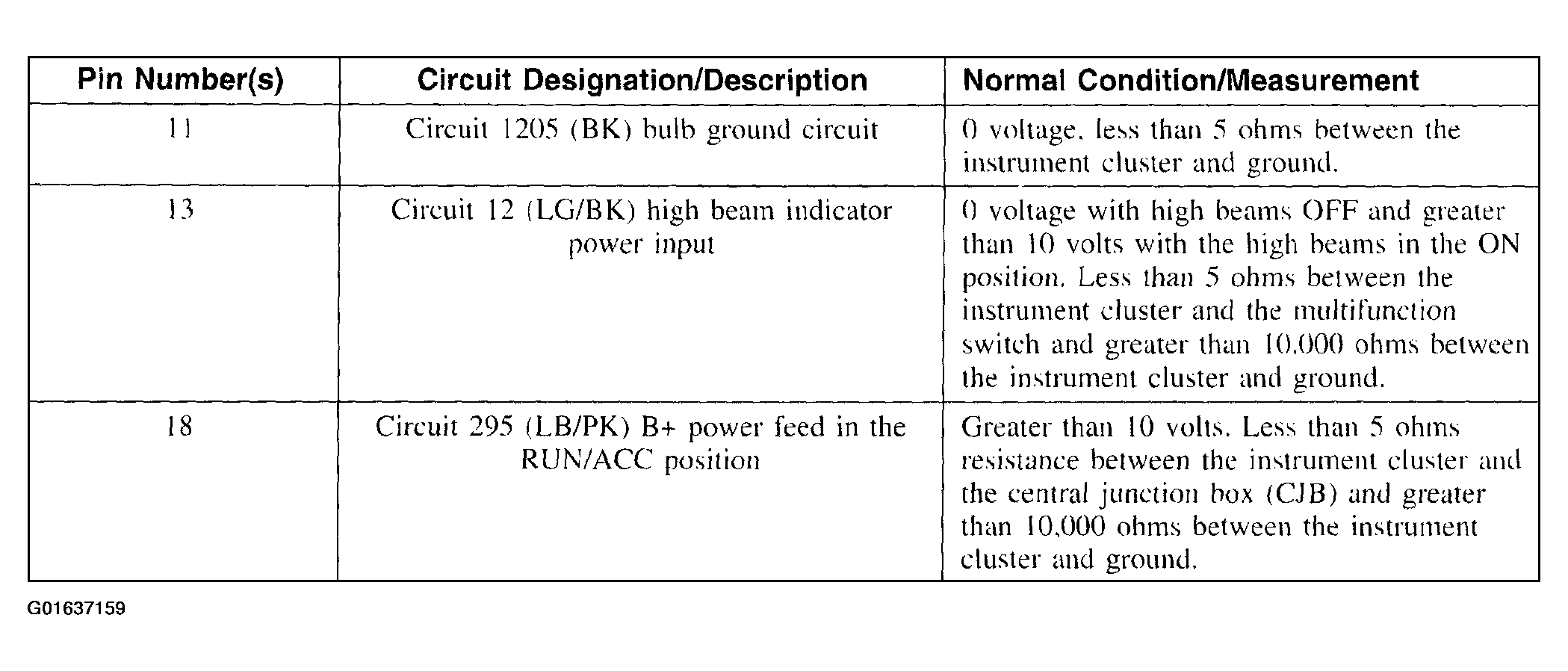

Fig 12: Identifying Instrument Cluster C220b Connector Terminals And Specification (3 Of 3)
G01637159Courtesy of FORD MOTOR CO.

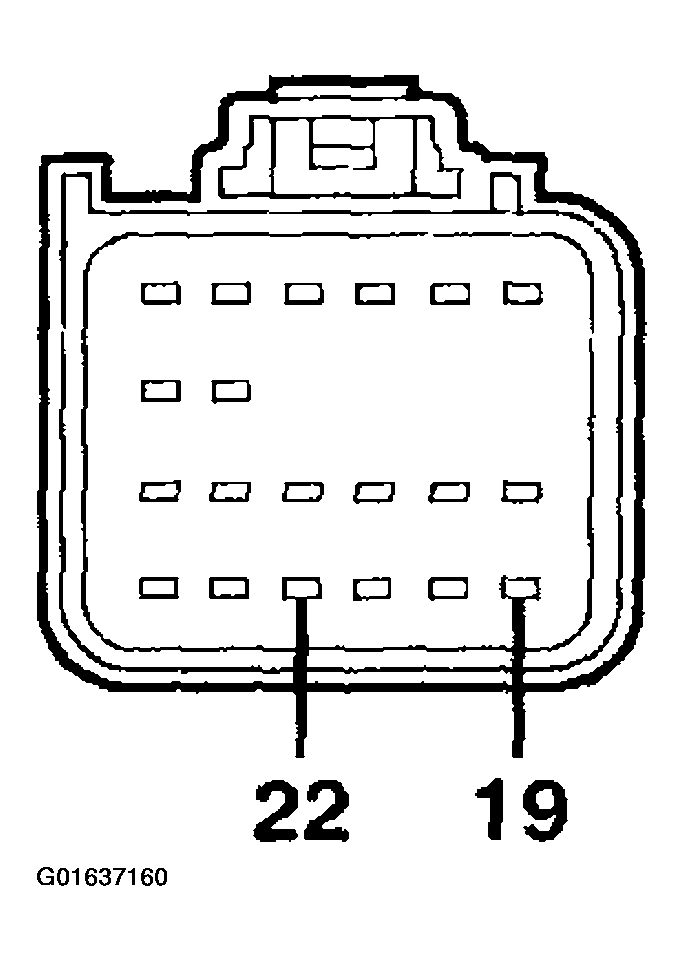

Fig 13: Identifying Restraint Control Module C310a Connector Terminals And Specification (1 Of 2)
G01637160Courtesy of FORD MOTOR CO.

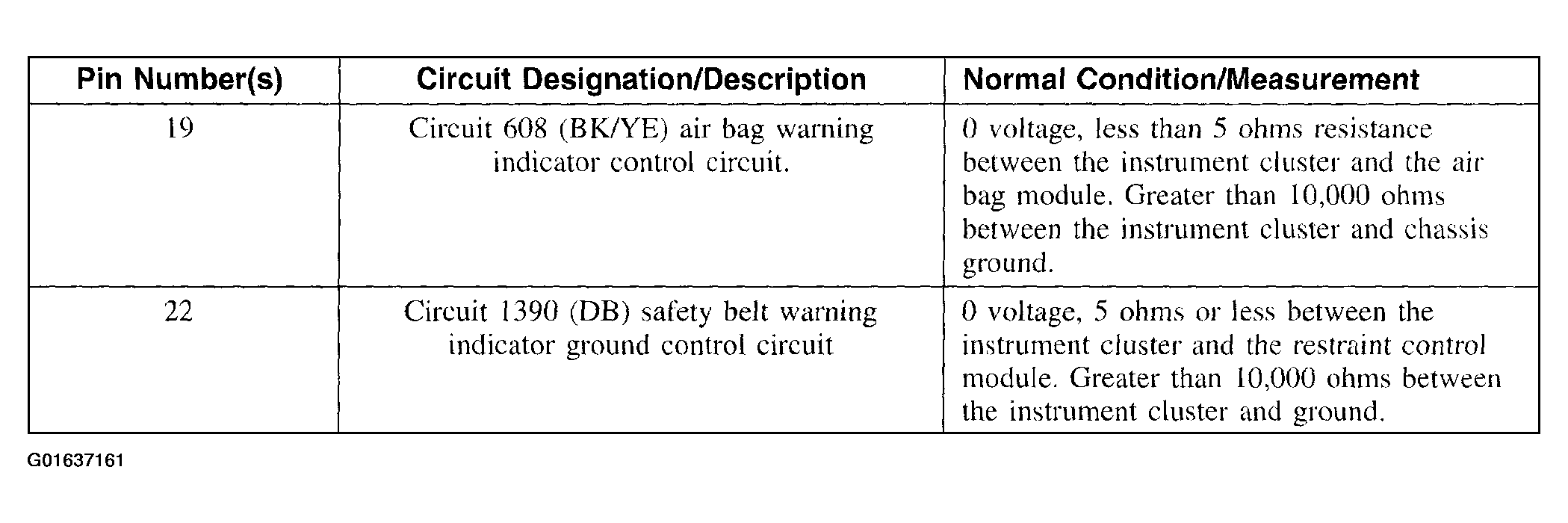

Fig 14: Identifying Restraint Control Module C310a Connector Terminals And Specification (2 Of 2)
G01637161Courtesy of FORD MOTOR CO.

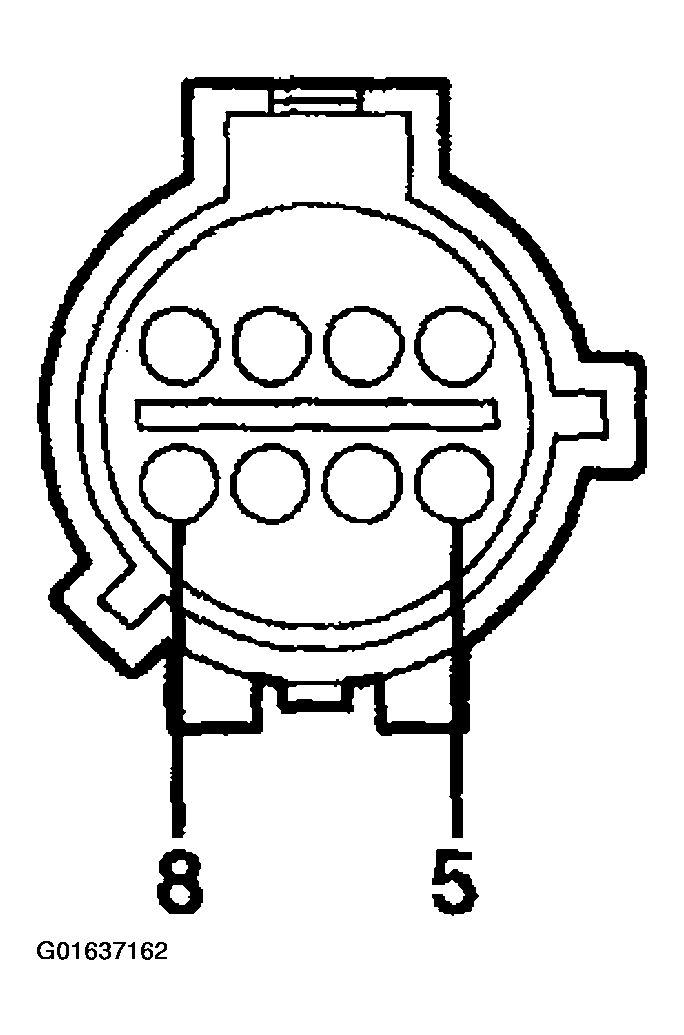

Fig 15: Identifying Fuel Pump Module C433 Connector Terminals And Specification (1 Of 2)
G01637162Courtesy of FORD MOTOR CO.

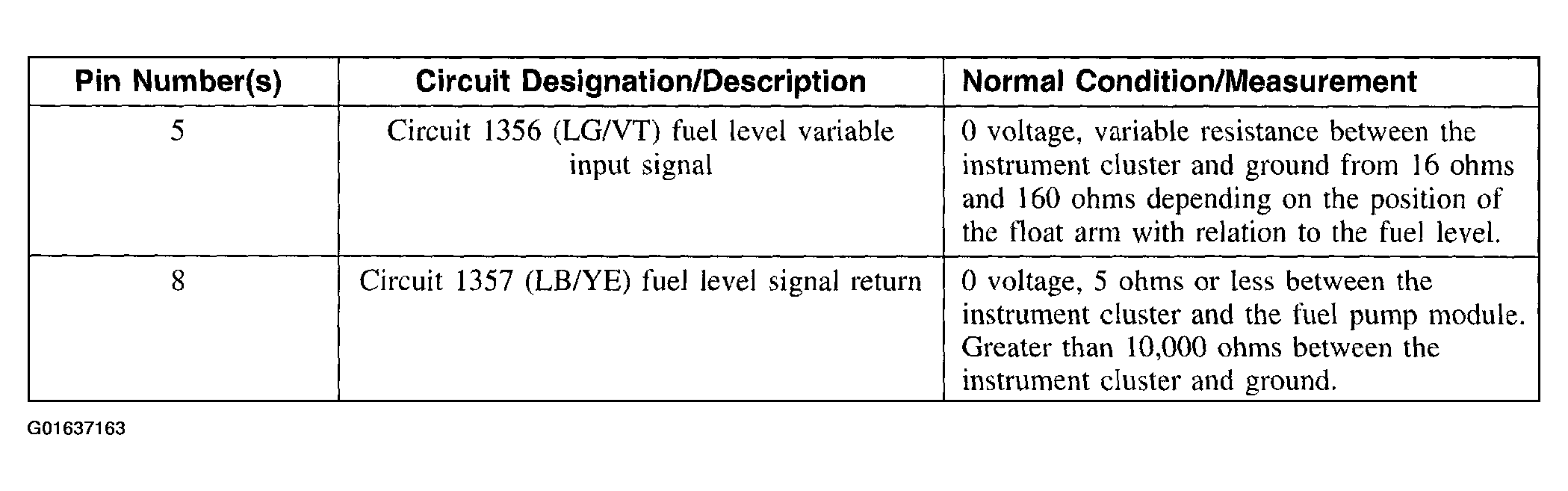

Fig 16: Identifying Fuel Pump Module C433 Connector Terminals And Specification (2 Of 2)
G01637163Courtesy of FORD MOTOR CO.
Fig 17: Identifying Parking Brake Switch C2015 Connector Terminals And Specification (1 Of 2)
G01637164Courtesy of FORD MOTOR CO.

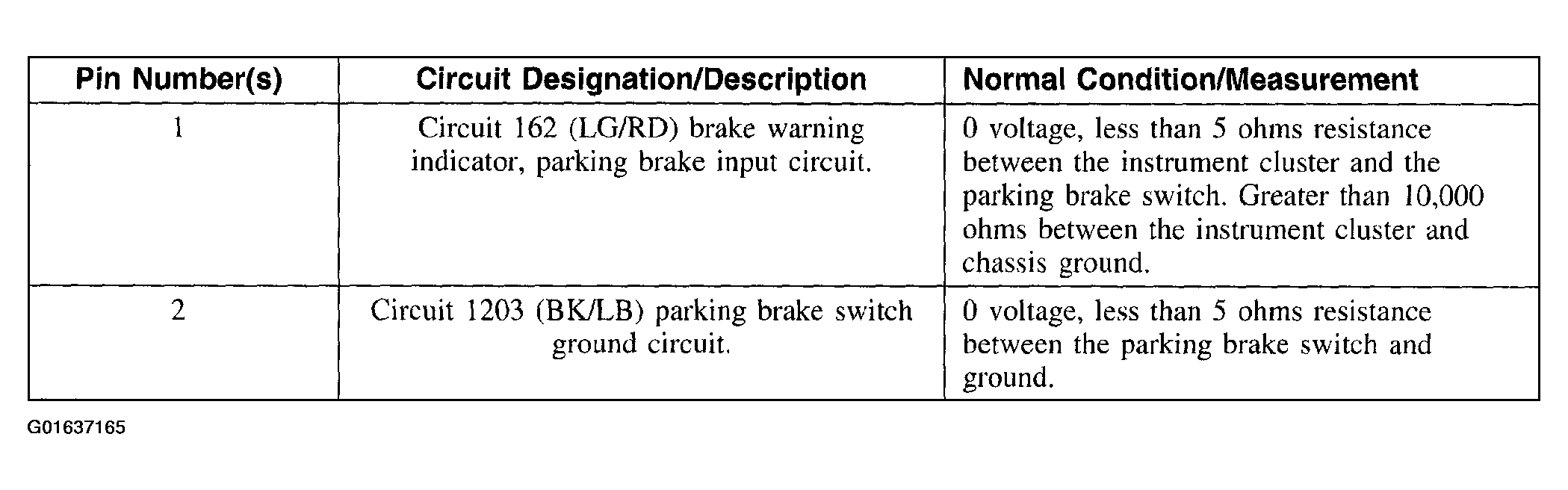

Fig 18: Identifying Parking Brake Switch C2015 Connector Terminals And Specification (2 Of 2)
G01637165Courtesy of FORD MOTOR CO.
