Home >> Lincoln >> 2003 >> Aviator AWD >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Information, Gauges & Warning Devices >> Diagnosis And Testing >> Instrument Cluster and Panel Illumination >> Pinpoint Test E: The Steering Wheel Control Switch Is Inoperative >> Test Procedure

Test Procedure

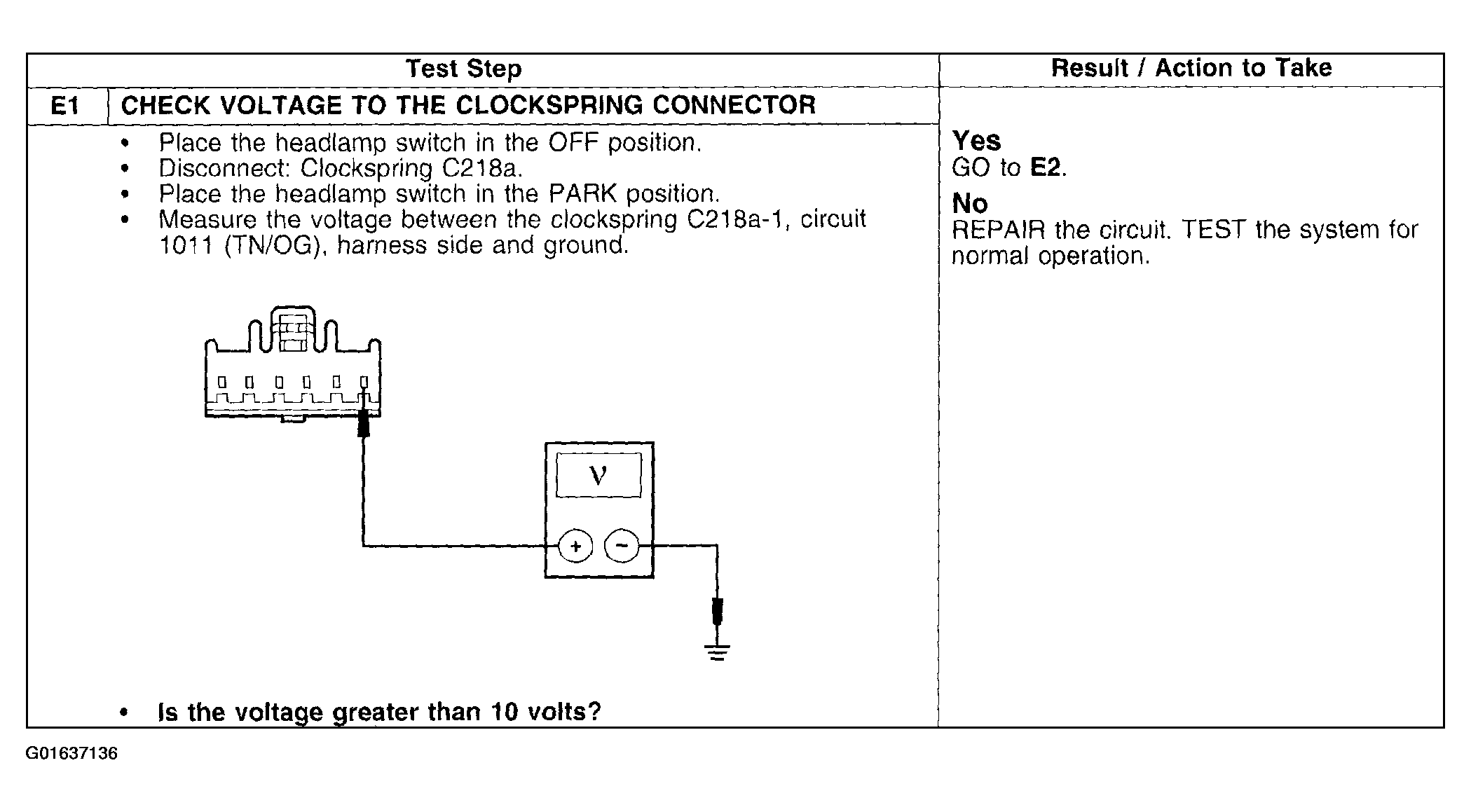

Fig 1: Pinpoint Test E: The Steering Wheel Control Switch Is Inoperative (Step E1)
G01637136Courtesy of FORD MOTOR CO.

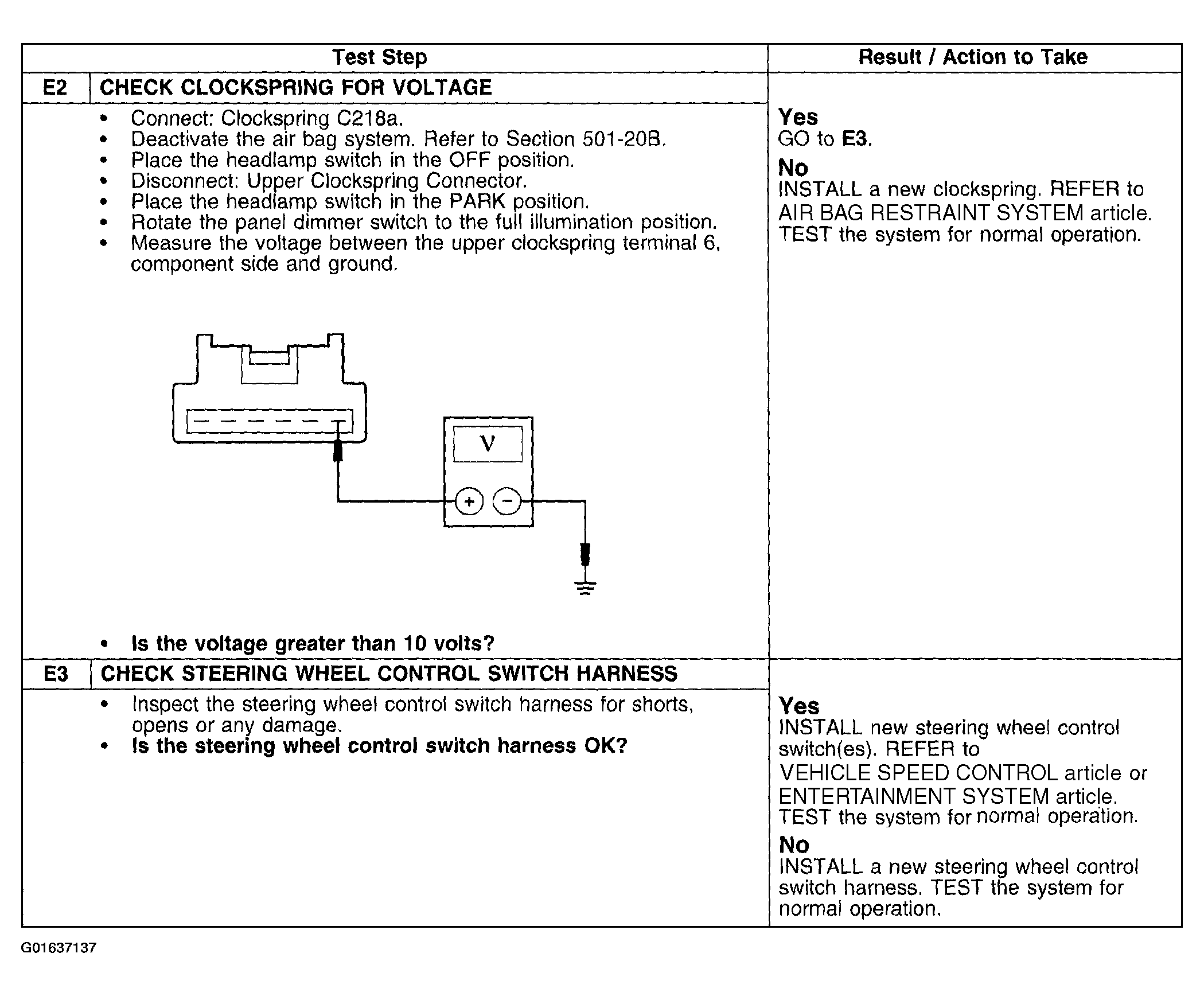

Fig 2: Pinpoint Test E: The Steering Wheel Control Switch Is Inoperative (Steps E2 & E3)
G01637137Courtesy of FORD MOTOR CO.
