Test Procedure

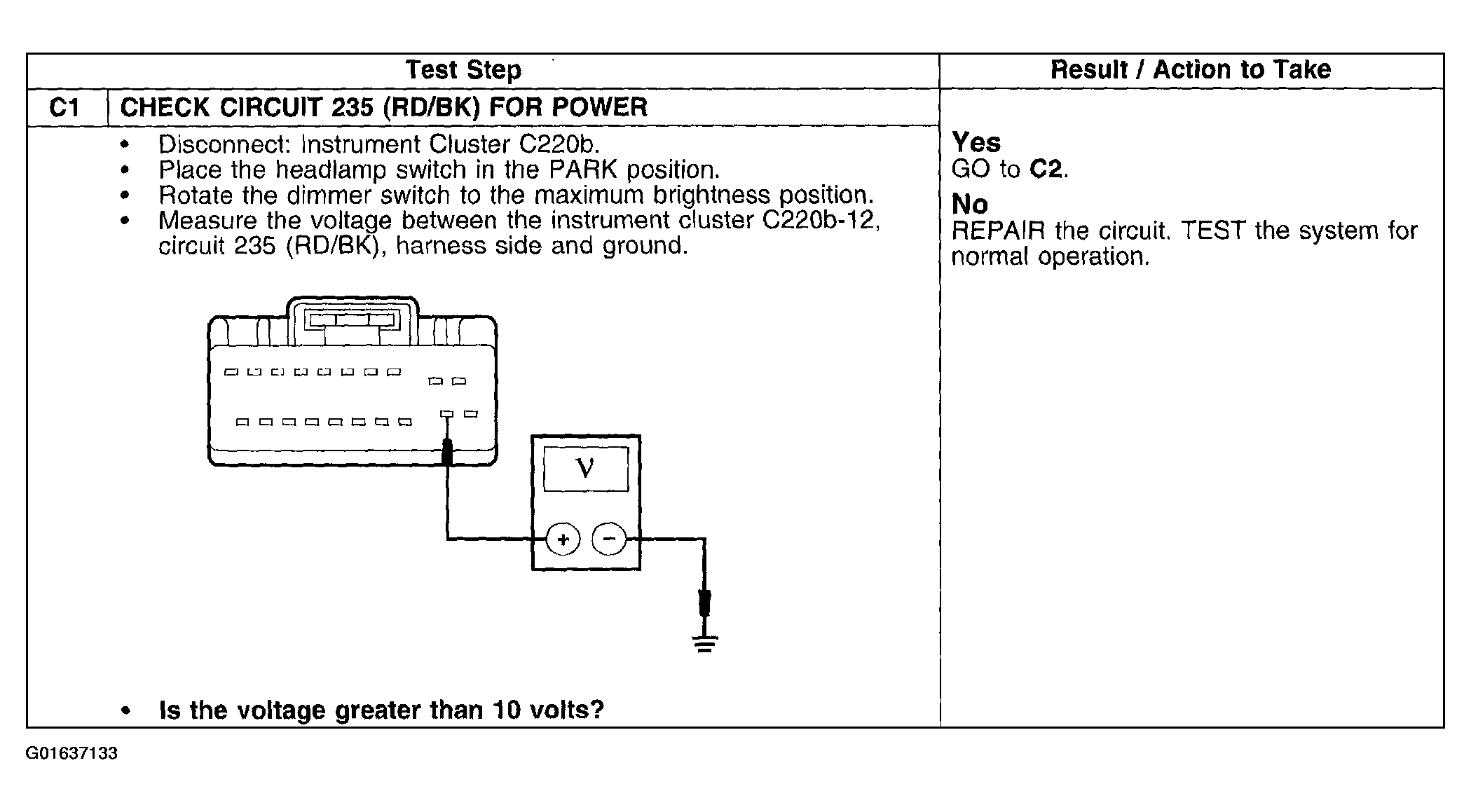

Fig 1: Pinpoint Test C: The Instrument Cluster Illumination is Inoperative (Step C1)
G01637133Courtesy of FORD MOTOR CO.

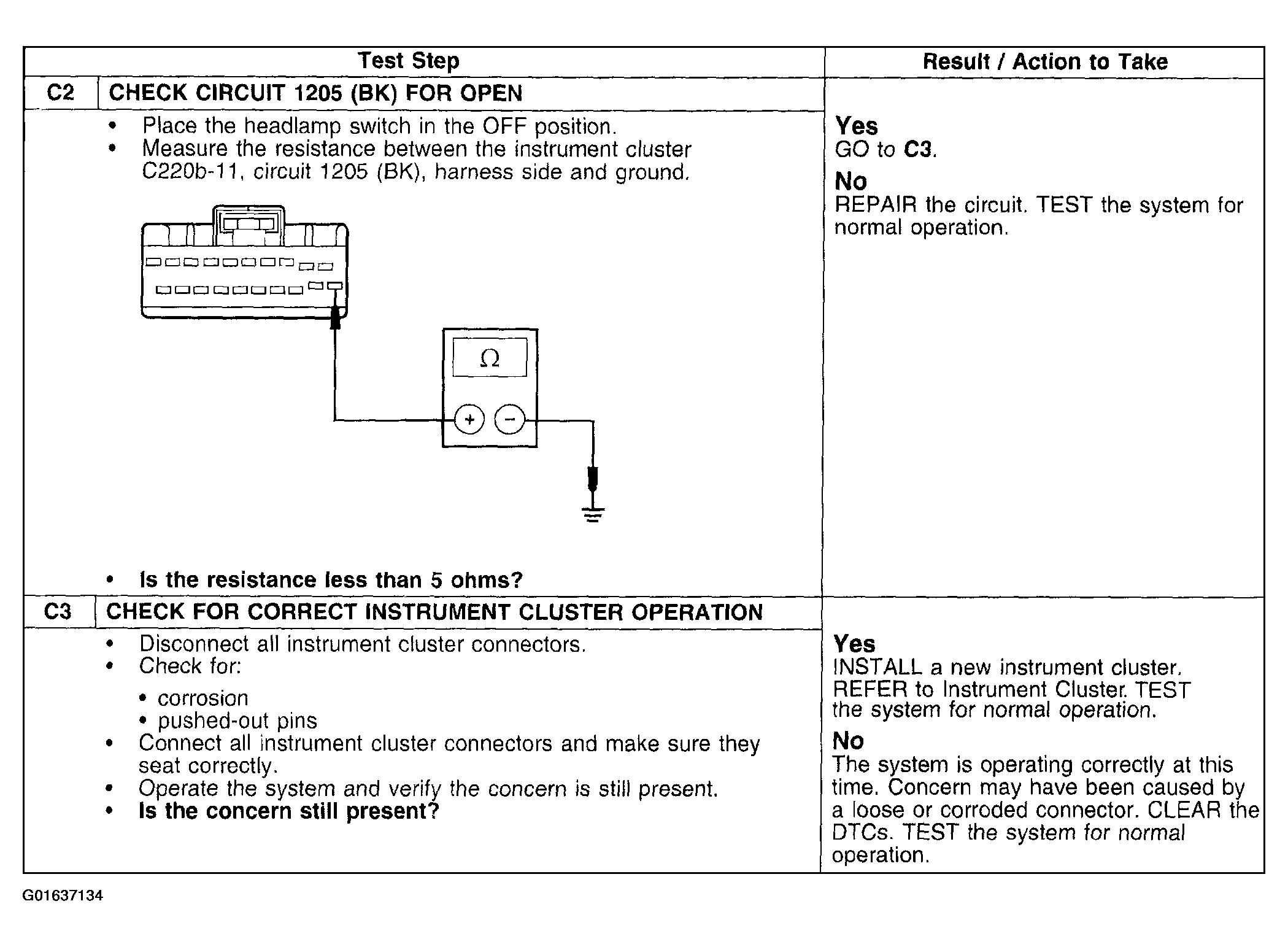

Fig 2: Pinpoint Test C: The Instrument Cluster Illumination is Inoperative (Steps C2 & C3)
G01637134Courtesy of FORD MOTOR CO.
