Home >> Lincoln >> 2003 >> Aviator AWD >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Information, Gauges & Warning Devices >> Diagnosis And Testing >> Instrument Cluster and Panel Illumination >> Pinpoint Test B: The Control Illumination is Inoperative/Always On >> Test Procedure

Test Procedure

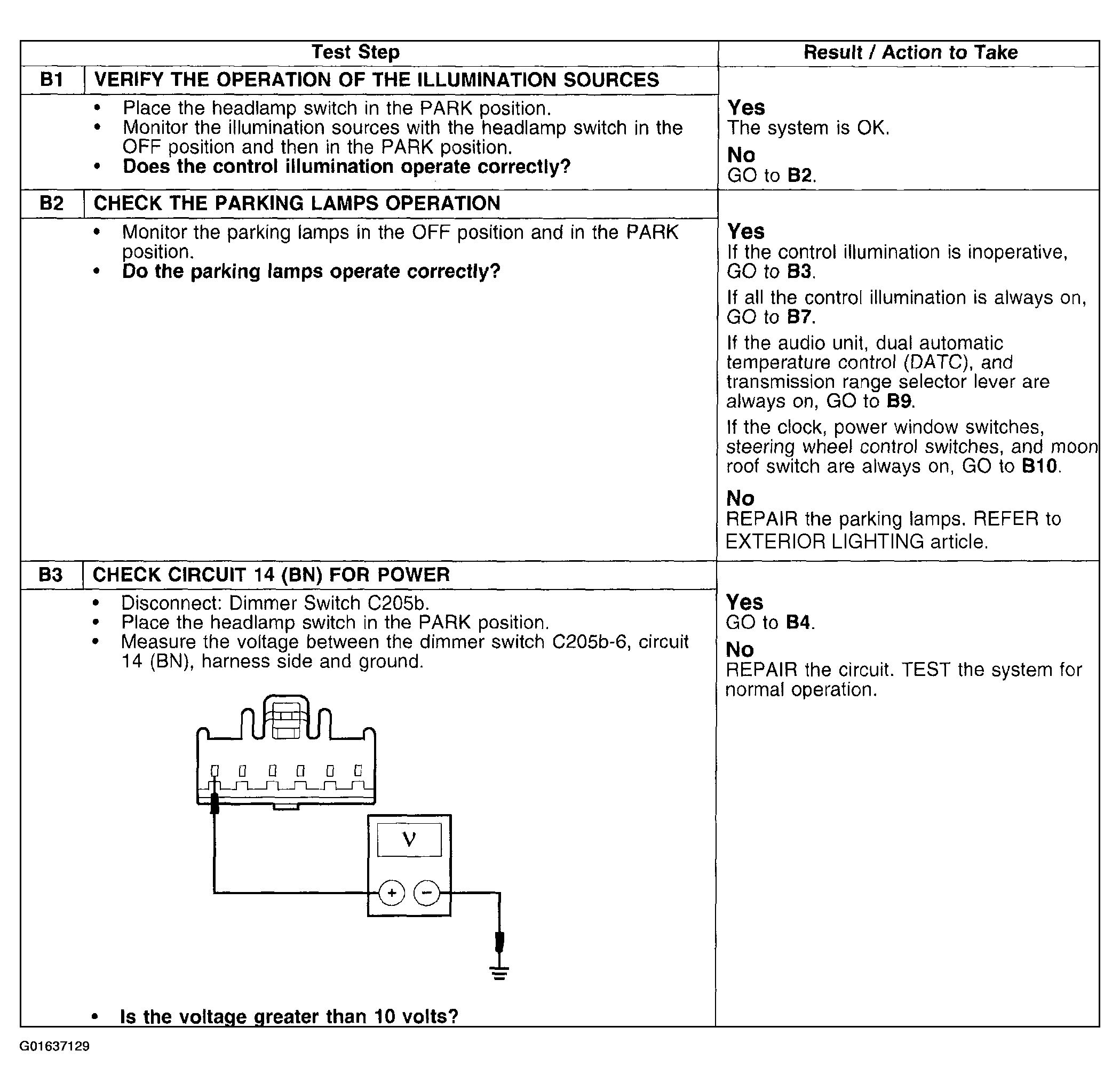

Fig 1: Pinpoint Test B: The Control Illumination is Inoperative/Always On (Steps B1-B3)
G01637129Courtesy of FORD MOTOR CO.

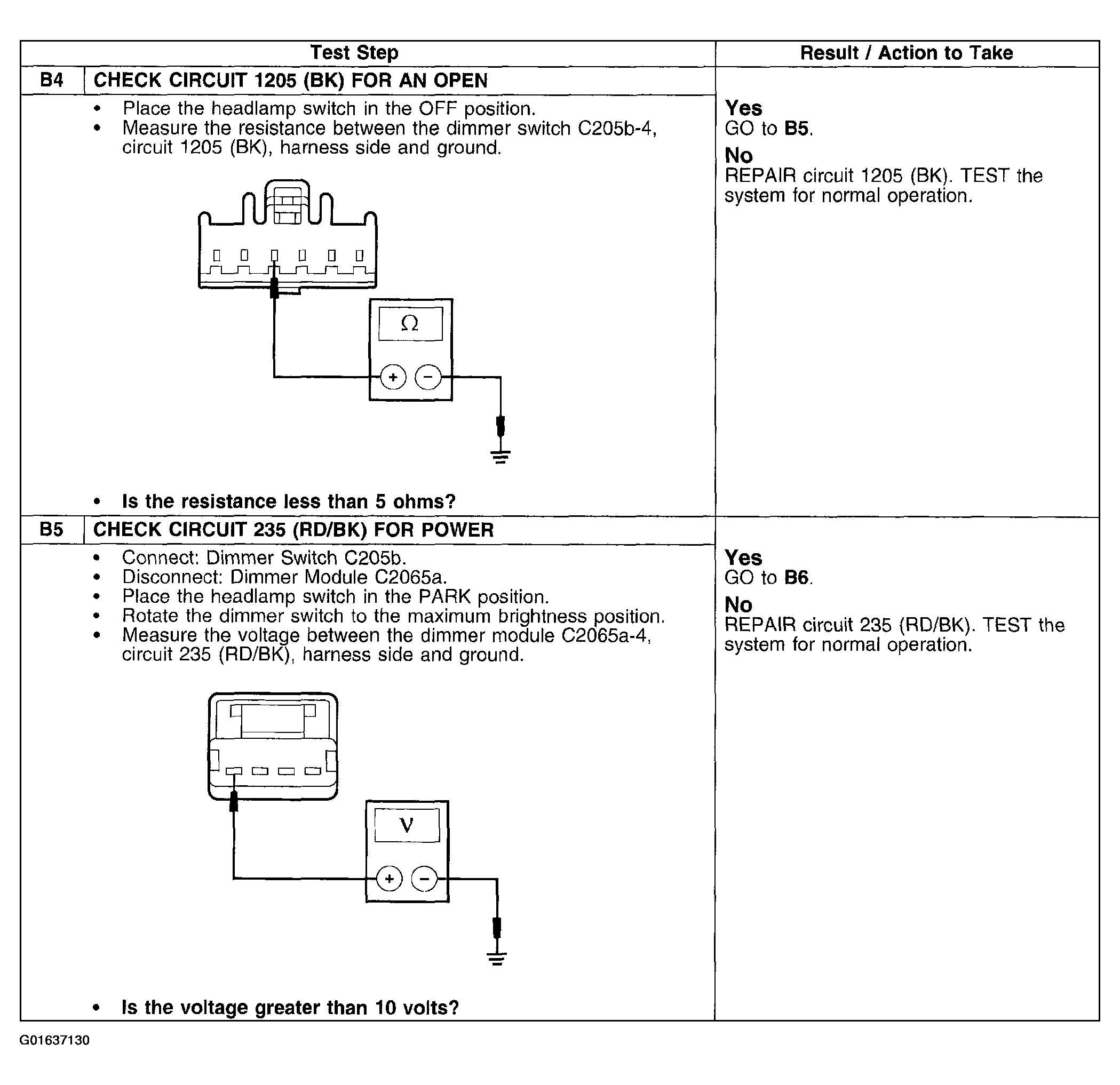

Fig 2: Pinpoint Test B: The Control Illumination is Inoperative/Always On (Steps B4 & B5)
G01637130Courtesy of FORD MOTOR CO.

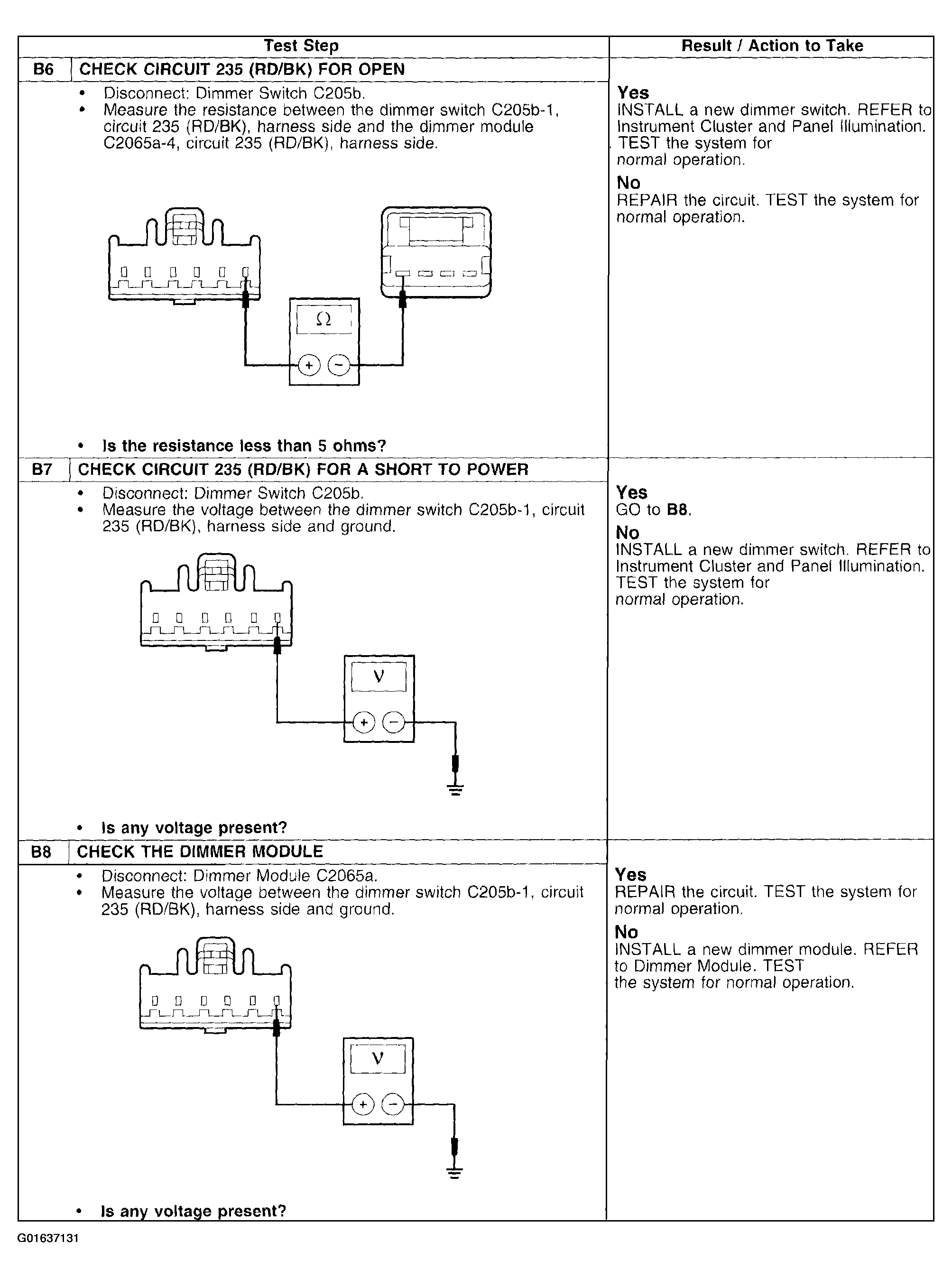

Fig 3: Pinpoint Test B: The Control Illumination is Inoperative/Always On (Steps B6-B8)
G01637131Courtesy of FORD MOTOR CO.

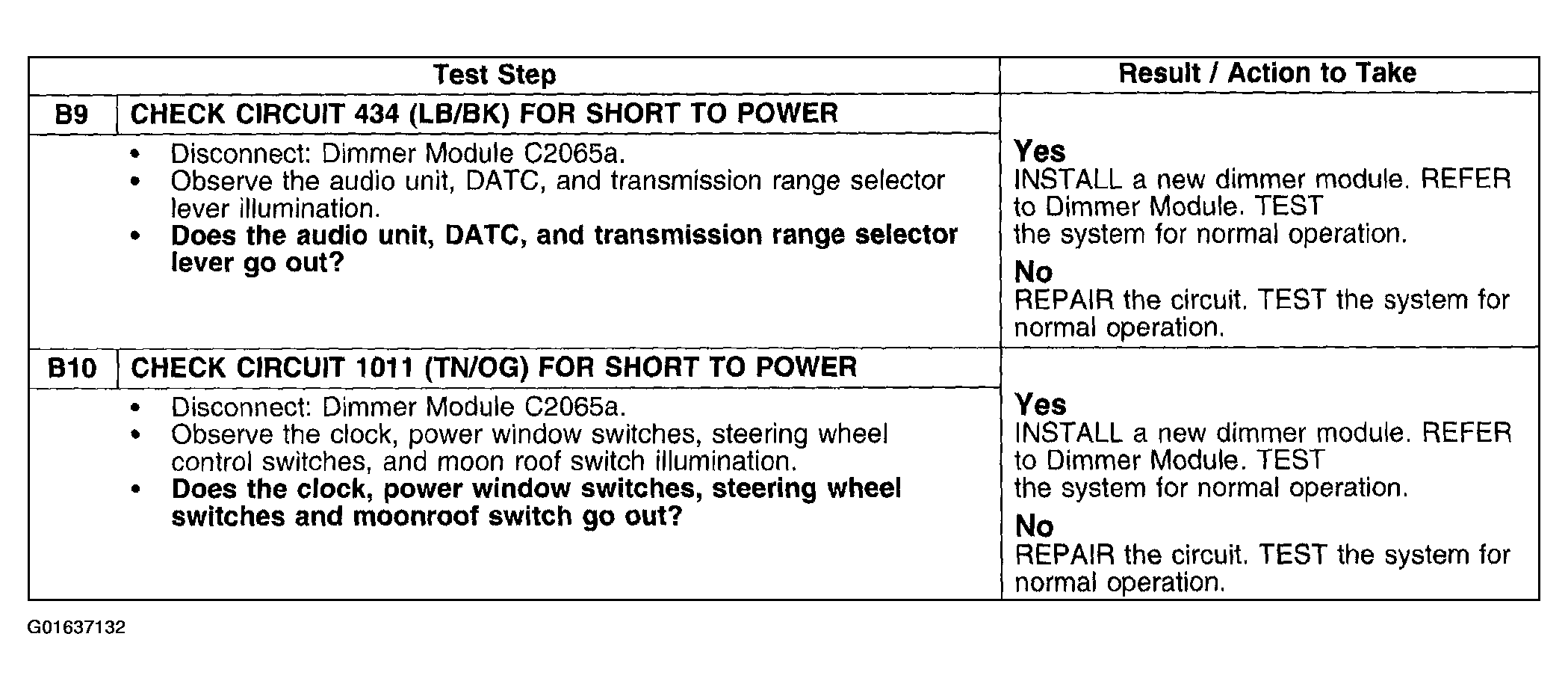

Fig 4: Pinpoint Test B: The Control Illumination is Inoperative/Always On (Steps B9 & B10)
G01637132Courtesy of FORD MOTOR CO.
