Connector Circuit Reference

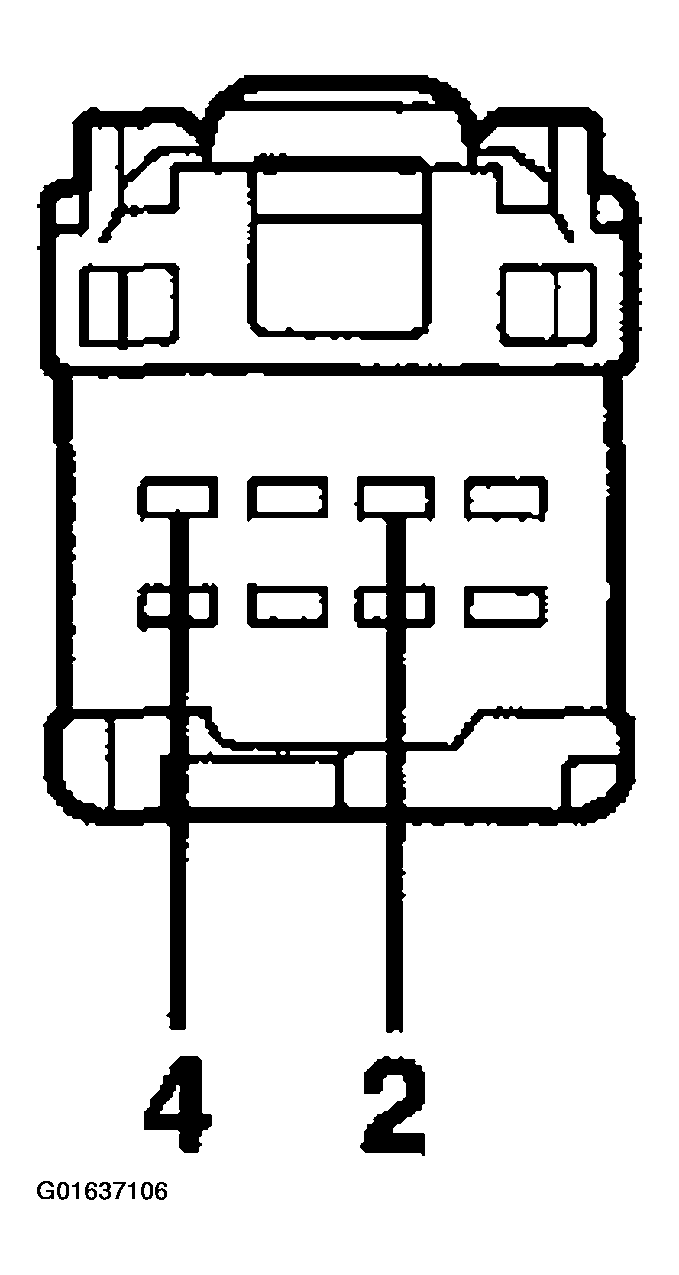

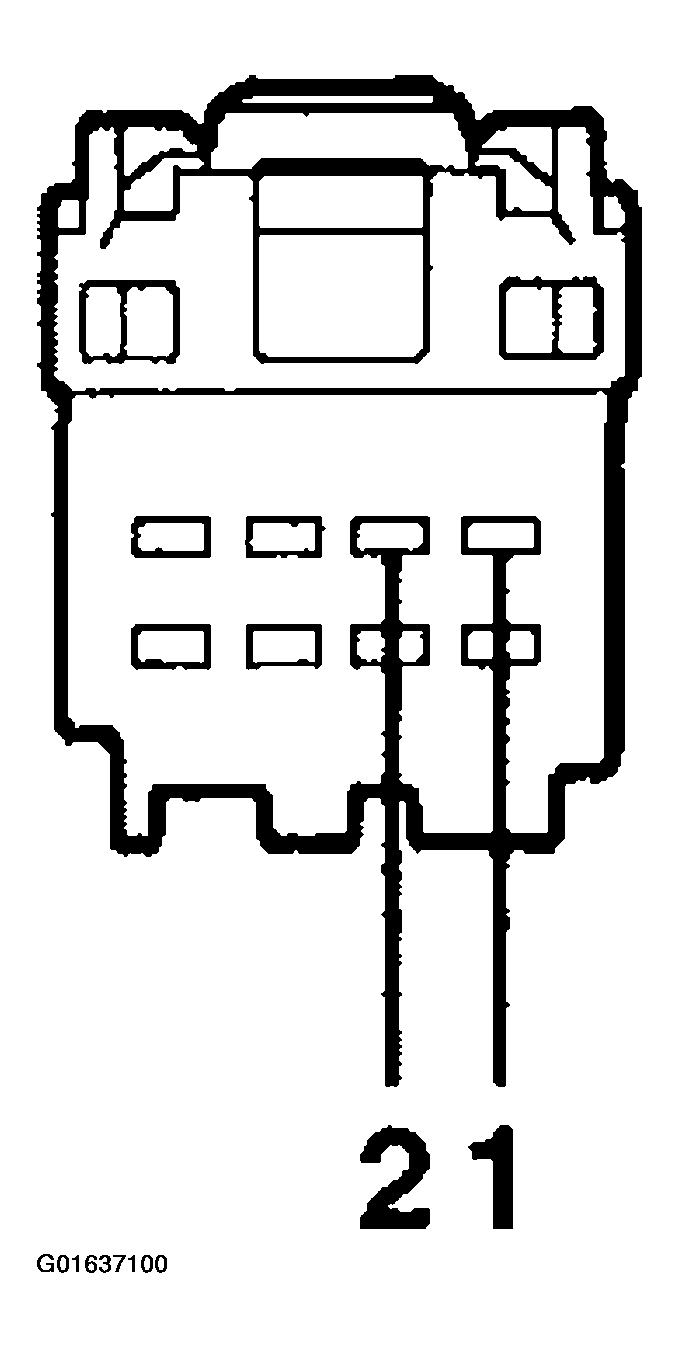

Fig 1: Identifying Dimmer Switch C205b Connector Terminals And Specification (1 Of 2)

Courtesy of FORD MOTOR CO.

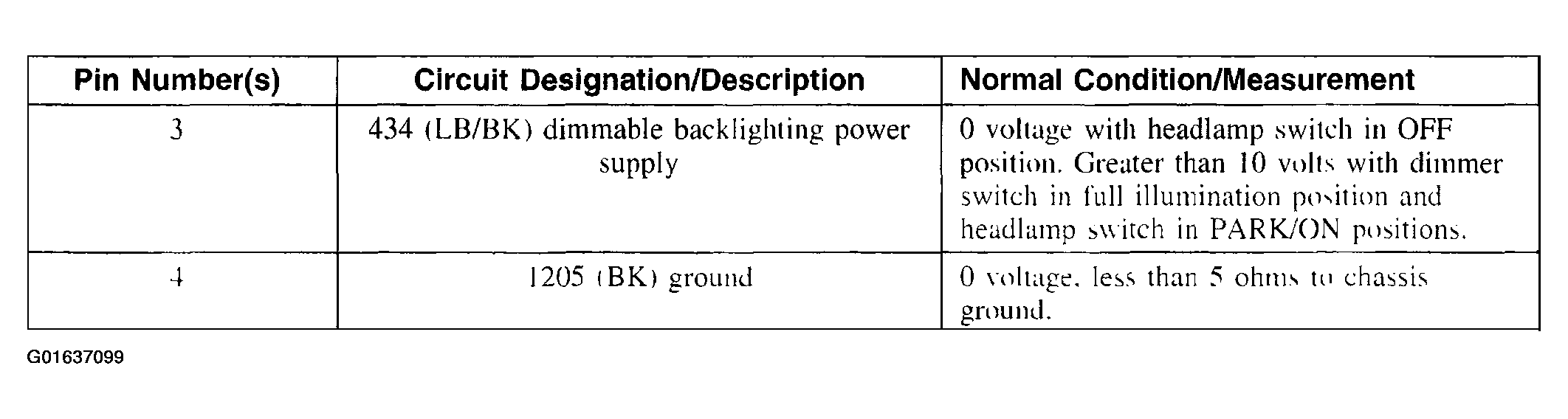

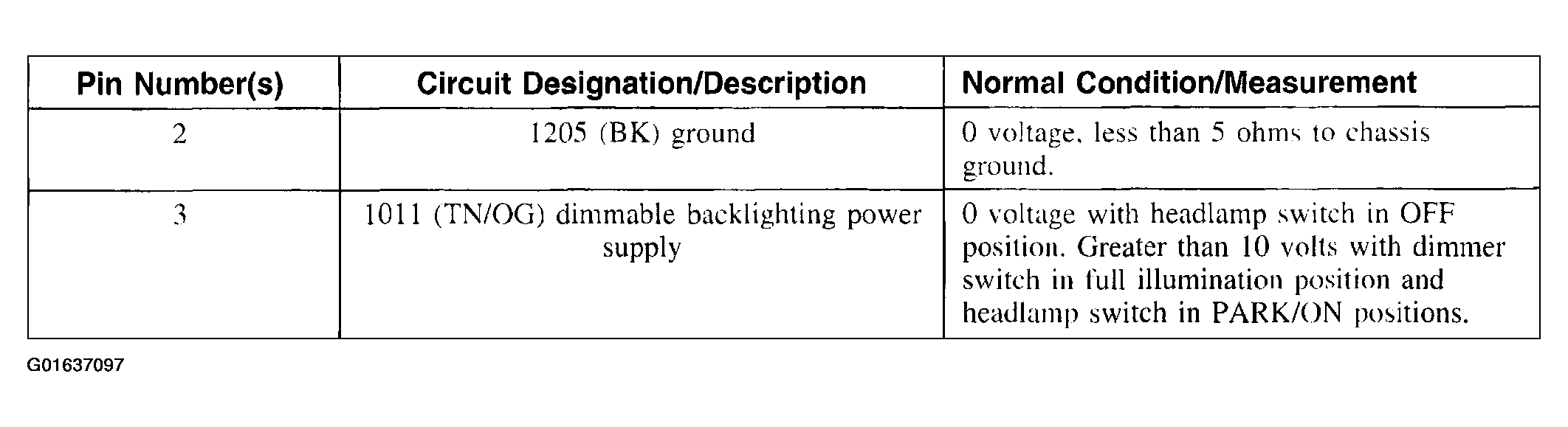

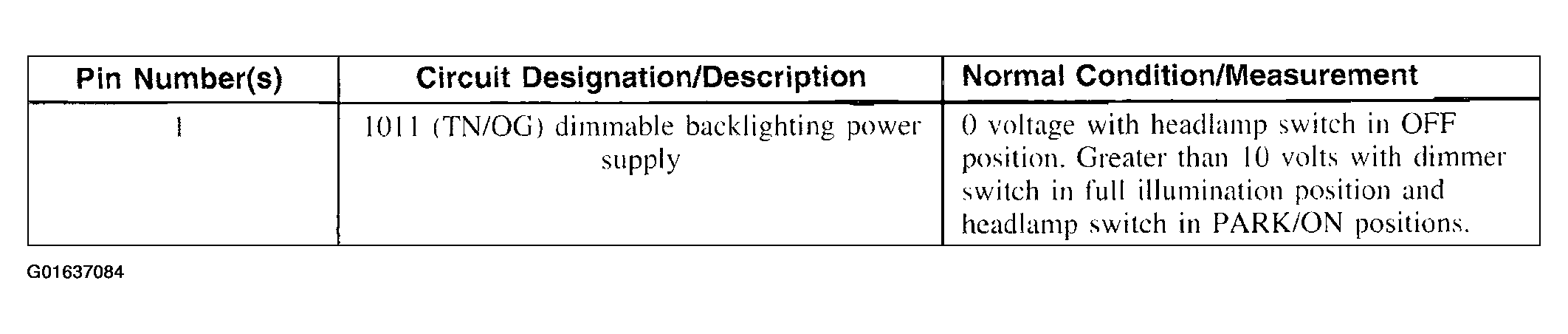

Fig 2: Identifying Dimmer Switch C205b Connector Terminals And Specification (2 Of 2)

Courtesy of FORD MOTOR CO.

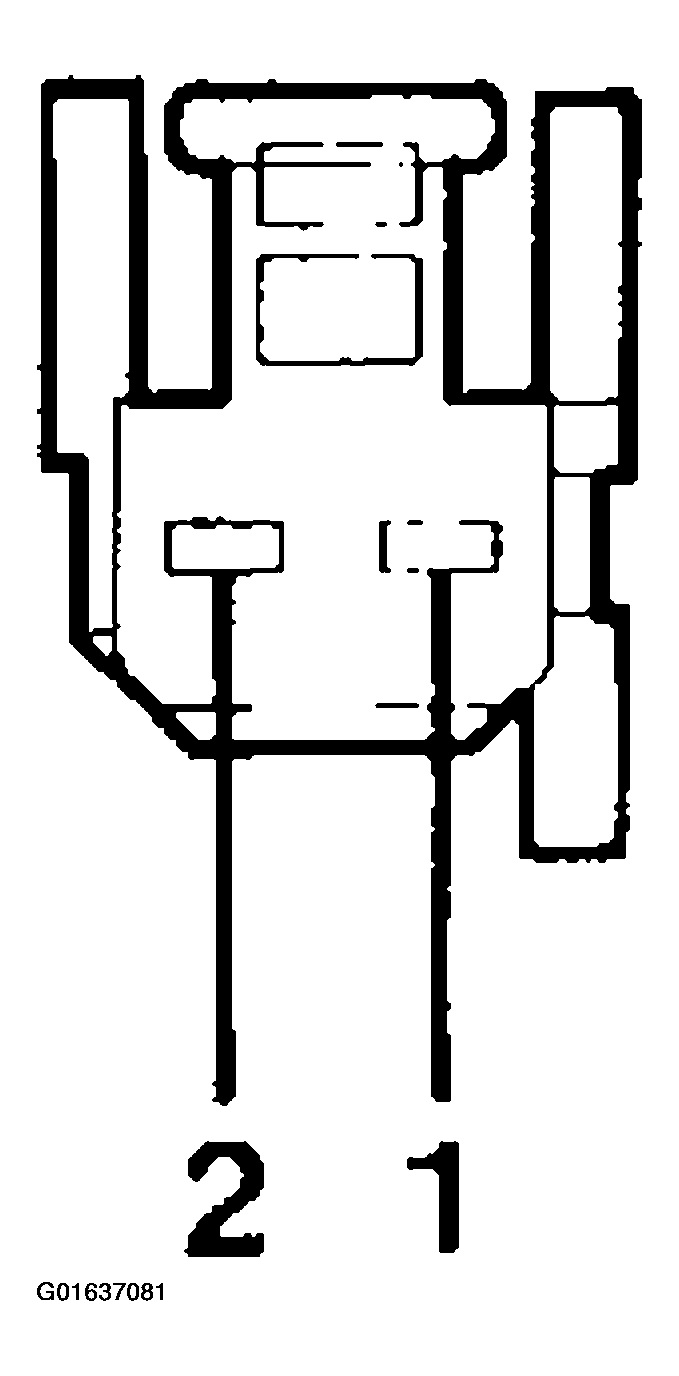

Fig 3: Identifying Headlamp Switch C205c Connector Terminals And Specification (1 Of 2)

Courtesy of FORD MOTOR CO.

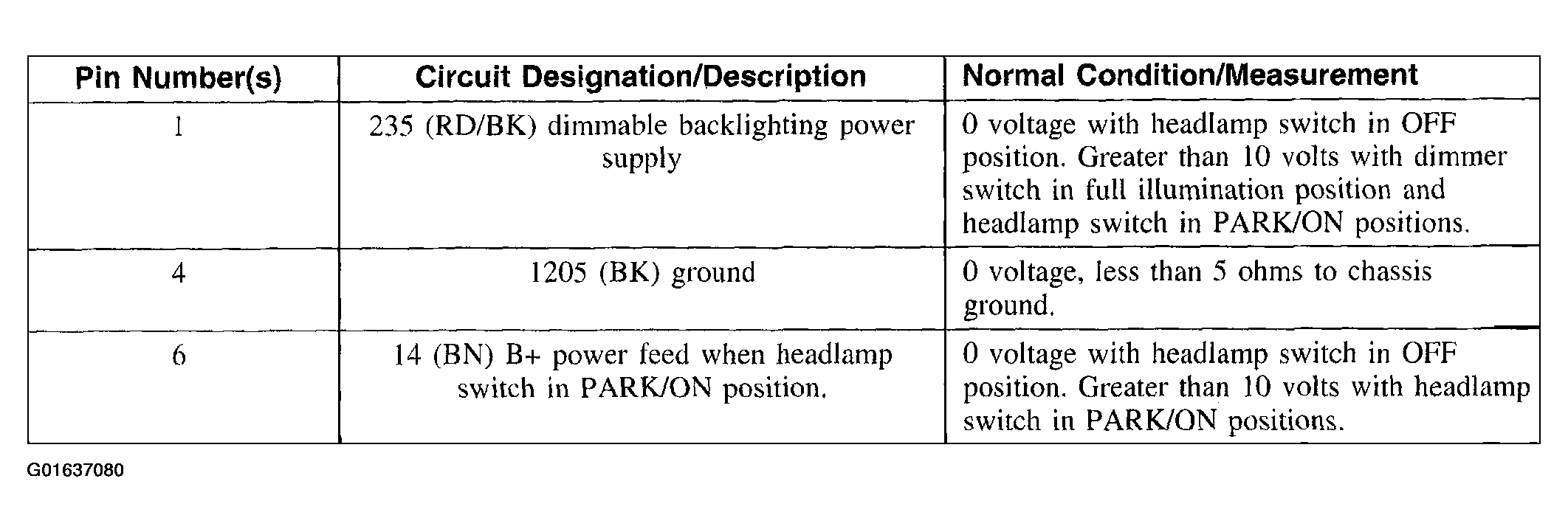

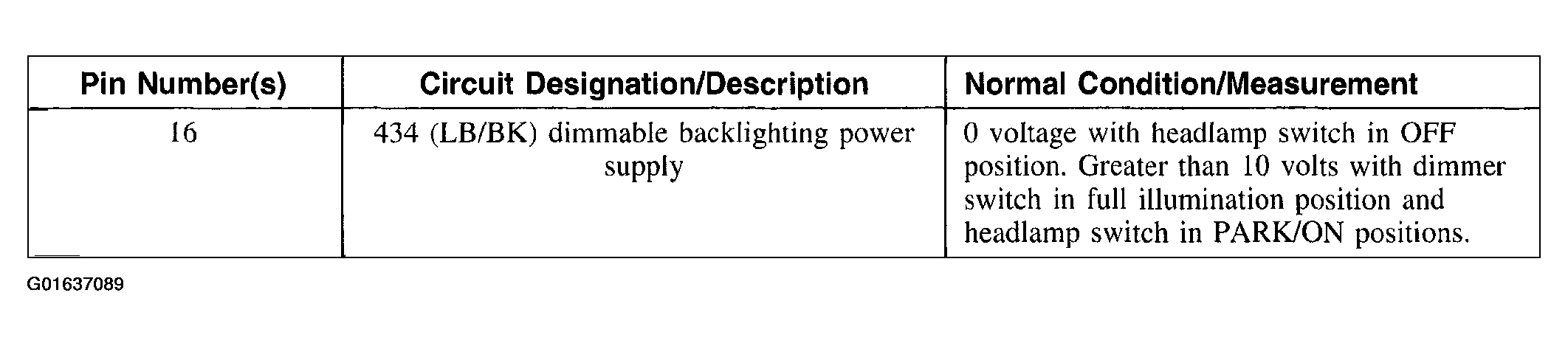

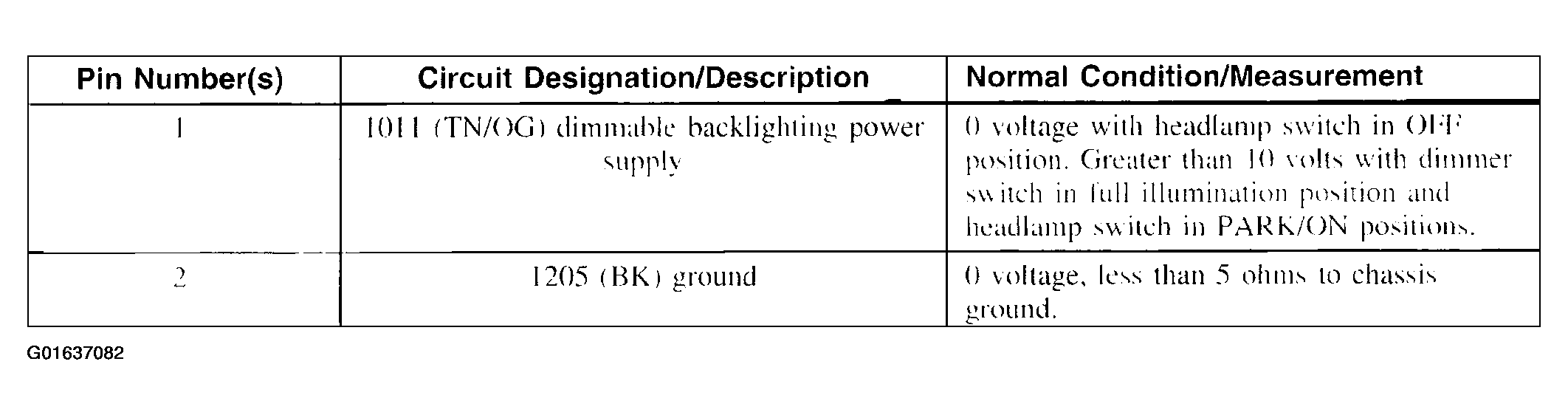

Fig 4: Identifying Headlamp Switch C205c Connector Terminals And Specification (2 Of 2)

Courtesy of FORD MOTOR CO.

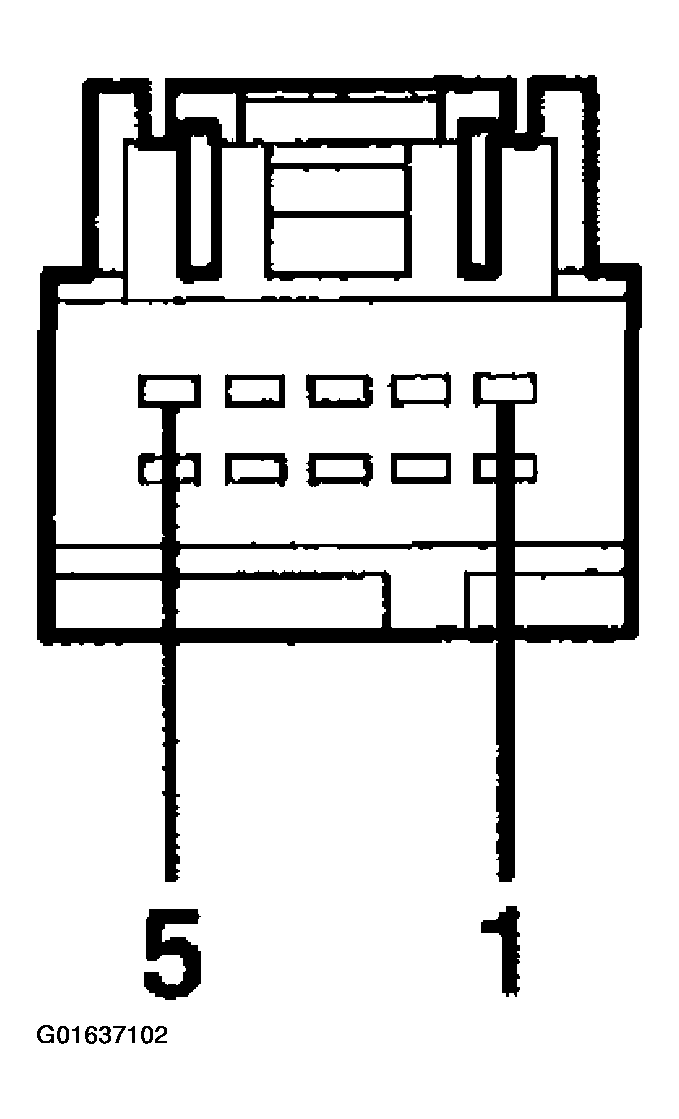

Fig 5: Identifying Clockspring C218a Connector Terminals And Specification (1 Of 2)

Courtesy of FORD MOTOR CO.

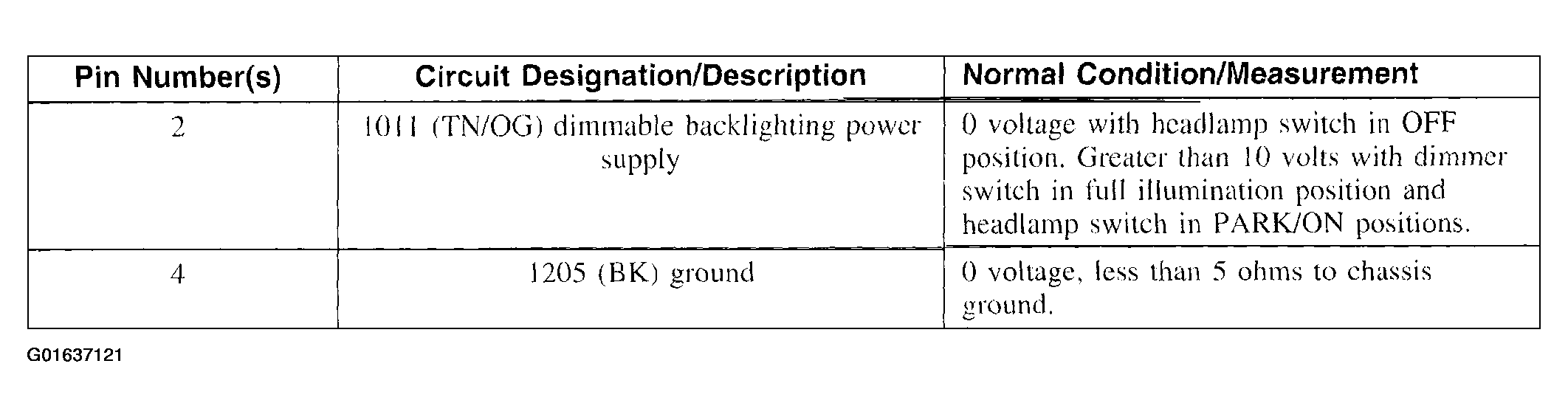

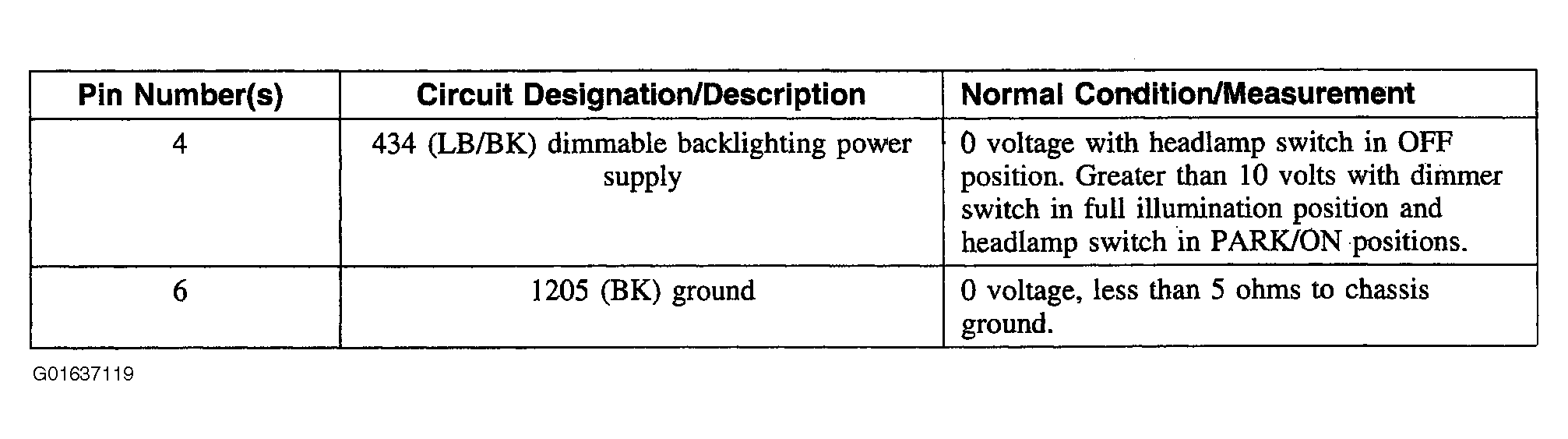

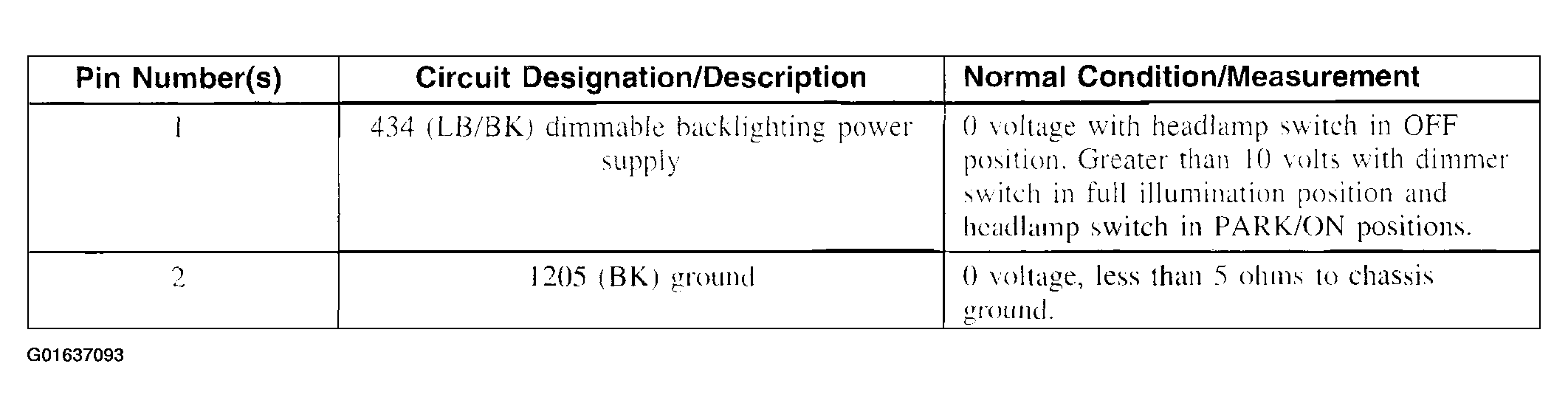

Fig 6: Identifying Clockspring C218a Connector Terminals And Specification (2 Of 2)

Courtesy of FORD MOTOR CO.

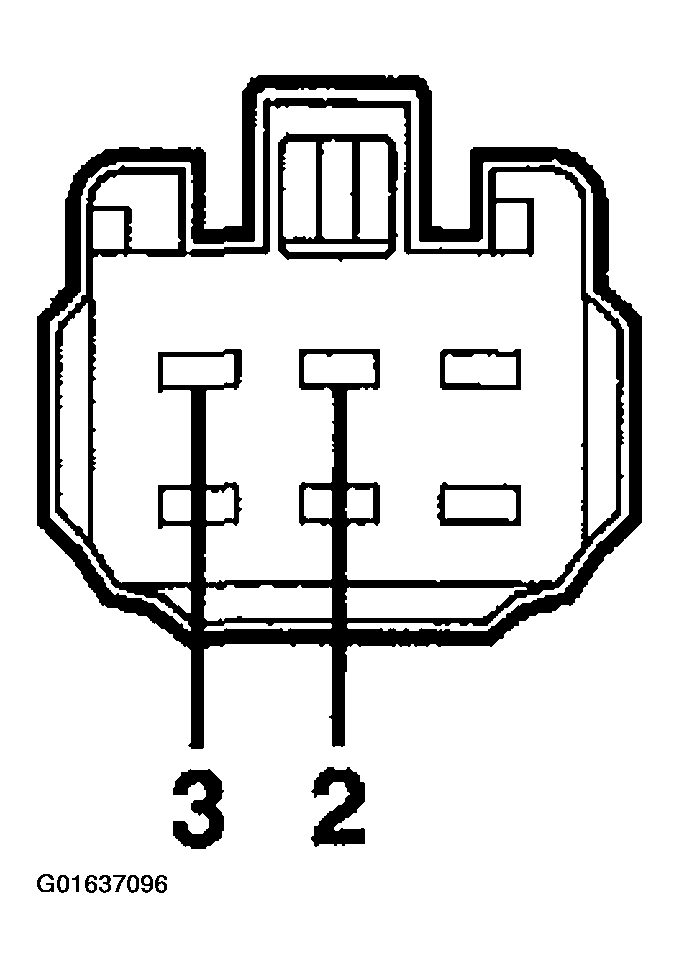

Fig 7: Identifying Instrument Cluster C220b Connector Terminals And Specification (1 Of 2)

Courtesy of FORD MOTOR CO.

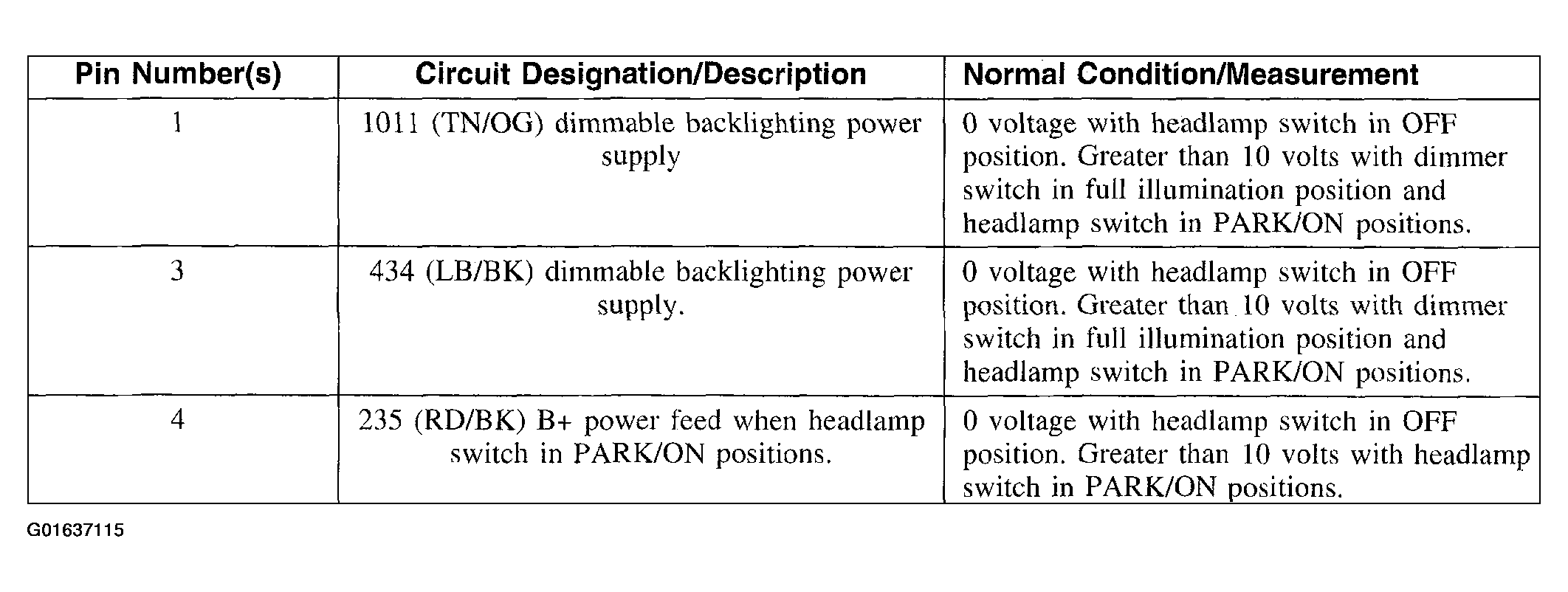

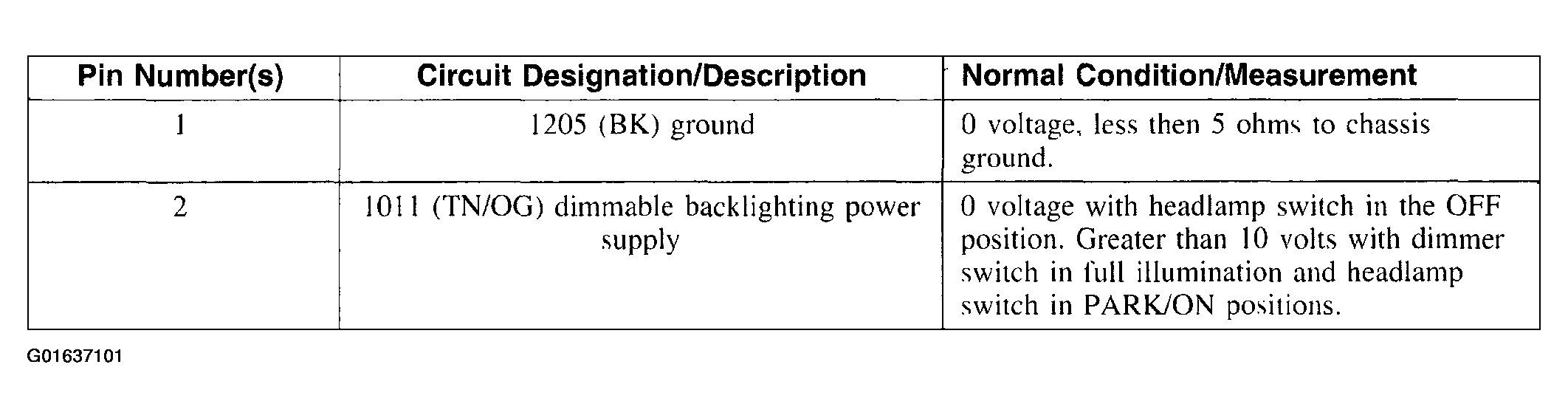

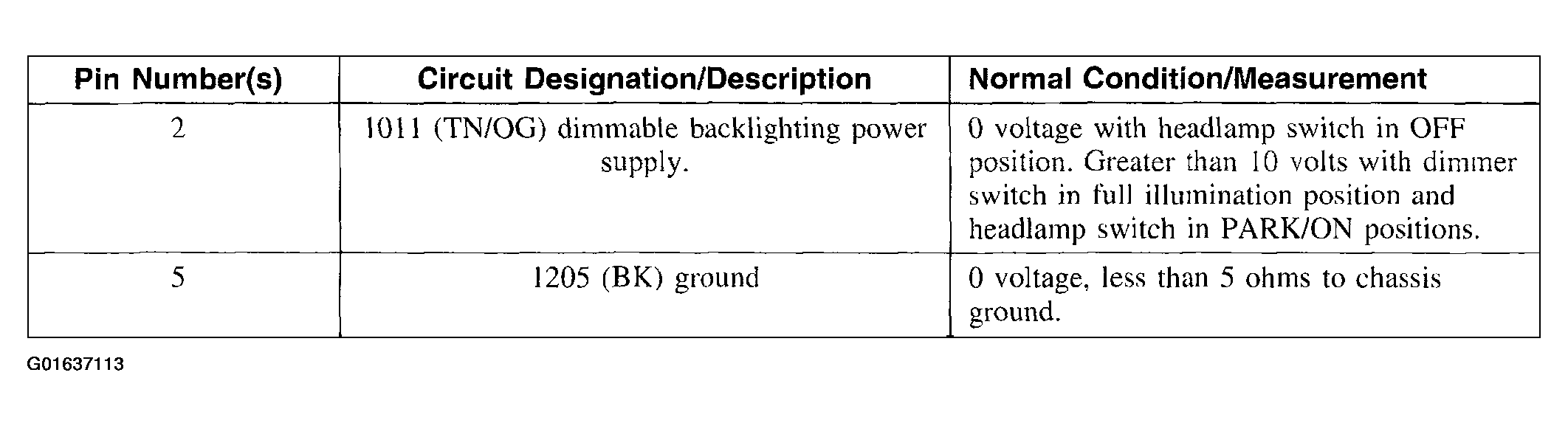

Fig 8: Identifying Instrument Cluster C220b Connector Terminals And Specification (2 Of 2)

Courtesy of FORD MOTOR CO.

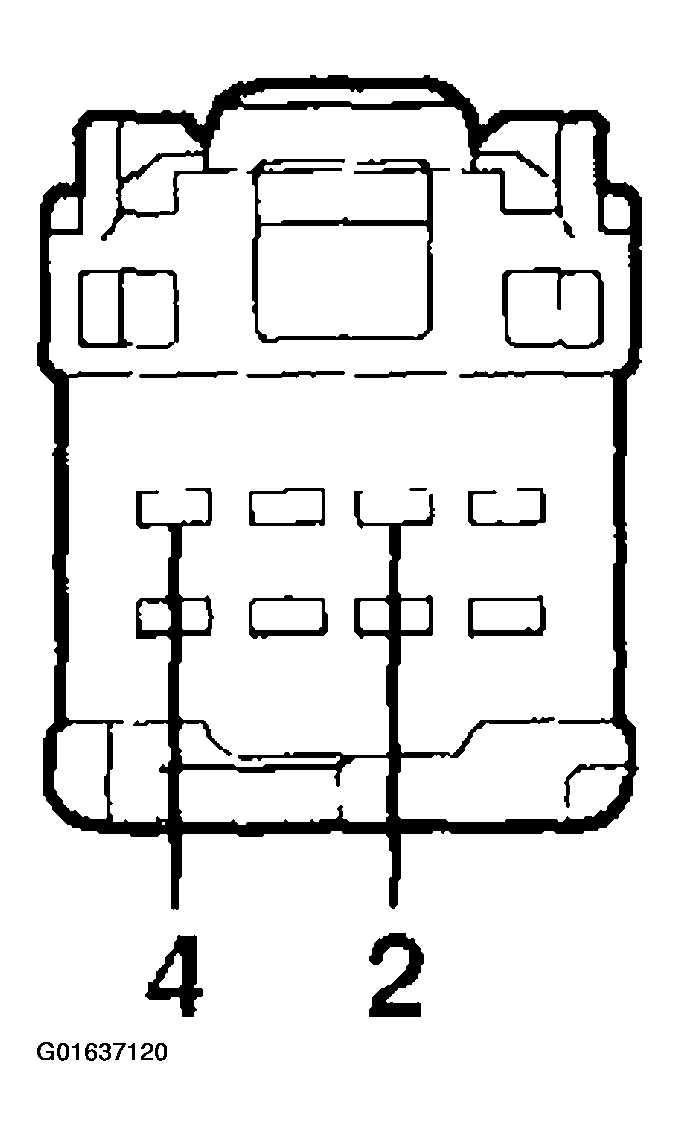

Fig 9: Identifying Dual Automatic Temperature Control C228a Connector Terminals And Specification (1 Of 2)

Courtesy of FORD MOTOR CO.

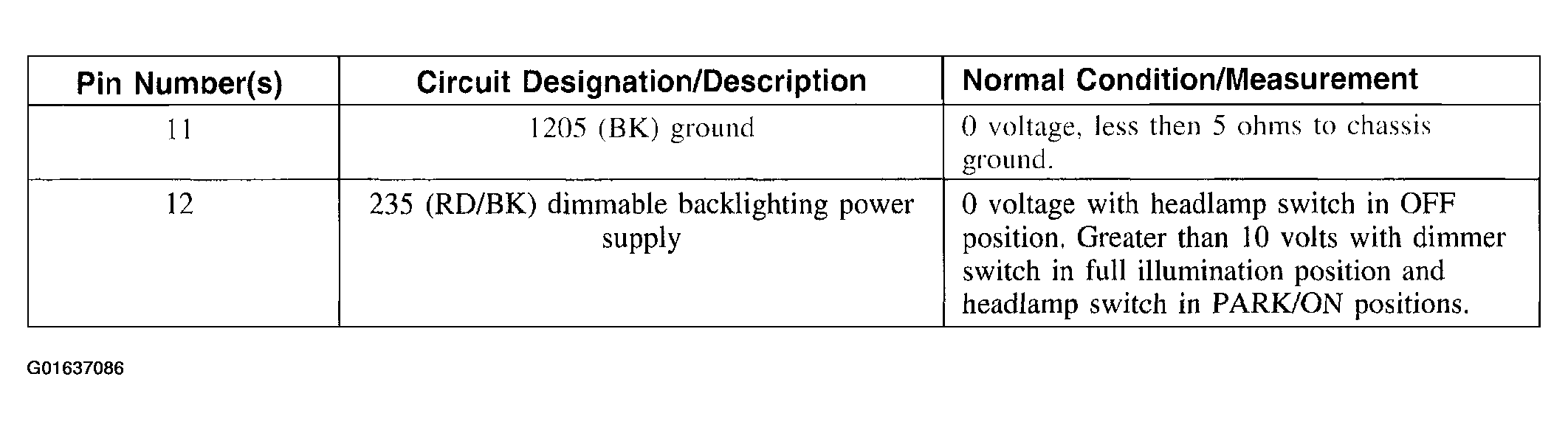

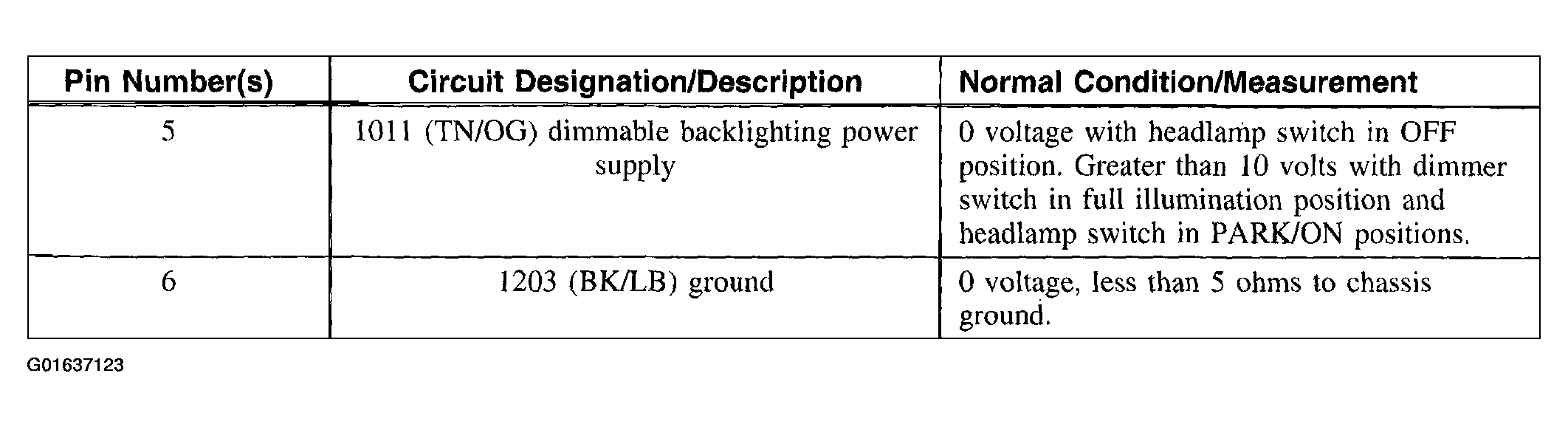

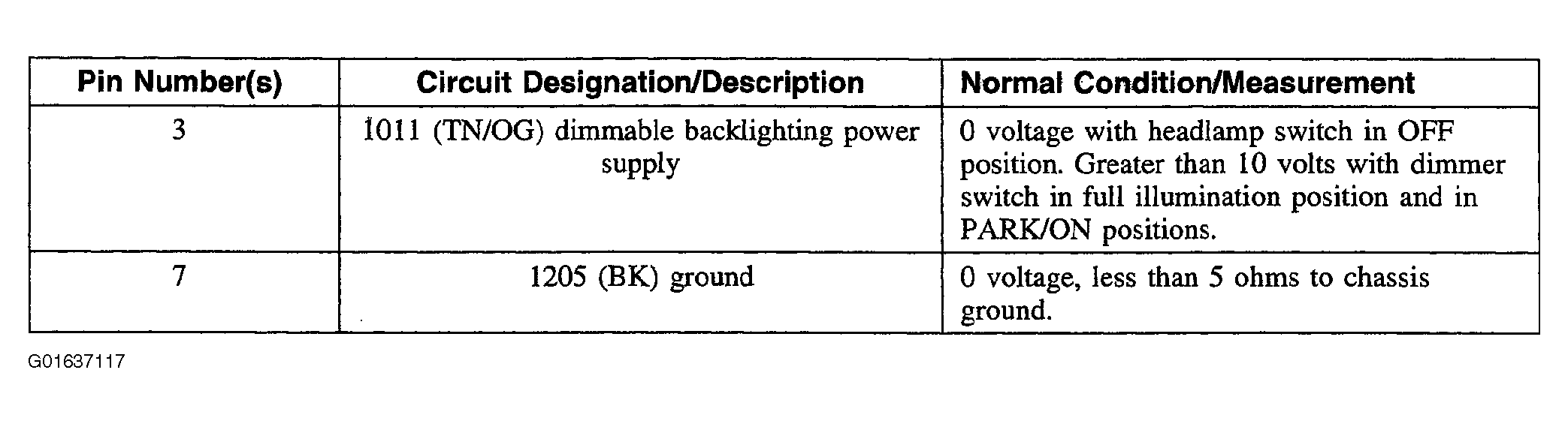

Fig 10: Identifying Dual Automatic Temperature Control C228a Connector Terminals And Specification (2 Of 2)

Courtesy of FORD MOTOR CO.

Fig 11: Identifying Dual Automatic Temperature Control C228b Connector Terminals And Specification (1 Of 2)

Courtesy of FORD MOTOR CO.

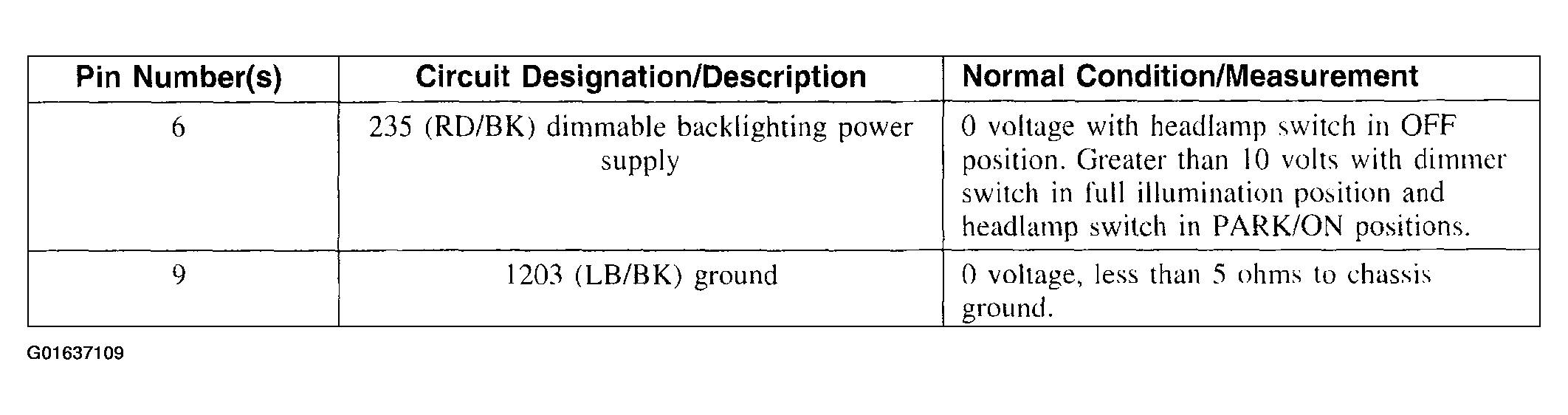

Fig 12: Identifying Dual Automatic Temperature Control C228b Connector Terminals And Specification (2 Of 2)

Courtesy of FORD MOTOR CO.

Fig 13: Identifying Audio Unit CDX6 C240b Connector Terminals And Specification (1 Of 2)

Courtesy of FORD MOTOR CO.

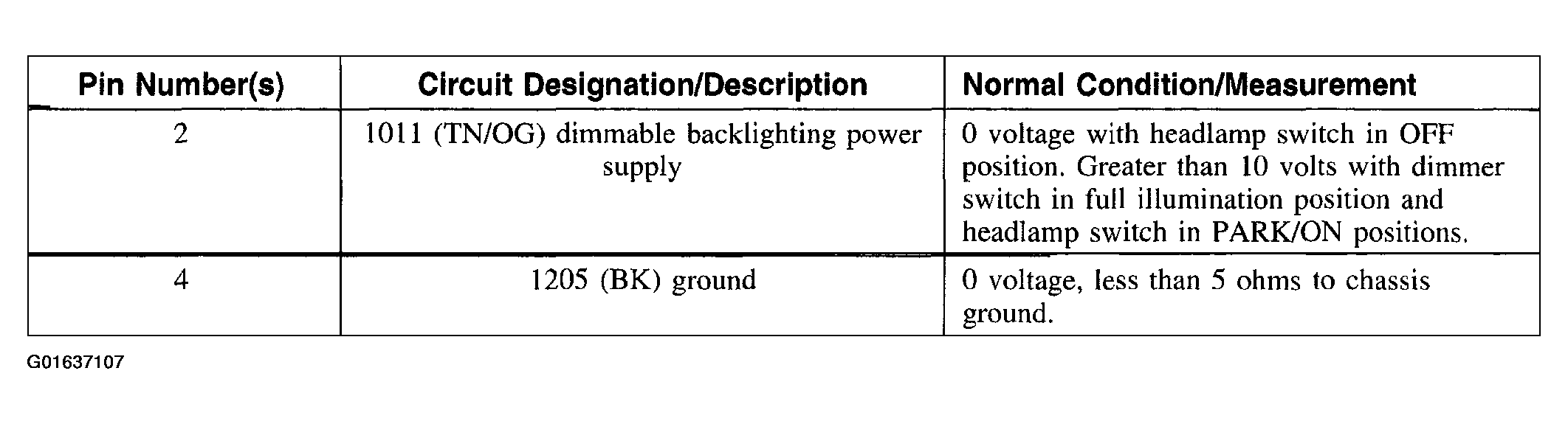

Fig 14: Identifying Audio Unit CDX6 C240b Connector Terminals And Specification (2 Of 2)

Courtesy of FORD MOTOR CO.

Fig 15: Identifying Message Center Switch C253 Connector Terminals And Specification (1 Of 2)

Courtesy of FORD MOTOR CO.

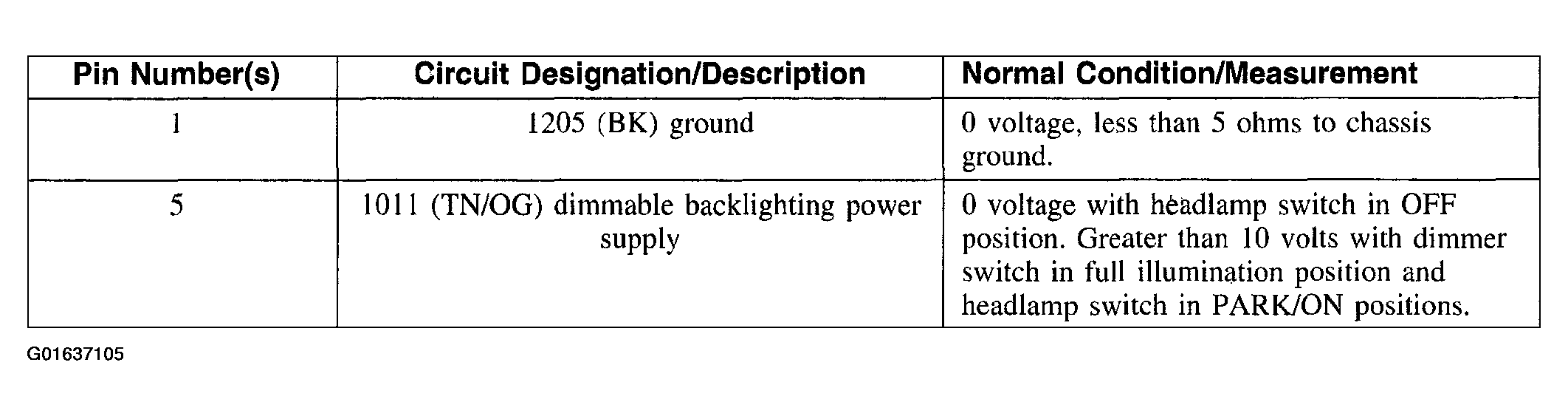

Fig 16: Identifying Message Center Switch C253 Connector Terminals And Specification (2 Of 2)

Courtesy of FORD MOTOR CO.

Fig 17: Identifying Interactive Vehicle Dynamics Switch C280 Connector Terminals And Specification (1 Of 2)

Courtesy of FORD MOTOR CO.

Fig 18: Identifying Interactive Vehicle Dynamics Switch C280 Connector Terminals And Specification (2 Of 2)

Courtesy of FORD MOTOR CO.

Fig 19: Identifying Audio Unit DM100i C290a Connector Terminals And Specification (1 Of 2)

Courtesy of FORD MOTOR CO.

Fig 20: Identifying Audio Unit DM100i C290a Connector Terminals And Specification (2 Of 2)

Courtesy of FORD MOTOR CO.

Fig 21: Identifying Door Lock/Unlock Switch LF C505, RF C605 Connector Terminals And Specification (1 Of 2)

Courtesy of FORD MOTOR CO.

Fig 22: Identifying Door Lock/Unlock Switch LF C505, RF C605 Connector Terminals And Specification (2 Of 2)

Courtesy of FORD MOTOR CO.

Fig 23: Identifying Hot/Cold Seat Switch LF C544, RF C635 Connector Terminals And Specification (1 Of 2)

Courtesy of FORD MOTOR CO.

Fig 24: Identifying Hot/Cold Seat Switch LF C544, RF C635 Connector Terminals And Specification (2 Of 2)

Courtesy of FORD MOTOR CO.

Fig 25: Identifying Power Window Switch LR C701, RR C801 Connector Terminals And Specification (1 Of 2)

Courtesy of FORD MOTOR CO.

Fig 26: Identifying Power Window Switch LR C701, RR C801 Connector Terminals And Specification (2 Of 2)

Courtesy of FORD MOTOR CO.

Fig 27: Identifying Moonroof Switch C912 Connector Terminals And Specification (1 Of 2)

Courtesy of FORD MOTOR CO.

Fig 28: Identifying Moonroof Switch C912 Connector Terminals And Specification (2 Of 2)

Courtesy of FORD MOTOR CO.

Fig 29: Identifying Auxiliary A/C Control Switch C938a (Front), C3198b (Rear) Connector Terminals And Specification (1 Of 2)

Courtesy of FORD MOTOR CO.

Fig 30: Identifying Auxiliary A/C Control Switch C938a (Front), C3198b (Rear) Connector Terminals And Specification (2 Of 2)

Courtesy of FORD MOTOR CO.

Fig 31: Identifying Digital Versatile Disc (DVD) C949 Connector Terminals And Specification (1 Of 2)

Courtesy of FORD MOTOR CO.

Fig 32: Identifying Digital Versatile Disc (DVD) C949 Connector Terminals And Specification (2 Of 2)

Courtesy of FORD MOTOR CO.

Fig 33: Identifying Clock C2016 Connector Terminals And Specification (1 Of 2)

Courtesy of FORD MOTOR CO.

Fig 34: Identifying Clock C2016 Connector Terminals And Specification (2 Of 2)

Courtesy of FORD MOTOR CO.

Fig 35: Identifying Dimmer Module C2065a Connector Terminals And Specification (1 Of 2)

Courtesy of FORD MOTOR CO.

Fig 36: Identifying Dimmer Module C2065a Connector Terminals And Specification (2 Of 2)

Courtesy of FORD MOTOR CO.

Fig 37: Identifying Memory Set Switch C2094 Connector Terminals And Specification (1 Of 2)

Courtesy of FORD MOTOR CO.

Fig 38: Identifying Memory Set Switch C2094 Connector Terminals And Specification (2 Of 2)

Courtesy of FORD MOTOR CO.

Fig 39: Identifying Transmission Range Selector Lever C2096 Connector Terminals And Specification (1 Of 2)

Courtesy of FORD MOTOR CO.

Fig 40: Identifying Transmission Range Selector Lever C2096 Connector Terminals And Specification (2 Of 2)

Courtesy of FORD MOTOR CO.

Fig 41: Identifying Adjustable Pedal Switch C2235 Connector Terminals And Specification (1 Of 2)

Courtesy of FORD MOTOR CO.

Fig 42: Identifying Adjustable Pedal Switch C2235 Connector Terminals And Specification (2 Of 2)

Courtesy of FORD MOTOR CO.

Fig 43: Identifying Power Window Master Control Switch C3193a Connector Terminals And Specification (1 Of 2)

Courtesy of FORD MOTOR CO.

Fig 44: Identifying Power Window Master Control Switch C3193a Connector Terminals And Specification (2 Of 2)

Courtesy of FORD MOTOR CO.
