Connector Circuit Reference

Fig 1: Identifying Clock C2016 Connector Terminals And Specification (1 Of 2)
G01637223Courtesy of FORD MOTOR CO.

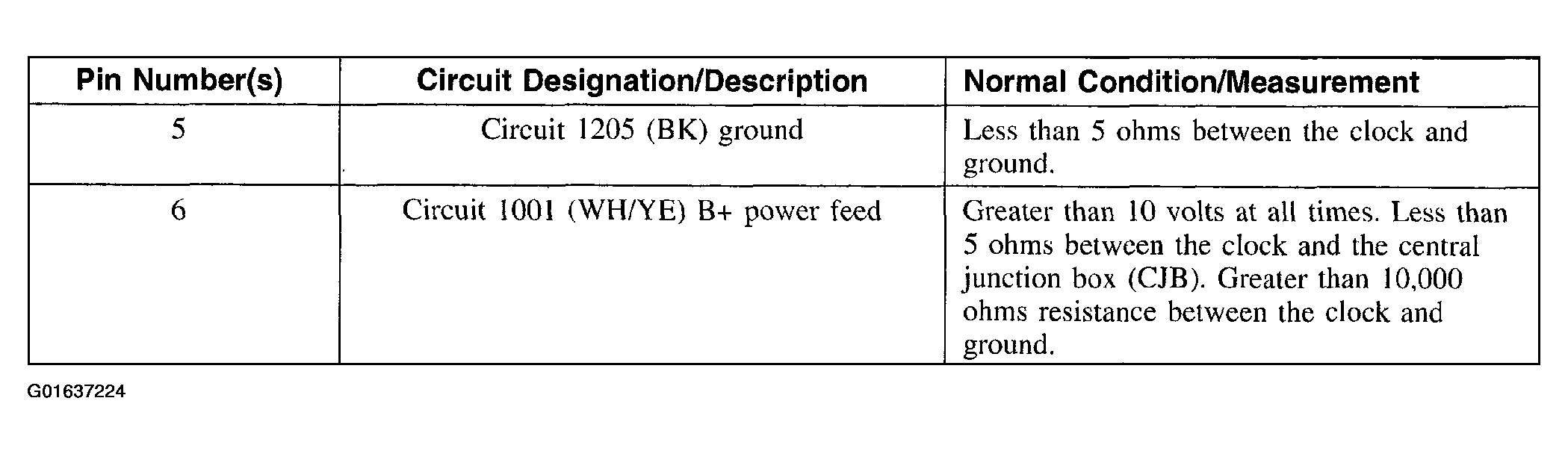

Fig 2: Identifying Clock C2016 Connector Terminals And Specification (2 Of 2)
G01637224Courtesy of FORD MOTOR CO.
