Information, Gauges and Warning Devices Component Location Index

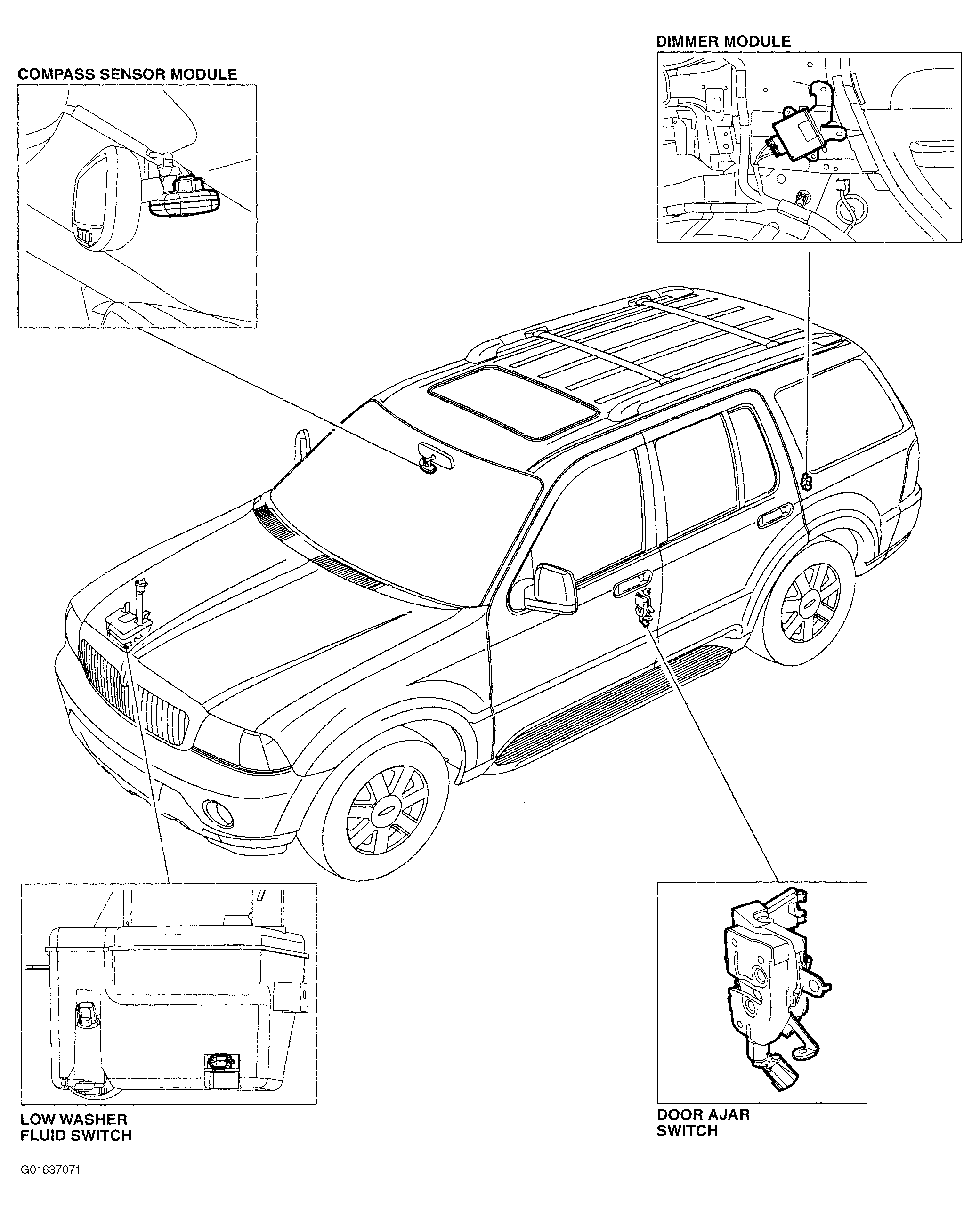

Fig 1: Information, Gauges and Warning Devices Component Location Index - Front

Courtesy of FORD MOTOR CO.

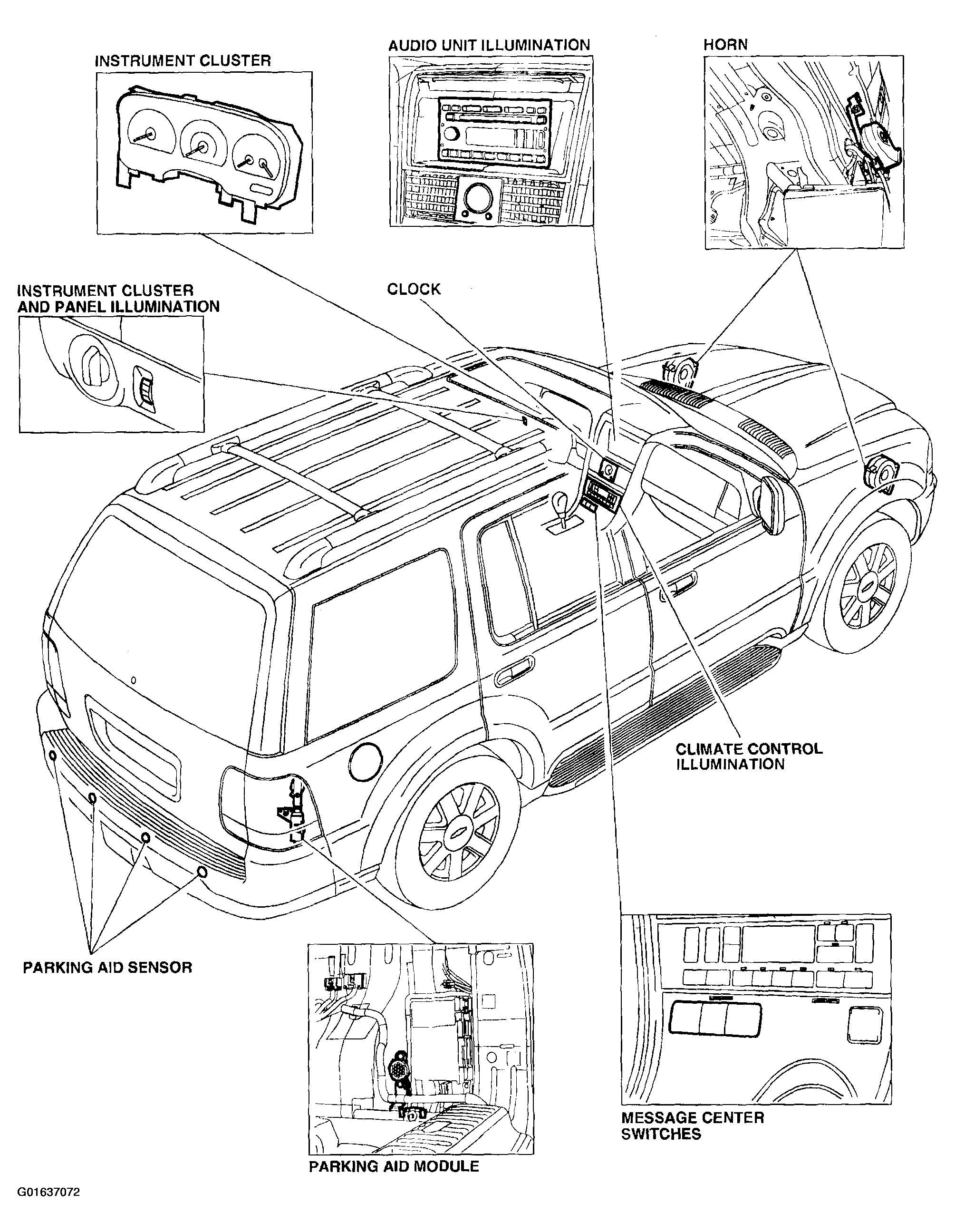

Fig 2: Information, Gauges and Warning Devices Component Location Index - Rear

Courtesy of FORD MOTOR CO.
