Pinpoint Test D: A Single Illumination Source Is Inoperative - Steering Wheel Control Switches

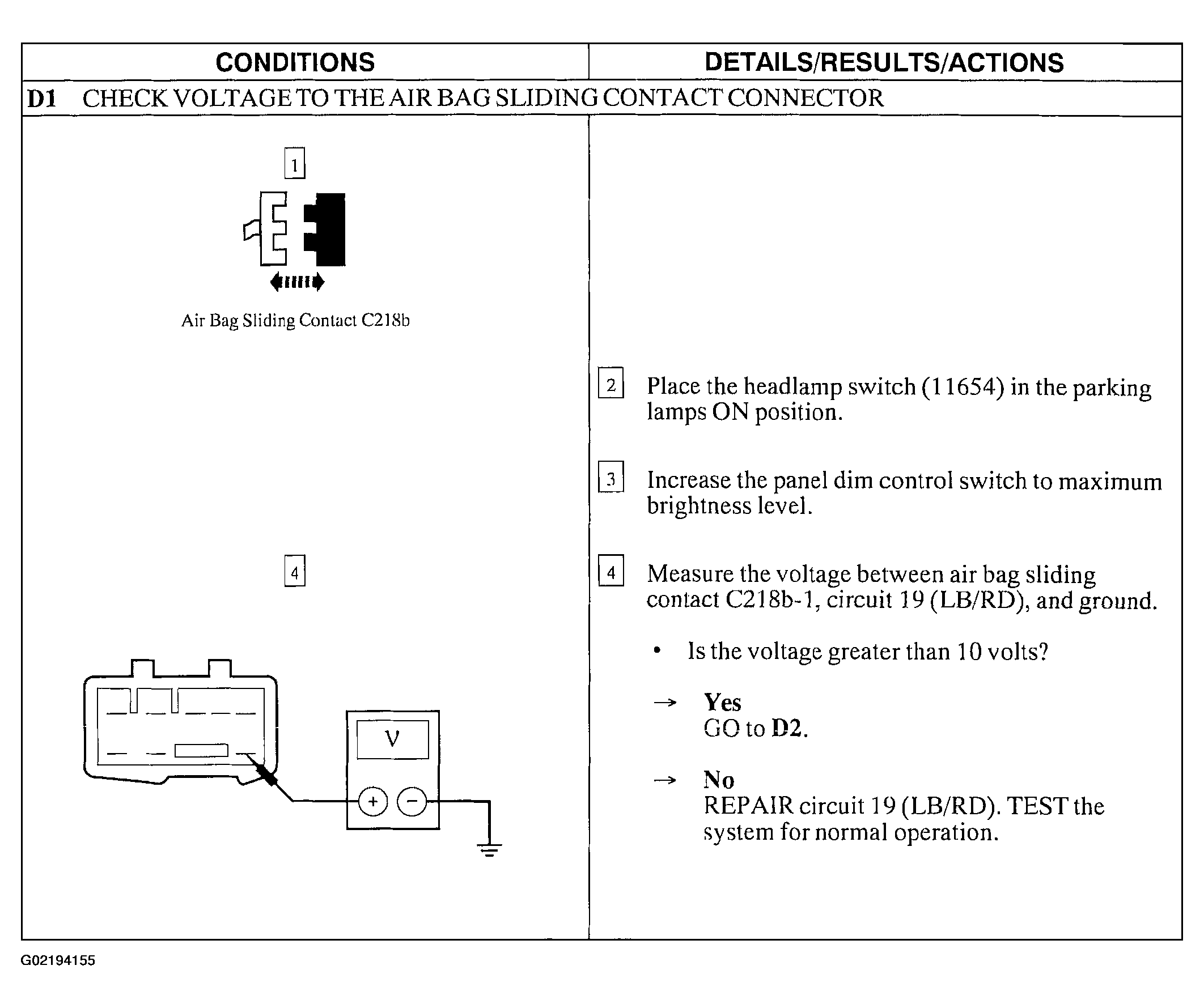

Fig 1: Pinpoint Test D: A Single Illumination Source Is Inoperative - Steering Wheel Control Switches (Step D1)
G02194155Courtesy of FORD MOTOR CO.

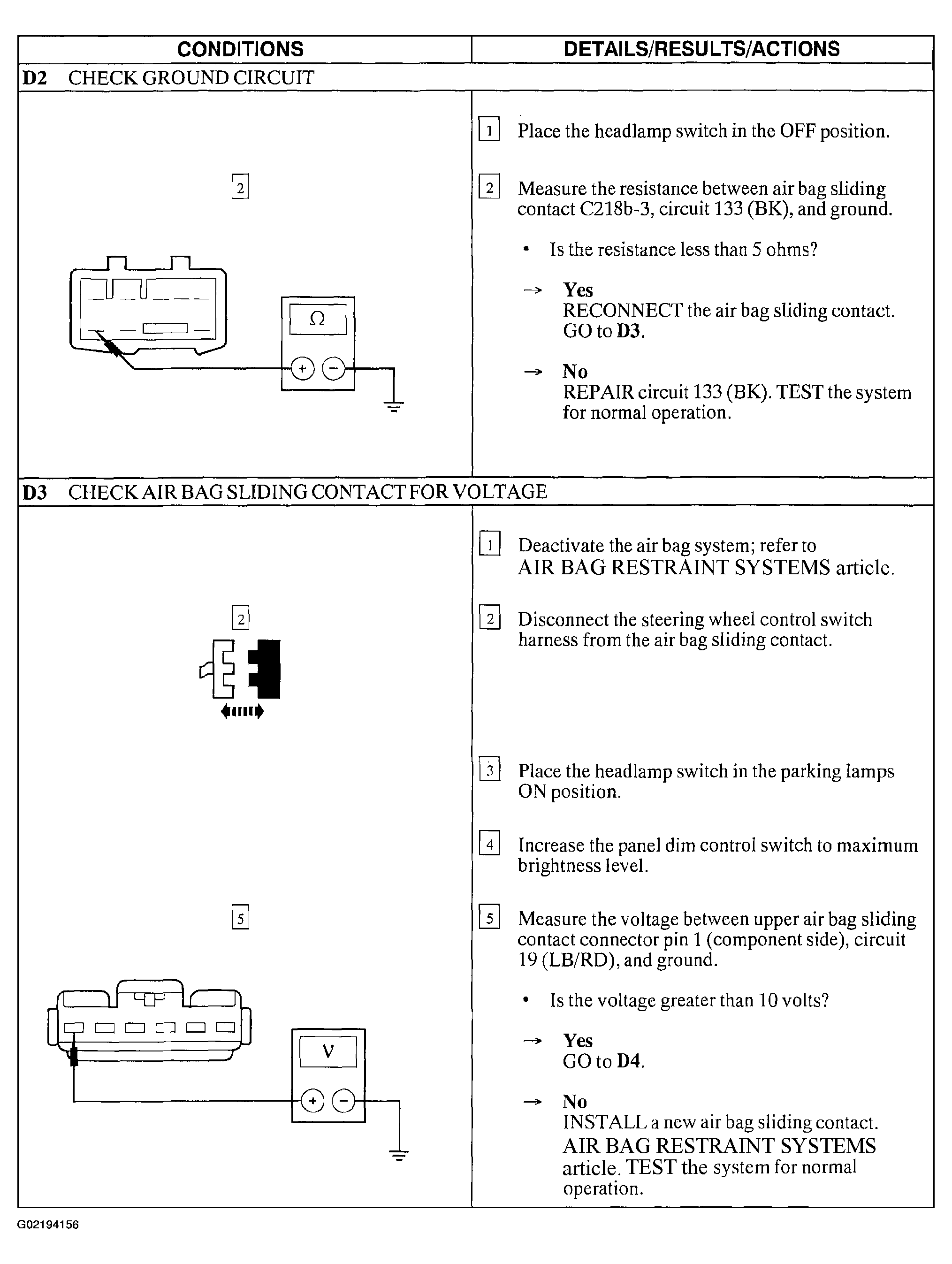

Fig 2: Pinpoint Test D: A Single Illumination Source Is Inoperative - Steering Wheel Control Switches (Steps D2 & D3)
G02194156Courtesy of FORD MOTOR CO.

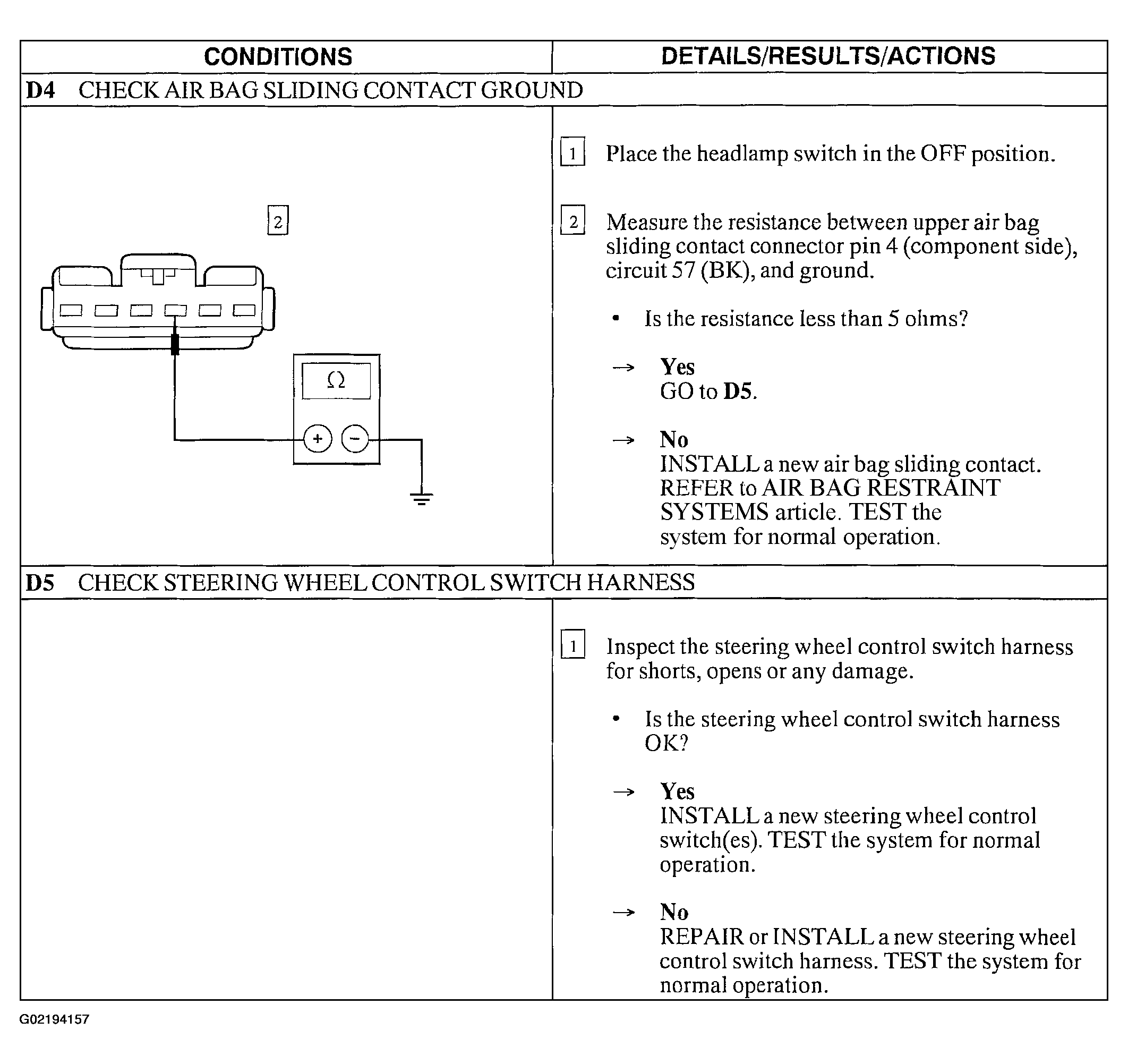

Fig 3: Pinpoint Test D: A Single Illumination Source Is Inoperative - Steering Wheel Control Switches (Steps D4 & D5)
G02194157Courtesy of FORD MOTOR CO.
