Pinpoint Test C: A Single Illumination Source Is Inoperative

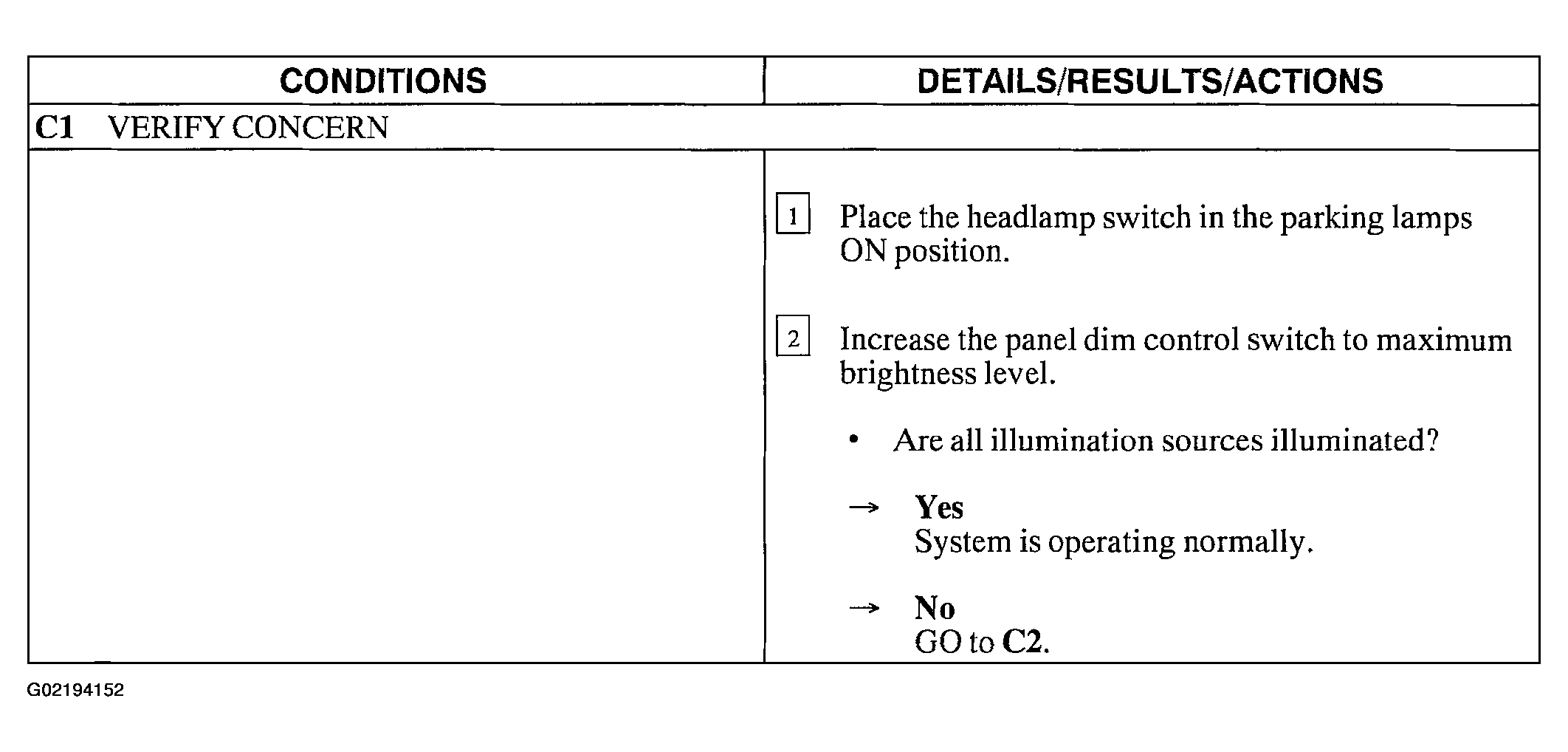

Fig 1: Pinpoint Test C: A Single Illumination Source Is Inoperative (Step C1)
G02194152Courtesy of FORD MOTOR CO.

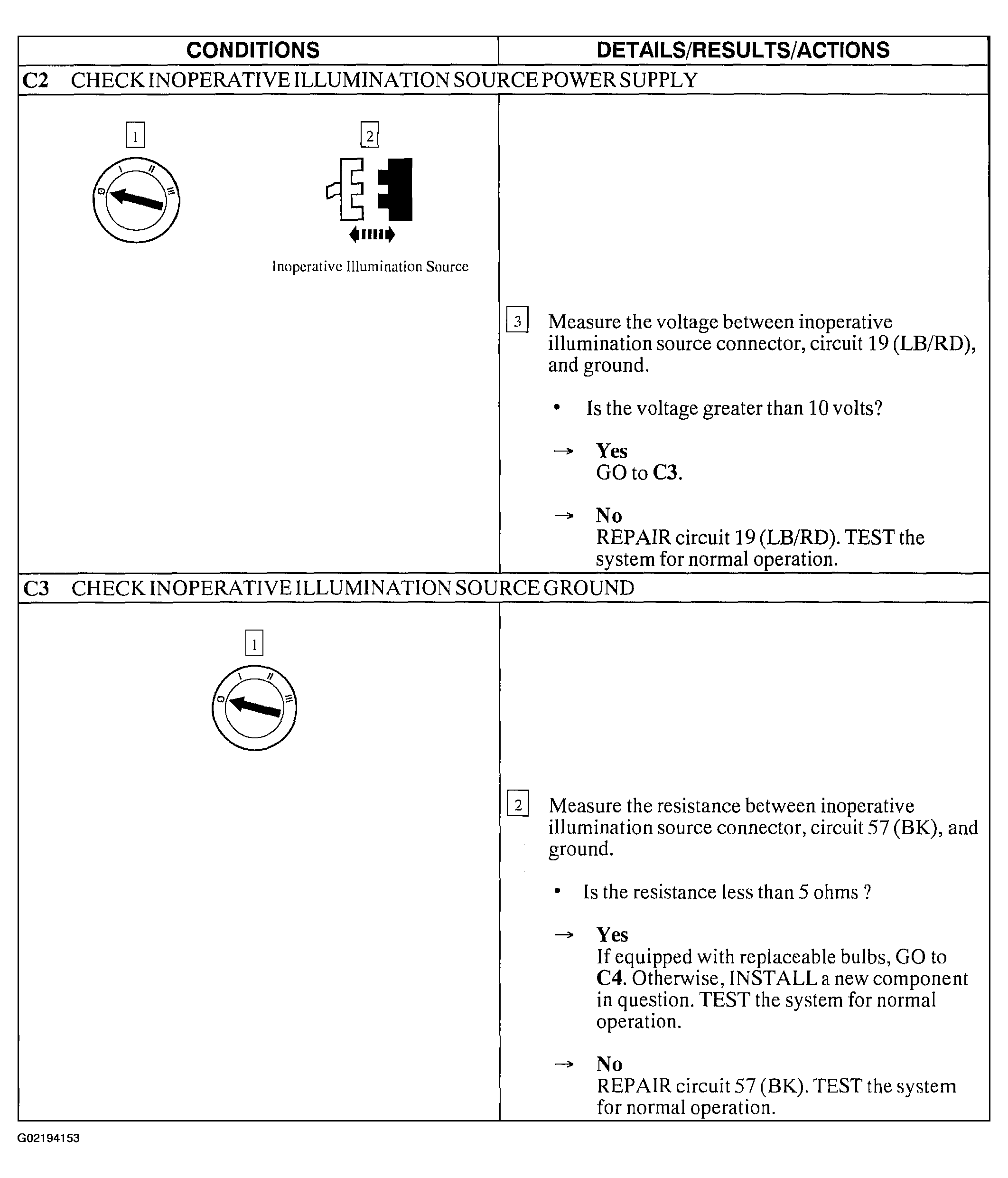

Fig 2: Pinpoint Test C: A Single Illumination Source Is Inoperative (Steps C2 & C3)
G02194153Courtesy of FORD MOTOR CO.

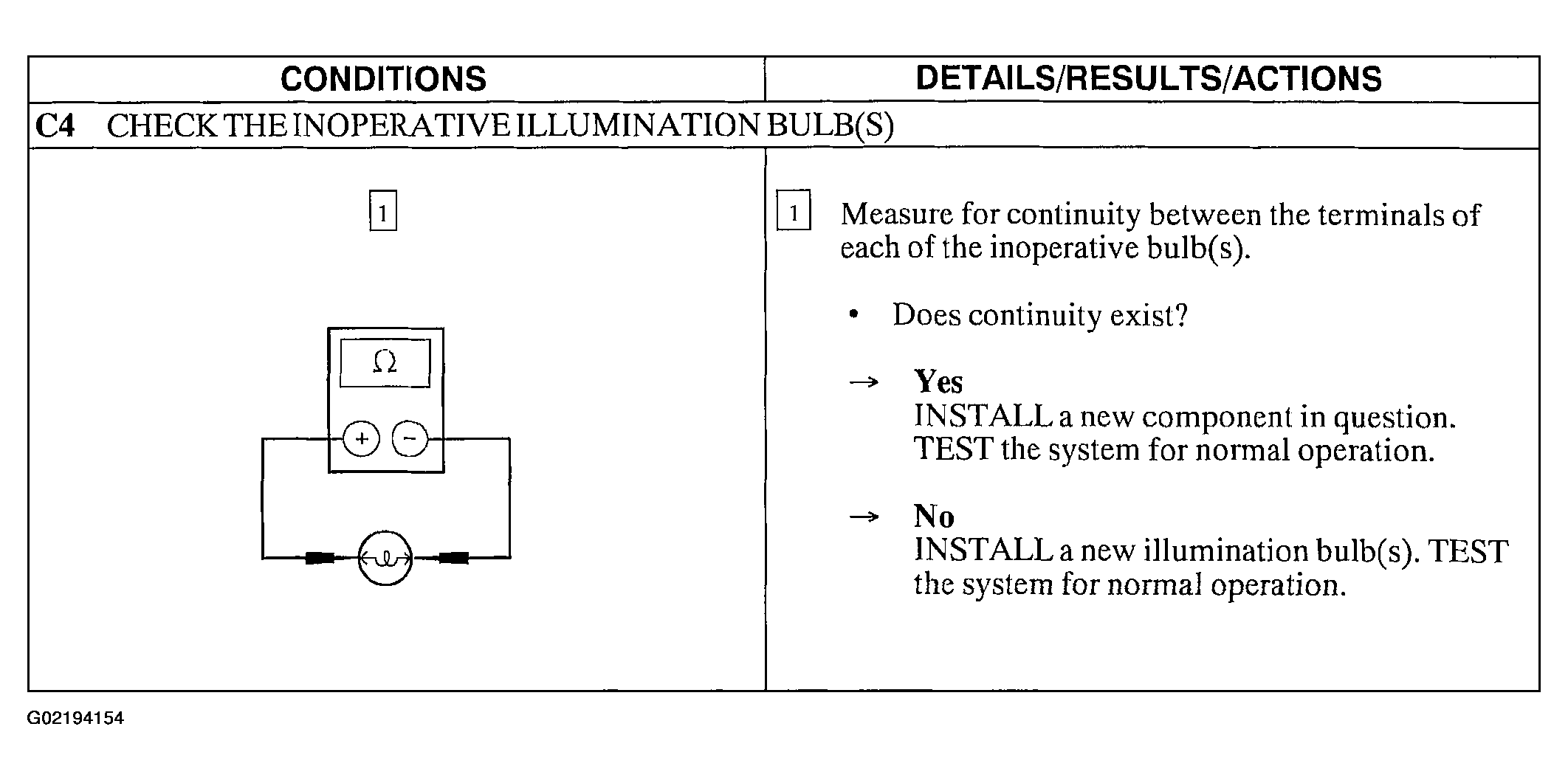

Fig 3: Pinpoint Test C: A Single Illumination Source Is Inoperative (Step C4)
G02194154Courtesy of FORD MOTOR CO.
