Pinpoint Test B: The Control Illumination Is Inoperative

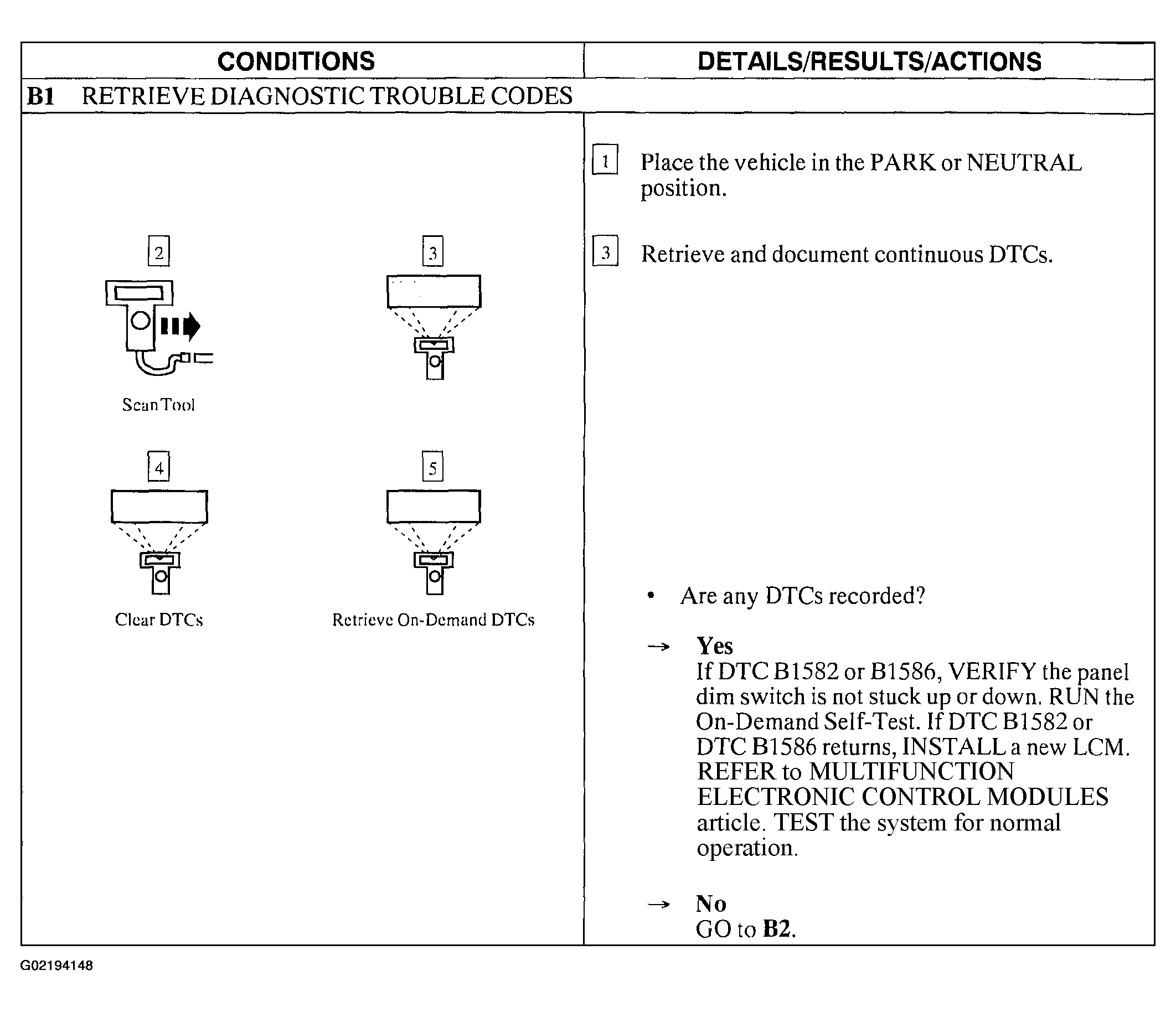

Fig 1: Pinpoint Test B: The Control Illumination Is Inoperative (Step B1)
G02194148Courtesy of FORD MOTOR CO.

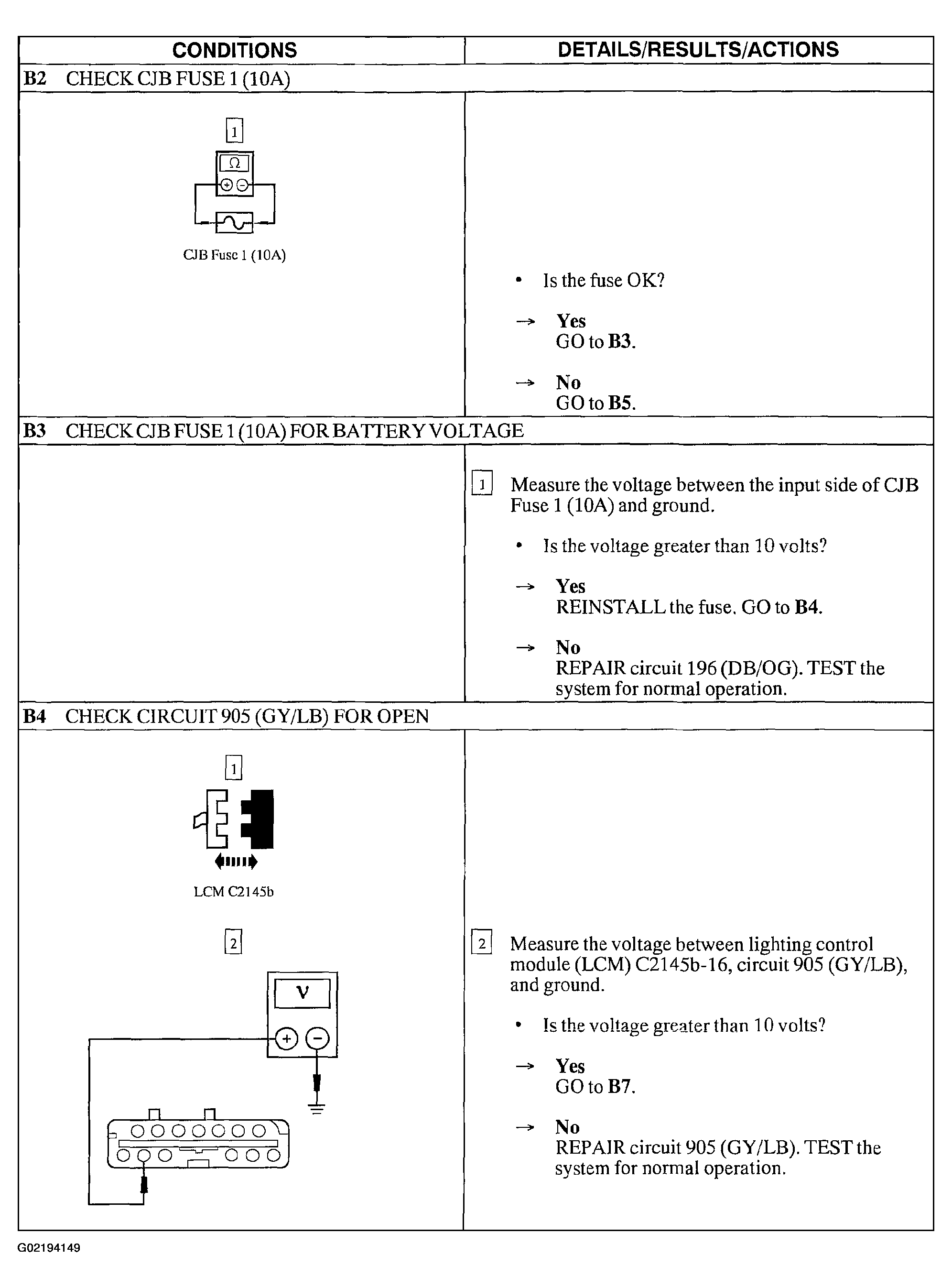

Fig 2: Pinpoint Test B: The Control Illumination Is Inoperative (Steps B2-B4)
G02194149Courtesy of FORD MOTOR CO.

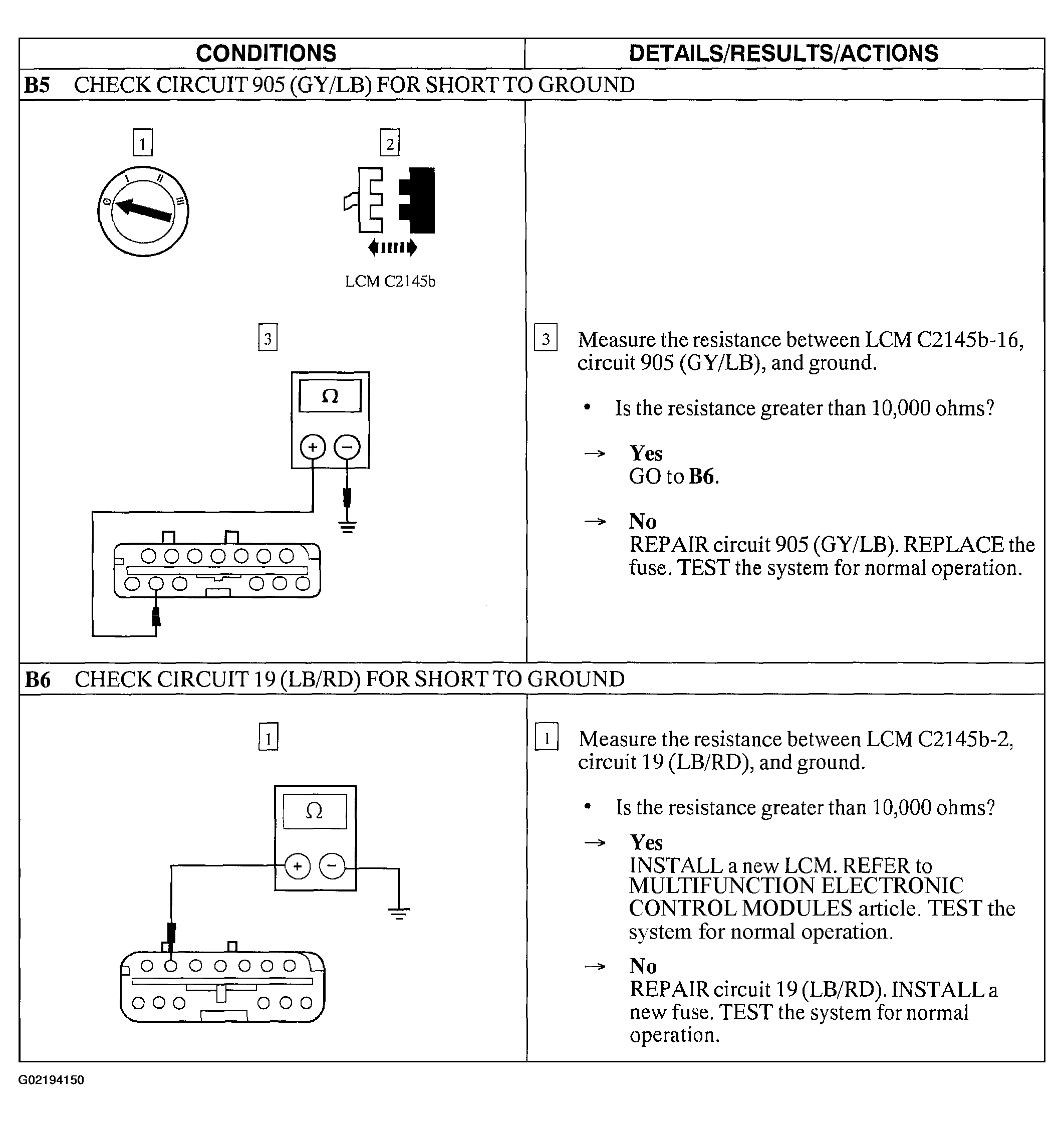

Fig 3: Pinpoint Test B: The Control Illumination Is Inoperative (Steps B5 & B6)
G02194150Courtesy of FORD MOTOR CO.

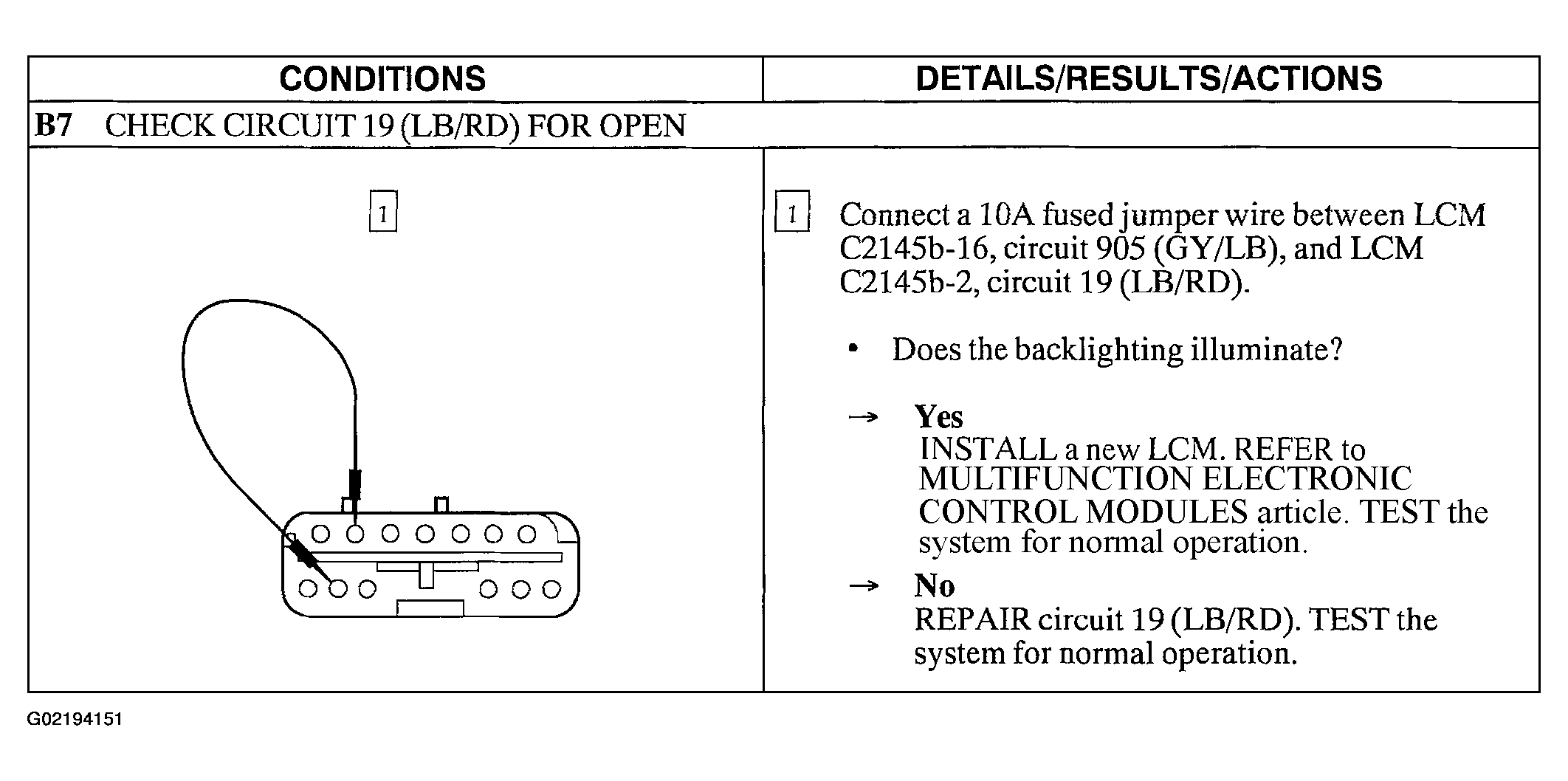

Fig 4: Pinpoint Test B: The Control Illumination Is Inoperative (Step B7)
G02194151Courtesy of FORD MOTOR CO.
