Pinpoint Test A: No Communication With The Module - Unable To Perform On-Demand Self-Test On Lighting Control Module

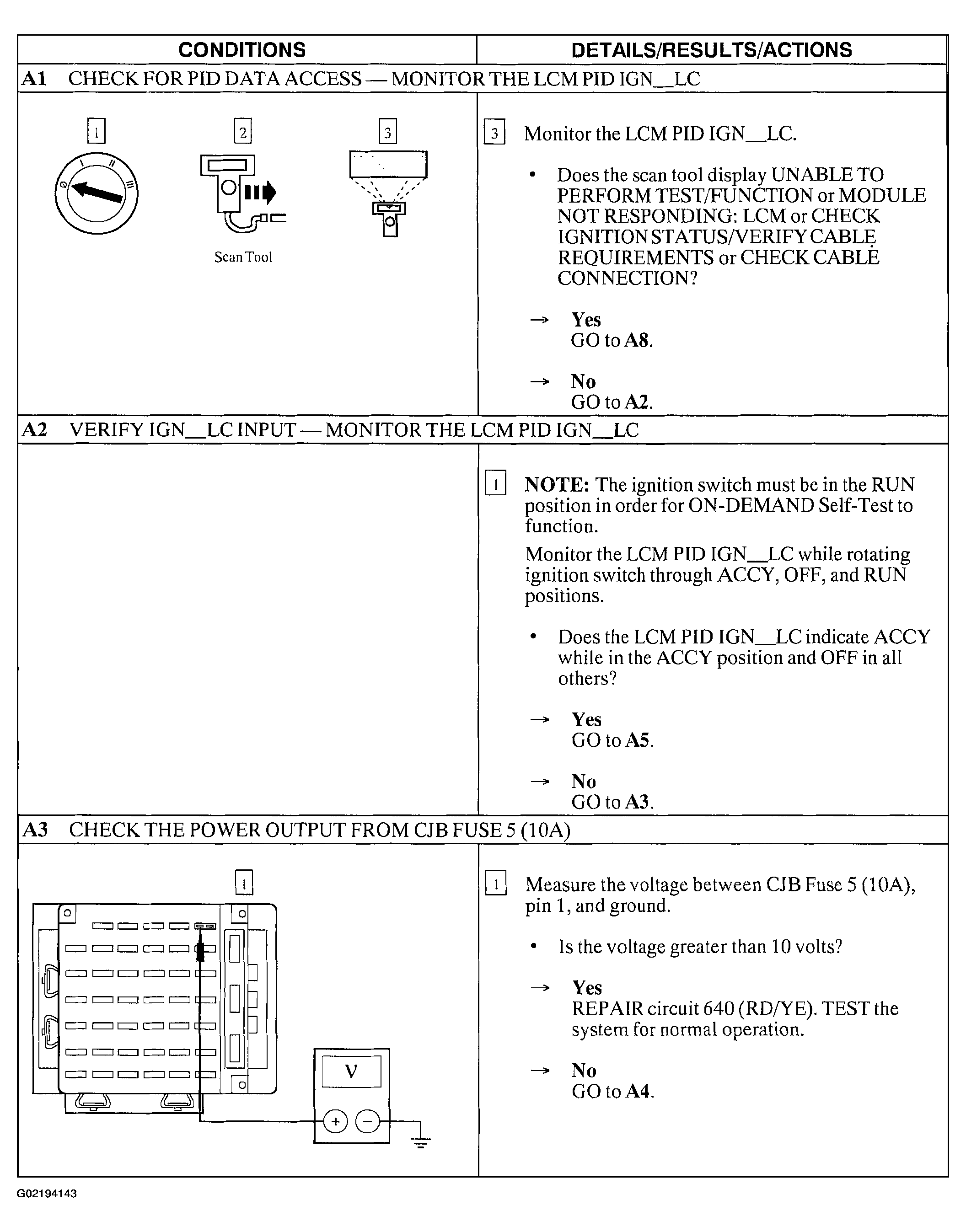

Fig 1: Pinpoint Test A: No Communication With The Module - Unable To Perform On-Demand Self-Test On Lighting Control Module (Steps A1-A3)

Courtesy of FORD MOTOR CO.

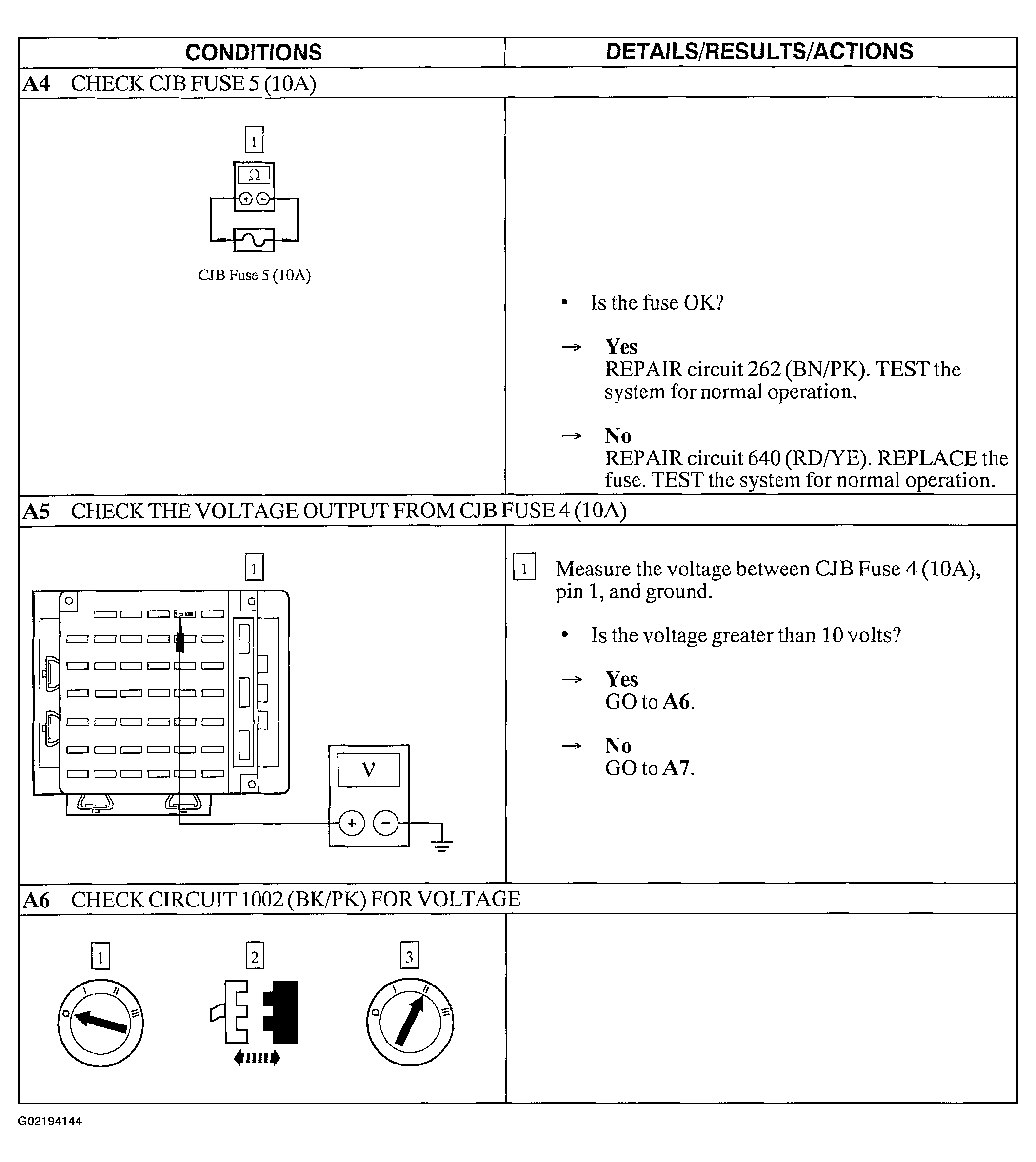

Fig 2: Pinpoint Test A: No Communication With The Module - Unable To Perform On-Demand Self-Test On Lighting Control Module (Steps A4-A6)

Courtesy of FORD MOTOR CO.

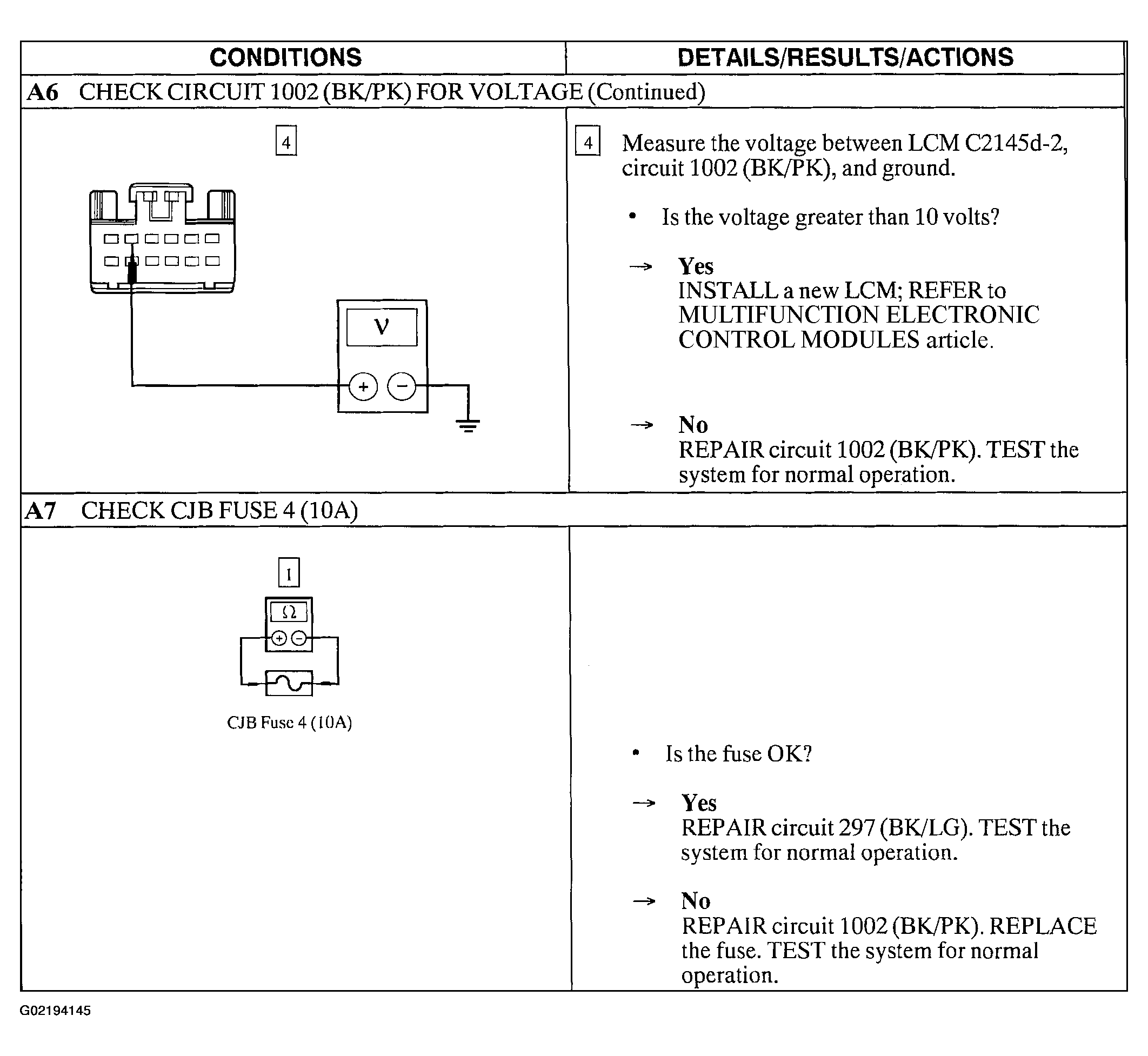

Fig 3: Pinpoint Test A: No Communication With The Module - Unable To Perform On-Demand Self-Test On Lighting Control Module (Steps A6 Cont. & A7)

Courtesy of FORD MOTOR CO.

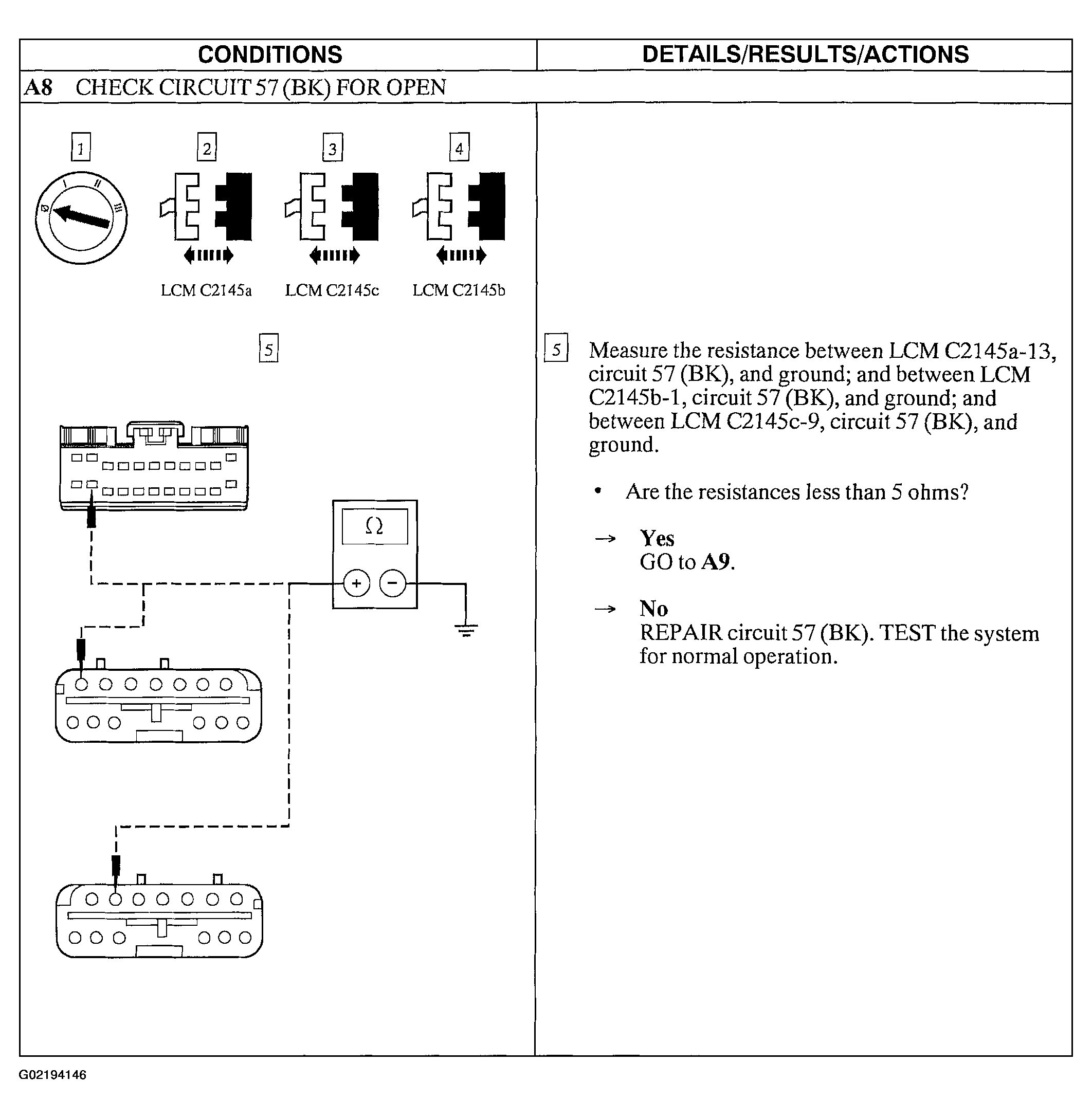

Fig 4: Pinpoint Test A: No Communication With The Module - Unable To Perform On-Demand Self-Test On Lighting Control Module (Step A8)

Courtesy of FORD MOTOR CO.

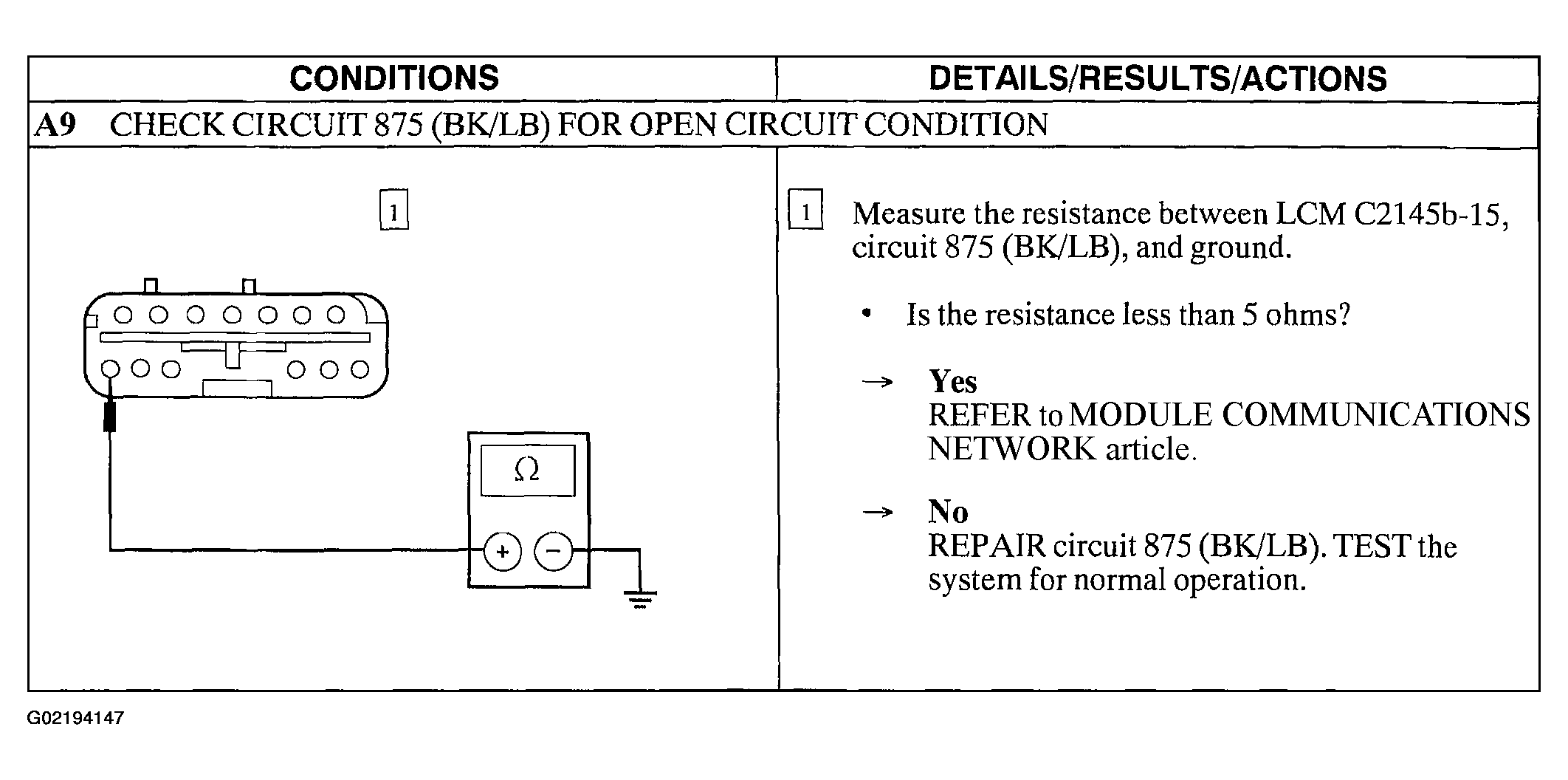

Fig 5: Pinpoint Test A: No Communication With The Module - Unable To Perform On-Demand Self-Test On Lighting Control Module (Step A9)

Courtesy of FORD MOTOR CO.
