Removal And Installation: Console-Mini: Removal

  1. Disconnect the battery ground cable (14301).
  2. Remove the mini console screws.
    • Open the cup holder/ash receptacle.
      Fig 1: Removing Mini Console Screws
      G02191585Courtesy of FORD MOTOR CO.
  3. Remove the mini console.
    • Disconnect the electrical connector.

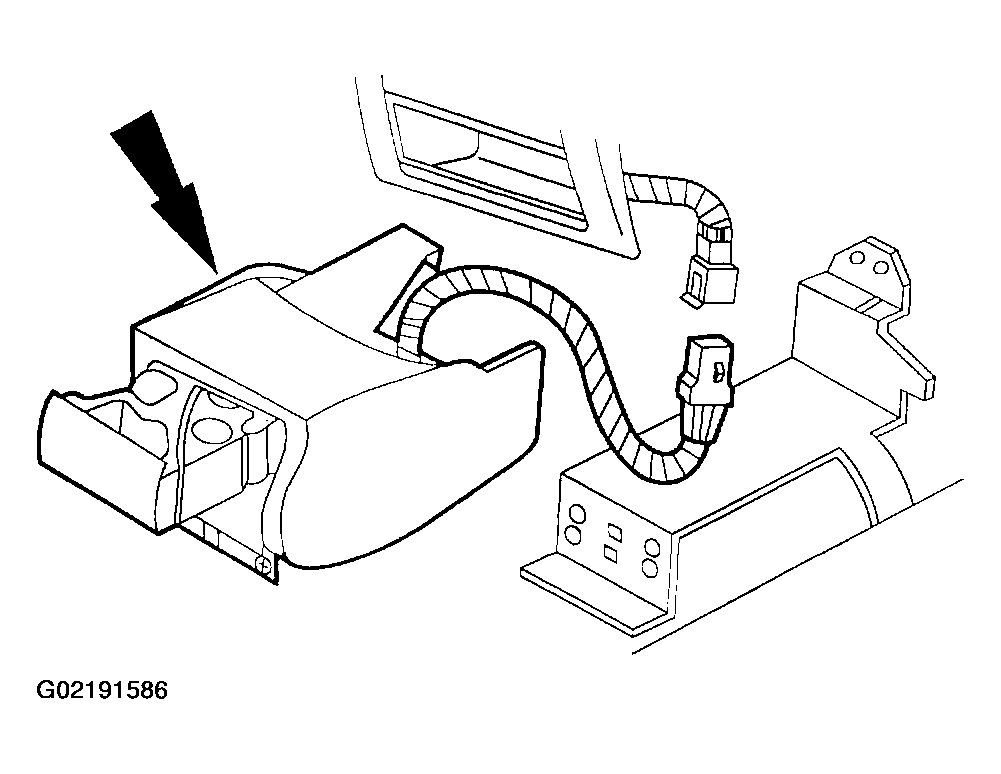

      Fig 2: Removing Mini Console
      G02191586Courtesy of FORD MOTOR CO.
