Removal And Installation: Console-Floor: Installation

    NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 mi) or more to relearn the strategy.

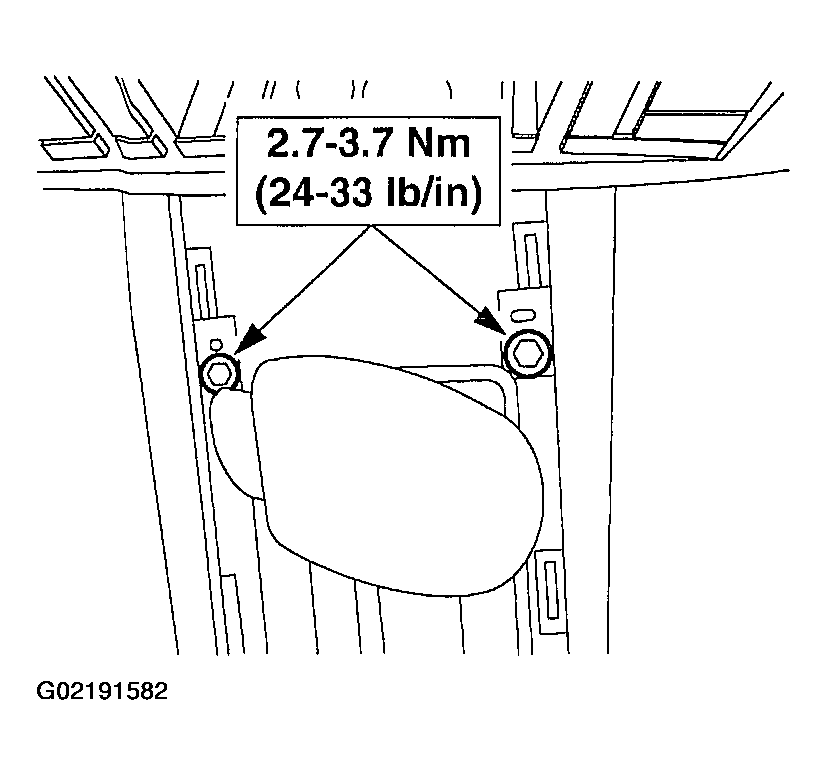

    Fig 1: Installing Floor Console-To-Gearshift Bracket Screws
    G02191582Courtesy of FORD MOTOR CO.

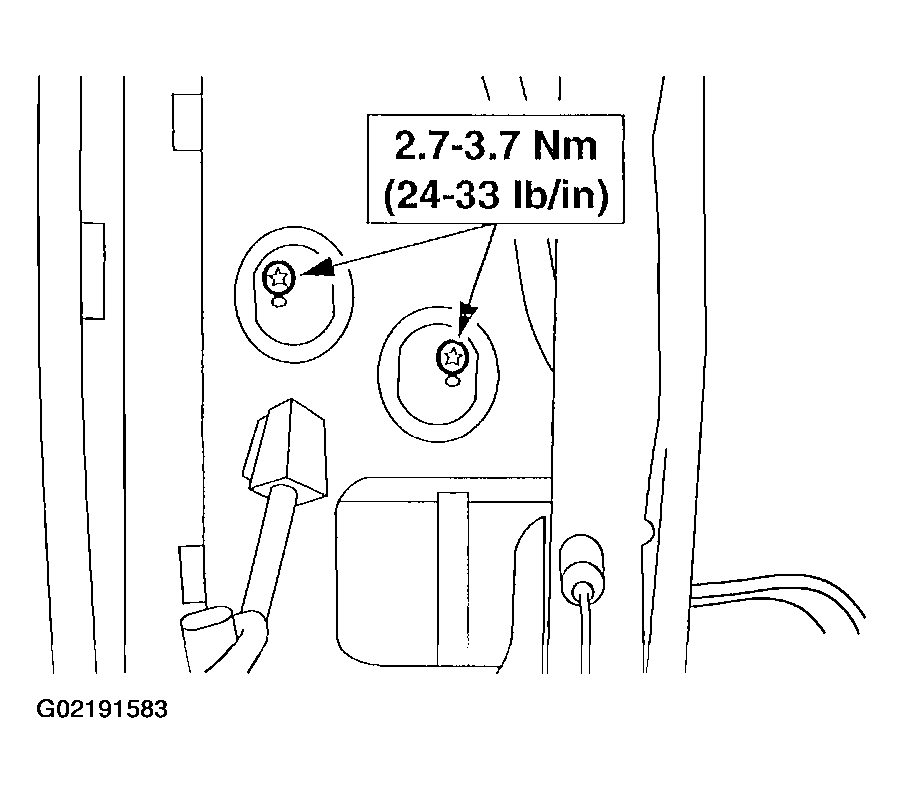

    Fig 2: Installing Floor Console-To-Floor Bracket Screws
    G02191583Courtesy of FORD MOTOR CO.

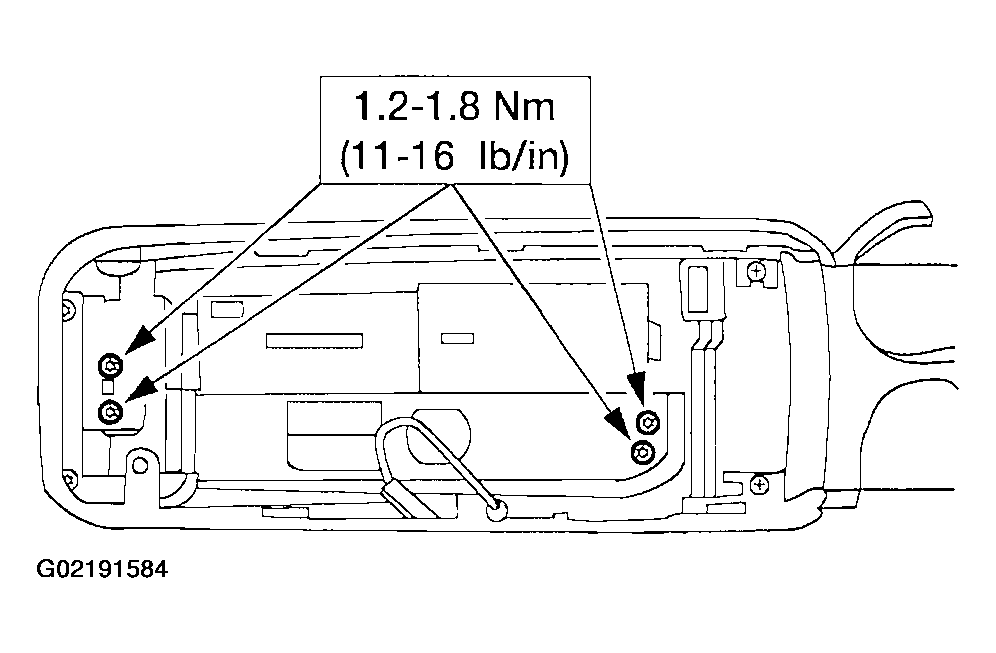

    Fig 3: Installing Compact Disc Changer
    G02191584Courtesy of FORD MOTOR CO.
  1. To install, reverse the removal procedure.
