Removal & Installation: Switch: Removal

  1. Remove the lower steering column cover.
    1. Remove the screws.
    2. Remove the lower steering column cover.

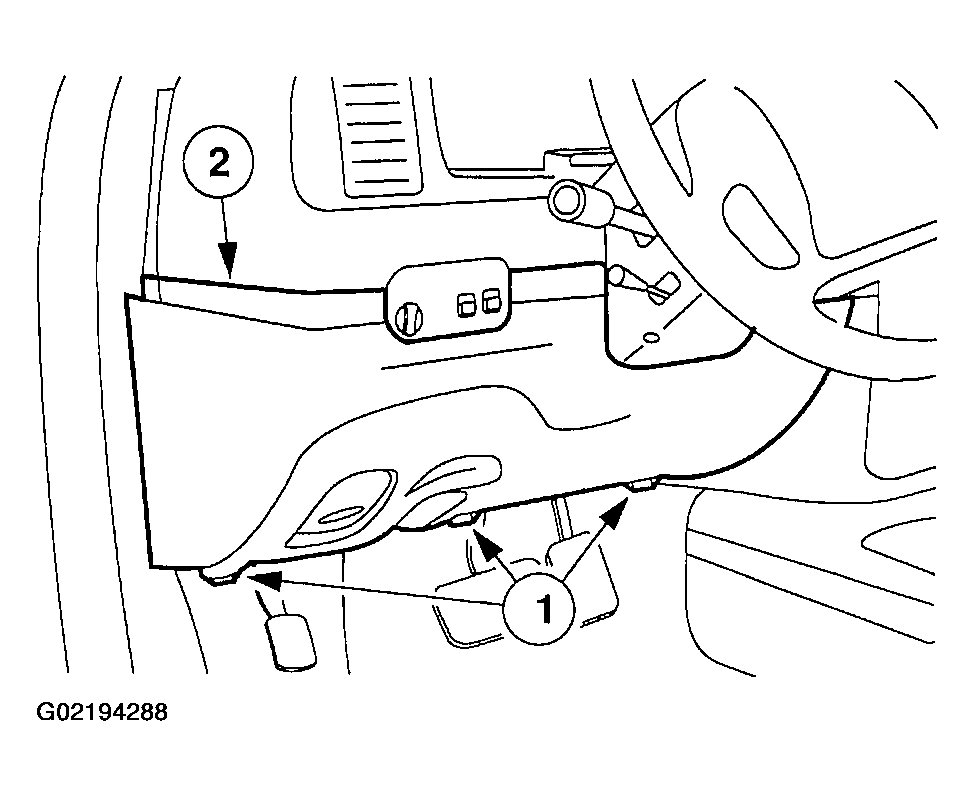

      Fig 1: Removing Lower steering column cover
      G02194288Courtesy of FORD MOTOR CO.
  2. Remove the center trim panel.
    1. Remove the screw.
    2. Remove the center trim panel.

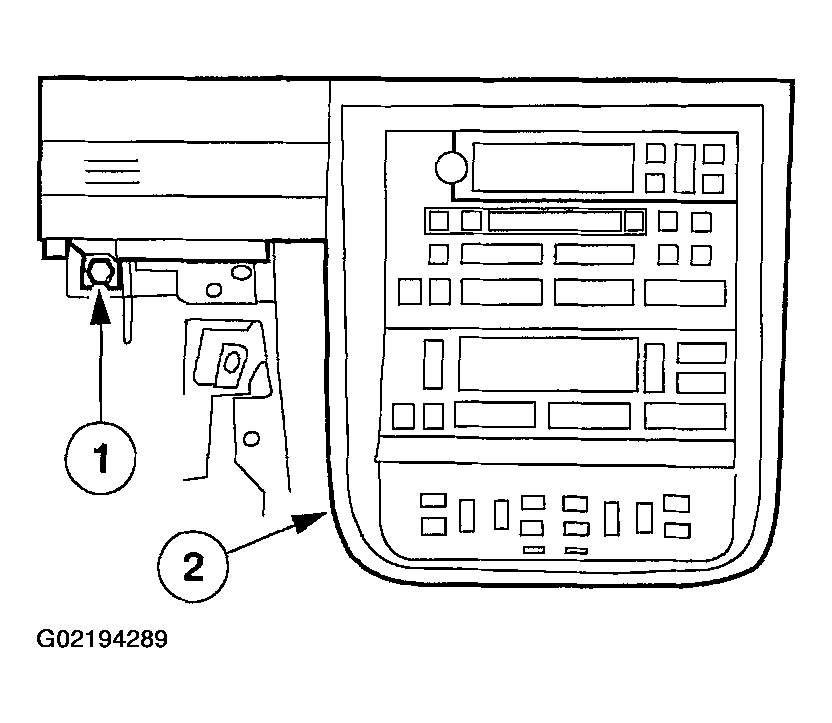

      Fig 2: Removing Center Trim Panel
      G02194289Courtesy of FORD MOTOR CO.
  3. Remove the instrument cluster finish panel.
    1. Remove the screws.
    2. Remove the instrument cluster finish panel.

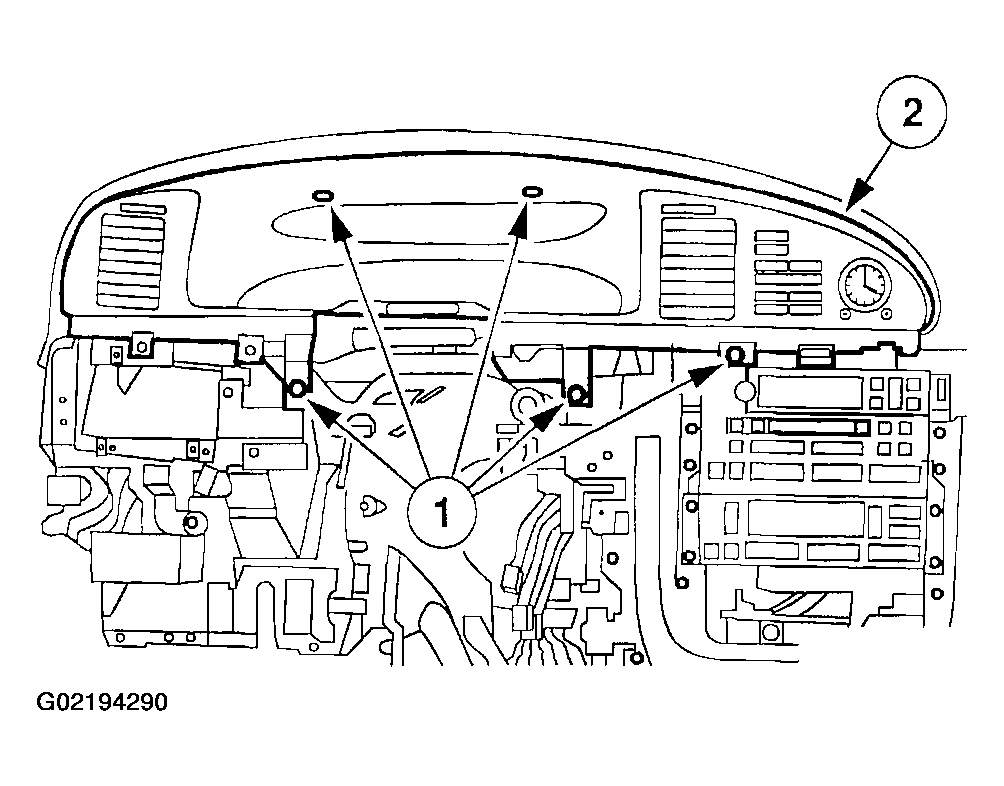

      Fig 3: Removing Instrument Cluster Finish Panel
      G02194290Courtesy of FORD MOTOR CO.
  4. Disconnect the instrument cluster finish panel.
    1. Disconnect the clock.
    2. Disconnect the message center switch module.

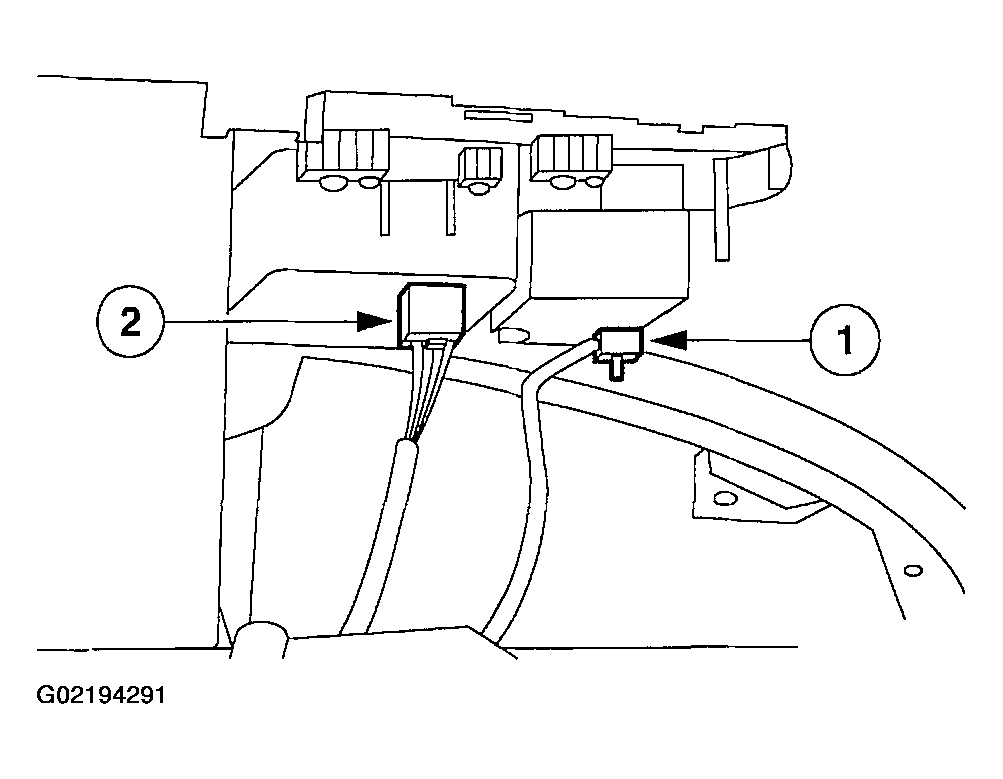

      Fig 4: Disconnecting Instrument Cluster Finish Panel
      G02194291Courtesy of FORD MOTOR CO.
  5. Remove the message center switch module.
    1. Remove the screws.
    2. Remove the message center switch module.

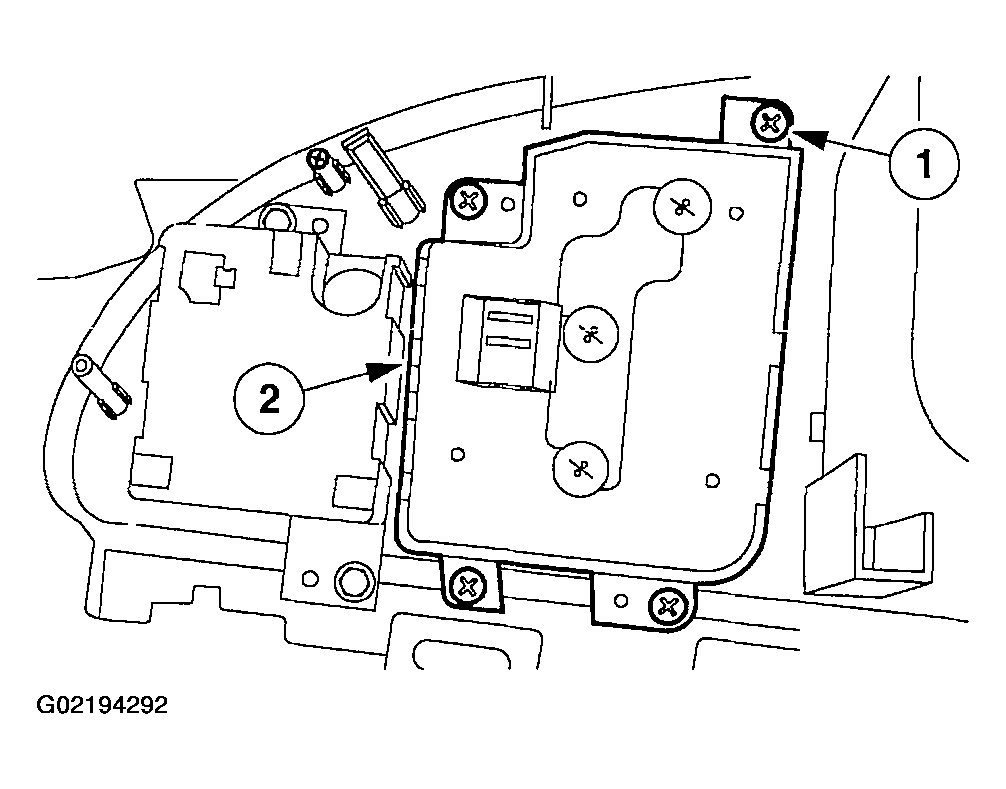

      Fig 5: Removing Message Center Switch Module
      G02194292Courtesy of FORD MOTOR CO.
