Pinpoint Test B: The Daytime Running Lamps Are Inoperative

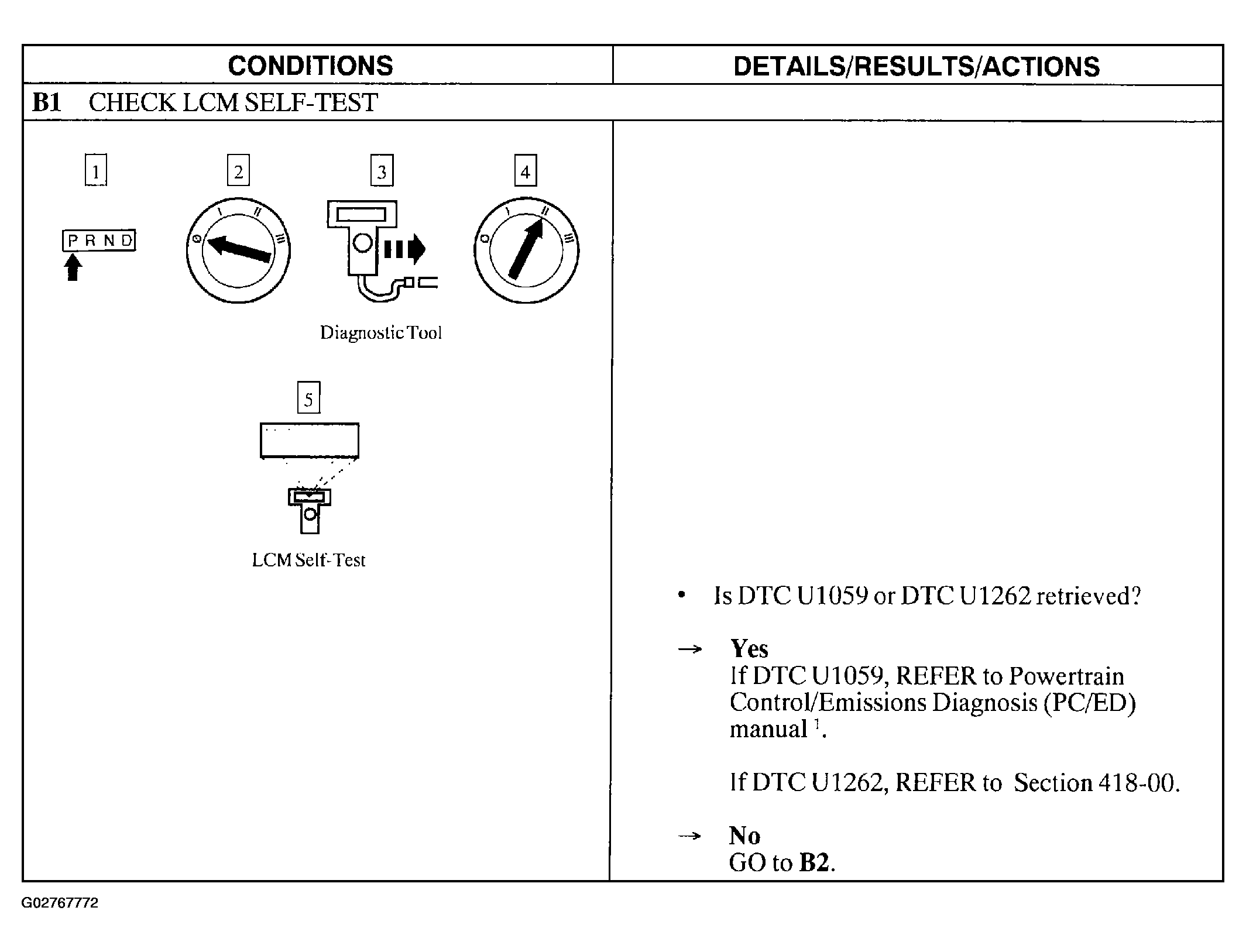

Fig 1: Pinpoint Test B: The Daytime Running Lamps Are Inoperative (Step B1)

Courtesy of FORD MOTOR CO.

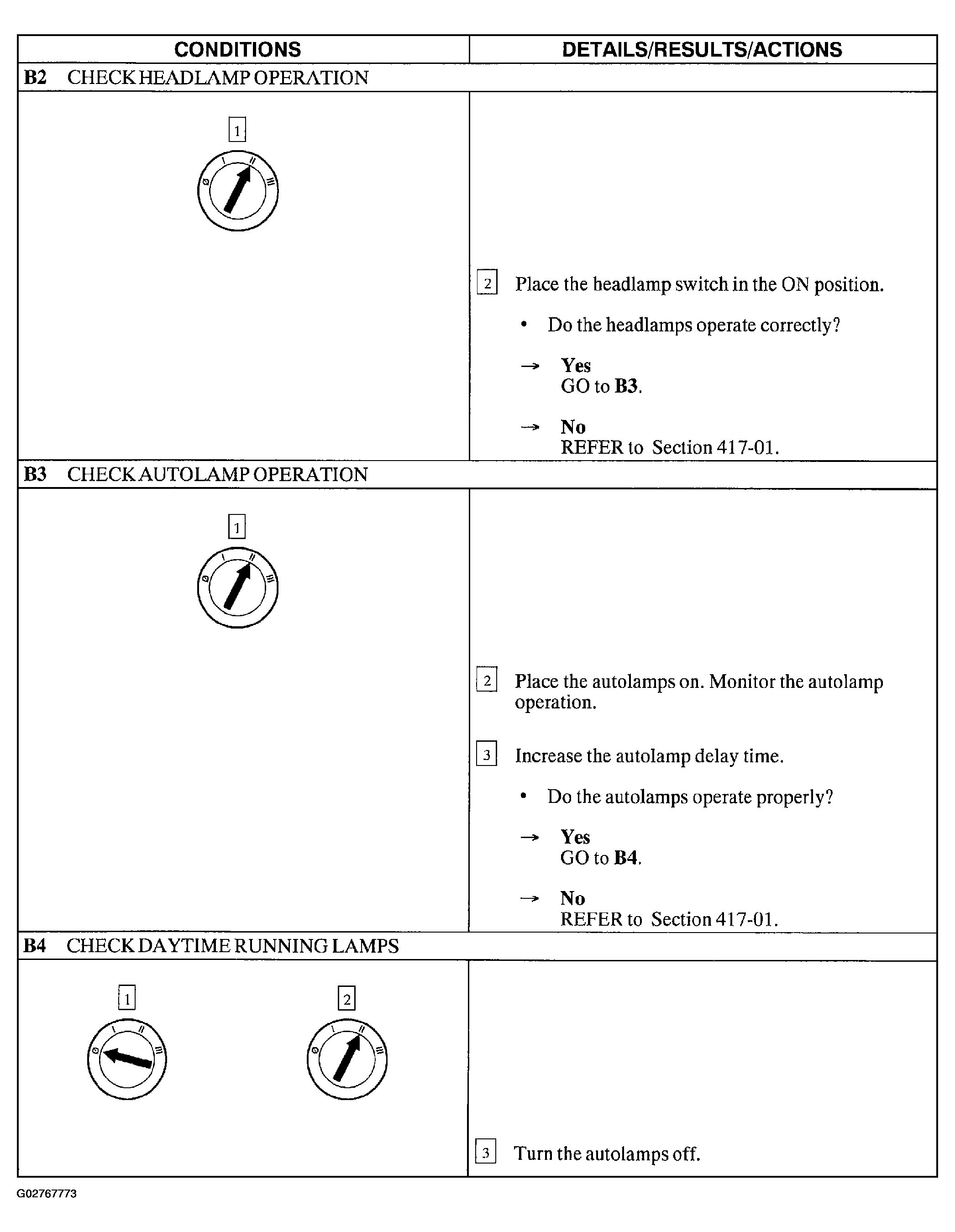

Fig 2: Pinpoint Test B: The Daytime Running Lamps Are Inoperative (Steps B2-B4)

Courtesy of FORD MOTOR CO.

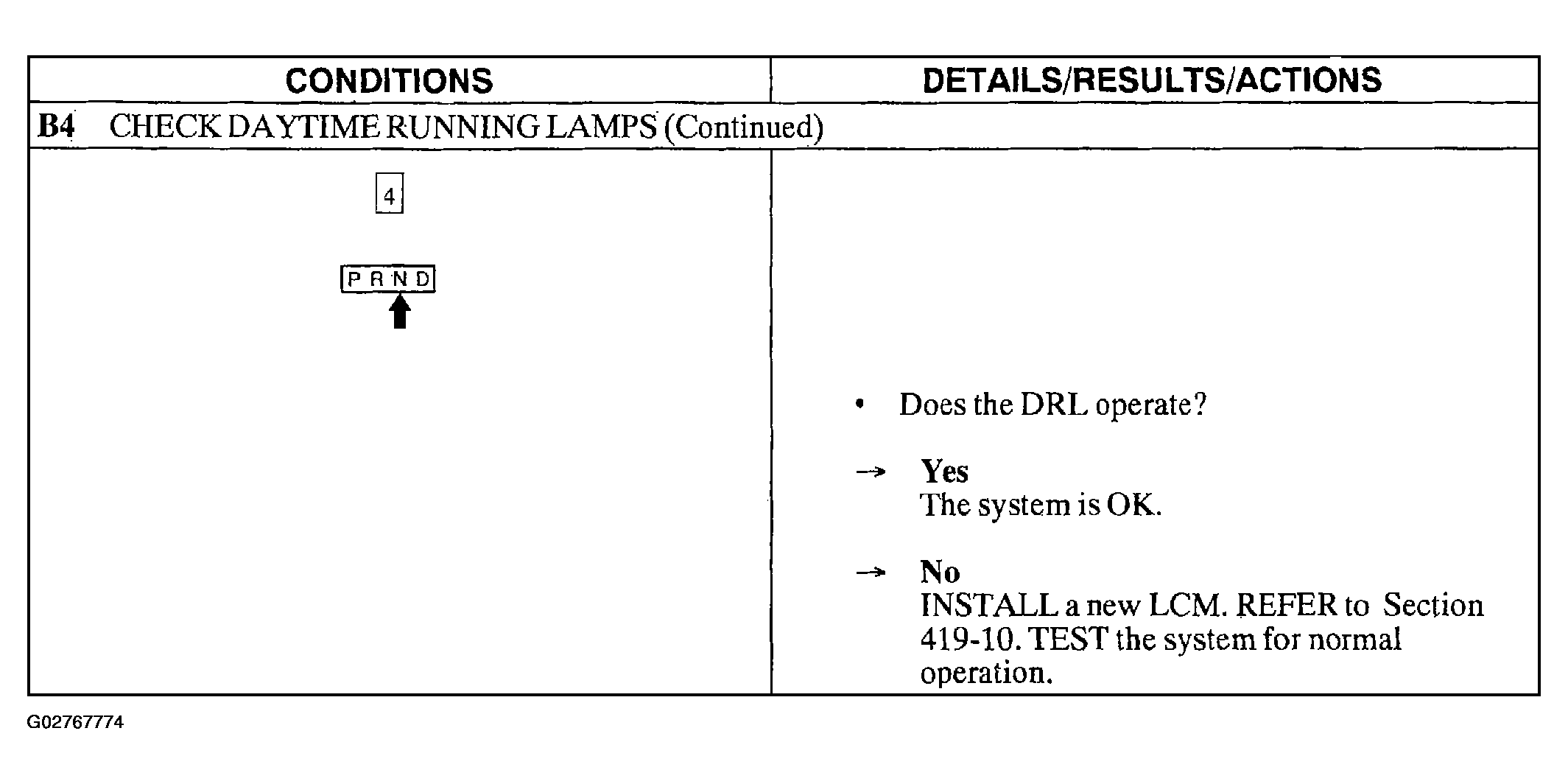

Fig 3: Pinpoint Test B: The Daytime Running Lamps Are Inoperative (Step B4 Cont.)

Courtesy of FORD MOTOR CO.
