Evaporative Emissions (EVAP) System Components - Exploded View
WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

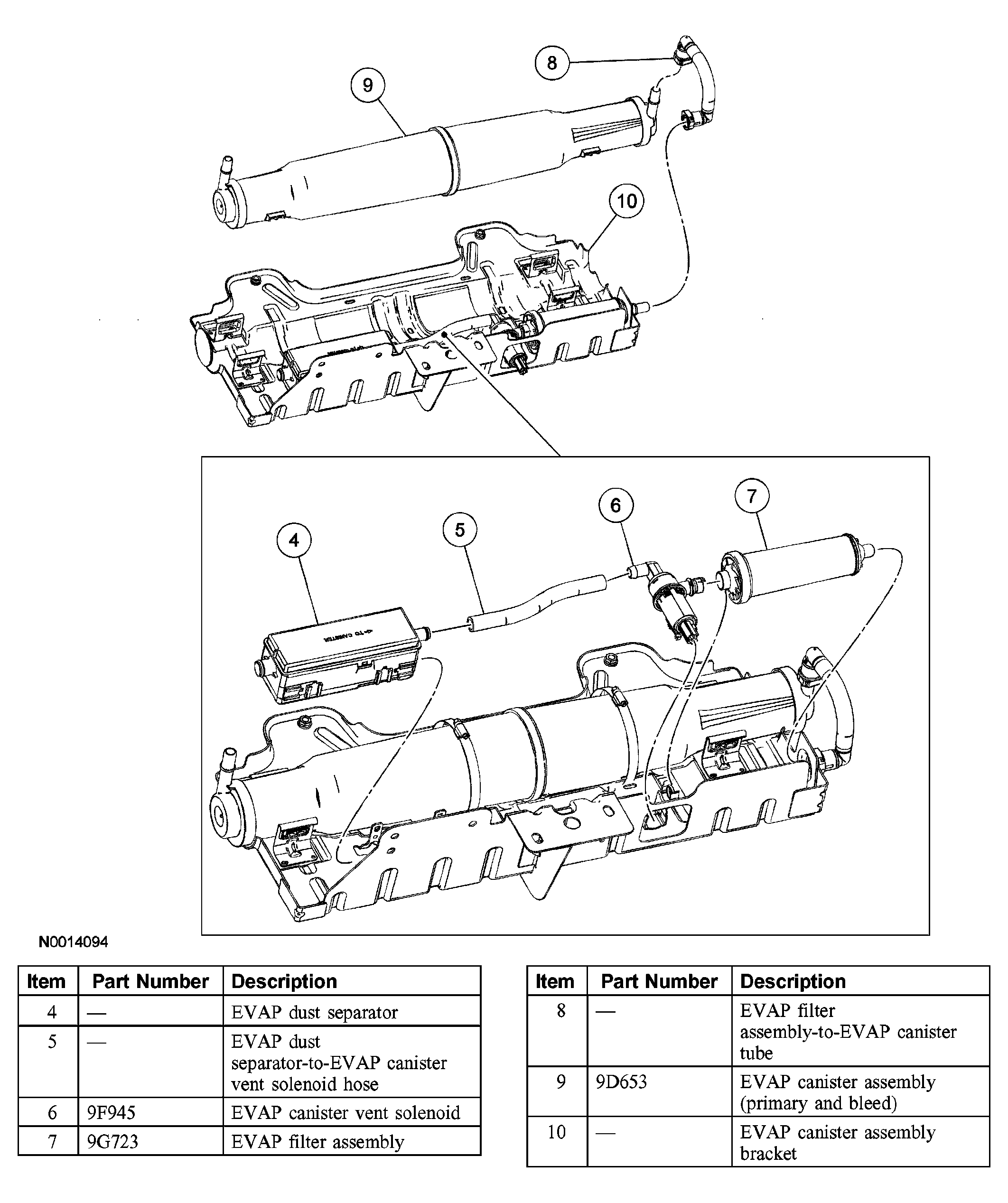

Fig 1: Exploded View Of Evaporative Emissions System Components - Midship Fuel Tank Equipped Vehicles (1 Of 2)

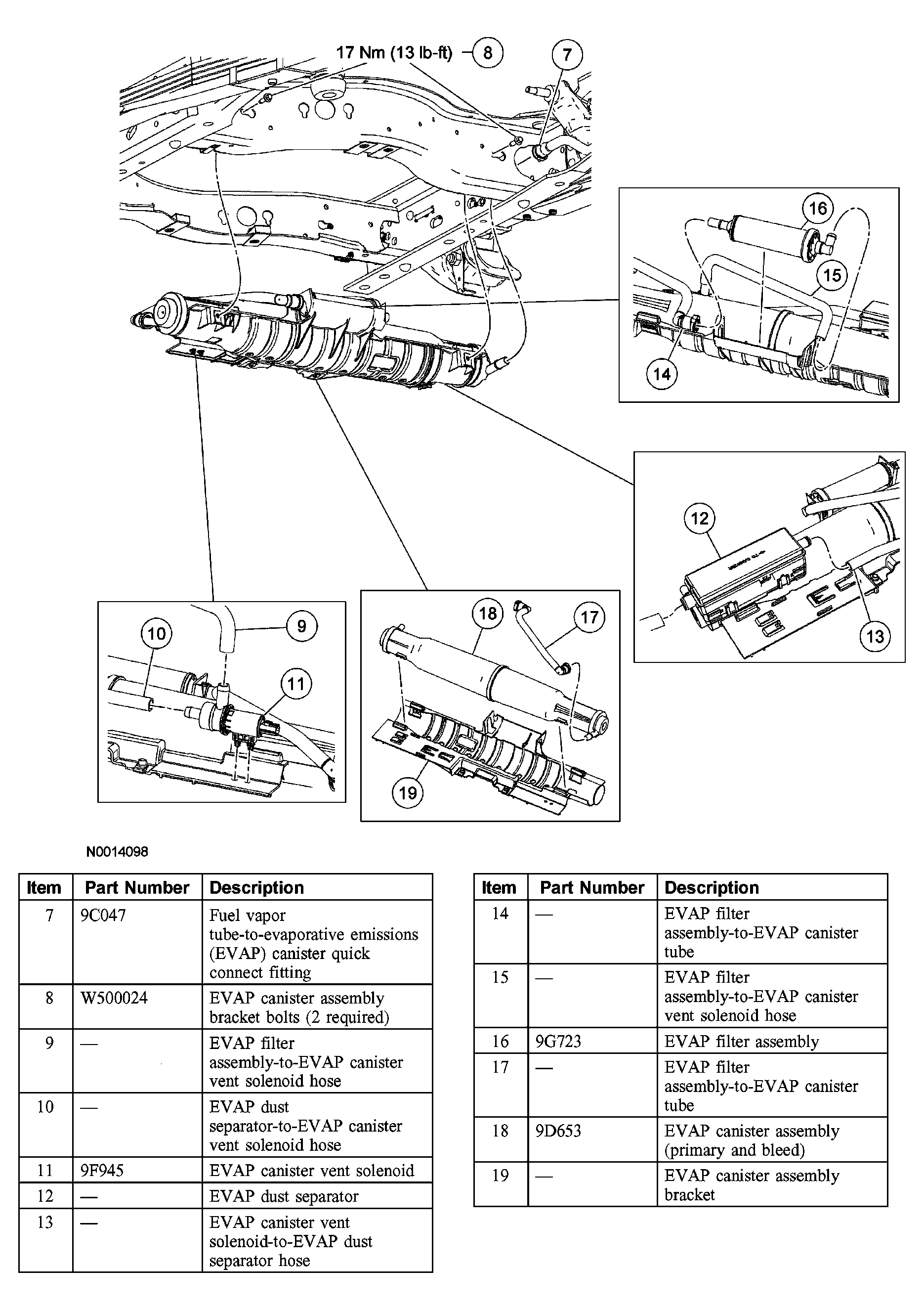

Fig 2: Exploded View Of Evaporative Emissions System Components - Midship Fuel Tank Equipped Vehicles (2 Of 2)

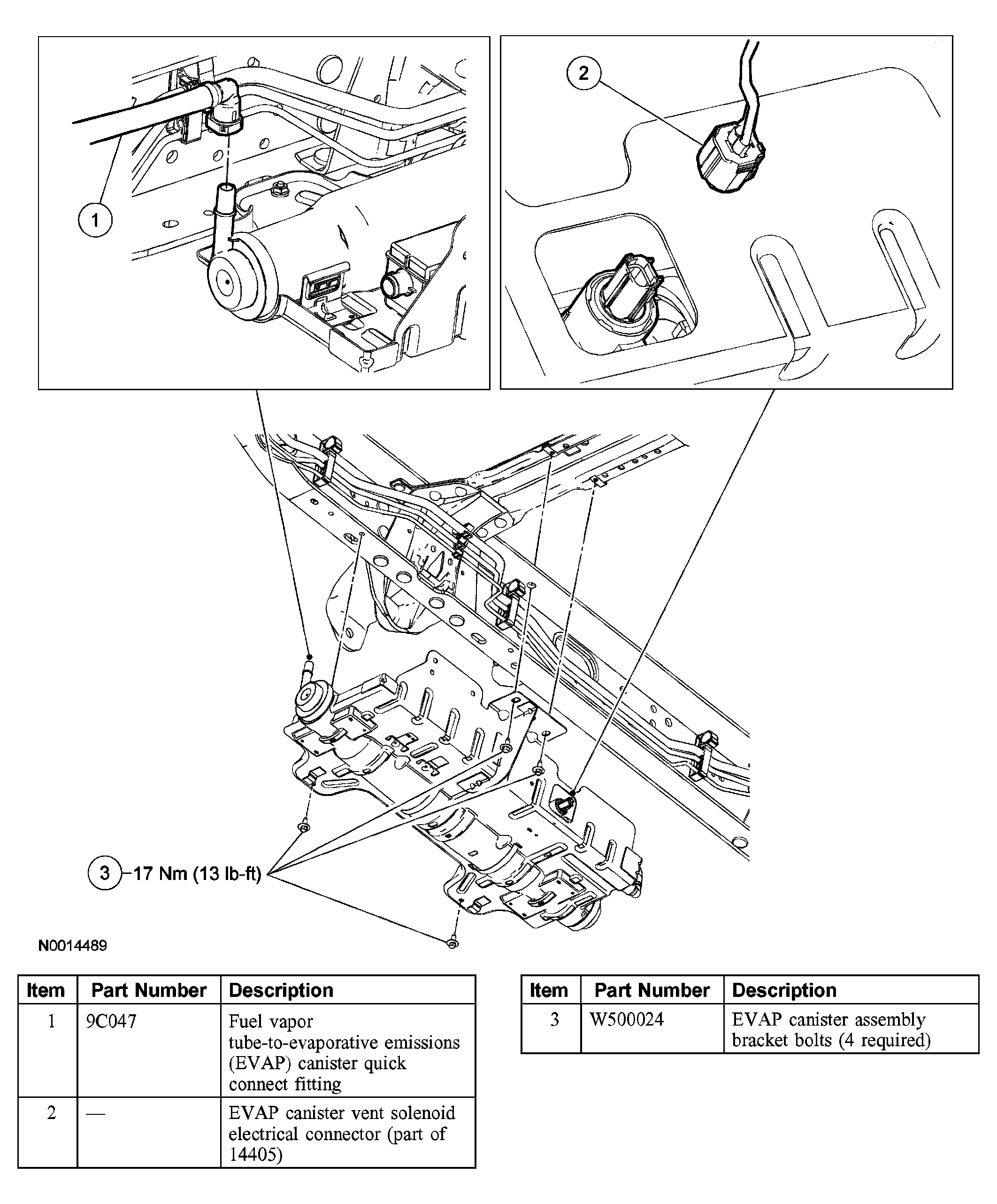

Fig 3: Exploded View Of Evaporative Emissions System Components - Aft-Of-Axle Fuel Tank Equipped Vehicles (1 Of 2)

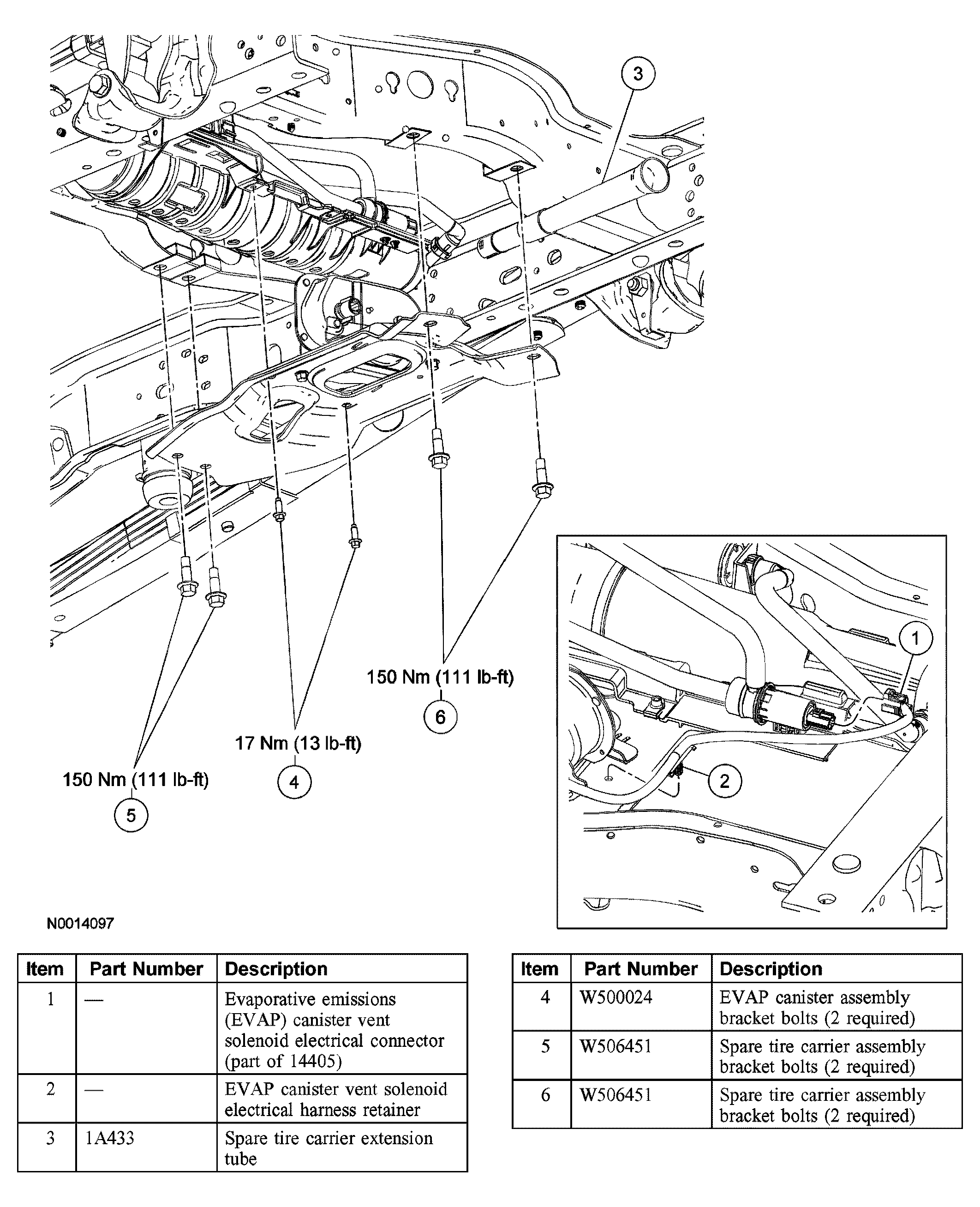

Fig 4: Exploded View Of Evaporative Emissions System Components - Aft-Of-Axle Fuel Tank Equipped Vehicles (2 Of 2)
- For additional information, refer to the procedures in this article.
