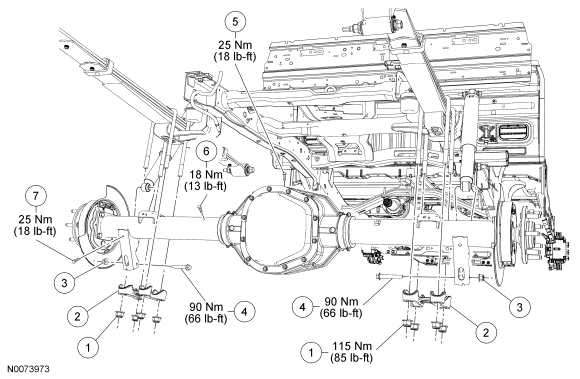

Axle Assembly: Notes
WARNING: This page is about a different car, the 2007 Lincoln Mark LT and 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
- |
U-bolt nuts (8 required) |
| 2 |
- |
U-bolt blocks (2 required) |
| 3 |
- |
Lower shock absorber bolts (2 required) |
| 4 |
- |
Lower shock absorber nuts (2 required) |
| 5 |
- |
Brake tube bracket bolt |
| 6 |
- |
Brake cable bracket bolt |
| 7 |
- |
Brake junction block bolt |
