Differential Ring And Pinion: Notes
WARNING: This page is about a different car, the 2007 Lincoln Mark LT and 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Adapter for 205-S127 | 205-111 (T76P-4020-A11) | |
| Adapter for 205-S156 | 205-159 (T80T-4020-F42) | |
| Adapter for 205-S156 | 205-160 (T80T-4020-F43) | |
| Depth Gauge/Aligner, Drive Pinion | 205-226 (T85T-4020-AH1) | |
| Depth Gauge/Aligner, Drive Pinion | 205-383 (T97T-4020-B) | |
| Dial Indicator Gauge with Holding Fixture | 100-002 (TOOL-4201-C) or equivalent | |
| Gauge, Clutch Housing | 308-021 (T75L-4201-A) | |
| Gauge Tube, Drive Pinion | 205-377 (T97T-4020-A) | |
| Holding Fixture, Drive Pinion Flange | 205-126 (T78P-4851-A) | |
| Installer, Differential Carrier Bearing | 205-D044 (D81T-4221-A) or equivalent | |
| Installer, Differential Shim | 205-228 (T85T-4067-AH) | |
| Installer, Drive Pinion Bearing Cone | 205-488 | |
| Installer, Drive Pinion Bearing Cup | 205-024 (T67P-4616-A) | |
| Installer, Drive Pinion Flange | 205-233 (T85T-4851-AH) | |
| Installer, Drive Pinion Oil Seal | 205-208 (T83T-4676-A) | |
| Installer, Rear Axle Pinion Bearing Cup | 205-387 (T97T-4628-A) | |
| Installer, Rear Axle Pinion Bearing Cup | 205-852 | |
| Plate, Bearing/Oil Seal | 205-090 (T75L-1165-B) | |
| Protector, Drive Pinion Thread | 205-229 (T85T-4209-AH) | |
| Step Plate | 205-D061 (D83T-4205-C2) or equivalent | |
| 2-Jaw Puller | 205-D072 (D97L-4221-A) or equivalent |
Material
| Item | Specification |
|---|---|
| Additive Friction Modifier XL-3 (US); CXL-3 (Canada) |
EST-M2C118-A |
| Motorcraft High Contrast Hypoid Gear Marking Compound XG-14 |
- |
| Premium Long-Life Grease XG-1-C or XG-1-K (US); CXG-1-C (Canada) |
ESA-M1C75-B |
| Silicone Gasket and Sealant TA-30 |
WSE-M4G323-A4 |
| Stud and Bearing Mount TA-27 |
WSK-M2G349-A1 |
| Threadlock and Sealer TA-25 |
WSK-M2G351-A5 |

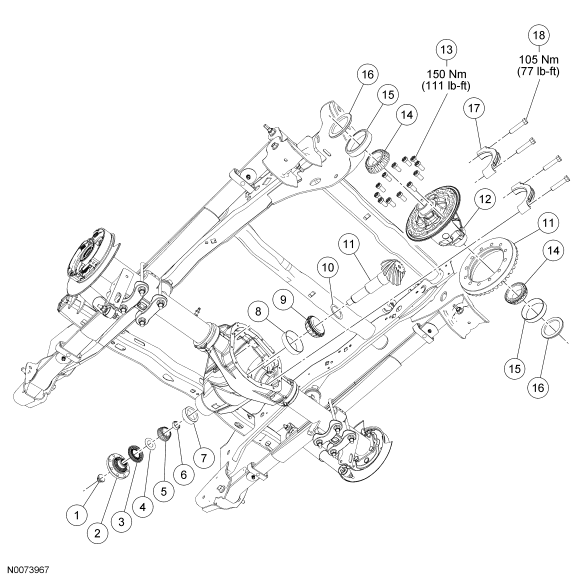

| Item | Part Number | Description |
|---|---|---|
| 1 | 389546-S100 | Drive pinion nut |
| 2 | 4851 | Drive pinion flange |
| 3 | 4676 | Drive pinion oil seal |
| 4 | 4670 | Pinion oil slinger |
| 5 | 4621 | Outer pinion bearing |
| 6 | 4662 | Collapsible spacer |
| 7 | 4616 | Outer pinion bearing cup |
| 8 | 4628 | Inner pinion bearing cup |
| 9 | 4630 | Inner pinion bearing |
| 10 | 4663 | Pinion bearing adjustment shim |
| 11 | 4209 | Drive pinion and ring gear |
| 12 | 4204 | Differential assembly |
| 13 | 4216 | Ring gear bolt (12 required) |
| 14 | 4221 | Differential carrier bearings (2 required) |
| 15 | 4222 | Differential carrier bearing cups (2 required) |
| 16 | 4067 | Differential carrier bearing shims (2 required) |
| 17 | - | Differential bearing cap (2 required) (part of 4010) |
| 18 | - | Differential bearing cap bolts (4 required) (part of 4010) |
