Fuel Vapor Tube Assembly: Notes
WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Components shown removed for clarity.

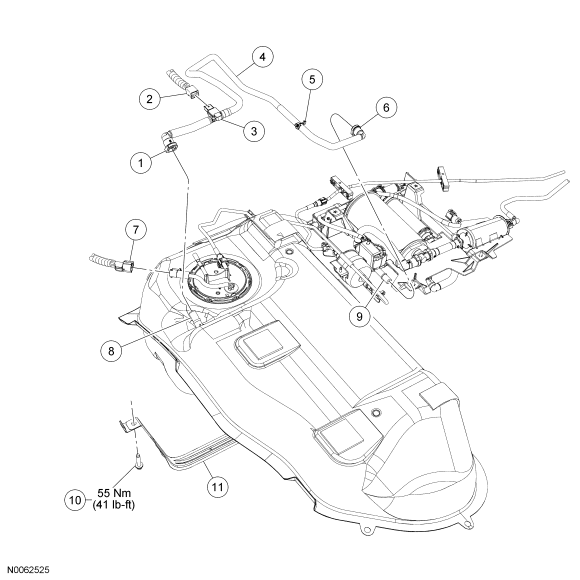

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Fuel vapor tube assembly-to-fuel tank quick connect coupling (part of 9D668A) |
| 2 | 14A464 | Fuel tank pressure (FTP) sensor electrical connector |
| 3 | - | FTP sensor (part of 9D668) |
| 4 | 9D668 | Fuel vapor tube assembly |
| 5 | - | Fuel vapor tube assembly pin-type retainer clip (part of 9D668) |
| 6 | - | Fuel vapor tube assembly-to-evaporative emission (EVAP) canister quick connect coupling (part of 9D668A) |
| 7 | 14A464 | Fuel pump (FP) module electrical connector |
| 8 | 9002 | Fuel tank |
| 9 | 9E857 | EVAP canister |
| 10 | W707111 | Fuel tank strap bolt |
| 11 | 9092 | Fuel tank strap |
