Evaporative Emission Canister: Notes
WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

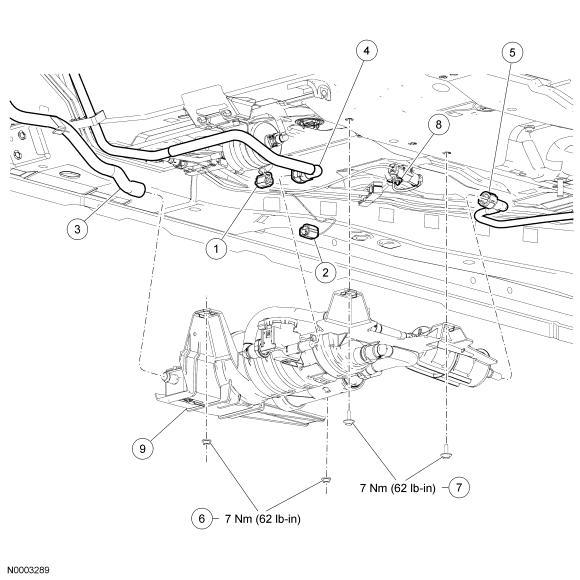

| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | Fuel vapor vent valve electrical connector |
| 2 | 14A464 | Evaporative emissions (EVAP) canister vent solenoid electrical connector |
| 3 | 9034A | Fuel vapor hose |
| 4 | 9D668A | Fuel vapor tube quick connect coupling |
| 5 | 9J279 | Fuel vapor tube quick connect coupling |
| 6 | W707137S | EVAP canister nuts (2 required) |
| 7 | W707257S | EVAP canister bolts (2 required) |
| 8 | - | Wiring harness pin-type retainer |
| 9 | 9E857 | EVAP canister assembly |
