Air Lines: Repair

Service kits are available to repair damaged air lines. Sections of air line may be cut out and union installed. See Fig 1.

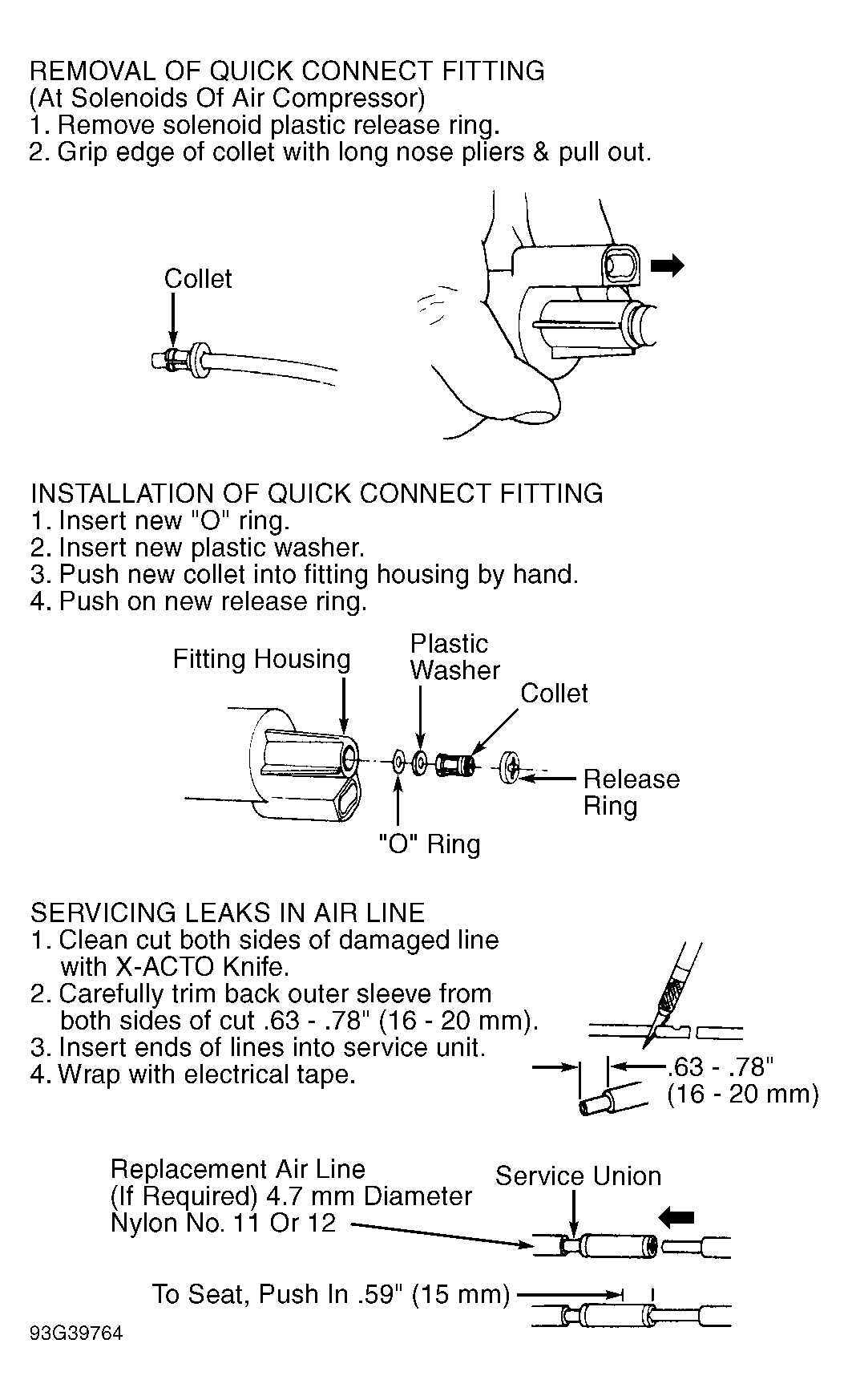

Fig 1: Servicing Air Lines
G93G39764Courtesy of FORD MOTOR CO.
