Nylon Air Lines

Use soap and water to locate leaks in air lines. If a leak is detected, it can be repaired. Remove air line. Using a sharp knife, carefully cut air line. Remove .63-.79" (16-20 mm) of sleeving material from each end of cut. Install service fitting from Service Kit (5A911). See Fig 1 . Replacement air line is also available.

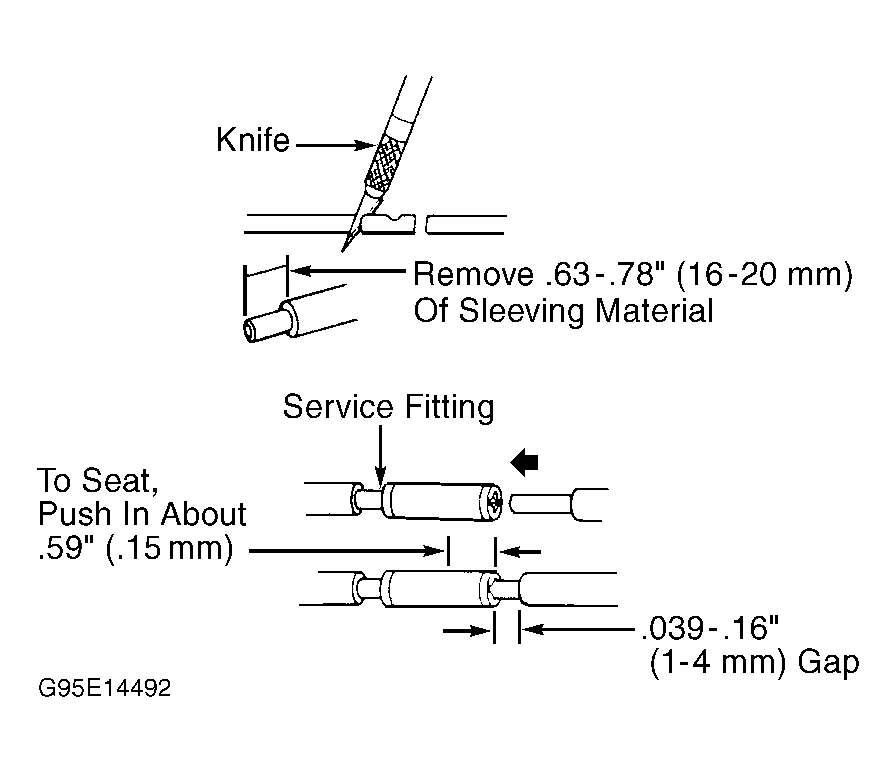

Fig 1: Servicing Nylon Air Lines
G95E14492Courtesy of FORD MOTOR CO.
