Hub & Bearing Assembly: Installation

  1. Place sensor ring over NEW hub assembly. Place ring and hub down onto Sensor Ring Installer (T88P-20202-B). Place Ring Replacer (T89P-5493-B) between hub and press ram. Press hub into sensor ring.
  2. Place hub and bearing assembly on spindle. Install a NEW retaining nut and tighten to 188-254 ft. lbs. (255-344 N.m). To complete installation, reverse removal procedure. Lower vehicle and turn air suspension on.

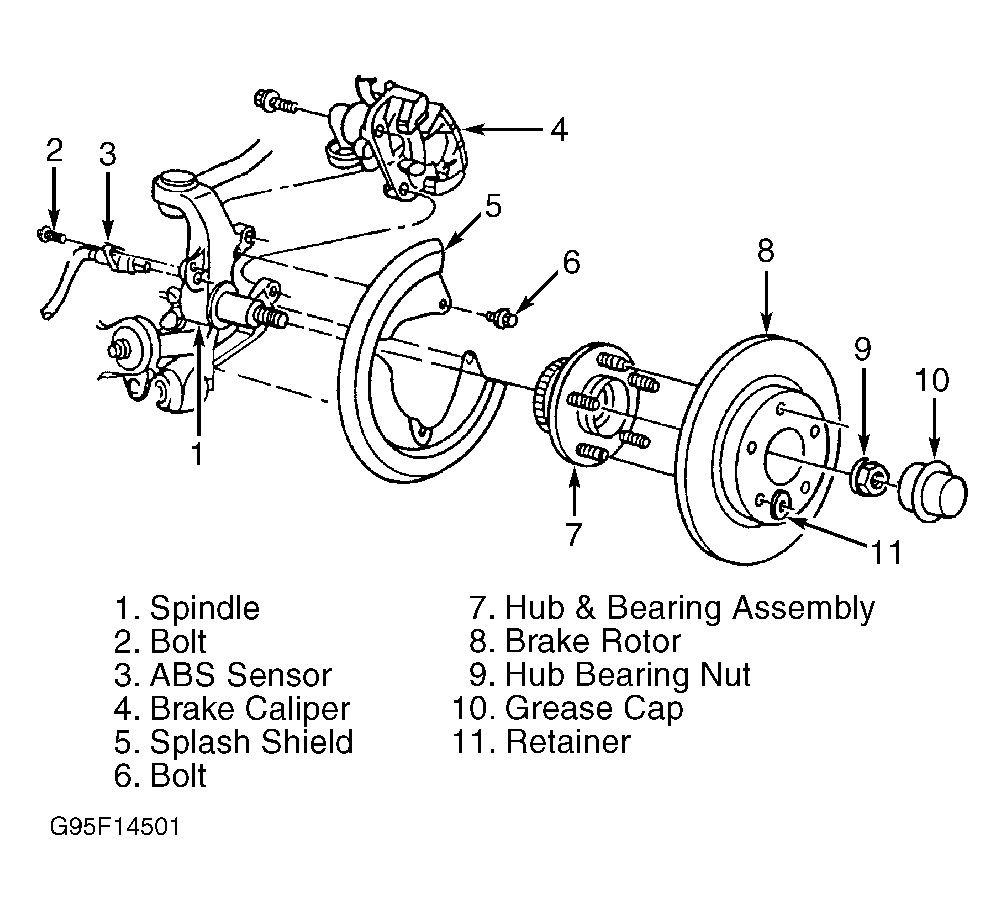

Fig 1: Exploded View Of Rear Hub Assembly (Left Side Shown; Right Side Is Similar)
G95F14501Courtesy of FORD MOTOR CO.
