Control Arm: Installation

To install, reverse removal procedure. Ensure reference mark is aligned on adjustment cam notch. Tighten fasteners to specification. See TORQUE SPECIFICATIONS  . Lower vehicle and turn air suspension on. Check and adjust alignment as necessary.

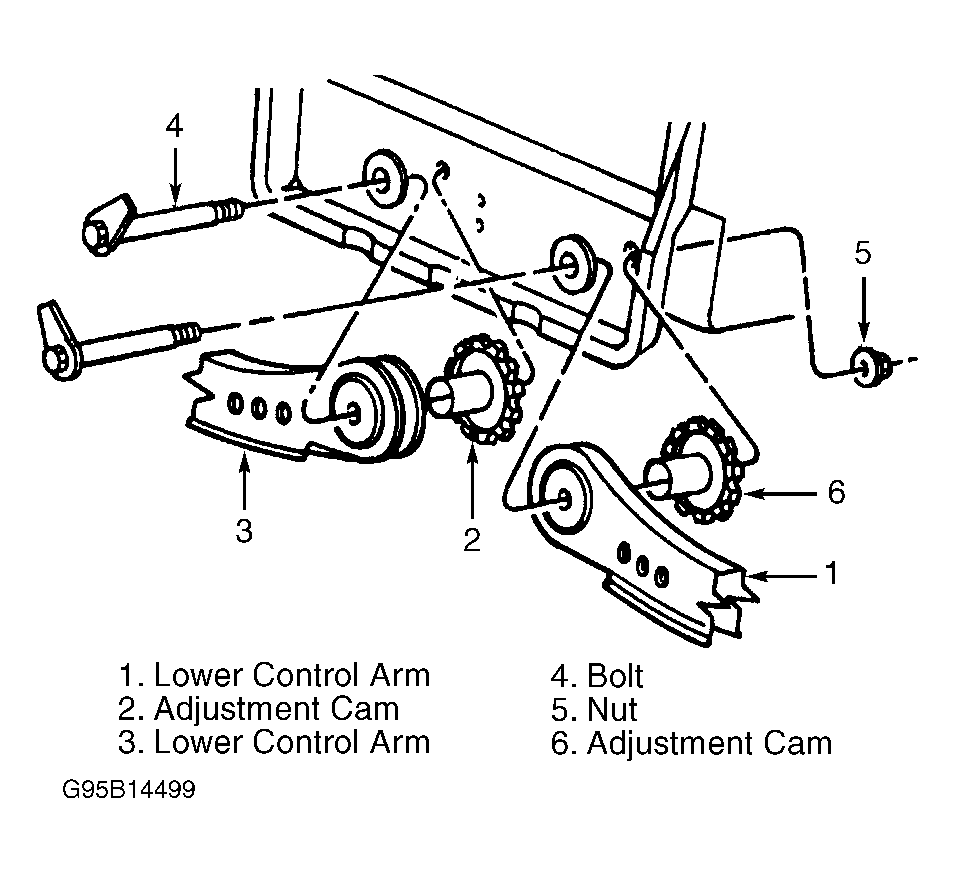

Fig 1: Removing Rear Suspension Lower Control Arm (Front Arm Shown; Rear Arm Is Similar)

Courtesy of FORD MOTOR CO.

To install, reverse removal procedure. Ensure reference mark is aligned on adjustment cam notch. Tighten fasteners to specification. See TORQUE SPECIFICATIONS  . Lower vehicle and turn air suspension on. Check and adjust toe and camber as necessary.

To install, reverse removal procedure. Install a NEW ball joint retaining nut. Tighten fasteners to specification. Refer to the TORQUE SPECIFICATIONS  . Lower vehicle and turn air suspension on.
