Vehicle Control Module: Removal

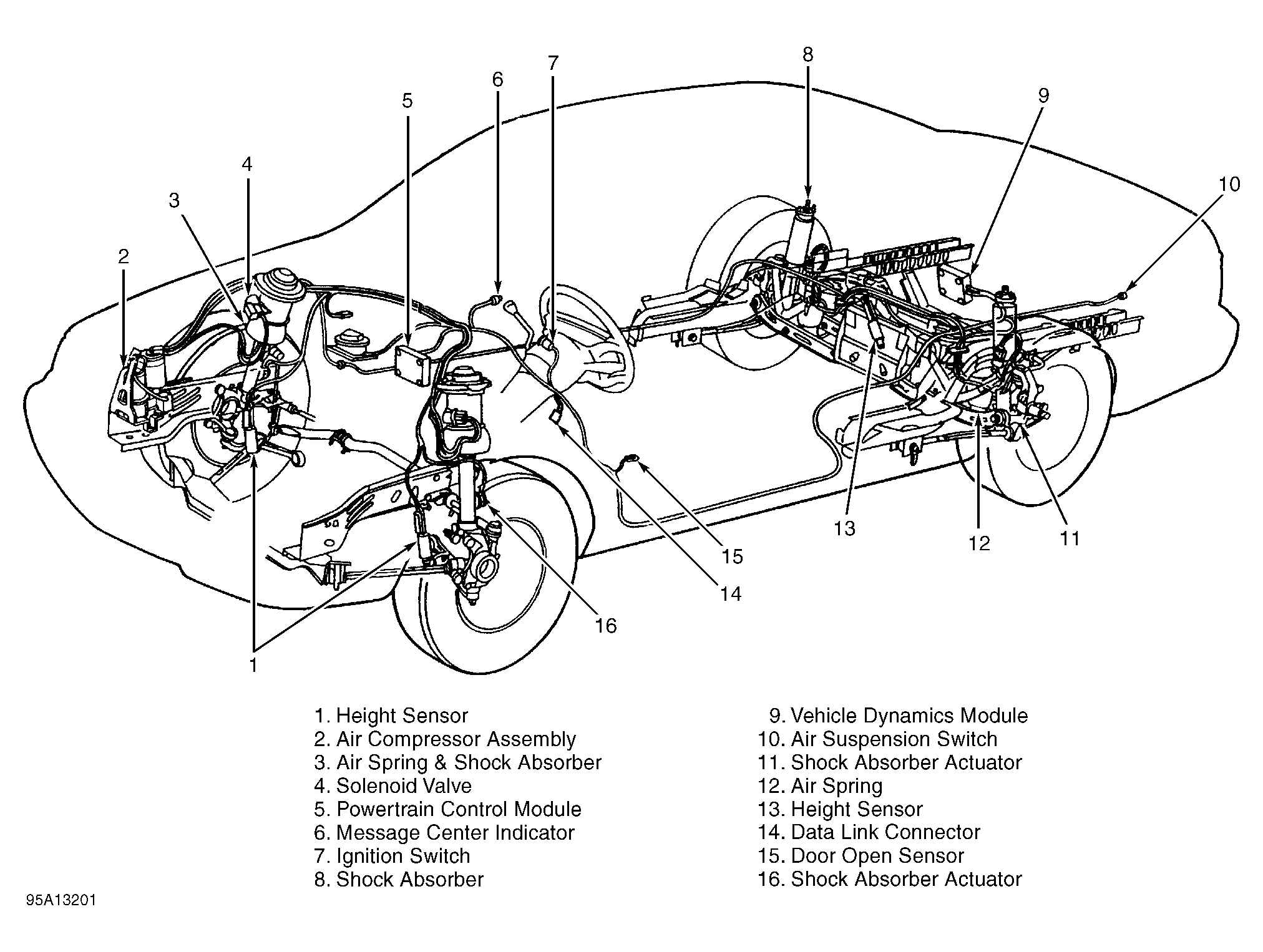

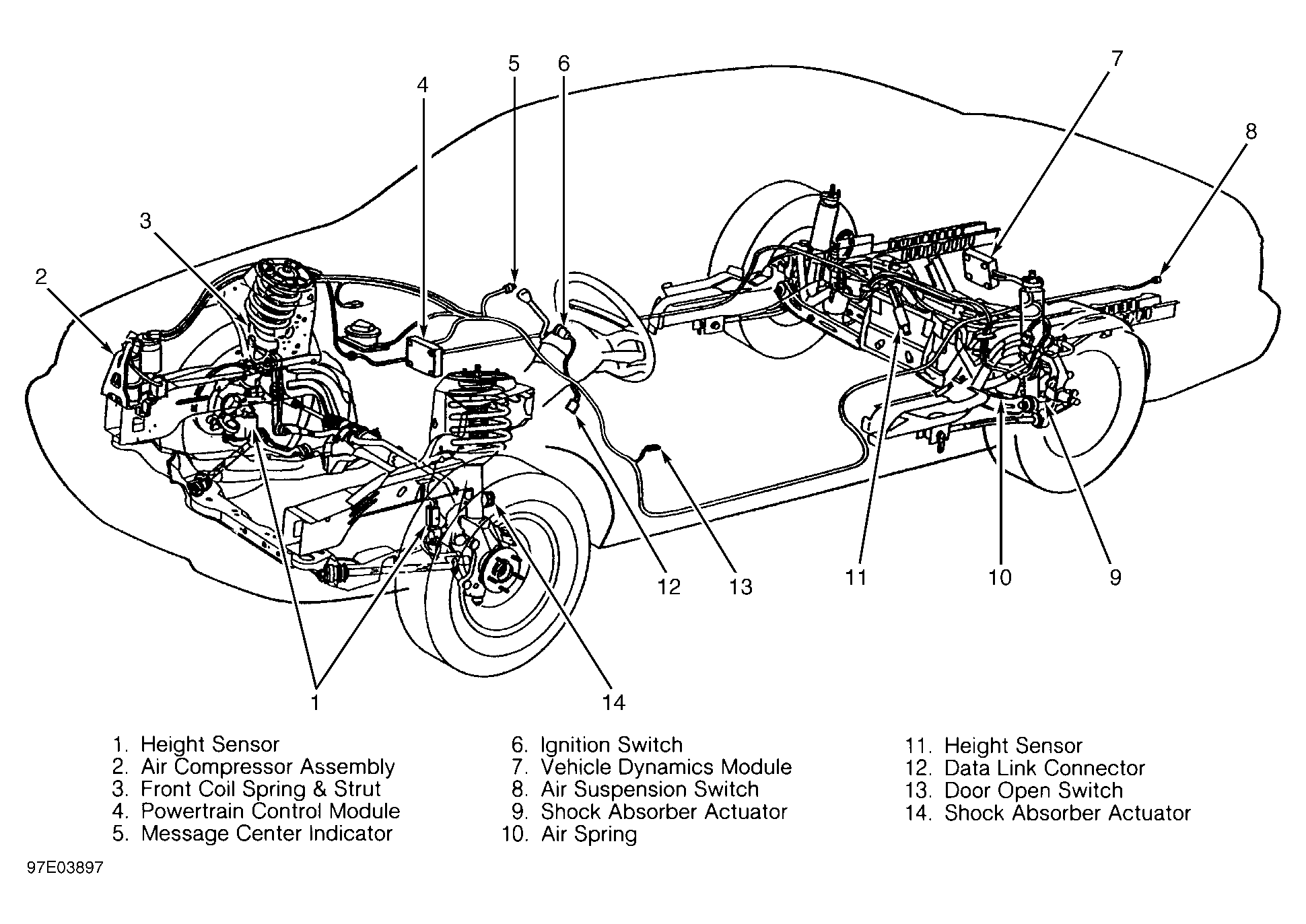

  1. Turn ignition OFF. Turn air suspension switch, located in left side of trunk, to OFF position. See Figure or Figure .
  2. Vehicle Control Module (VDM) is located in trunk, behind package tray. See Figure or Figure . Remove upper luggage compartment trim panel and lower module tray. Disconnect VDM electrical connector.
  3. Unsnap VDM from tray clips and remove module. To install, reverse removal procedure.
