Removal (Rear)

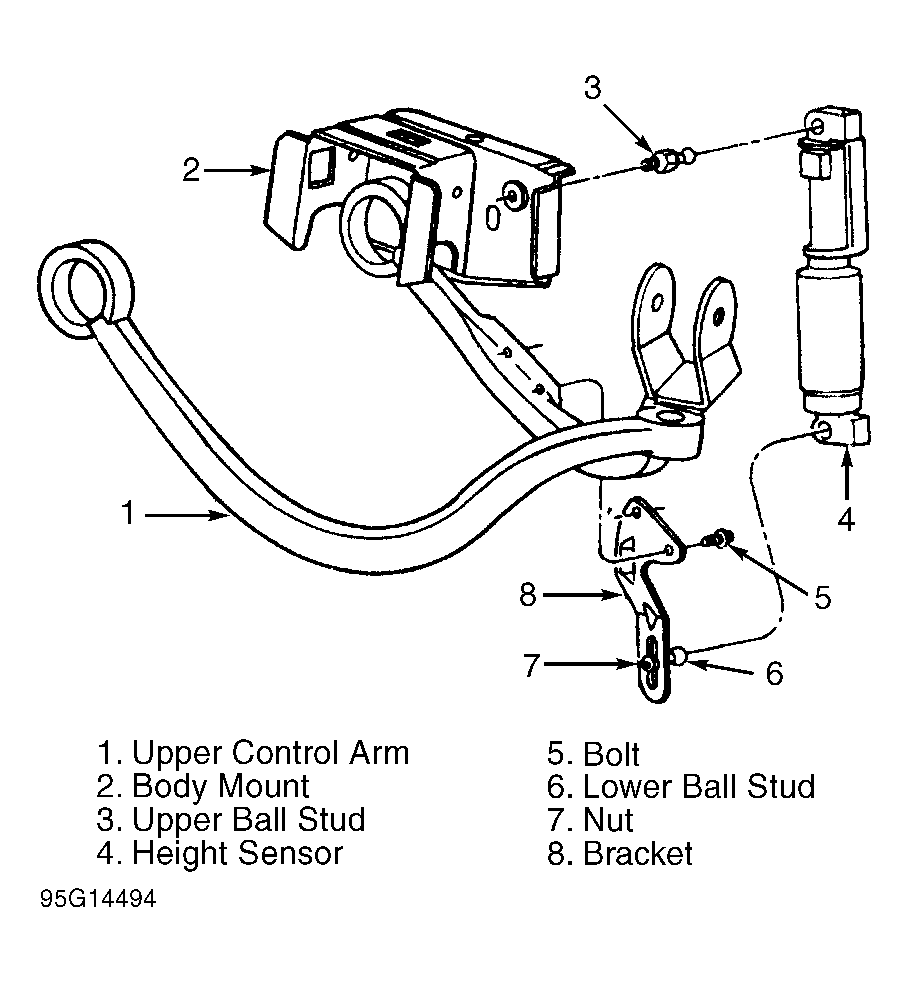

Turn air suspension switch, located in left side of trunk, to OFF position. See Figure or Figure . Using a body hoist, raise vehicle so suspension is at fully extended position. Disconnect height sensor electrical connector located on body sheet metal. Disconnect height sensor from sensor ball studs. See Figure . Remove height sensor.
