Removal (Front)

  1. Turn air suspension switch, located in left side of trunk, to OFF position. See Figure or Figure . Disconnect electrical connector at height sensor(s). Front height sensor connector is located under splash shield, in front of strut tower.

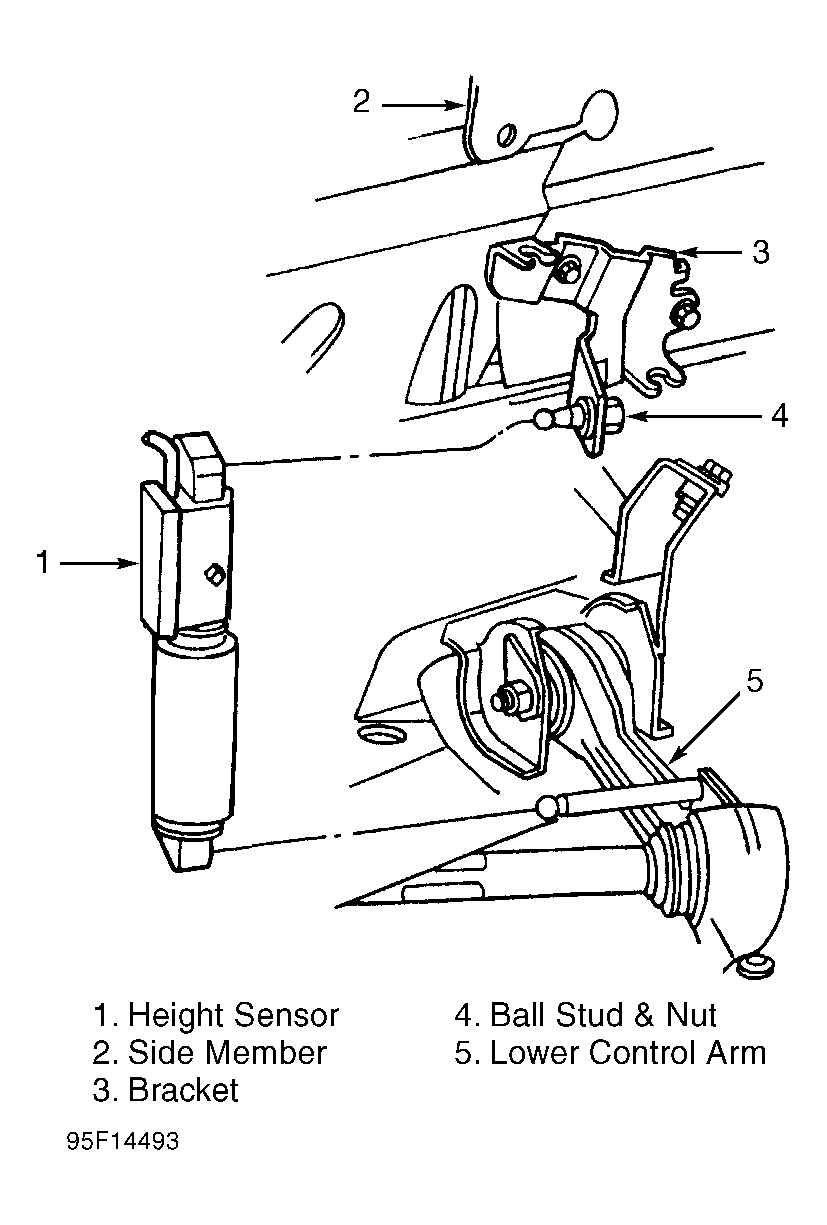

  2. Disconnect front height sensor wiring from wire retaining clips. Disconnect height sensor from sensor ball studs. See Figure . Remove height sensor.
