Wiring Diagrams

NOTE: Mark VII headlight dimmer wiring schematic is not available from manufacturer.

For additional information, see appropriate chassis wiring diagram in WIRING DIAGRAMS.

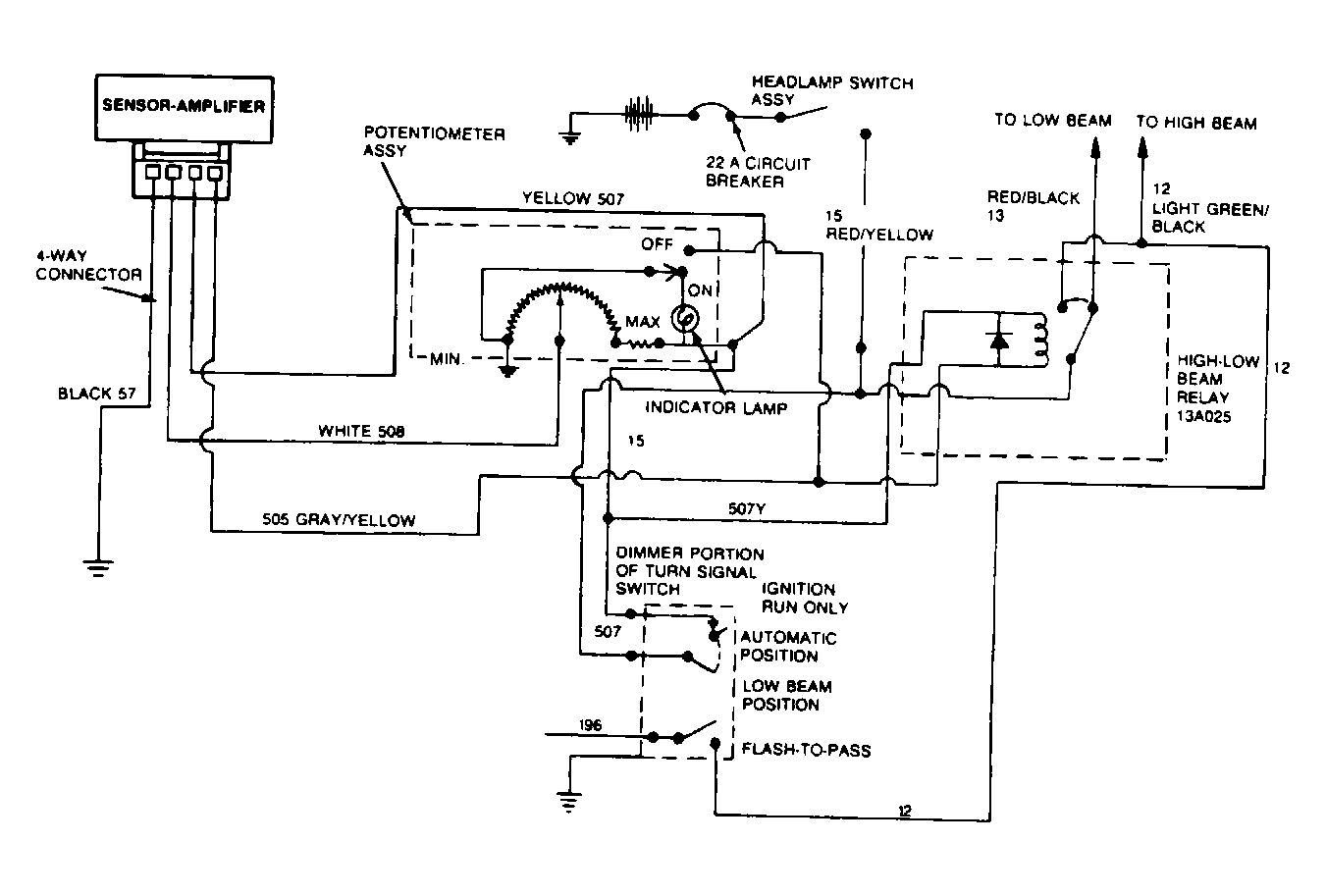

Fig 1: Automatic Headlight Dimmer Wiring Schematic (Continental)

Courtesy of FORD MOTOR CO.

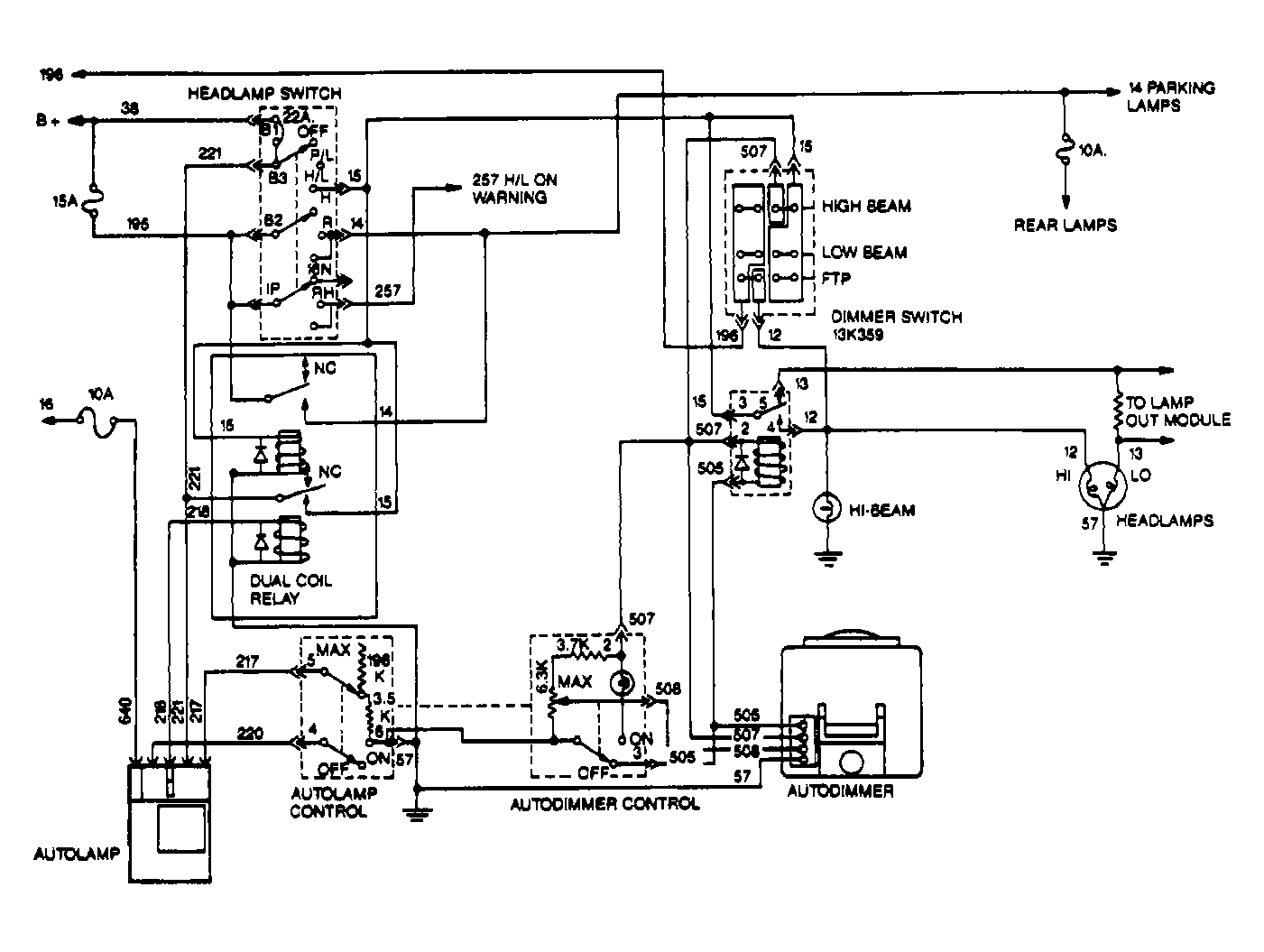

Fig 2: Automatic Headlight Dimmer Wiring Schematic (Cougar & Thunderbird)

Courtesy of FORD MOTOR CO.

Fig 3: Automatic Headlight Dimmer Wiring Schematic (Town Car)

Courtesy of FORD MOTOR CO.
