Timing Chain: Installation

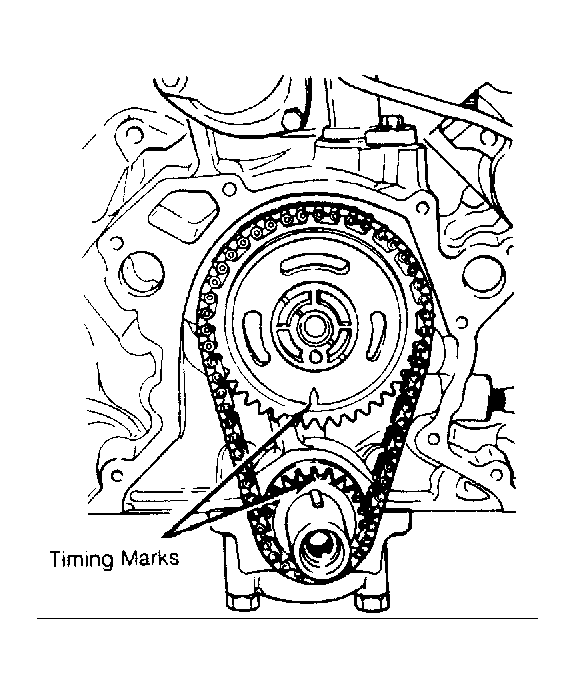

Place timing chain around camshaft and crankshaft gear. Align timing marks and slide assembly into position. See Figure. Install fuel pump eccentric on camshaft. Lubricate timing chain and gears with engine oil. To complete installation, reverse removal procedure.
