Instrument Cluster: Notes

NOTE: In the following diagnostic testing, circuits and illustrations are supplied courtesy of Ford Motor Co. For connector and harness identification, see Fig 1 through Fig 4 .

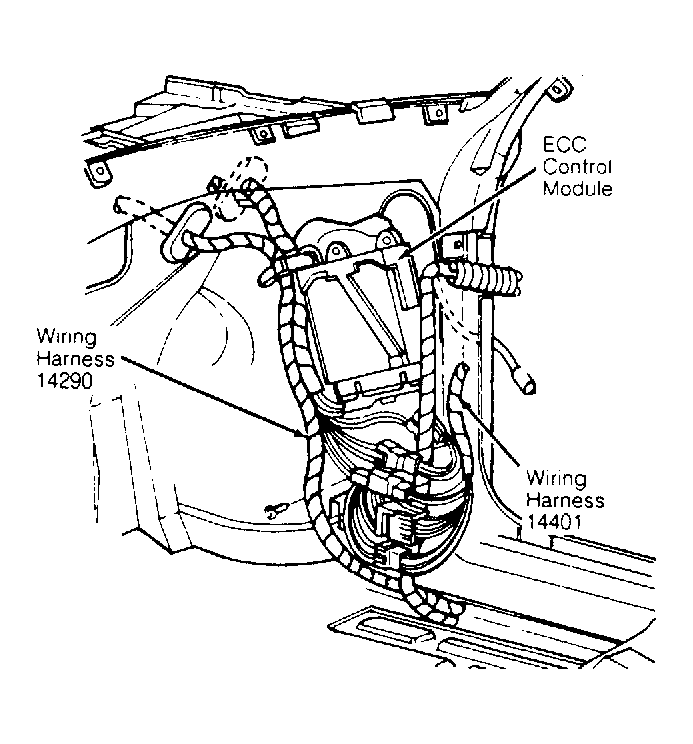

Fig 1: Harness Location (Right Kick Panel)
G108961Courtesy of FORD MOTOR CO.

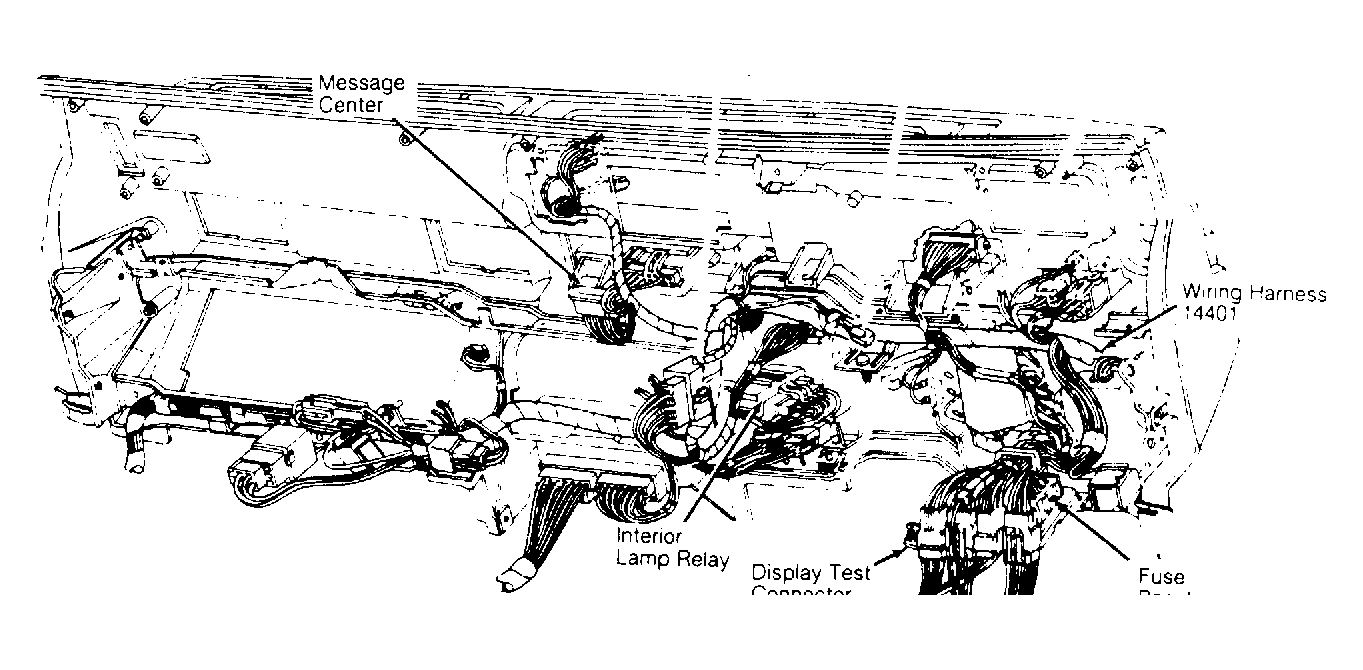

Fig 2: View from Behind Instrument Panel Wiring Harness Location
G108963Courtesy of FORD MOTOR CO.

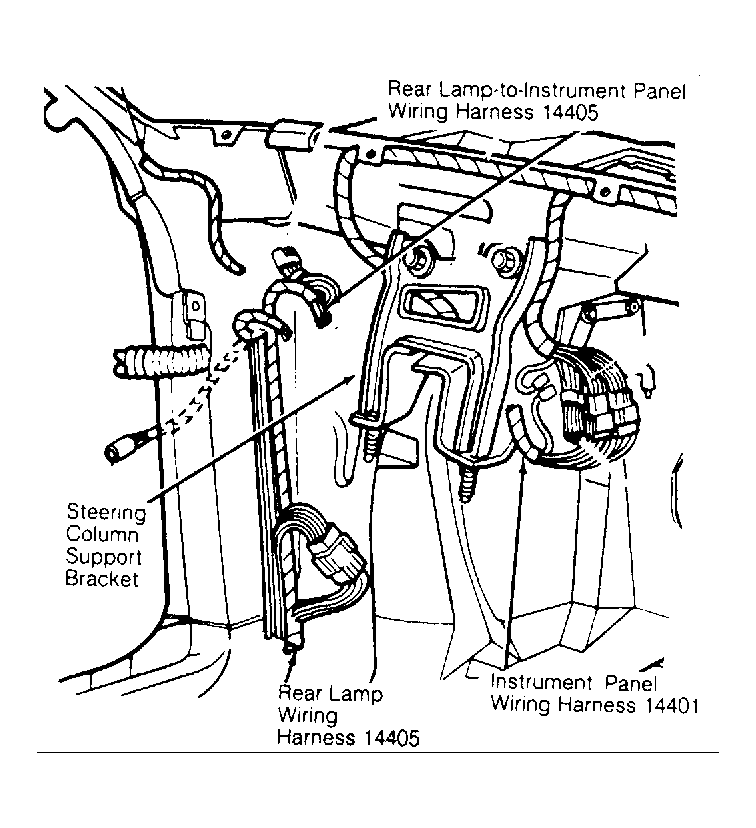

Fig 3: Harness Location (Left Kick Panel)
G108962Courtesy of FORD MOTOR CO.

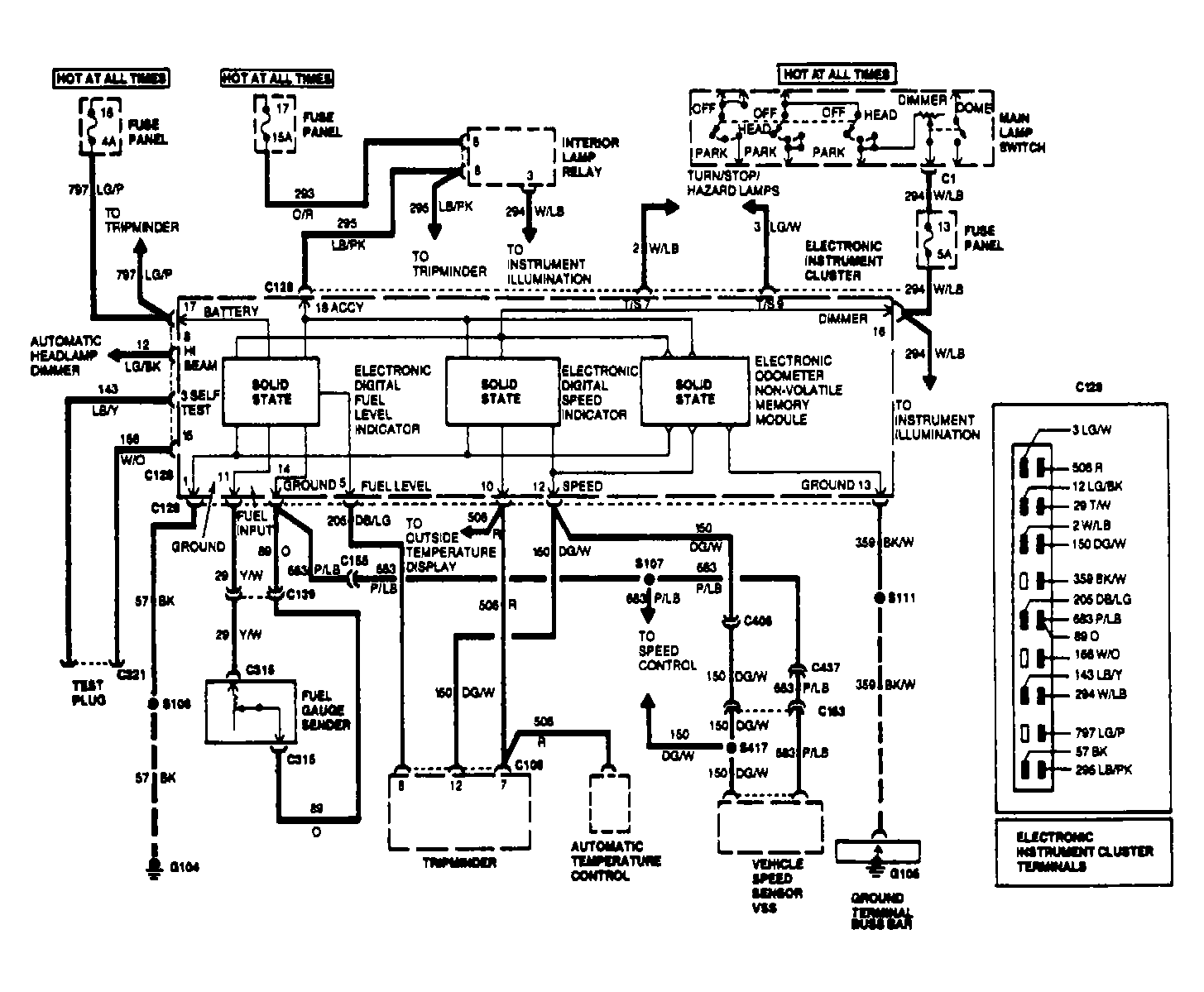

Fig 4: Mark VII Electronic Instrument Panel Wiring Diagram
G90G08297Courtesy of FORD MOTOR CO.
