Wiring Diagrams

NOTE: For Additional Information, See Appropriate Chassis Wiring Diagram In WIRING DIAGRAMS.

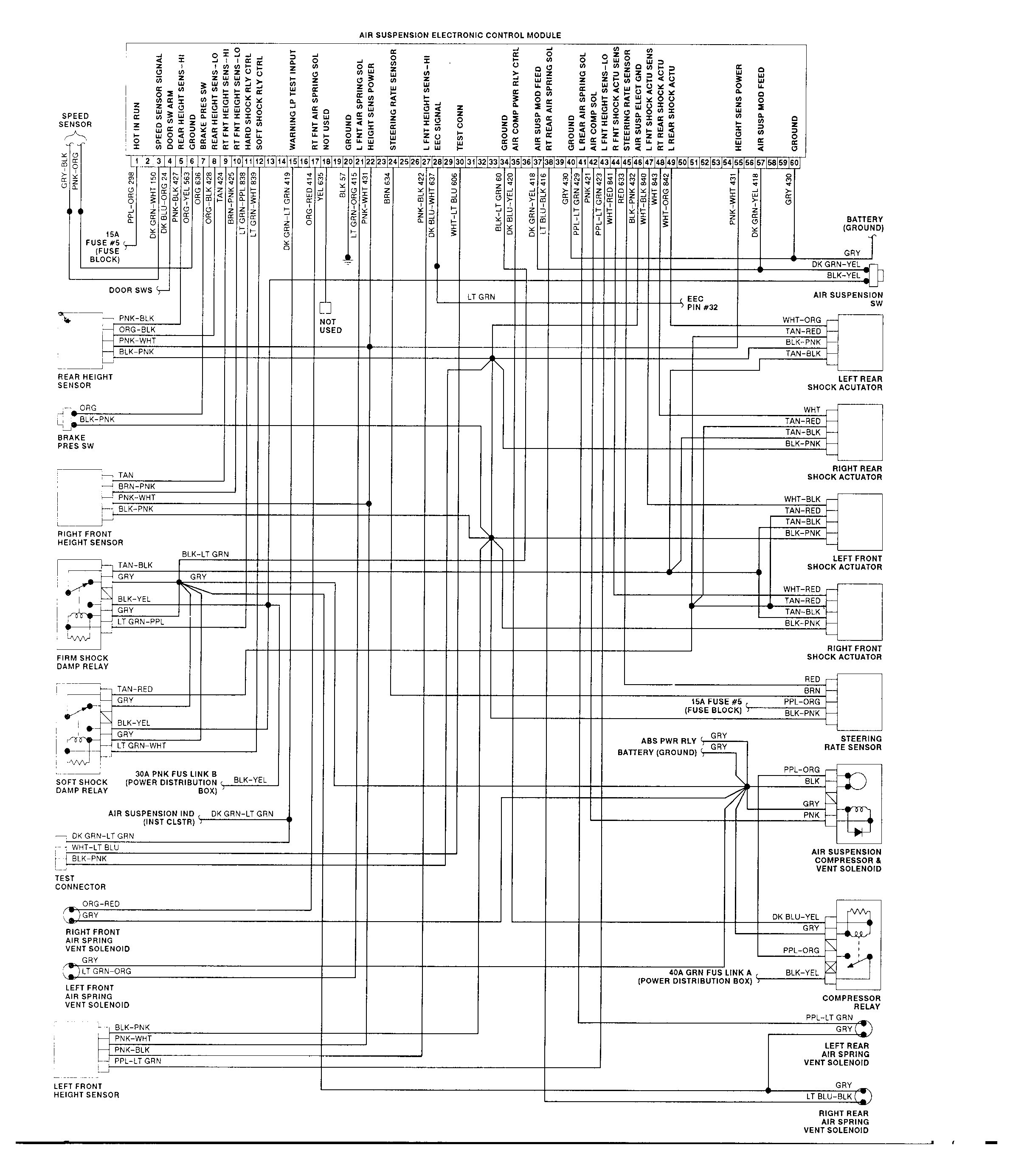

Fig 1: Electronic Air Suspension System Wiring Diagram

G91J08425
