Dampening Actuator R & I: Installation

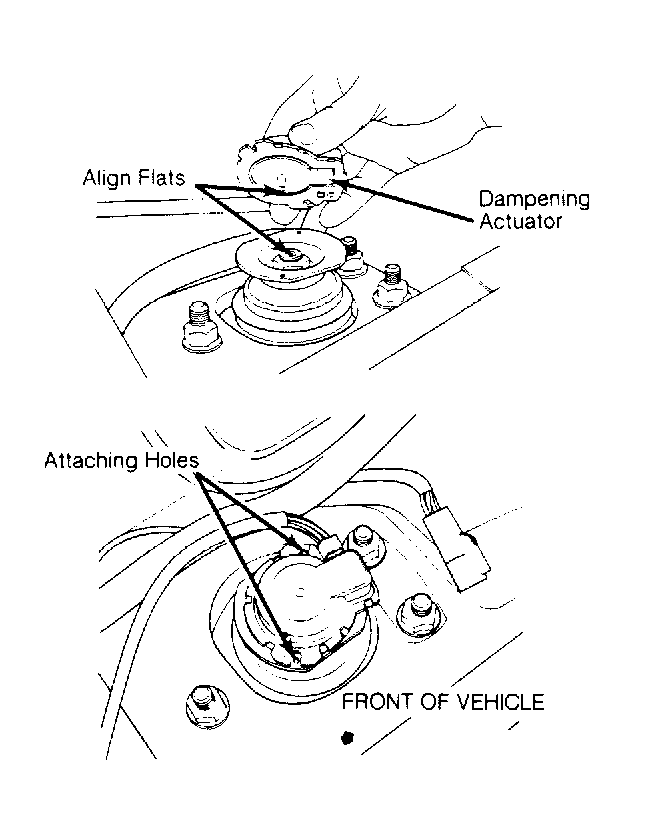

To install, reverse removal procedure. Ensure flats of dampening actuator and strut are aligned. See Fig 1 . Tighten retaining screws to specification. See TORQUE SPECIFICATIONS table.
NOTE:
Ensure electrical connector on dampening actuator is positioned so electrical wiring will be pointing toward inside of vehicle.
